8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#16730) — 67 parça

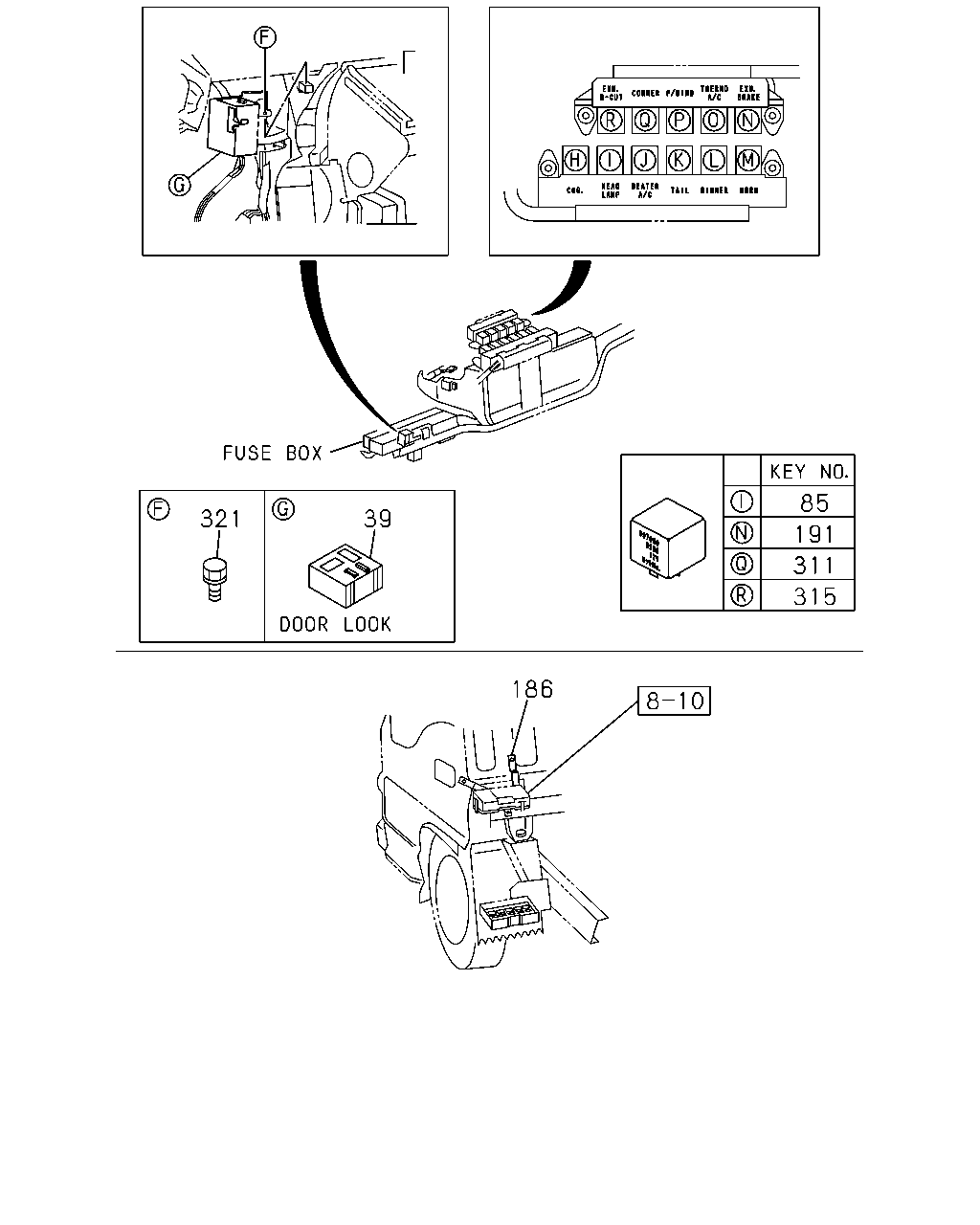

çizim 10817
85 321 39 191 311 315 186
BalonParca AdiParca NoAdetTipApplied Date A B C
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-215-0 01 1 0009-0212 ● ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0301- ● ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0009- ●
85 RELAY; HEADLAMP
12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
85 RELAY; HEADLAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
85 RELAY; HEADLAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
186 BRACKET; RELAY BOX 8-97135-422-1 01 1 0009- ●
191 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
191 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
191 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
311 RELAY; CORNERING LAMP
12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
311 RELAY; CORNERING LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
311 RELAY; CORNERING LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
315 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
315 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
315 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X20 		8-94436-927-0 01 1 0009- ● ● ●
çizim 10818
29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B C
29 SWITCH; DOOR 8-97855-032-3 01 1 0009- ● ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0009- ● ● ●
257 COVER; HOLE,SW
PTO TRANSMISSION SIDE<V66> (B) 		8-94310-890-0 01 1 0009- ● ● ●
257 COVER; HOLE,SW
(A) THA 		8-94229-914-1 01 1 0009- ● ● ●
257 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> (C) 		8-97136-694-0 01 1 0009- ● ● ●

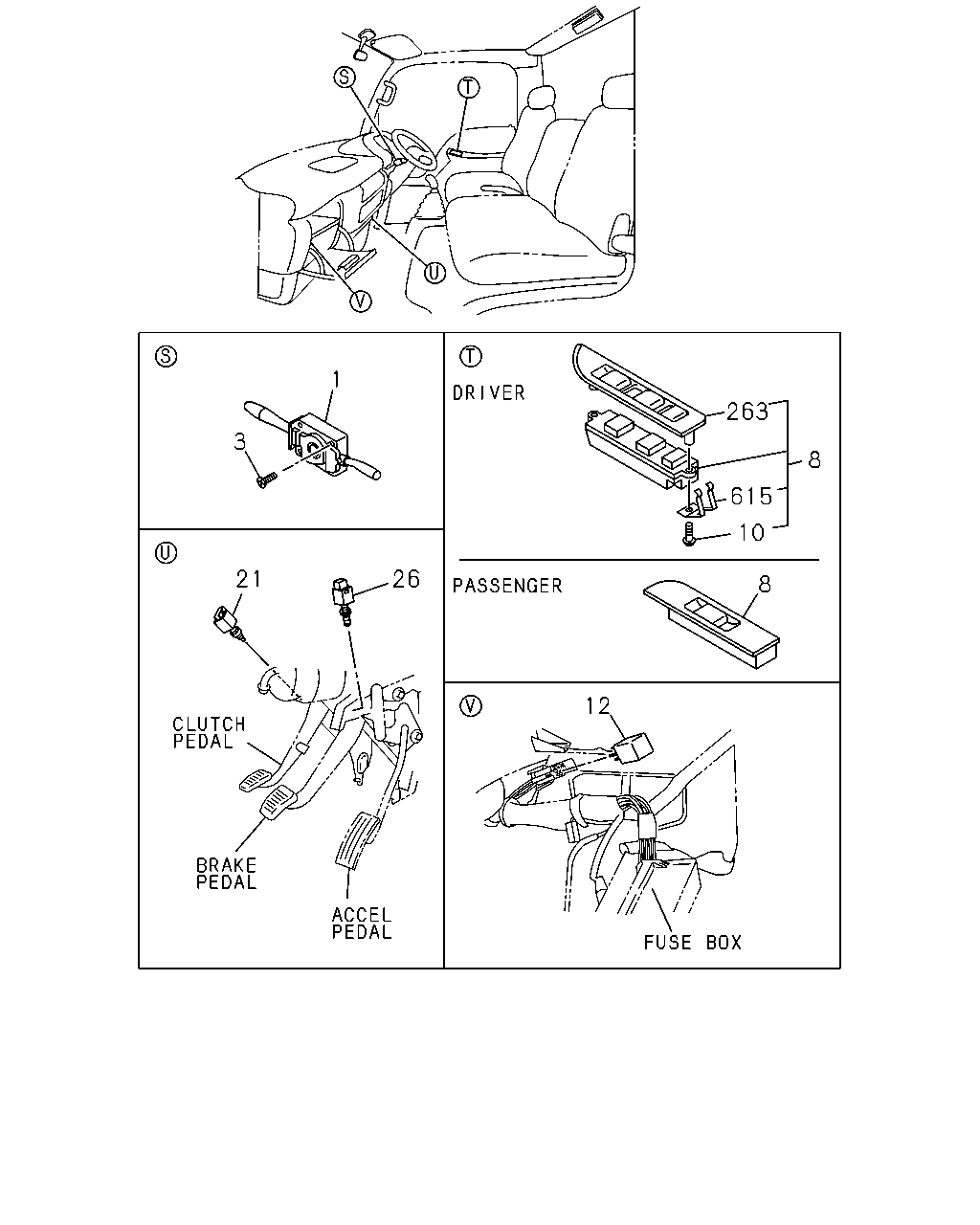

çizim 47646
1 263 3 8 615 10 21 26 8 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97170-393-0 01 1 0009-0101 ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-892-2 01 1 0102-0301 ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-076-0 01 1 0302- ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-394-0 01 1 0009-0101 ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-893-2 01 1 0102-0301 ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-077-0 01 1 0302- ● ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 0009-0101 ● ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0102-0301 ● ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0302- ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-218-1 01 1 0009-0101 ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-887-2 01 1 0102-0301 ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97364-073-0 01 1 0302- ● ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0009- ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-351-0 01 1 0009-0106 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97315-177-0 01 1 0107-0301 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97364-112-0 01 1 0302- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97214-398-0 01 1 0009- ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-350-0 01 1 0009-0106 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97315-176-0 01 1 0107- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0009- ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
21 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-94331-723-1 01 1 0009-0212 ● ● ●
21 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0301- ● ● ●
26 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-94368-343-0 01 1 0009-0212 ● ● ●
26 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0301- ● ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0009- ● ● ●
615 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0009- ● ● ●

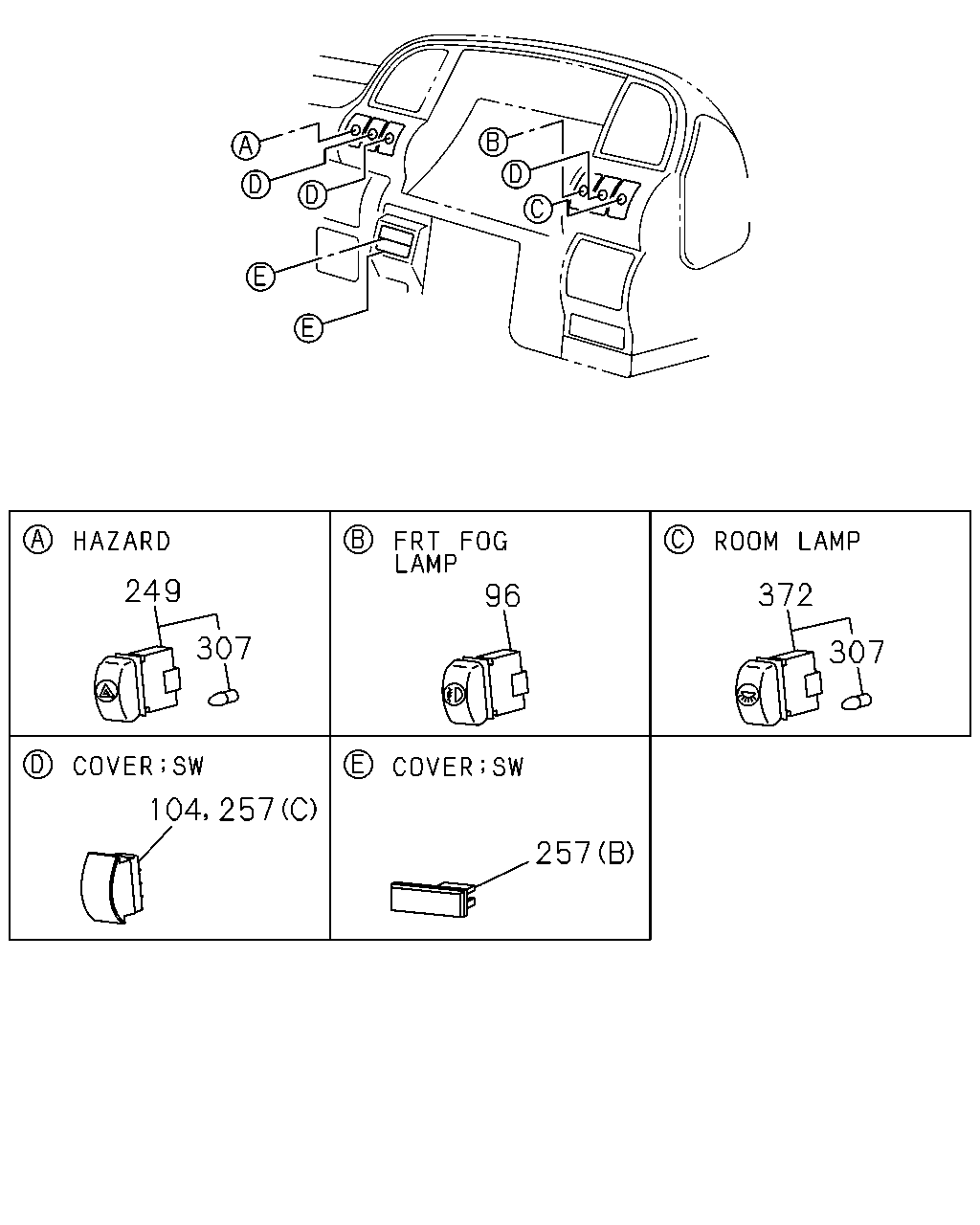

çizim 47756
249 372 96 307 307 257 104 257
BalonParca AdiParca NoAdetTipApplied Date A B C
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97140-964-0 01 1 0009- ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0009- ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-97136-694-0 01 1 0009- ● ● ●
249 SWITCH; HAZARD 8-97202-476-0 01 1 0009- ● ●
249 SWITCH; HAZARD 8-97202-475-0 01 1 0009- ●
257 COVER; HOLE,SW
PTO TRANSMISSION SIDE<V66> (B) 		8-94310-890-0 01 1 0009- ● ● ●
257 COVER; HOLE,SW
(A) THA 		8-94229-914-1 01 1 0009- ● ● ●
257 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> (C) 		8-97136-694-0 01 1 0009- ● ● ●
307 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0009- ● ●
307 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 01 1 0009- ● ●
307 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0009- ● ●
307 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0009- ●
307 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0009- ●
307 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0009- ●
372 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0009- ● ●
372 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0009- ●
