Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#1673) — 222 parça

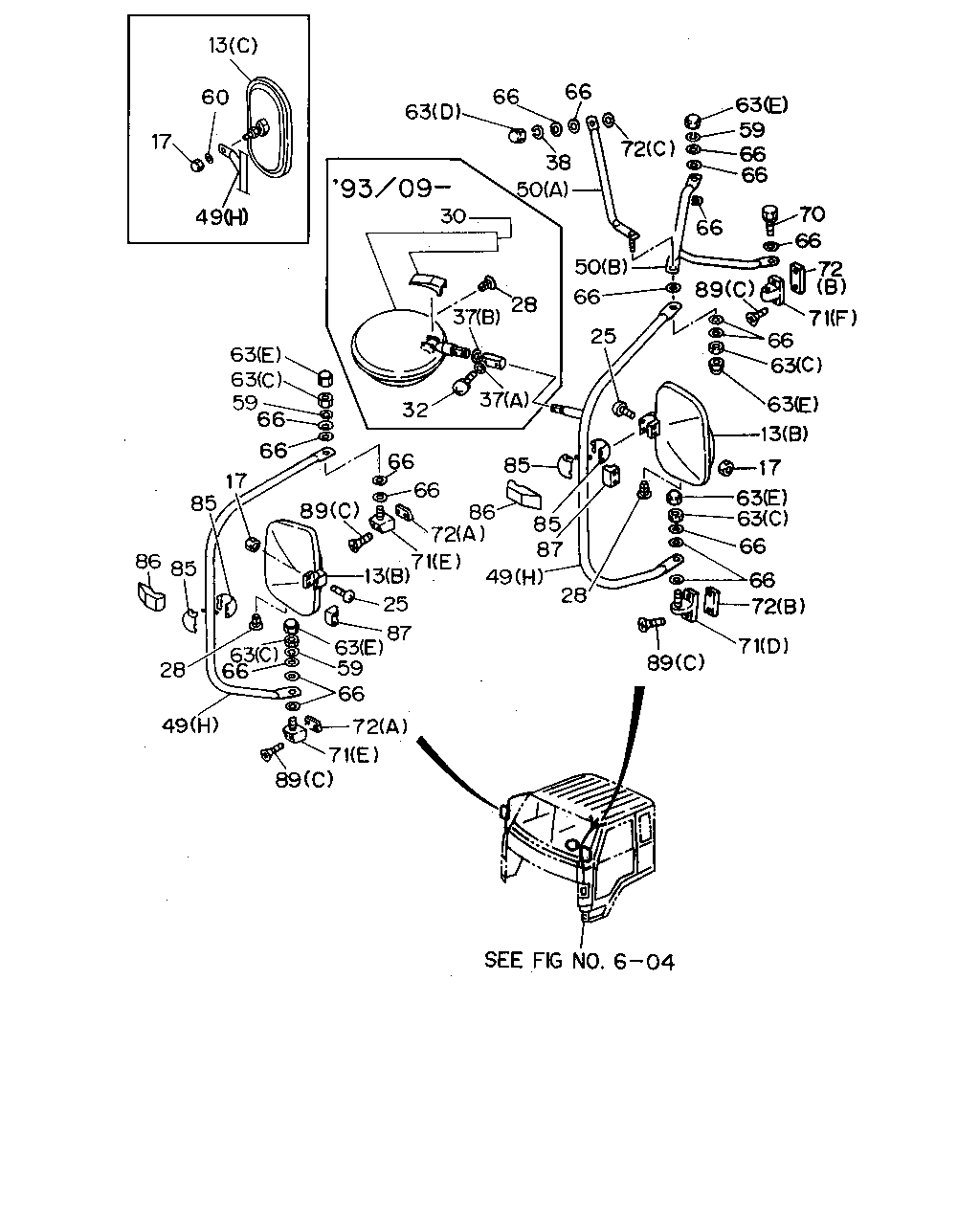

13 60 17 49 63 66 66 38 50 72 63 59 66 66 66 70 66 72 89 50 66 25 71 66 63 63 13 17 63 63 66 66 72 71 89 85 85 87 28 49 86 30 28 37 37 32 63 63 59 66 66 17 85 85 86 66 66 72 89 71 13 25 87 63 59 66 72 71 89 49 28 63 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR(D32) (A)	1-71737-487-3	02	1	9207-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (C)	1-71736-265-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (C)	1-71736-265-0	02	1	9309-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) (B)	1-71737-918-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (B)	1-71737-918-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-1	02	1	9309-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) (B)	1-71737-918-1	02	1	9309-	●	●	●	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR(D32) M8 FLANGE	1-09984-122-0	04	1	9207-	●	●	●	●	●
17	NUT; CAP,MIRROR STAY WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9207-9308	●	●	●	●	●
17	NUT; CAP,MIRROR STAY DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9207-9308	●	●	●	●	●
17	NUT; CAP,MIRROR STAY WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> M5	1-09984-124-0	04	1	9309-	●	●	●	●	●
17	NUT; CAP,MIRROR STAY DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9309-	●	●	●	●	●
25	SCREW; OUTSIDE MIRROR WIDE MIRROR(WU4) M5X50	1-09981-444-0	04	1	9207-9308	●	●	●	●	●
25	SCREW; OUTSIDE MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) M5X50	1-09981-444-0	04	1	9207-9308	●	●	●	●	●
25	SCREW; OUTSIDE MIRROR WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	04	1	9309-	●	●	●	●	●
25	SCREW; OUTSIDE MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) M5X50	1-09981-444-0	04	1	9309-	●	●	●	●	●
28	GROMMET; UNDER MIRROR WIDE MIRROR(WU4) BLACK	1-71737-678-0	02	1	9207-9308	●	●	●	●	●
28	GROMMET; UNDER MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) BLACK	1-71737-678-0	02	1	9207-9308	●	●	●	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9309-	●	●	●	●	●
28	GROMMET; UNDER MIRROR WIDE MIRROR(WU4) BLACK	1-71737-678-0	02	1	9309-	●	●	●	●	●
28	GROMMET; UNDER MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) BLACK	1-71737-678-0	02	1	9309-	●	●	●	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> BLACK	1-71736-662-4	01	1	9309-	●	●	●	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9309-	●	●	●	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	01	1	9309-	●	●	●	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-748-0	02	1	9309-	●	●	●	●	●
38	WASHER; LK,UNDER MIRROR EXC. DOOR MIRROR(D32) ID=8.2	1-09985-177-0	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (F)	1-71736-562-1	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (G)	1-71736-564-0	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (E)	1-71736-624-0	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-561-2	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-566-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-568-1	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-658-1	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-560-2	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-563-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-565-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-567-1	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (H)	1-71736-720-0	01	1	9207-9308	●	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (H)	1-71736-720-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (H)	1-71736-717-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-846-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (H)	1-71736-719-0	01	1	9207-9308	●	●	●	●	●
49	STAY; MIRROR SIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-719-0	01	1	9207-9308	●	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) EXC. MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) (H)	1-71736-719-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (H)	1-71798-001-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71798-001-0	01	1	9207-	●	●	●	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR(D32) (A)	1-71736-410-3	01	1	9207-	●	●	●	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR(D32) (B)	1-71736-414-0	01	1	9207-	●	●	●	●	●
59	WASHER; LK ID=10	1-09985-180-0	01	1	9309-	●	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) ID=8	1-09985-177-0	04	1	9207-	●	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) ID=10	1-09985-180-0	06	1	9207-	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> ID=10	1-09985-180-0	03	1	9207-9308	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) ID=10	1-09985-180-0	03	1	9207-9308	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> ID=10	1-09985-180-0	02	1	9309-	●	●	●	●	●
59	WASHER; LK WIDE MIRROR(WU4) ID=10	1-09985-180-0	01	1	9207-9308	●	●	●	●	●
59	WASHER; LK DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) ID=10	1-09985-180-0	01	1	9207-9308	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) ID=10	1-09985-180-0	03	1	9309-	●	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR(D32)	1-09985-191-0	08	1	9207-	●	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14>	1-09985-204-0	02	1	9207-9308	●	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14>	1-09985-204-0	02	1	9309-	●	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (A) M10	1-09984-134-0	06	1	9207-	●	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (B) M10 M10 H=8.3	1-09984-146-0	04	1	9207-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	03	1	9207-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (D) M8 FLANGE	1-09984-126-0	02	1	9207-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	01	1	9207-9308	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (E) M10	1-09984-145-0	03	1	9309-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (E) M10	1-09984-145-0	03	1	9207-9308	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (E) M10	1-09984-145-0	03	1	9207-9308	●	●	●	●	●
63	NUT; STAY (E) M10	1-09984-145-0	01	1	9309-	●	●	●	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●	●	●	●
63	NUT; STAY WIDE MIRROR(WU4) (E) M10	1-09984-145-0	01	1	9207-9308	●	●	●	●	●
63	NUT; STAY DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (E) M10	1-09984-145-0	01	1	9207-9308	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (E) M10	1-09984-145-0	02	1	9309-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=8.4 OD=16	1-09985-174-0	04	1	9207-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=10 OD=18 OD=18 T=2.0	1-09985-182-0	04	1	9207-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	12	1	9207-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	14	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=8.4 OD=16	1-09985-174-0	02	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=8.5 T=1.0	1-09985-181-0	02	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	10	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	03	1	9207-	●	●	●	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR(D32) M10X52	1-71736-634-0	02	1	9207-	●	●	●	●	●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR(D32) M10X30	1-09980-517-0	01	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (B)	1-71736-224-3	04	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (A)	1-71736-404-1	04	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (C)	1-71737-441-4	06	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (E)	1-71736-419-2	02	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (F)	1-71736-578-0	01	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (D) WHITE	1-71736-415-3	01	1	9207-	●	●	●	●	●
72	SHEET DOOR MIRROR(D32) (A)	1-71737-428-0	06	1	9207-	●	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32) (C)	1-71736-247-0	02	1	9207-	●	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32) (B)	1-71737-444-0	02	1	9207-	●	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32) (A)	1-71737-428-0	02	1	9207-	●	●	●	●	●
85	PIVOT; MAIN MIRROR WIDE MIRROR(WU4) ID=22.2	1-71736-489-2	04	1	9207-9308	●	●	●	●	●
85	PIVOT; MAIN MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) ID=22.2	1-71736-489-2	04	1	9207-9308	●	●	●	●	●
85	PIVOT; MAIN MIRROR WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> ID=22.2	1-71736-489-2	04	1	9309-	●	●	●	●	●
85	PIVOT; MAIN MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) ID=22.2	1-71736-489-2	04	1	9309-	●	●	●	●	●
86	COVER; STAY,OUTSIDE MIRROR WIDE MIRROR(WU4) BLACK	1-71737-760-0	02	1	9207-9308	●	●	●	●	●
86	COVER; STAY,OUTSIDE MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) BLACK	1-71737-760-0	02	1	9207-9308	●	●	●	●	●
86	COVER; STAY,OUTSIDE MIRROR WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-760-0	02	1	9309-	●	●	●	●	●
86	COVER; STAY,OUTSIDE MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) BLACK	1-71737-760-0	02	1	9309-	●	●	●	●	●
87	SPACER WIDE MIRROR(WU4)	1-71737-704-0	02	1	9207-9308	●	●	●	●	●
87	SPACER DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4)	1-71737-704-0	02	1	9207-9308	●	●	●	●	●
87	SPACER WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9>	1-71737-704-0	02	1	9309-	●	●	●	●	●
87	SPACER DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4)	1-71737-704-0	02	1	9309-	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9207-9207	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	12	1	9207-	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (C) M6X20	1-09981-494-0	08	1	9207-	●	●	●	●	●

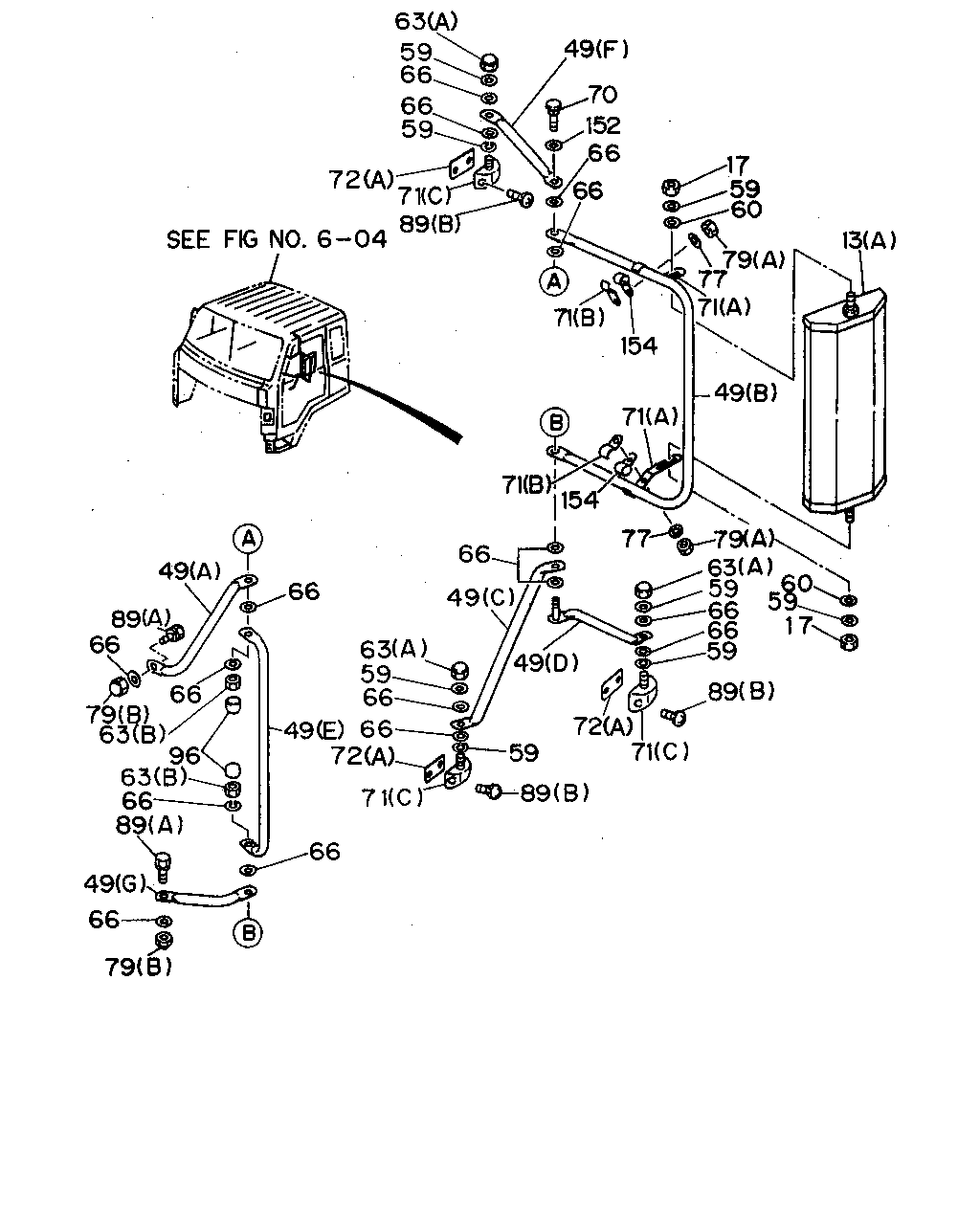

63 59 66 66 59 49 70 152 66 66 17 59 60 13 79 77 71 71 72 89 71 154 49 71 71 154 77 79 60 59 17 63 59 66 66 59 89 71 72 66 49 49 59 89 63 59 66 66 72 71 49 66 49 89 66 66 79 63 96 63 66 89 49 66 79 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR(D32) (A)	1-71737-487-3	02	1	9207-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (C)	1-71736-265-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (C)	1-71736-265-0	02	1	9309-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) (B)	1-71737-918-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (B)	1-71737-918-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-1	02	1	9309-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) (B)	1-71737-918-1	02	1	9309-	●	●	●	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR(D32) M8 FLANGE	1-09984-122-0	04	1	9207-	●	●	●	●	●
17	NUT; CAP,MIRROR STAY WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9207-9308	●	●	●	●	●
17	NUT; CAP,MIRROR STAY DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9207-9308	●	●	●	●	●
17	NUT; CAP,MIRROR STAY WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> M5	1-09984-124-0	04	1	9309-	●	●	●	●	●
17	NUT; CAP,MIRROR STAY DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (F)	1-71736-562-1	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (G)	1-71736-564-0	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (E)	1-71736-624-0	02	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-561-2	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-566-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-568-1	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-658-1	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-560-2	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-563-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-565-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-567-1	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (H)	1-71736-720-0	01	1	9207-9308	●	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (H)	1-71736-720-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (H)	1-71736-717-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-846-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (H)	1-71736-719-0	01	1	9207-9308	●	●	●	●	●
49	STAY; MIRROR SIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-719-0	01	1	9207-9308	●	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) EXC. MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) (H)	1-71736-719-0	01	1	9309-	●	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (H)	1-71798-001-0	01	1	9207-	●	●	●	●	●
49	STAY; MIRROR SIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71798-001-0	01	1	9207-	●	●	●	●	●
59	WASHER; LK ID=10	1-09985-180-0	01	1	9309-	●	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) ID=8	1-09985-177-0	04	1	9207-	●	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) ID=10	1-09985-180-0	06	1	9207-	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> ID=10	1-09985-180-0	03	1	9207-9308	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) ID=10	1-09985-180-0	03	1	9207-9308	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> ID=10	1-09985-180-0	02	1	9309-	●	●	●	●	●
59	WASHER; LK WIDE MIRROR(WU4) ID=10	1-09985-180-0	01	1	9207-9308	●	●	●	●	●
59	WASHER; LK DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) ID=10	1-09985-180-0	01	1	9207-9308	●	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) ID=10	1-09985-180-0	03	1	9309-	●	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR(D32)	1-09985-191-0	08	1	9207-	●	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14>	1-09985-204-0	02	1	9207-9308	●	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14>	1-09985-204-0	02	1	9309-	●	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (A) M10	1-09984-134-0	06	1	9207-	●	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (B) M10 M10 H=8.3	1-09984-146-0	04	1	9207-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	03	1	9207-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (D) M8 FLANGE	1-09984-126-0	02	1	9207-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	01	1	9207-9308	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (E) M10	1-09984-145-0	03	1	9309-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (E) M10	1-09984-145-0	03	1	9207-9308	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (E) M10	1-09984-145-0	03	1	9207-9308	●	●	●	●	●
63	NUT; STAY (E) M10	1-09984-145-0	01	1	9309-	●	●	●	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●	●	●	●
63	NUT; STAY WIDE MIRROR(WU4) (E) M10	1-09984-145-0	01	1	9207-9308	●	●	●	●	●
63	NUT; STAY DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (E) M10	1-09984-145-0	01	1	9207-9308	●	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (E) M10	1-09984-145-0	02	1	9309-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=8.4 OD=16	1-09985-174-0	04	1	9207-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=10 OD=18 OD=18 T=2.0	1-09985-182-0	04	1	9207-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	12	1	9207-	●	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	14	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=8.4 OD=16	1-09985-174-0	02	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=8.5 T=1.0	1-09985-181-0	02	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	10	1	9207-	●	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR(D32) ID=10 OD=26	1-09985-204-0	03	1	9207-	●	●	●	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR(D32) M10X52	1-71736-634-0	02	1	9207-	●	●	●	●	●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR(D32) M10X30	1-09980-517-0	01	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (B)	1-71736-224-3	04	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (A)	1-71736-404-1	04	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (C)	1-71737-441-4	06	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (E)	1-71736-419-2	02	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (F)	1-71736-578-0	01	1	9207-	●	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (D) WHITE	1-71736-415-3	01	1	9207-	●	●	●	●	●
72	SHEET DOOR MIRROR(D32) (A)	1-71737-428-0	06	1	9207-	●	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32) (C)	1-71736-247-0	02	1	9207-	●	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32) (B)	1-71737-444-0	02	1	9207-	●	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32) (A)	1-71737-428-0	02	1	9207-	●	●	●	●	●
77	WASHER; PL,BRKT,STAY DOOR MIRROR(D32) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9207-	●	●	●	●	●
79	NUT; BRKT,STAY DOOR MIRROR(D32) (A) M8 FLANGE	1-09984-122-0	04	1	9207-	●	●	●	●	●
79	NUT; BRKT,STAY DOOR MIRROR(D32) (B) M8 FLANGE	1-09984-126-0	04	1	9207-	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9207-9207	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	12	1	9207-	●	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (C) M6X20	1-09981-494-0	08	1	9207-	●	●	●	●	●
96	CAP; MIRROR STAY DOOR MIRROR(D32)	1-71736-199-0	04	1	9207-	●	●	●	●	●
152	SHEET; MIRROR STAY DOOR MIRROR(D32)	1-71736-357-0	02	1	9207-	●	●	●	●	●
154	SEAT; BRKT DOOR MIRROR(D32)	1-71736-479-0	04	1	9207-	●	●	●	●	●

134 132 133 13 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	MIRROR; ROOM	1-73117-026-1	01	1	9207-	●	●	●	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9207-	●	●	●	●	●
6	BUSHING; RR VIEW MIRROR DELUXE CAB<W14>	1-73318-342-0	02	1	9207-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR(D32) (A)	1-71737-487-3	02	1	9207-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4),DELUXE CAB<W14> (C)	1-71736-265-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4),DELUXE CAB<W14> (C)	1-71736-265-0	02	1	9309-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) (B)	1-71737-918-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (B)	1-71737-918-0	02	1	9207-9308	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-1	02	1	9309-	●	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4) (B)	1-71737-918-1	02	1	9309-	●	●	●	●	●
132	RING; MIRROR WIDE MIRROR(WU4)	1-71737-934-0	02	1	9207-9308	●	●	●	●	●
132	RING; MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4)	1-71737-934-0	02	1	9207-9308	●	●	●	●	●
132	RING; MIRROR WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9>	1-71737-934-0	02	1	9309-	●	●	●	●	●
132	RING; MIRROR DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4)	1-71737-934-0	02	1	9309-	●	●	●	●	●
133	LENS; MIRROR,OUTSIDE WIDE MIRROR(WU4)	1-71737-927-0	02	1	9207-9308	●	●	●	●	●
133	LENS; MIRROR,OUTSIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4)	1-71737-927-0	02	1	9207-9308	●	●	●	●	●
133	LENS; MIRROR,OUTSIDE WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9>	1-71737-927-0	02	1	9309-	●	●	●	●	●
133	LENS; MIRROR,OUTSIDE DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4)	1-71737-927-0	02	1	9309-	●	●	●	●	●
134	CLIP; MIRROR LENS WIDE MIRROR(WU4)	1-71737-936-0	02	1	9207-9308	●	●	●	●	●
134	CLIP; MIRROR LENS DELUXE CAB<W14> EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4)	1-71737-936-0	02	1	9207-9308	●	●	●	●	●
134	CLIP; MIRROR LENS WIDE MIRROR(WU4) MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	02	1	9309-	●	●	●	●	●
134	CLIP; MIRROR LENS DELUXE CAB<W14> EXC. DOOR MIRROR(D32),MIRROR O/S UNDER VIEW<RR9>,WIDE MIRROR(WU4)	1-71737-936-0	02	1	9309-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
