◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#16729) — 74 parça

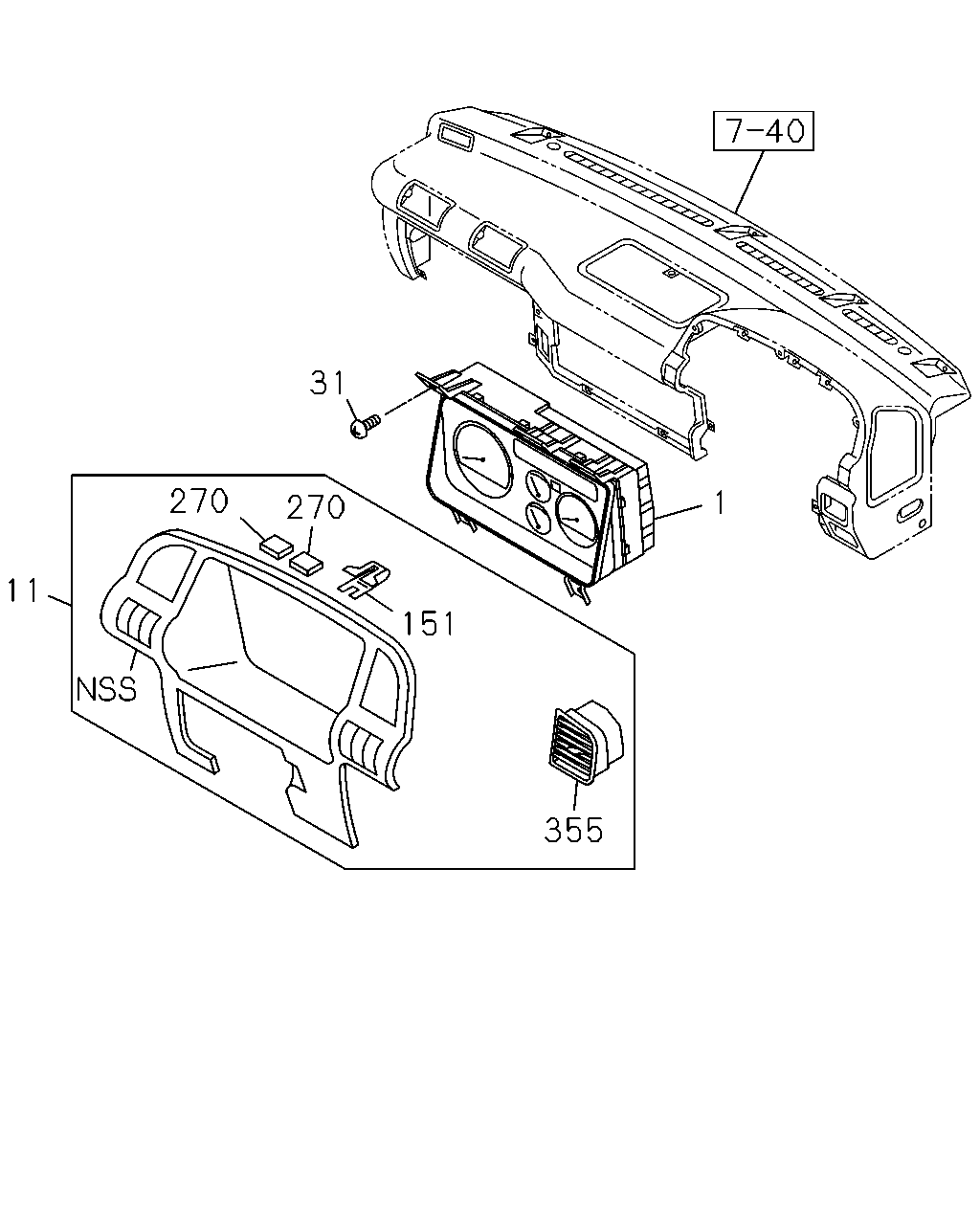

çizim 10946
31 270 1 270 11 151 355
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97172-033-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-585-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ●
11 CLUSTER ASM; METER
BLACK 		8-97195-964-2 01 1 0009- ● ● ●
31 SCREW; METER,INST PANEL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0009- ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0009-0208 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 14 1 0209-0210 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0211- ● ● ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 02 1 0009-0208 ● ● ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 04 1 0209-0210 ● ● ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 02 1 0211- ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0009-0208 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 02 1 0209-0210 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0211- ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0009-0208 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 02 1 0209-0210 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0211- ● ● ●

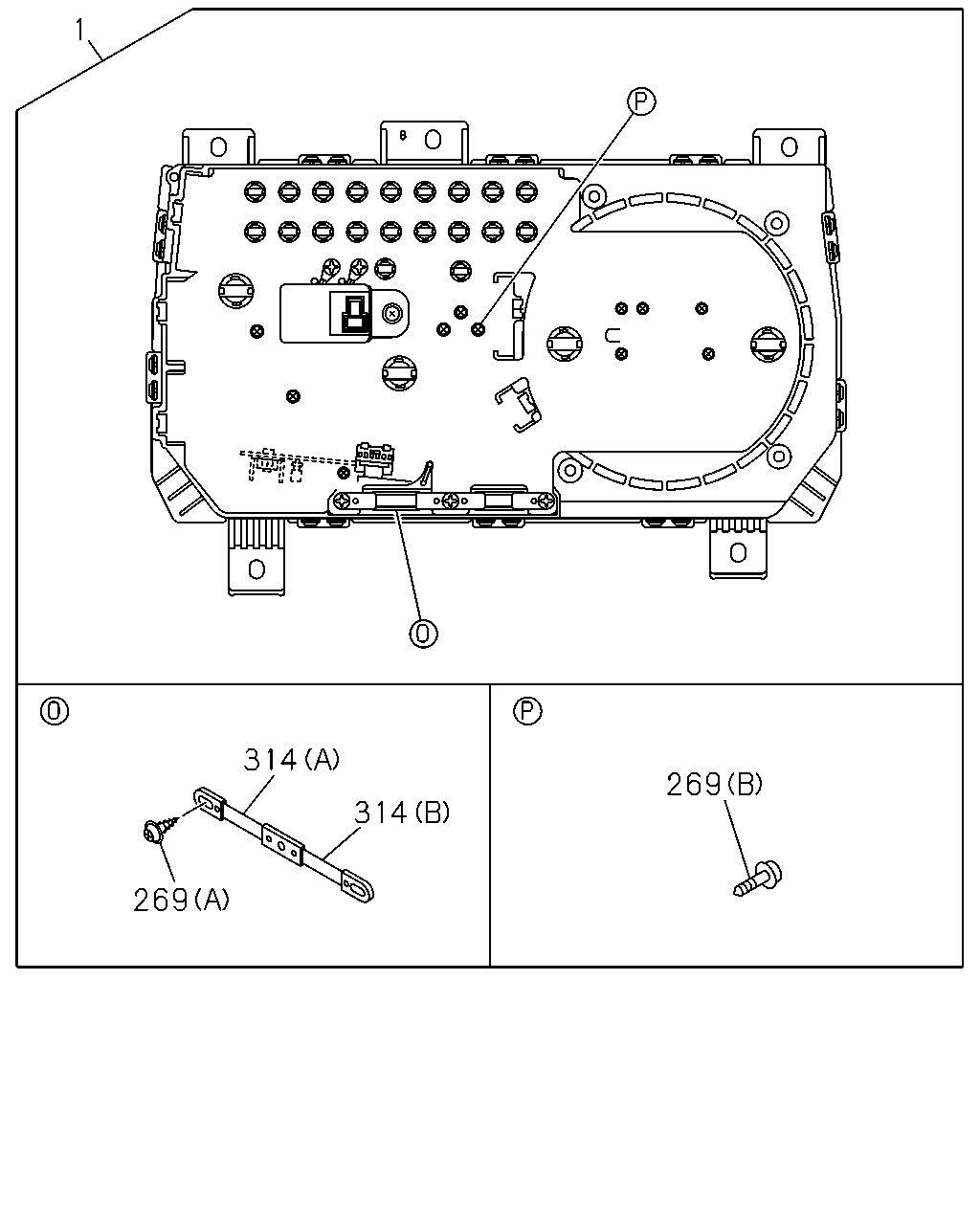

çizim 47339
1 314 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97172-033-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-585-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-528-0 02 1 0009- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-525-0 06 1 0009- ● ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-523-0 01 1 0009- ●
269 SCREW; METER CLUSTER
(A) 		8-97185-528-0 05 1 0009- ●
314 RESISTOR; COMB METER,CLUSTER METER
(A) 		8-97185-515-0 01 1 0009- ●
314 RESISTOR; COMB METER,CLUSTER METER
(B) 		8-97185-516-0 01 1 0009- ●

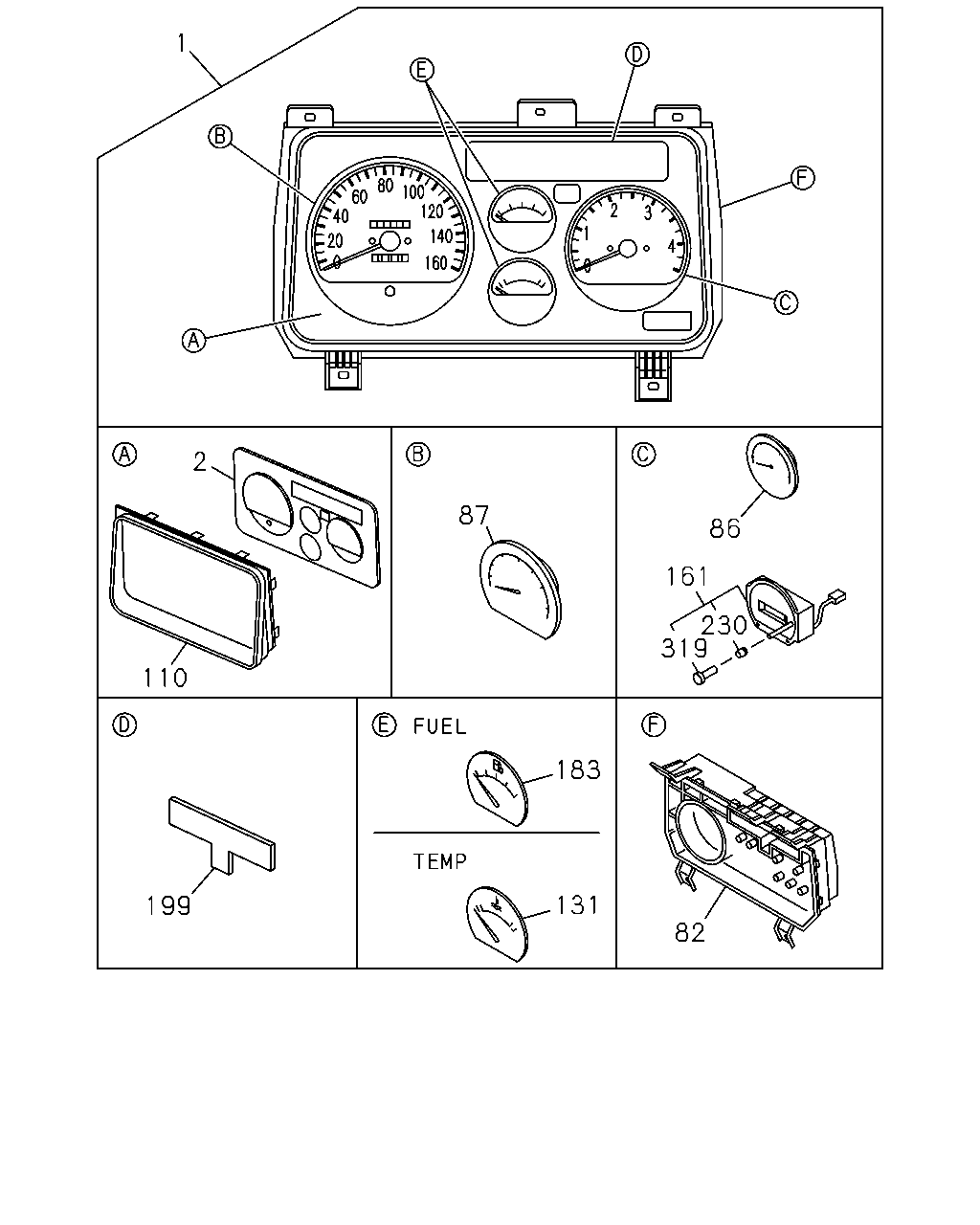

çizim 47821
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97172-033-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-585-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ●
2 PANEL; CLUSTER 8-97185-443-0 01 1 0009- ● ● ●
82 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0009- ● ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97185-467-0 01 1 0009- ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97185-470-0 01 1 0009- ●
87 SPEEDOMETER 8-97185-457-0 01 1 0009- ● ● ●
110 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97185-452-0 01 1 0009- ● ● ●
110 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0009- ● ● ●
131 GAUGE; TEMP,CLUSTER METER 8-97185-476-0 01 1 0009- ● ●
131 GAUGE; TEMP,CLUSTER METER 8-97185-475-0 01 1 0009- ●
161 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0009- ● ● ●
183 GAUGE; FUEL 8-97185-473-0 01 1 0009- ● ● ●
199 LENS; WARNING LAMP 8-97185-481-0 01 1 0009- ● ● ●
230 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0009- ● ● ●
319 SCREW; KNOB,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0009- ● ● ●

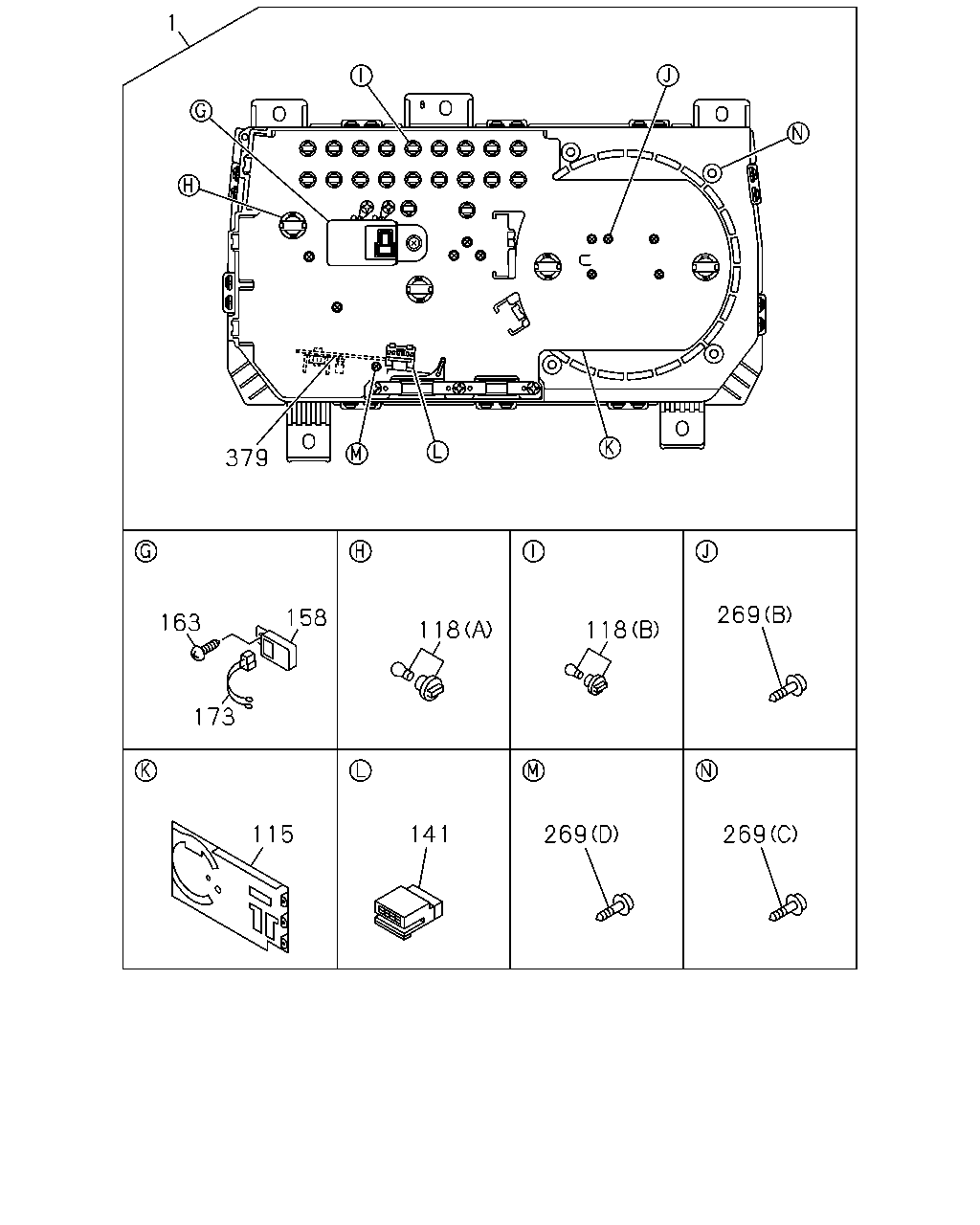

çizim 47822
1 379 269 158 163 118 118 173 115 269 269 141
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97172-033-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-585-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97185-506-0 01 1 0009- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-499-0 01 1 0009- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97185-507-0 01 1 0009- ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0009- ●
118 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0009- ● ●
118 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0009- ● ●
118 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0009- ● ●
118 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0009- ●
118 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 09 1 0009- ●
118 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0009- ●
141 CONNECTOR; CLUSTER METER 8-97185-513-0 01 1 0009- ●
158 BUZZER; VAC WARNING
12V 		8-97185-520-0 01 1 0009- ● ●
158 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0009- ●
163 SCREW; BUZZER 8-97185-527-0 01 1 0009- ● ● ●
173 WIRE; LEAD 8-97185-643-0 01 1 0009- ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-528-0 02 1 0009- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-525-0 06 1 0009- ● ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-523-0 01 1 0009- ●
269 SCREW; METER CLUSTER
(A) 		8-97185-528-0 05 1 0009- ●
379 CIRCUIT; DROP 8-97185-512-0 01 1 0009- ●
