◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#16727) — 37 parça

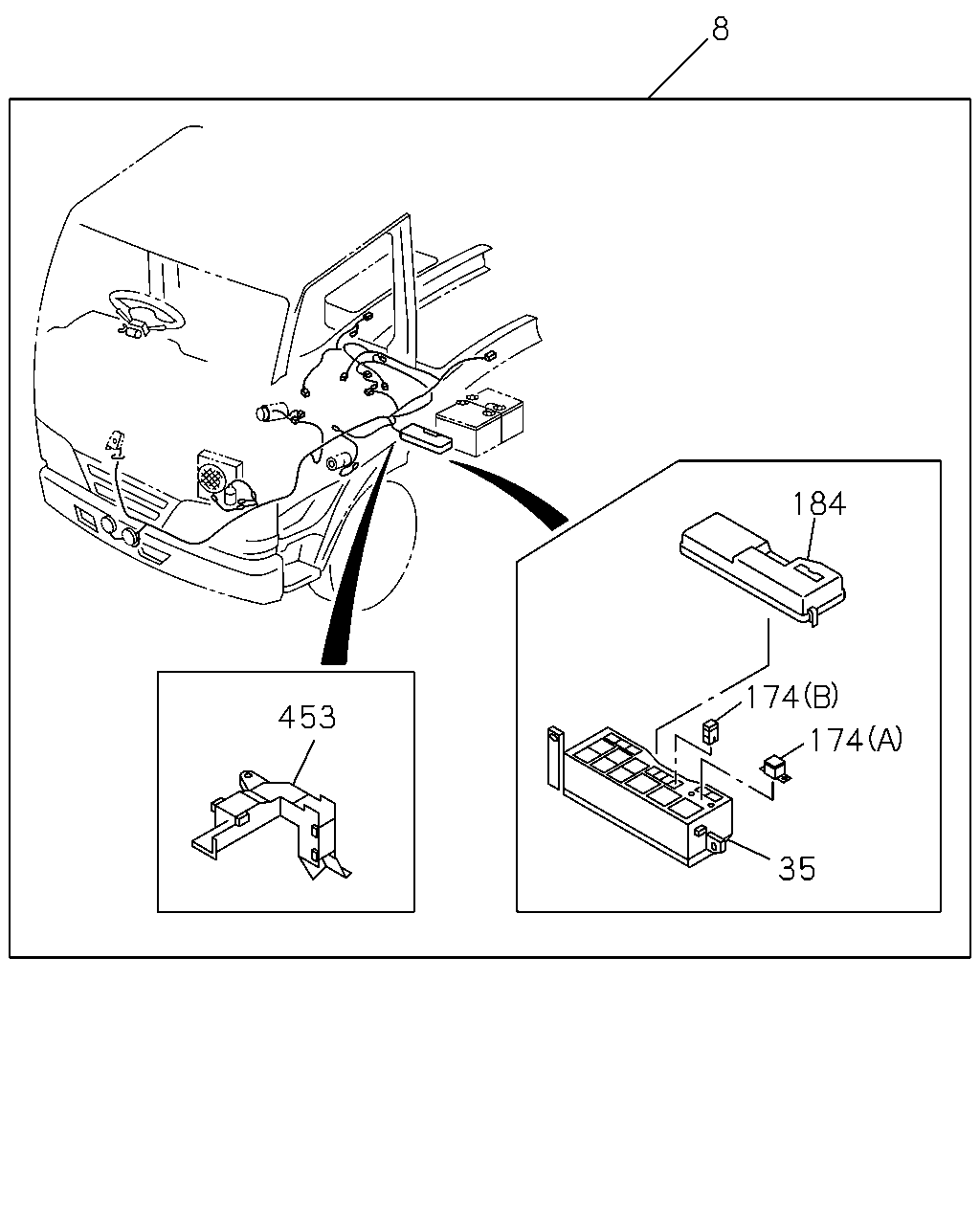

çizim 6235
8 184 174 453 174 35
BalonParca AdiParca NoAdetTipApplied Date A B C
8 HARNESS; FRAME,FRT
THA 		8-97917-020-0 02 1 0009- ●
8 HARNESS; FRAME,FRT
THA 		8-97917-019-3 01 1 0009- ●
8 HARNESS; FRAME,FRT
THA 		8-97918-000-3 01 1 0009- ●
35 BOX; RELAY & FUSE
THA 		8-97063-150-1 01 1 0009- ● ● ●
174 FUSE; SLOW BLOW
(A) 80A BLACK THA 		8-94388-305-0 AR 1 0009- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-94468-663-0 AR 1 0009- ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW THA 		8-94388-303-0 AR 1 0009- ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-94468-664-0 AR 1 0009- ●
184 COVER; RELAY & FUSE BOX
THA 		8-97063-152-1 01 1 0009- ● ● ●
453 PROTECTOR; HARNESS
THA 		8-97120-589-0 01 1 0009- ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308- ● ●

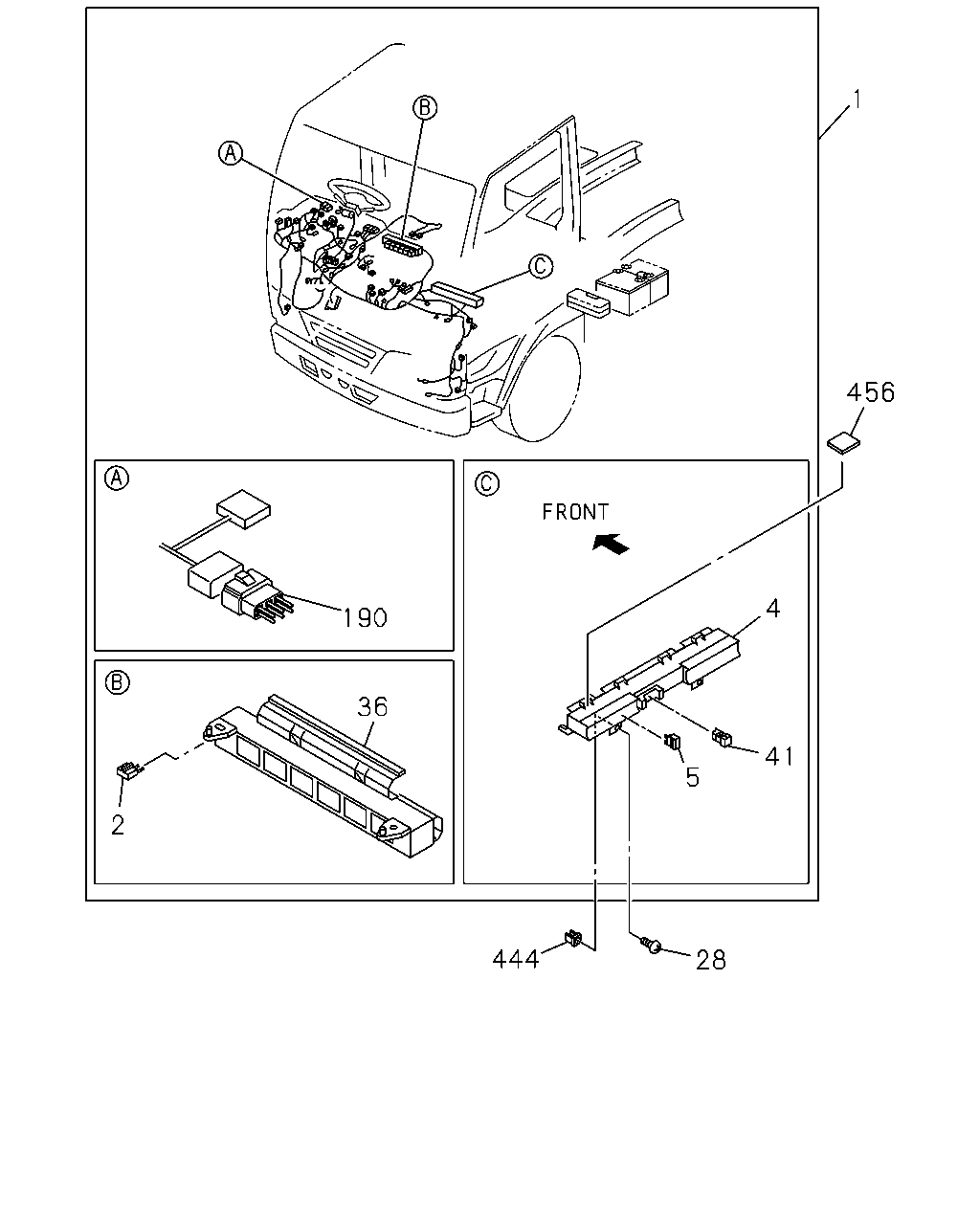

çizim 47466
1 456 4 190 36 41 5 2 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
THA 		8-97917-040-3 01 1 0009- ● ●
1 HARNESS; CAB
THA 		8-97917-041-0 01 1 0009- ●
2 DIODE; CABLE HARNESS
BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 0009- ● ● ●
4 BOX ASM; FUSE,HARNESS
THA 		8-97077-664-0 01 1 0009- ● ● ●
5 FUSE; FACIA HARNESS
10A RED THA 		5-82516-002-0 AR 1 0009- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE THA 		5-82516-003-0 AR 1 0009- ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0009- ● ● ●
36 BOX; RELAY
THA 		8-97087-639-1 01 1 0009- ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0009- ● ● ●
190 CONNECTOR; SHORT CIRCUIT
THA 		5-82690-411-0 01 1 0009- ●
444 GROMMET; SCREW,FUSE BOX
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 02 1 0009- ● ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0009- ● ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308- ● ●

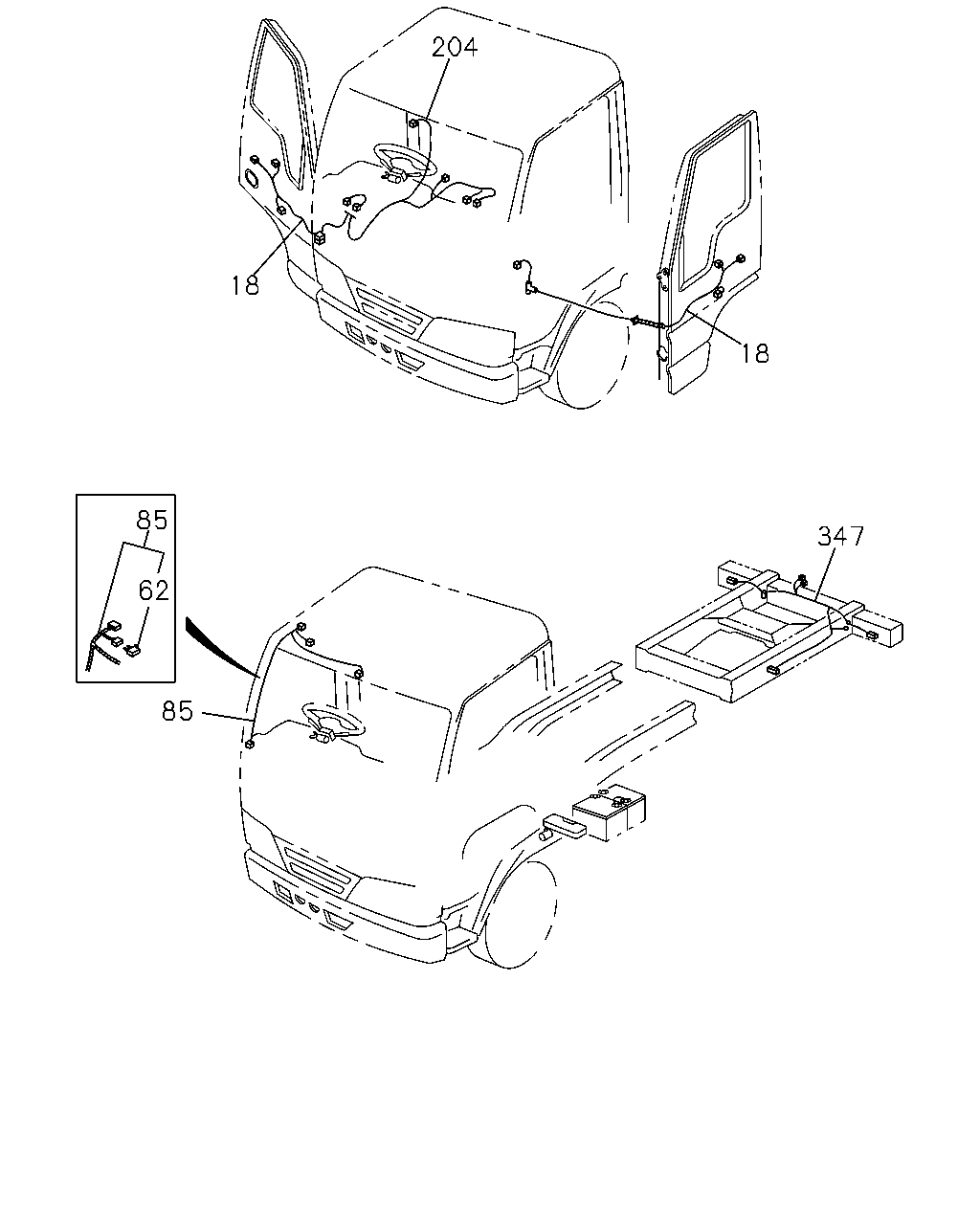

çizim 49147
204 18 18 85 347 62 85
BalonParca AdiParca NoAdetTipApplied Date A B C
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97917-005-0 02 1 0009- ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0009- ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0009- ● ● ●
85 HARNESS; ROOM LAMP
THA 		8-97917-003-1 01 1 0009- ● ● ●
204 HARNESS; CABLE,FLOOR
THA 		8-97917-002-1 01 1 0009- ● ● ●
347 HARNESS; CABLE,RR BODY
THA 		8-97916-998-1 01 1 0009- ● ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308- ● ●
çizim 49184
13 416 329
BalonParca AdiParca NoAdetTipApplied Date A B C
13 HARNESS; ENG
EXC. TACHOMETER<U16> 		8-97214-265-1 01 1 0009- ● ●
13 HARNESS; ENG 8-97210-064-1 01 1 0009- ●
329 CABLE; ENG TO FRAME
THA 		8-97916-587-0 01 1 0009- ● ●
329 CABLE; ENG TO FRAME
EXC. AIR CONDITIONER MANUAL CONT<C60> 		8-97177-383-0 01 1 0101- ●
416 NUT; TERMINAL
M6 W/LK WASHER 		8-94424-179-0 01 1 0009- ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308- ● ●
