◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#16721) — 15 parça

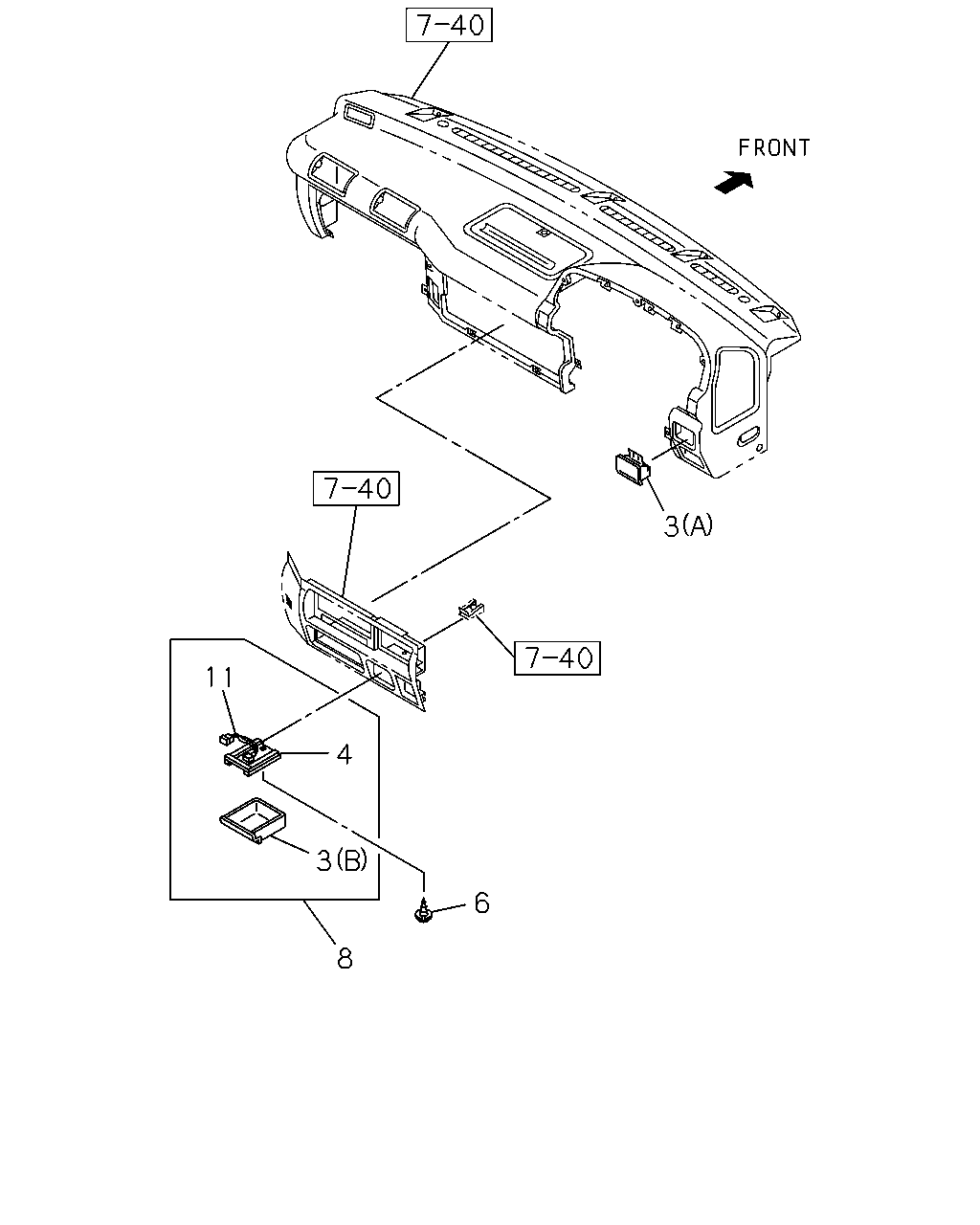

çizim 49123
3 11 4 3 6 8
BalonParca AdiParca NoAdetTipApplied Date A B C
3 CASE ASM; ASH TRAY INNER
DARK GRAY 		8-97898-280-0 01 1 0010- ●
3 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97198-913-0 01 1 0009- ● ● ●
3 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97207-244-0 01 1 0009-0009 ● ● ●
3 CASE ASM; ASH TRAY INNER
DARK GRAY 		8-97993-294-0 01 1 0010- ● ●
4 CASE ASM; ASH TRAY OUTER 8-97857-995-1 01 1 0009-0009 ● ● ●
4 CASE ASM; ASH TRAY OUTER 8-97898-279-0 01 1 0010- ● ● ●
6 SCREW; ASH TRAY
M6X16 TRUSS-HEAD THA 		8-94318-980-0 01 1 0009- ● ● ●
8 TRAY ASM; ASH
DARK GRAY 		8-97206-390-0 01 1 0009-0009 ● ●
8 TRAY ASM; ASH 8-97898-282-0 01 1 0010- ● ●
8 TRAY ASM; ASH 8-97206-393-0 01 1 0009-0009 ●
8 TRAY ASM; ASH 8-97898-278-0 01 1 0010- ●
11 BULB; ASH TRAY 8-97858-977-0 01 1 0009-0009 ● ●
11 BULB; ASH TRAY 8-97898-283-0 01 1 0010- ● ●
11 BULB; ASH TRAY 8-97857-999-0 01 1 0009-0009 ●
11 BULB; ASH TRAY 8-97898-281-0 01 1 0010- ●
