◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#16720) — 10 parça

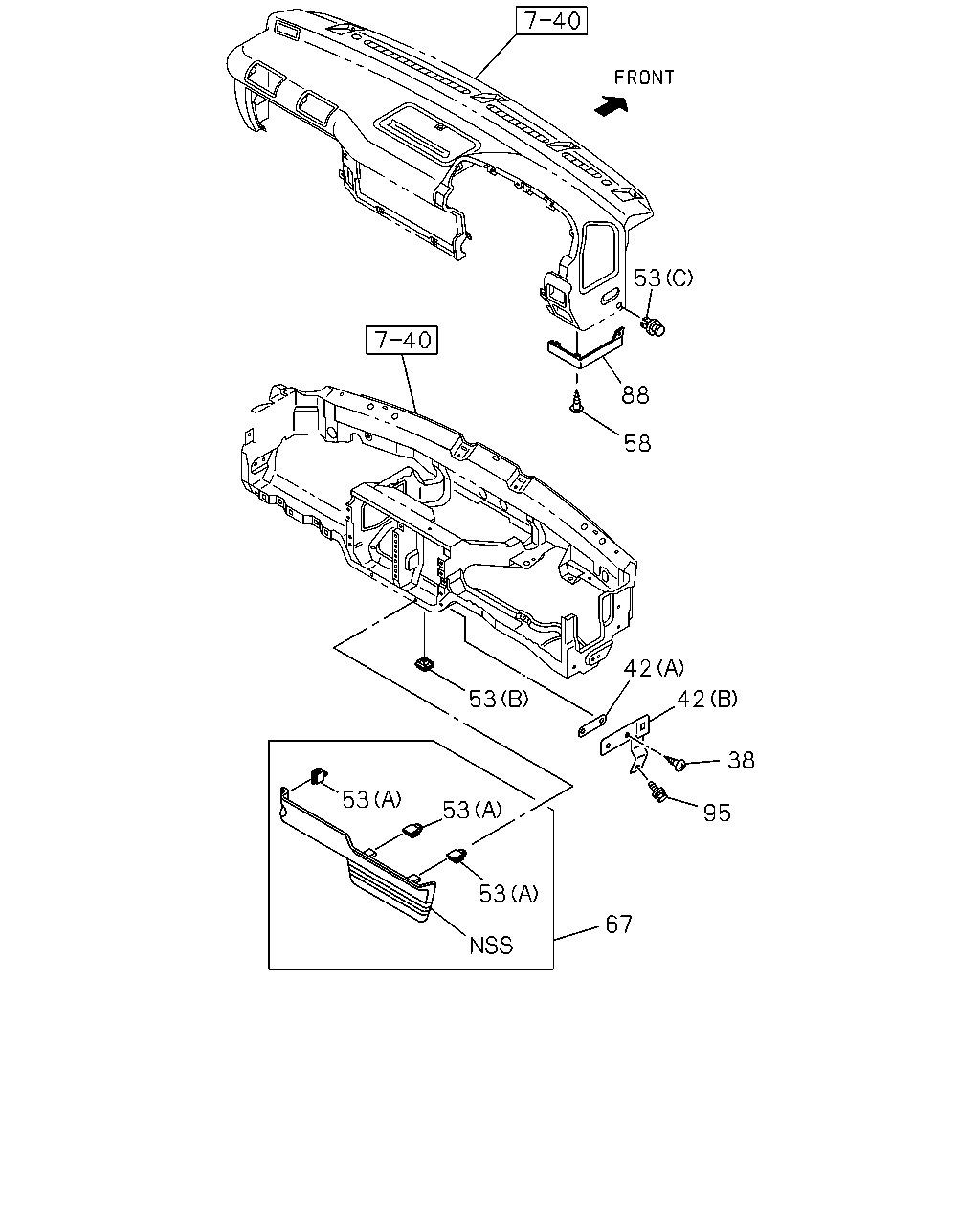

çizim 45348
53 88 58 42 42 53 38 53 53 95 53 67
BalonParca AdiParca NoAdetTipApplied Date A B C
38 SCREW; BRKT
THA 		8-97916-572-0 02 1 0009- ● ● ●
42 BRACKET; UNDER COVER
(A) THA 		8-97916-599-0 01 1 0009- ● ● ●
42 BRACKET; UNDER COVER
(B) THA 		8-97916-600-0 01 1 0009- ● ● ●
53 CLIP; UNDER COVER
(A) 		8-97853-169-0 03 1 0009- ● ● ●
53 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0009- ● ● ●
53 CLIP; UNDER COVER
(C) DARK GRAY 		8-97857-542-0 01 1 0009- ● ● ●
58 SCREW; UNDER COVER
M5X14 THA 		8-94279-325-0 02 1 0009- ● ● ●
67 COVER; UNDER,INST PNL 8-97856-660-3 01 1 0009- ● ● ●
88 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97859-801-2 01 1 0009- ● ● ●
95 BOLT; BRKT
THA 		8-97916-573-0 01 1 0009- ● ● ●
