◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#16709) — 26 parça

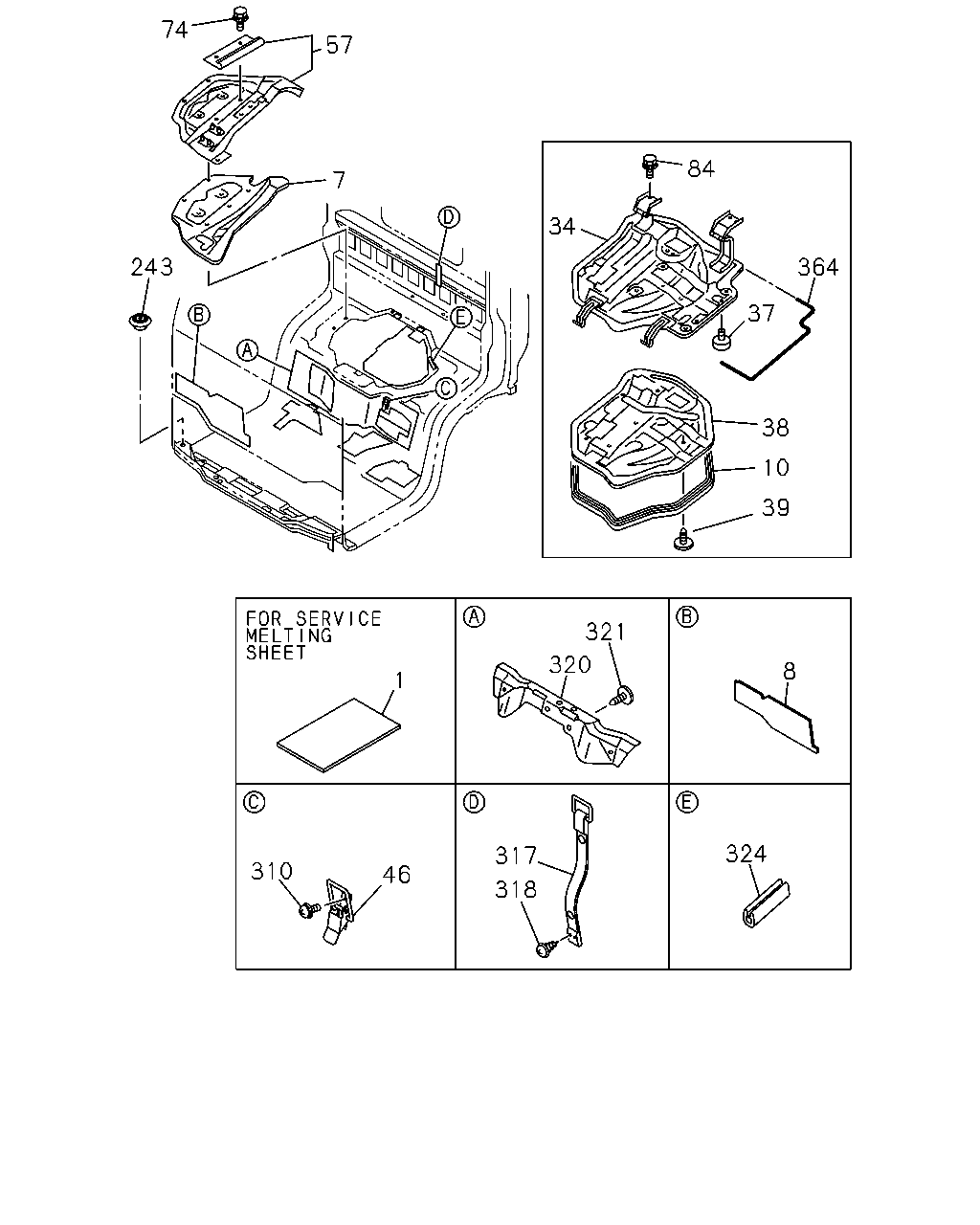

çizim 49172
74 57 84 7 34 243 364 37 38 10 39 321 320 8 1 324 317 310 46 318
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0009- ● ● ●
7 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 0009- ● ● ●
8 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 0009- ● ● ●
8 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 0009- ● ● ●
10 SEAL; ENG COVER 8-97853-010-3 01 1 0009- ● ● ●
34 COVER ASM; ENG,CAB FLOOR
THA 		8-97850-673-1 01 1 0009- ● ● ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 0009- ● ● ●
38 INSULATOR; ENG COVER 8-97859-917-0 01 1 0009- ● ● ●
39 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0009- ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0009- ● ● ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0009- ● ● ●
57 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> THA 		8-97866-687-1 01 1 0009- ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 04 1 0009- ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 0009- ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 0009- ● ● ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0009- ● ● ●
248 SEAL; EXT,FRT & RR
OD=36 T=0.05 BLACK THA 		5-76777-035-0 04 1 0307- ● ● ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0009- ● ● ●
317 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 0009- ● ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0009- ● ● ●
320 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 0009- ● ● ●
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 0009-0304 ● ● ●
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0305- ● ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0009- ● ● ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0009- ● ● ●
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK THA 		8-94279-714-0 02 1 0304- ● ● ●
