◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

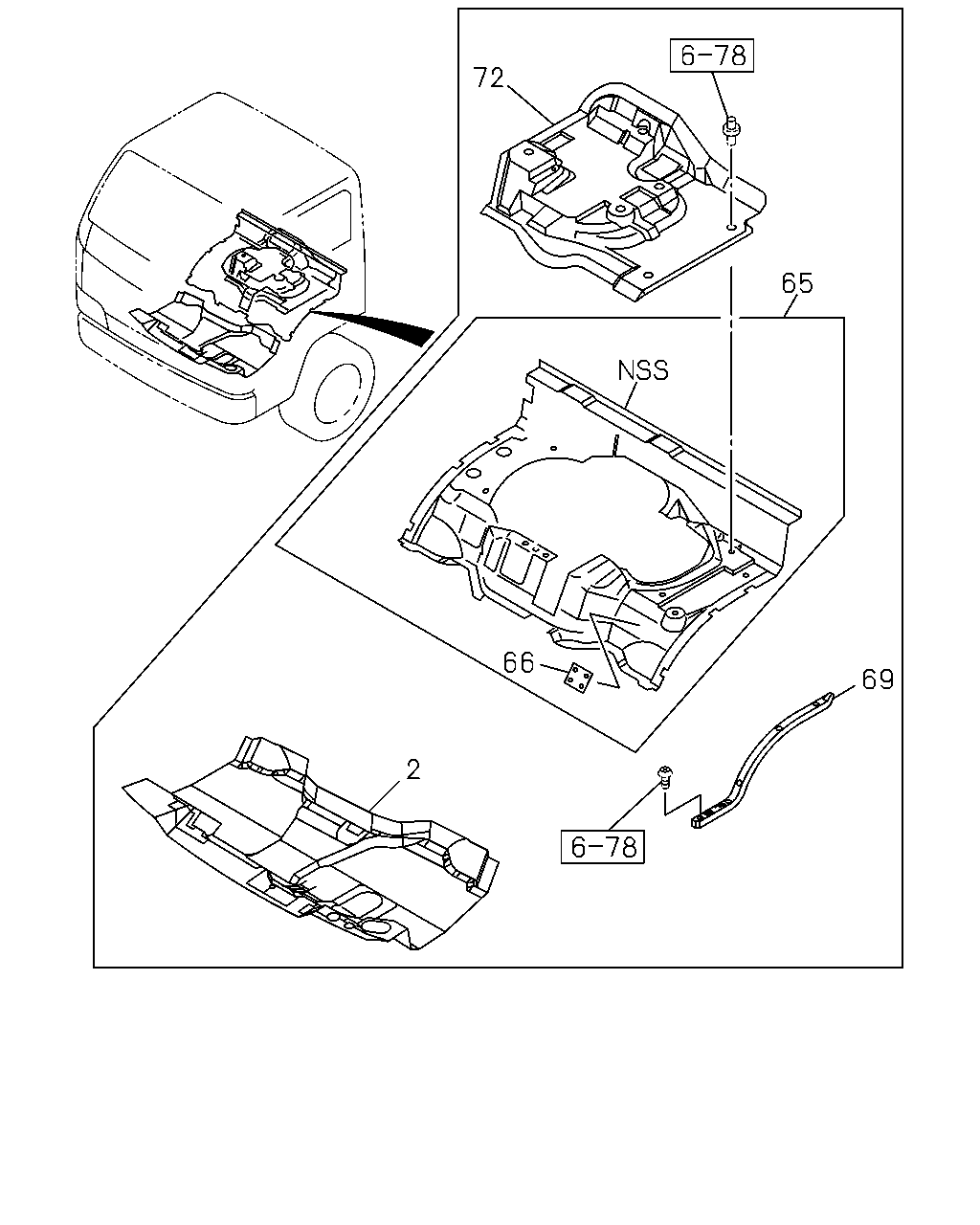

6-75 — MAT AND CARPET (#16708) — 12 parça

72 65 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MAT; FLOOR AIR CONDITIONER MANUAL CONT<C60> DARK GRAY	8-97859-691-4	01	1	0009-0203	●	●	●
2	MAT; FLOOR AIR CONDITIONER MANUAL CONT<C60> DARK GRAY	8-97996-644-1	01	1	0204-	●	●	●
2	MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT<C60> DARK GRAY THA	8-97996-642-1	01	1	0204-	●	●	●
2	MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT<C60> THA	8-97916-994-0	01	1	0009-	●	●	●
65	MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK GRAY THA	8-97996-694-0	01	1	0204-	●	●	●
65	MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> THA	8-97917-406-0	01	1	0009-	●	●	●
66	HOOK; COVER MANUAL TILT CAB<RWZ> DARK GRAY THA	8-97997-582-0	02	1	0204-	●	●	●
66	HOOK; COVER MANUAL TILT CAB<RWZ> THA	8-97917-993-0	02	1	0009-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE THA	8-97914-940-0	01	1	0009-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE THA	8-97914-954-0	01	1	0009-	●	●	●
72	MAT; SILENCER,ENG COVER DARK GRAY THA	8-97996-720-0	01	1	0204-	●	●	●
72	MAT; SILENCER,ENG COVER THA	8-97917-744-0	01	1	0009-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
