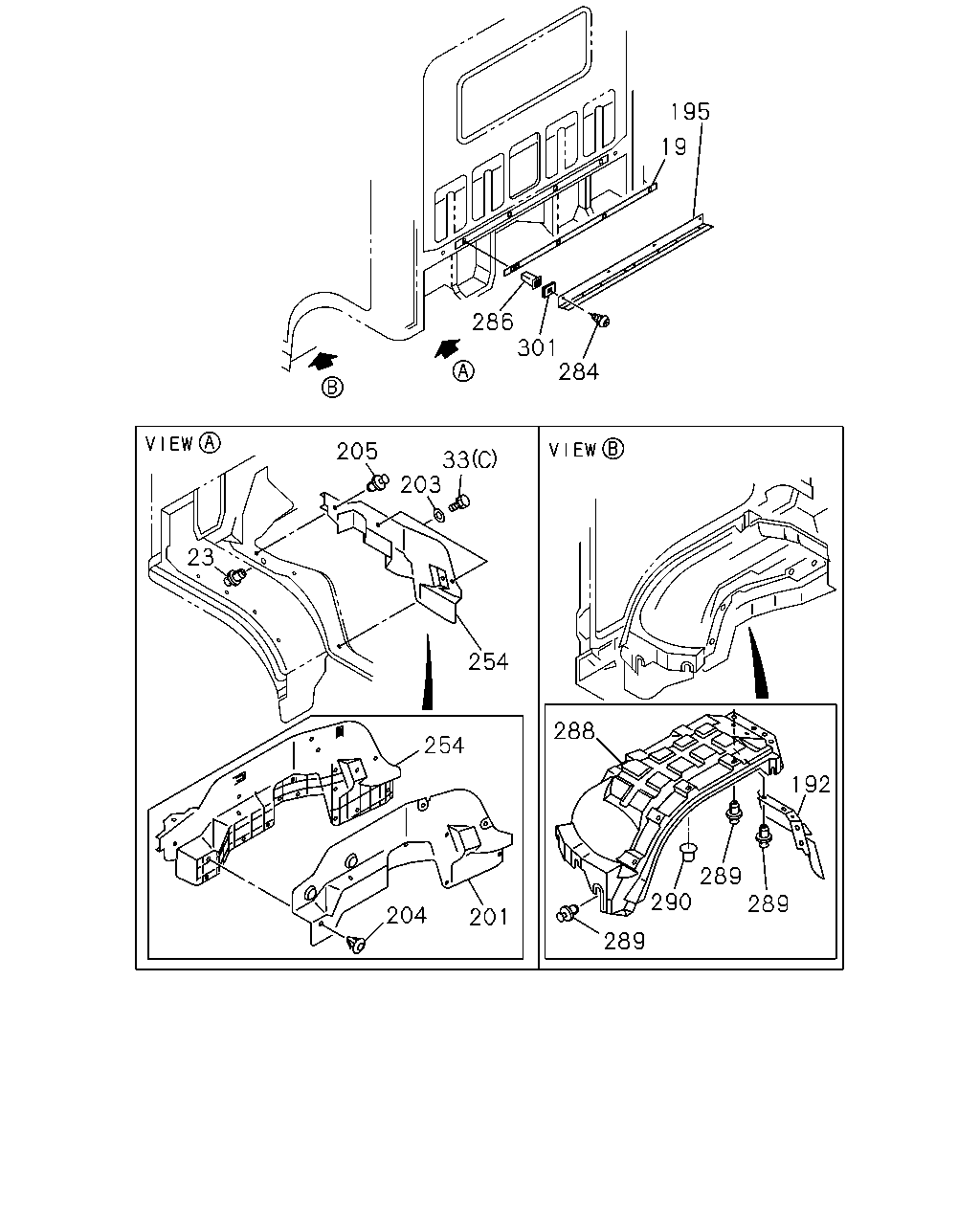

6-47 — MUD GUARD AND INSULATOR (#16703) — 56 parça

195 19 286 301 284 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0009-	●	●	●
23	FASTENER; MUD COVER OD=8.3	8-94279-989-0	06	1	0009-0207	●	●	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	0208-	●	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0009-	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0009-	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0009-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0009-	●	●	●
192	SEAL; MUD COVER	8-97857-297-3	02	1	0009-	●	●	●
195	PROTECTOR; HEAT	8-97035-834-2	01	1	0009-	●
195	PROTECTOR; HEAT	8-97094-833-1	01	1	0009-		●
201	INSULATOR; VALANCE	8-97853-116-3	01	1	0009-	●	●	●
201	INSULATOR; VALANCE	8-97853-117-3	01	1	0009-	●	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0009-	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0009-0308	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0309-	●	●	●
205	FASTENER; MUD COVER D5.8 SCREW & GROMMET NYLON THA	8-94242-150-0	02	1	0009-	●	●	●
254	COVER; MUD,VALANCE	8-97853-071-4	01	1	0009-	●	●	●
254	COVER; MUD,VALANCE	8-97853-072-4	01	1	0009-	●	●	●
284	SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0009-	●	●	●
286	GROMMET; SCREW,HEAT PROTECTOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0009-0101	●	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●	●	●
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	0009-0212	●	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	0009-0212	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	0009-0212	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0301-	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0009-	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	0009-0101	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●	●	●

112 92 112 145 5 66 145 5 66 76 76 24 24 33 33 33 33 219 219 33 285 285 285 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

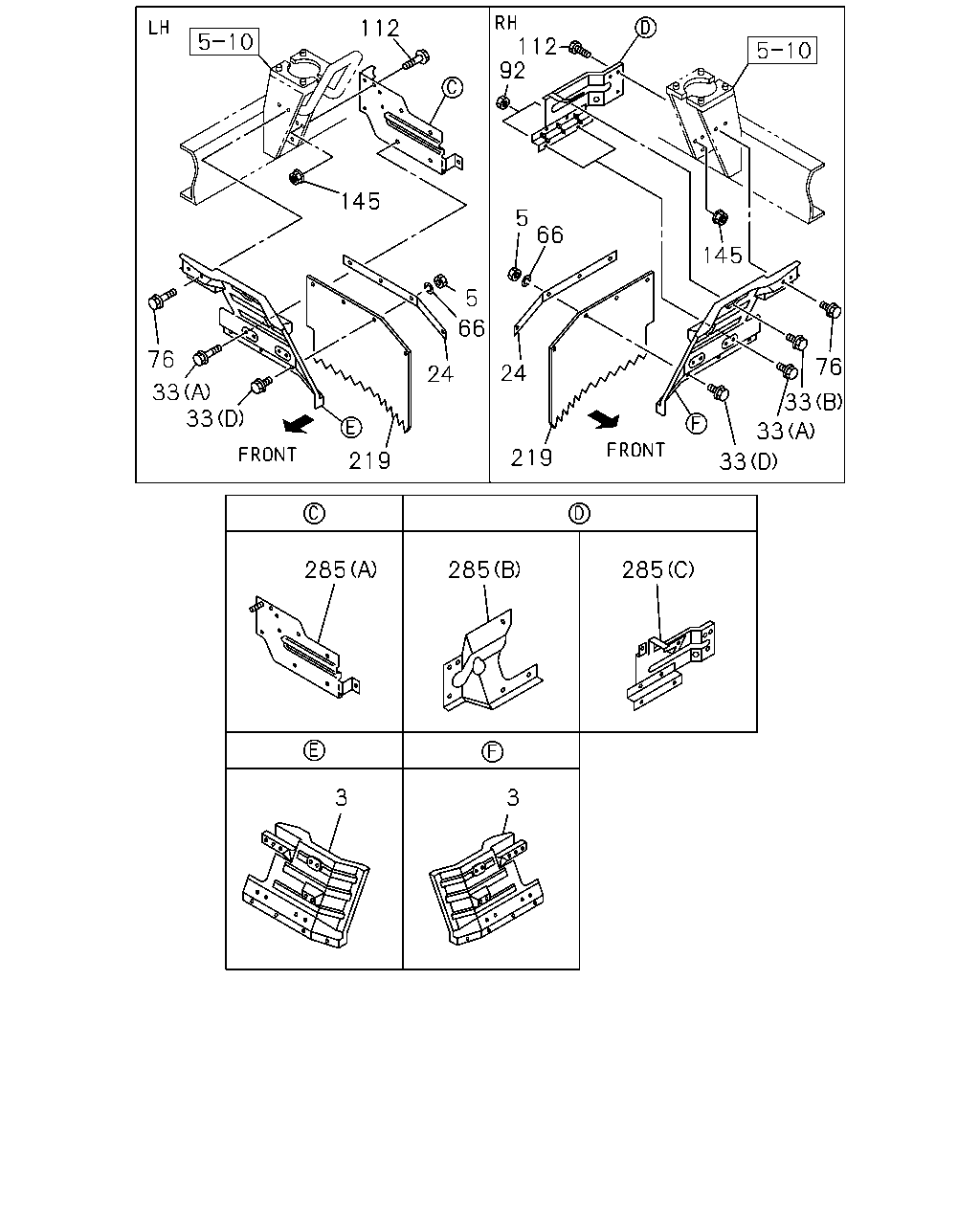

3	GUARD; MUD,RR THA	8-97048-728-3	01	1	0009-	●	●	●
3	GUARD; MUD,RR THA	8-97048-729-1	01	1	0009-	●	●	●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0009-	●	●	●
24	PLATE; MUD COVER THA	8-97095-186-0	02	1	0009-	●	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0009-	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0009-	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0009-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0009-	●	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0009-	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	02	1	0009-	●	●	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0009-	●	●	●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0009-	●	●	●
219	FLAP; MUD GUARD THA	8-97218-078-0	02	1	0009-	●	●	●
285	BRACKET; MUD COVER (B)	8-97089-653-2	01	1	0009-	●	●
285	BRACKET; MUD COVER (A)	8-97225-272-1	01	1	0009-	●	●
285	BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0009-			●
285	BRACKET; MUD COVER (A)	8-97092-037-2	01	1	0009-			●

140 140 150 150 140 139 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

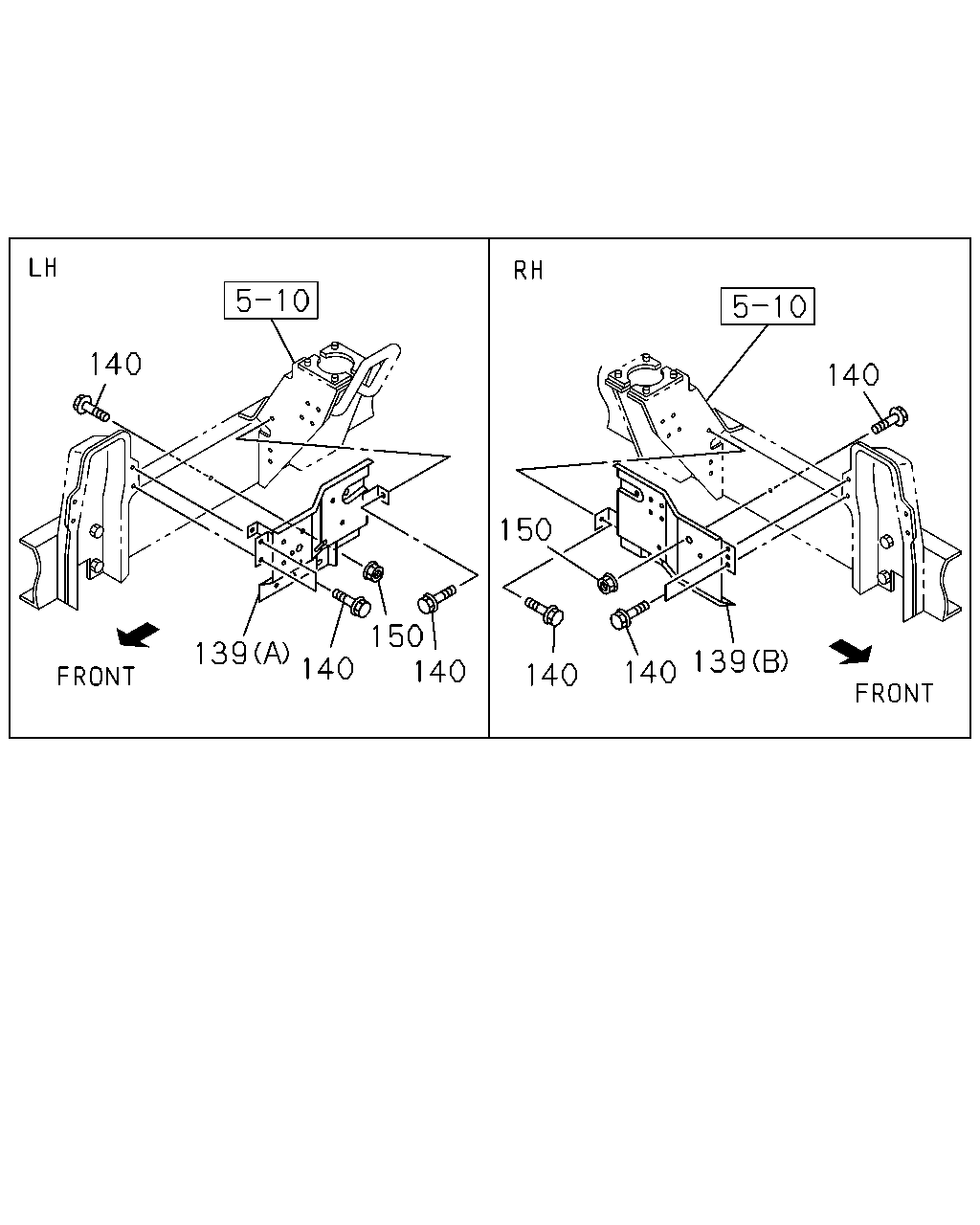

139	PANEL; SIDE (B)	8-97078-381-1	01	1	0009-	●	●
139	PANEL; SIDE (A)	8-97035-774-3	01	1	0009-	●	●	●
139	PANEL; SIDE (B)	8-97078-382-1	01	1	0009-			●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	03	1	0009-	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	02	1	0009-	●	●	●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	05	1	0009-			●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
