6-90 — REAR BUMPER (#1670) — 109 parça

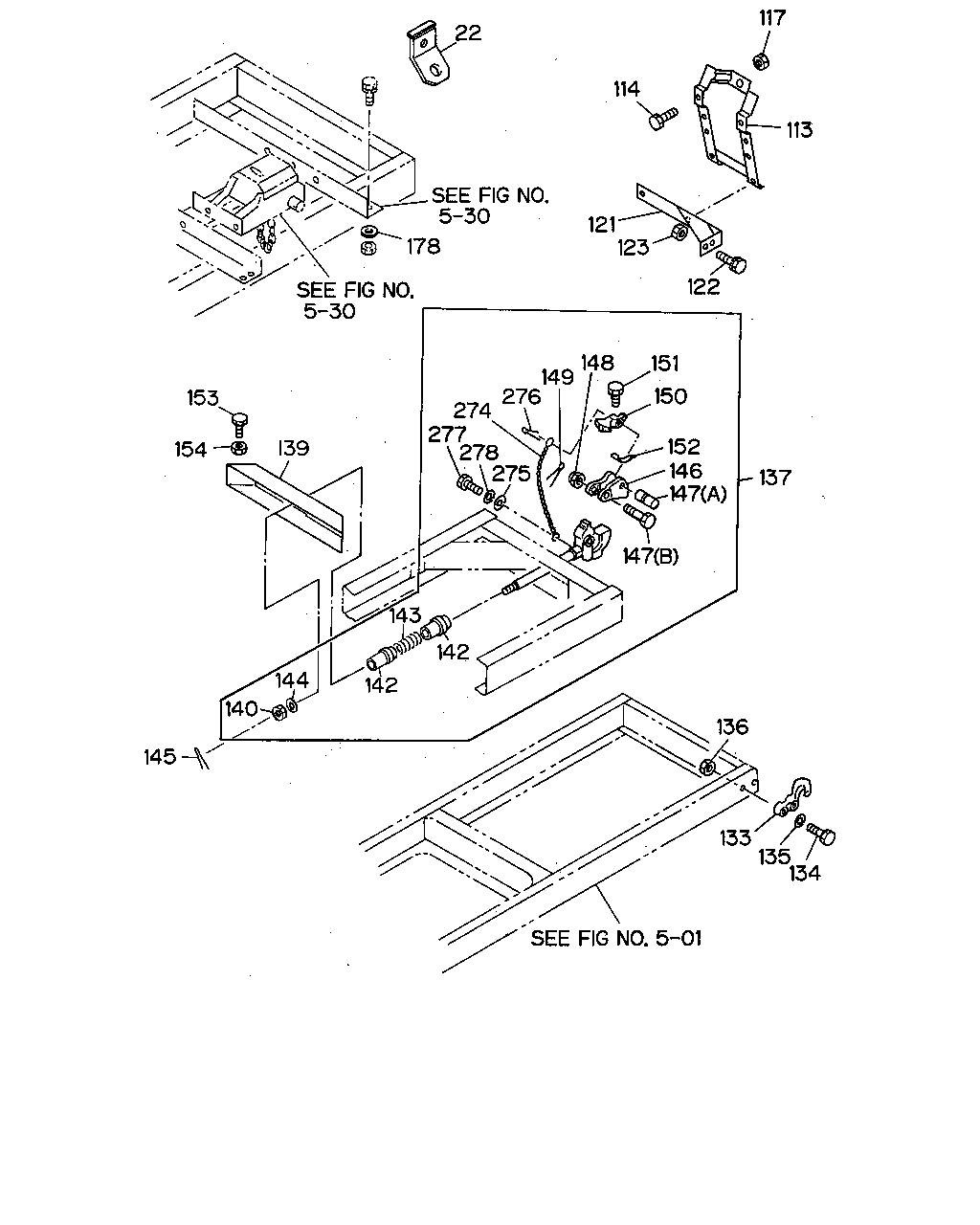

117 114 121 123 122 113 137 22 178 153 154 139 145 140 144 142 143 142 277 274 276 149 148 151 150 152 146 147 147 275 278 136 133 135 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	BRACKET; TRAILER SAFETY CHAIN PINTLE HOOK<PP7> TWO EYE REAR<VR7>	1-57184-001-0	02	1	9207-	●	●
113	BRACKET; LICENSE PLATE	1-53485-048-2	01	1	9207-	●	●	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X20 FLANGE	0-28080-820-0	02	1	9207-	●	●	●	●	●
117	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	9207-	●	●	●	●	●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50041-230-0	02	1	9207-	●	●	●	●	●
123	NUT; STAY PINTLE HOOK<PP7> M12	9-99110-512-0	02	1	9207-	●	●	●	●	●
133	HOOK	1-57181-003-5	01	1	9207-	●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-003-5	01	1	9207-	●	●
133	HOOK	1-57181-027-1	01	1	9207-			●	●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-027-1	01	1	9207-			●	●	●
134	BOLT; HOOK M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK M16X65	0-10811-665-0	01	1	9207-			●	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X65	0-10811-665-0	01	1	9207-			●	●	●
134	BOLT; HOOK M16X50	0-20801-650-0	01	1	9207-			●	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X50	0-20801-650-0	01	1	9207-			●	●	●
135	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=16.2	9-09150-516-0	02	1	9207-			●	●	●
136	NUT; HOOK M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M16	9-99110-416-0	02	1	9207-			●	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-015-0	01	1	9207-	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-1	01	1	9207-			●	●	●
139	BRACKET; PINTLE HOOK PINTLE HOOK<PP7>	9-53521-026-0	01	1	9207-	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	9-09842-503-0	01	1	9207-9405	●	●	●	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	1-09420-006-0	01	1	9406-	●	●	●	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	9207-	●	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7> EXC. FIRE TRUCK(RA9)	9-53522-001-0	02	1	9207-				●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	9207-	●	●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7> EXC. FIRE TRUCK(RA9)	9-09940-078-0	01	1	9207-				●	●
144	WASHER; PL,PINTLE HOOK PINTLE HOOK<PP7>	9-09851-464-0	01	1	9207-	●	●	●	●	●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	9-08116-065-0	01	1	9207-	●	●	●	●	●
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	9207-	●	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	9207-	●	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	9207-	●	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7>	9-99117-424-0	01	1	9207-9303	●	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7> M24 SLOTTED	1-09442-020-0	01	1	9304-	●	●	●	●	●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	9-08113-045-0	01	1	9207-	●	●	●	●	●
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	9207-	●	●	●	●	●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50040-832-0	01	1	9207-	●	●	●	●	●
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	9207-	●	●	●	●	●
153	BOLT; BRKT PINTLE HOOK<PP7> M10X30 W/LK WASHER	0-50041-030-0	08	1	9207-	●	●
154	NUT; BRKT PINTLE HOOK<PP7> M10	9-09110-510-0	08	1	9207-	●	●
178	WASHER; LK PINTLE HOOK<PP7> TWO EYE REAR<VR7> ID=16.2	9-09150-516-0	02	1	9207-	●	●
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	9207-	●	●	●	●	●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4 OD=14	9-09160-606-0	01	1	9207-	●	●	●	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7>	9-08116-075-0	01	1	9207-	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	9207-			●	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	9207-			●	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7>	9-03440-612-0	01	1	9207-9304	●	●	●	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7>	9-03490-612-0	01	1	9305-	●	●	●	●	●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	9-09150-506-0	01	1	9207-	●	●	●	●	●

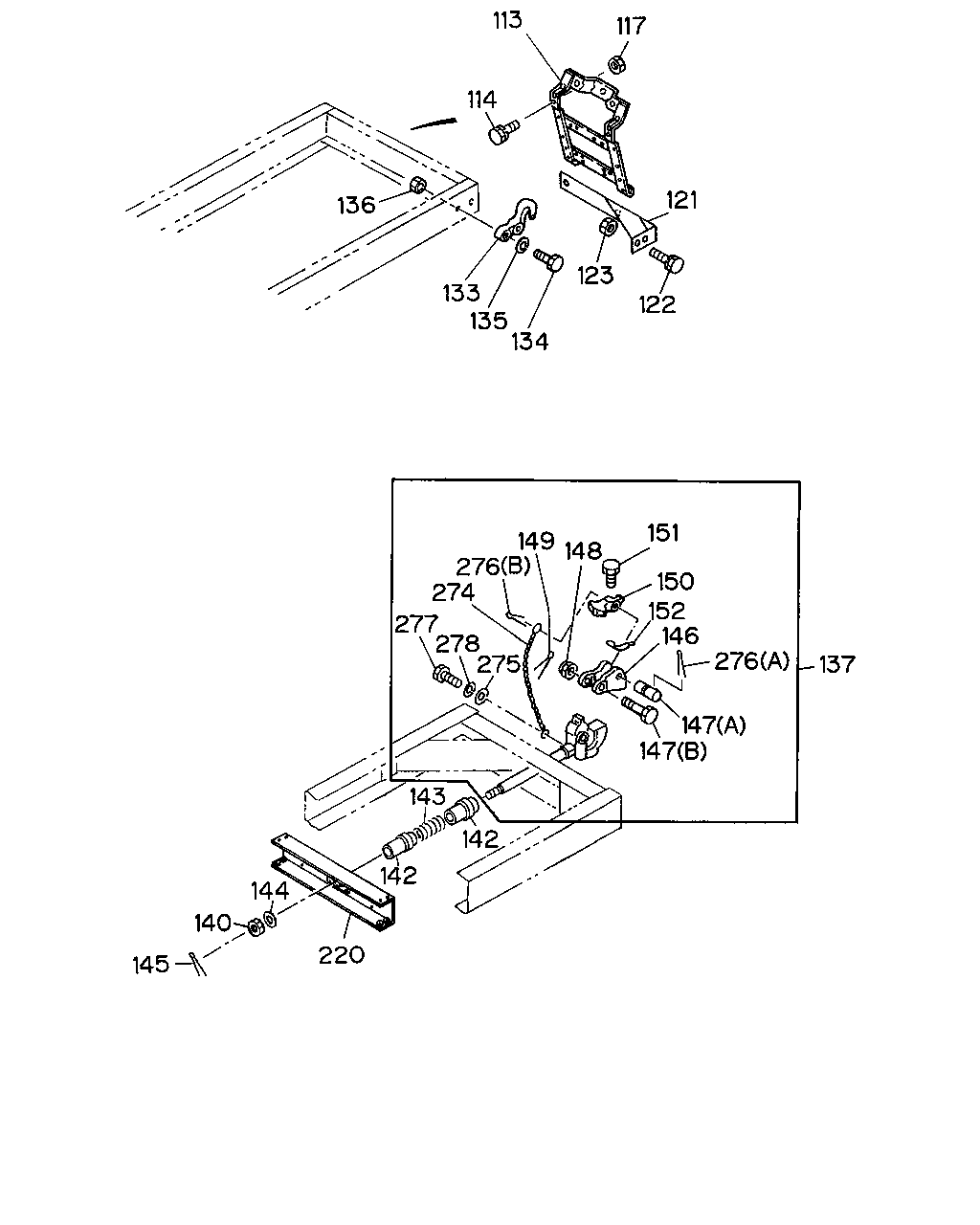

113 114 136 133 135 134 123 122 121 117 276 149 148 151 150 152 146 276 137 147 147 275 278 277 274 143 142 142 220 144 140 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
113	BRACKET; LICENSE PLATE	1-53485-048-2	01	1	9207-	●	●	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X20 FLANGE	0-28080-820-0	02	1	9207-	●	●	●	●	●
117	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	9207-	●	●	●	●	●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50041-230-0	02	1	9207-	●	●	●	●	●
123	NUT; STAY PINTLE HOOK<PP7> M12	9-99110-512-0	02	1	9207-	●	●	●	●	●
133	HOOK	1-57181-003-5	01	1	9207-	●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-003-5	01	1	9207-	●	●
133	HOOK	1-57181-027-1	01	1	9207-			●	●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-027-1	01	1	9207-			●	●	●
134	BOLT; HOOK M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK M16X65	0-10811-665-0	01	1	9207-			●	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X65	0-10811-665-0	01	1	9207-			●	●	●
134	BOLT; HOOK M16X50	0-20801-650-0	01	1	9207-			●	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X50	0-20801-650-0	01	1	9207-			●	●	●
135	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=16.2	9-09150-516-0	02	1	9207-			●	●	●
136	NUT; HOOK M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M16	9-99110-416-0	02	1	9207-			●	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-015-0	01	1	9207-	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-1	01	1	9207-			●	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	9-09842-503-0	01	1	9207-9405	●	●	●	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	1-09420-006-0	01	1	9406-	●	●	●	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	9207-	●	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7> EXC. FIRE TRUCK(RA9)	9-53522-001-0	02	1	9207-				●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	9207-	●	●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7> EXC. FIRE TRUCK(RA9)	9-09940-078-0	01	1	9207-				●	●
144	WASHER; PL,PINTLE HOOK PINTLE HOOK<PP7>	9-09851-464-0	01	1	9207-	●	●	●	●	●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	9-08116-065-0	01	1	9207-	●	●	●	●	●
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	9207-	●	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	9207-	●	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	9207-	●	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7>	9-99117-424-0	01	1	9207-9303	●	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7> M24 SLOTTED	1-09442-020-0	01	1	9304-	●	●	●	●	●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	9-08113-045-0	01	1	9207-	●	●	●	●	●
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	9207-	●	●	●	●	●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50040-832-0	01	1	9207-	●	●	●	●	●
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	9207-	●	●	●	●	●
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-182-0	01	1	9207-			●
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7> EXC. FIRE TRUCK(RA9)	1-57189-182-0	01	1	9207-				●	●
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	9207-	●	●	●	●	●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4 OD=14	9-09160-606-0	01	1	9207-	●	●	●	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7>	9-08116-075-0	01	1	9207-	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	9207-			●	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	9207-			●	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7>	9-03440-612-0	01	1	9207-9304	●	●	●	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7>	9-03490-612-0	01	1	9305-	●	●	●	●	●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	9-09150-506-0	01	1	9207-	●	●	●	●	●
