6-50 — REAR DOOR AND HINGE (#166954) — 50 parça

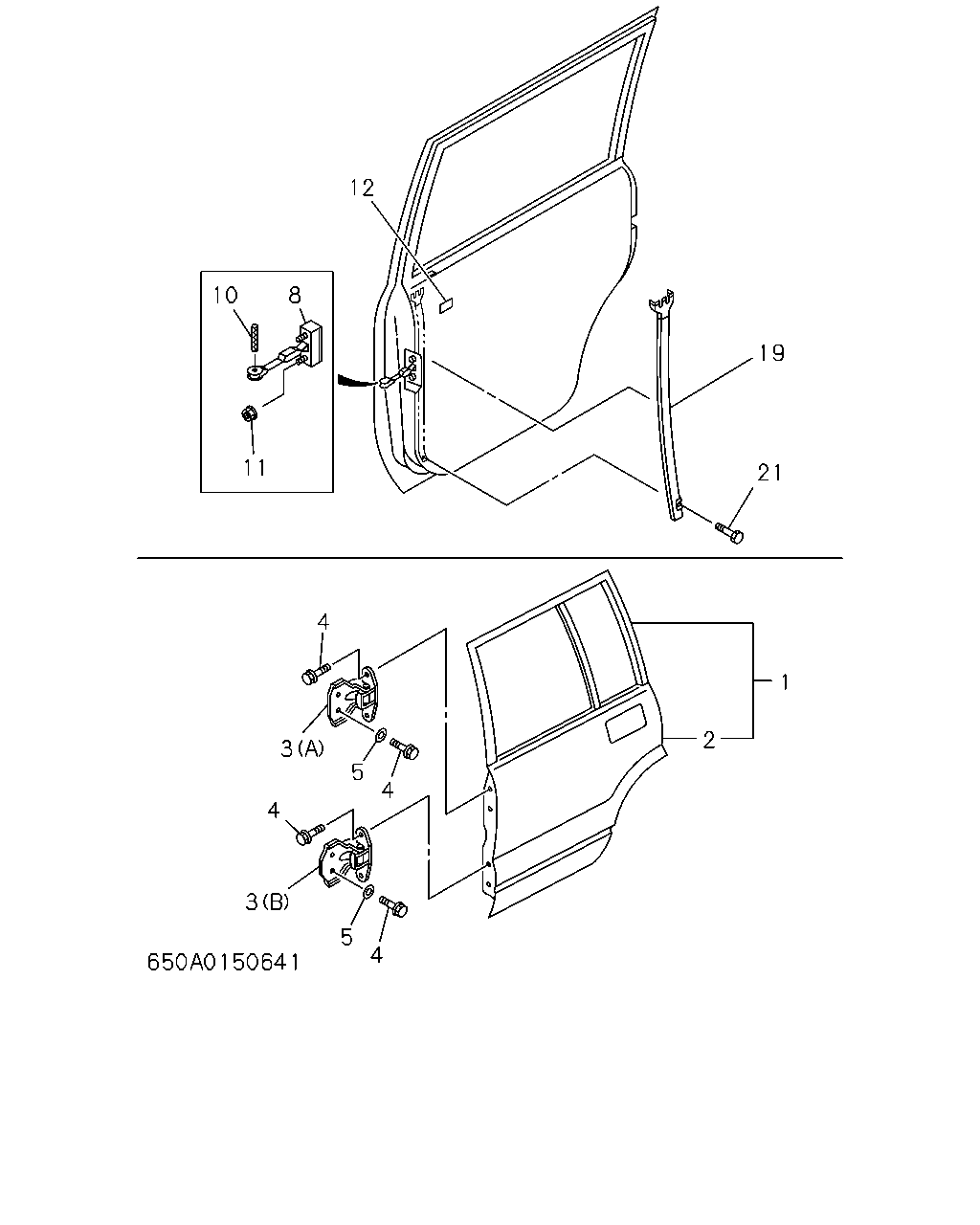

çizim 494356
12 19 21 1 2 8 10 11 4 3 5 4 4 3 4 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; REAR 8-94358-469-0 01 1 9112-9208
1 DOOR ASM; REAR 8-97808-466-1 01 1 9209-9307
1 DOOR ASM; REAR 8-97810-394-0 01 1 9308-9504
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97810-394-0 01 1 9505-9507
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97135-151-0 01 1 9508-9704
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 9705-
1 DOOR ASM; REAR 8-94358-468-0 01 1 9112-9208
1 DOOR ASM; REAR 8-97808-465-1 01 1 9209-9307
1 DOOR ASM; REAR 8-97810-393-0 01 1 9308-9504
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97810-393-0 01 1 9505-9507
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97135-150-0 01 1 9508-9704
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 9705-
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97103-016-0 01 1 9505-9507
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97135-149-0 01 1 9508-9704
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-459-0 01 1 9705-
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97103-015-0 01 1 9505-9507
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97135-148-0 01 1 9508-9704
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-458-0 01 1 9705-
2 PANEL; RR DOOR OUTER 8-94358-377-2 01 1 9112-9208
2 PANEL; RR DOOR OUTER 8-94358-377-2 01 1 9209-9504
2 PANEL; RR DOOR OUTER
EXC. OVER FENDER<6GH> 		8-94358-377-3 01 1 9505-
2 PANEL; RR DOOR OUTER 8-94358-376-2 01 1 9112-9208
2 PANEL; RR DOOR OUTER 8-94358-376-2 01 1 9209-9504
2 PANEL; RR DOOR OUTER
EXC. OVER FENDER<6GH> 		8-94358-376-3 01 1 9505-
2 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97103-012-2 01 1 9505-
2 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97103-011-2 01 1 9505-
3 HINGE; RR DOOR
(B) UPPER 		8-94475-766-1 01 1 9112-9206
3 HINGE; RR DOOR
(B) UPPER 		8-97076-891-0 01 1 9207-
3 HINGE; RR DOOR
(A) LOWER 		8-94475-767-1 01 1 9112-9206
3 HINGE; RR DOOR
(A) LOWER 		8-97076-893-0 01 1 9207-
3 HINGE; RR DOOR
(A) UPPER 		8-94475-753-1 01 1 9112-9206
3 HINGE; RR DOOR
(A) UPPER 		8-97076-890-0 01 1 9207-
3 HINGE; RR DOOR
(B) LOWER 		8-94475-754-1 01 1 9112-9206
3 HINGE; RR DOOR
(B) LOWER 		8-97076-892-0 01 1 9207-
4 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 16 1 9112-9510
4 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 08 1 9606-
4 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 16 1 9511-
5 WASHER; PL,HINGE TO DOOR
W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 04 1 9511-9611
5 WASHER; PL,HINGE TO DOOR
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9612-9612
5 WASHER; PL,HINGE TO DOOR
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9701-
8 ARM; CHECK,RR DOOR 8-94358-620-0 02 1 9112-
10 PIN; CHECK ARM 8-97020-859-0 02 1 9112-
11 NUT
M6 FLANGE 		5-09440-004-0 04 1 9112-
12 SEAL; DOOR INNER PANEL 8-94334-654-0 02 1 9112-9509
12 SEAL; DOOR INNER PANEL 8-97808-226-1 02 1 9510-
19 RAIL; FRT GUIDE,RR DOOR 8-94358-626-2 01 1 9112-9308
19 RAIL; FRT GUIDE,RR DOOR 8-97810-351-1 01 1 9309-
19 RAIL; FRT GUIDE,RR DOOR 8-94358-625-2 01 1 9112-9308
19 RAIL; FRT GUIDE,RR DOOR 8-97810-350-1 01 1 9309-
21 BOLT; GUIDE RAIL
M6X8 		8-94155-893-0 02 1 9112-
