Sayfa 6-47 - Isuzu EPC

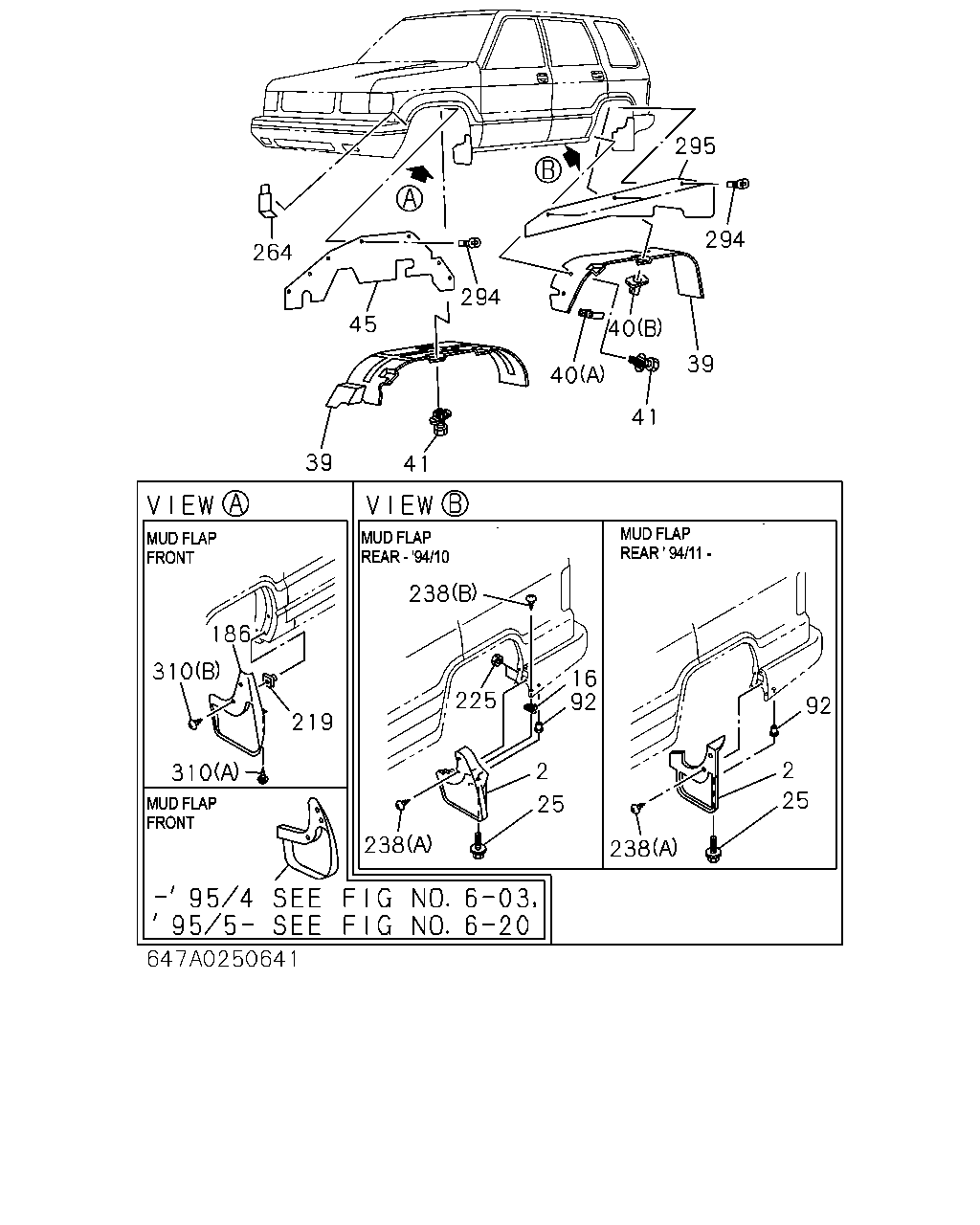

6-47 — MUD GUARD AND INSULATOR (#166953) — 188 parça

295 294 40 39 41 40 41 39 45 294 264 219 310 310 186 238 25 2 92 16 238 225 92 2 25 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-871-0	01	1	9112-9504	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> PRIMER	8-97807-871-0	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR EXC. OVER FENDER<6GH> PRIMER	8-97807-871-0	01	1	9606-	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-870-0	01	1	9112-9504	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> PRIMER	8-97807-870-0	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR EXC. OVER FENDER<6GH> PRIMER	8-97807-870-0	01	1	9606-	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> FORMED MUD FLAP<6WL> PRIMER	8-97103-299-2	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> PRIMER	8-97103-299-2	01	1	9606-	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> FORMED MUD FLAP<6WL> PRIMER	8-97103-298-2	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> PRIMER	8-97103-298-2	01	1	9606-	●	●
16	NUT; FLANGE,BRKT TO BODY FORMED MUD FLAP<6WL>	8-97805-829-0	02	1	9112-9410	●	●
25	BOLT; PLATE TO MUD COVER FORMED MUD FLAP<6WL> M6X28 W/PL WASHER	8-94148-420-0	02	1	9112-9605	●	●
25	BOLT; PLATE TO MUD COVER COLOR KEYED ROCKER SKIRT<6YA> M6X28 W/PL WASHER	8-94148-420-0	02	1	9606-	●	●
25	BOLT; PLATE TO MUD COVER FORMED MUD FLAP<6WL> M6X28 W/PL WASHER	8-94148-420-0	02	1	9606-		●
39	LINER; FENDER FRONT	8-94359-272-5	01	1	9112-9408	●	●
39	LINER; FENDER FRONT	8-97103-849-2	01	1	9409-	●	●
39	LINER; FENDER FRONT	8-94359-271-5	01	1	9112-9408	●	●
39	LINER; FENDER FRONT	8-97103-848-2	01	1	9409-	●	●
39	LINER; FENDER REAR	8-97804-157-1	01	1	9112-9307	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97804-157-2	01	1	9308-9502	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97103-850-2	01	1	9503-9504	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97106-343-2	01	1	9505-9605	●	●
39	LINER; FENDER EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA>	8-97106-343-2	01	1	9606-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97808-606-0	01	1	9308-9502	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-346-2	01	1	9503-9504	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-342-2	01	1	9505-9605	●	●
39	LINER; FENDER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-342-2	01	1	9606-9607	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-342-2	01	1	9606-9607		●
39	LINER; FENDER COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-342-2	01	1	9608-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-342-2	01	1	9608-		●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97808-605-0	01	1	9308-9502	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-345-2	01	1	9503-9504	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-341-2	01	1	9505-9605	●	●
39	LINER; FENDER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-341-2	01	1	9606-9607	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-341-2	01	1	9606-9607		●
39	LINER; FENDER COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-341-2	01	1	9608-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-341-2	01	1	9608-		●
39	LINER; FENDER REAR	8-97804-158-0	01	1	9112-9307	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97804-158-1	01	1	9308-9502	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97103-851-2	01	1	9503-9504	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97106-344-2	01	1	9505-9605	●	●
39	LINER; FENDER EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-344-2	01	1	9606-	●	●
40	CLIP; INNER LINER (A)	8-94215-212-0	02	1	9505-	●
40	CLIP; INNER LINER EXC. OVER FENDER<6GH> (A)	8-94215-212-0	02	1	9505-		●
40	CLIP; INNER LINER (B)	8-97805-240-0	09	1	9112-	●	●
41	RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	26	1	9112-9510	●	●
41	RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	18	1	9511-9605	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9606-	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	30	1	9112-9307	●	●
41	RIVET; INNER LINER	8-94221-150-0	08	1	9308-9504	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	30	1	9505-9510	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9511-9605	●	●
41	RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	18	1	9606-	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9308-9504	●	●
41	RIVET; INNER LINER	8-94221-150-0	08	1	9511-	●	●
45	COVER; MUD,FENDER SKIRT	8-94359-624-2	01	1	9112-9504	●	●
45	COVER; MUD,FENDER SKIRT	8-94359-624-2	01	1	9505-9601	●	●
45	COVER; MUD,FENDER SKIRT	8-97138-226-1	01	1	9602-	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC)	8-97801-576-1	01	1	9112-9601	●	●
45	COVER; MUD,FENDER SKIRT	8-97138-227-0	01	1	9602-	●	●
45	COVER; MUD,FENDER SKIRT 6VD1 DOHC ENG(RLV)	8-94359-625-2	01	1	9112-9601	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> WELL NUT	8-94311-999-0	02	1	9112-9305	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> M6 RUBBER NUT	8-97023-281-0	02	1	9306-9605	●	●
92	NUT; MUD COVER COLOR KEYED ROCKER SKIRT<6YA> M6 RUBBER NUT	8-97023-281-0	02	1	9606-	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> M6 RUBBER NUT	8-97023-281-0	02	1	9606-		●
92	NUT; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> ID=5.2 H=10	8-97032-135-0	04	1	9505-9605		●
92	NUT; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> ID=5.2 H=10	8-97032-135-0	04	1	9606-		●
186	GROMMET; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> D=9.7X9.7 L=8	8-94222-314-0	02	1	9505-9605		●
186	GROMMET; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> D=9.7X9.7 L=8	8-94222-314-0	02	1	9606-		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ>	8-97121-240-0	01	1	9505-9605		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL>	8-97121-240-0	01	1	9606-		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ>	8-97121-239-0	01	1	9505-9605		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL>	8-97121-239-0	01	1	9606-		●
225	NUT; MUD GUARD OVER FENDER<6GH> FORMED MUD FLAP<6WL> M6 FLANGE	8-97063-399-0	04	1	9505-9605	●	●
225	NUT; MUD GUARD OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) M6 FLANGE	8-97063-399-0	04	1	9606-	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (A) M6X12	0-28010-612-0	04	1	9112-9204	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (A) M6X12 FLANGE	0-28080-612-0	04	1	9205-9605	●	●
238	SCREW; MUD GUARD COLOR KEYED ROCKER SKIRT<6YA> (A) M6X12 FLANGE	0-28080-612-0	04	1	9606-	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (A) M6X12 FLANGE	0-28080-612-0	04	1	9606-		●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9112-9410	●	●
264	FINISHER; FRT FENDER	8-97808-857-0	02	1	9207-9504	●	●
264	FINISHER; FRT FENDER EXC. OVER FENDER<6GH>	8-97808-857-0	02	1	9505-	●	●
264	FINISHER; FRT FENDER OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37)	8-97107-799-0	02	1	9505-	●	●
294	CLIP; MUD COVER OD=22 L=10.7	8-94215-211-0	22	1	9112-	●	●
295	COVER; WHEEL HOUSE	8-97809-125-2	01	1	9308-9504	●	●
295	COVER; WHEEL HOUSE	8-97119-720-0	01	1	9505-9512	●	●
295	COVER; WHEEL HOUSE	8-97143-180-0	01	1	9601-	●	●
295	COVER; WHEEL HOUSE	8-97809-124-2	01	1	9308-9504	●	●
295	COVER; WHEEL HOUSE	8-97119-719-0	01	1	9505-9512	●	●
295	COVER; WHEEL HOUSE	8-97143-179-0	01	1	9601-	●	●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> (A) M6X16 TAPPING W/PL WASHER	0-74315-616-0	02	1	9505-9605		●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> (A) M6X16 TAPPING W/PL WASHER	0-74315-616-0	02	1	9606-		●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	9505-9605		●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	9606-		●

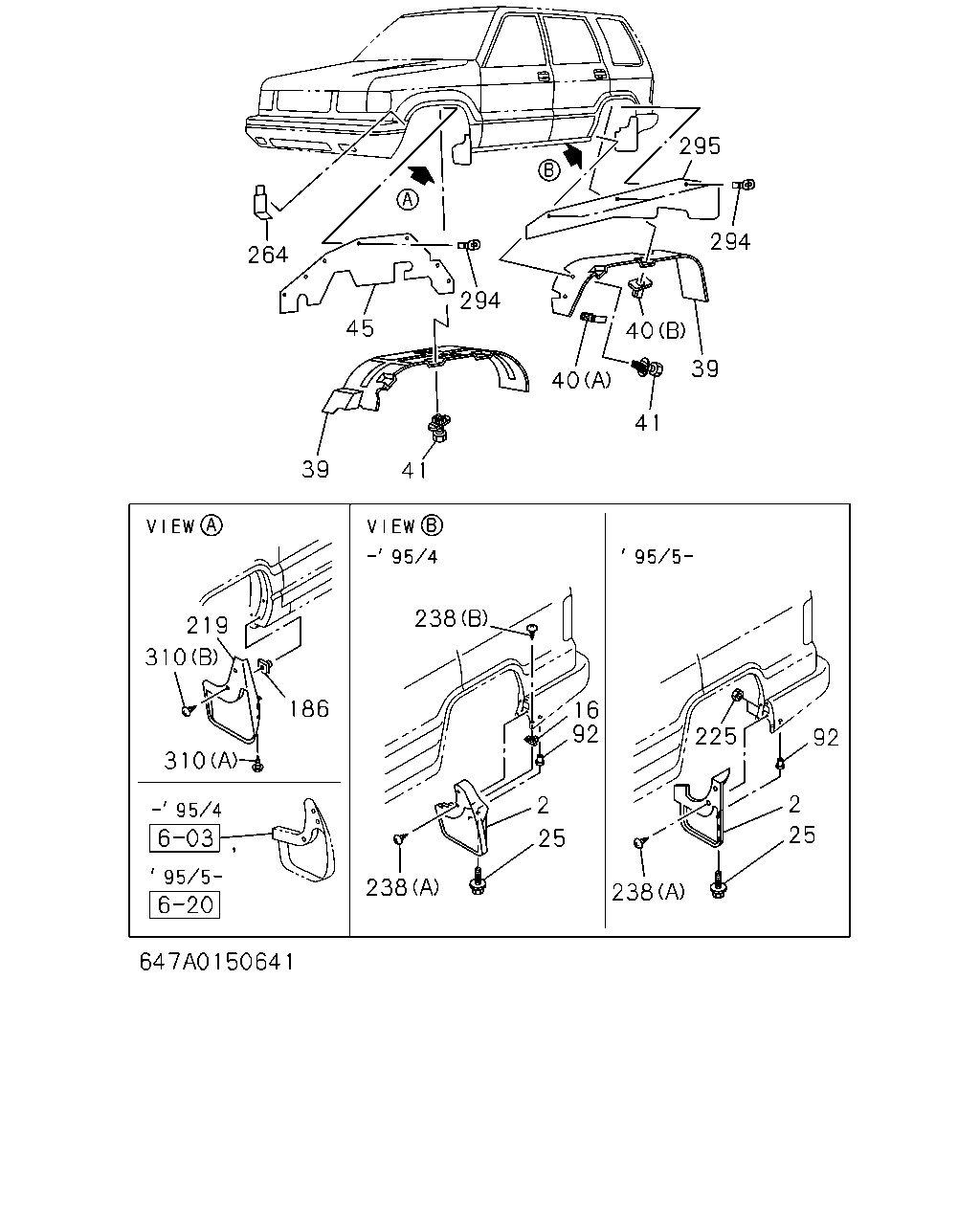

295 294 39 41 40 40 41 39 45 294 264 186 310 219 310 238 25 2 92 16 225 238 92 2 25 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-871-0	01	1	9112-9504	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> PRIMER	8-97807-871-0	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR EXC. OVER FENDER<6GH> PRIMER	8-97807-871-0	01	1	9606-	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-870-0	01	1	9112-9504	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> PRIMER	8-97807-870-0	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR EXC. OVER FENDER<6GH> PRIMER	8-97807-870-0	01	1	9606-	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> FORMED MUD FLAP<6WL> PRIMER	8-97103-299-2	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> PRIMER	8-97103-299-2	01	1	9606-	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> FORMED MUD FLAP<6WL> PRIMER	8-97103-298-2	01	1	9505-9605	●	●
2	COVER; MUD,TIRE RR OVER FENDER<6GH> PRIMER	8-97103-298-2	01	1	9606-	●	●
16	NUT; FLANGE,BRKT TO BODY FORMED MUD FLAP<6WL>	8-97805-829-0	02	1	9112-9410	●	●
25	BOLT; PLATE TO MUD COVER FORMED MUD FLAP<6WL> M6X28 W/PL WASHER	8-94148-420-0	02	1	9112-9605	●	●
25	BOLT; PLATE TO MUD COVER COLOR KEYED ROCKER SKIRT<6YA> M6X28 W/PL WASHER	8-94148-420-0	02	1	9606-	●	●
25	BOLT; PLATE TO MUD COVER FORMED MUD FLAP<6WL> M6X28 W/PL WASHER	8-94148-420-0	02	1	9606-		●
39	LINER; FENDER FRONT	8-94359-272-5	01	1	9112-9408	●	●
39	LINER; FENDER FRONT	8-97103-849-2	01	1	9409-	●	●
39	LINER; FENDER FRONT	8-94359-271-5	01	1	9112-9408	●	●
39	LINER; FENDER FRONT	8-97103-848-2	01	1	9409-	●	●
39	LINER; FENDER REAR	8-97804-157-1	01	1	9112-9307	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97804-157-2	01	1	9308-9502	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97103-850-2	01	1	9503-9504	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97106-343-2	01	1	9505-9605	●	●
39	LINER; FENDER EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA>	8-97106-343-2	01	1	9606-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97808-606-0	01	1	9308-9502	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-346-2	01	1	9503-9504	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-342-2	01	1	9505-9605	●	●
39	LINER; FENDER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-342-2	01	1	9606-9607	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-342-2	01	1	9606-9607		●
39	LINER; FENDER COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-342-2	01	1	9608-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-342-2	01	1	9608-		●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97808-605-0	01	1	9308-9502	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-345-2	01	1	9503-9504	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-341-2	01	1	9505-9605	●	●
39	LINER; FENDER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-341-2	01	1	9606-9607	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-341-2	01	1	9606-9607		●
39	LINER; FENDER COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-341-2	01	1	9608-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> REAR	8-97106-341-2	01	1	9608-		●
39	LINER; FENDER REAR	8-97804-158-0	01	1	9112-9307	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97804-158-1	01	1	9308-9502	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97103-851-2	01	1	9503-9504	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> REAR	8-97106-344-2	01	1	9505-9605	●	●
39	LINER; FENDER EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97106-344-2	01	1	9606-	●	●
40	CLIP; INNER LINER (A)	8-94215-212-0	02	1	9505-	●
40	CLIP; INNER LINER EXC. OVER FENDER<6GH> (A)	8-94215-212-0	02	1	9505-		●
40	CLIP; INNER LINER (B)	8-97805-240-0	09	1	9112-	●	●
41	RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	26	1	9112-9510	●	●
41	RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	18	1	9511-9605	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9606-	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	30	1	9112-9307	●	●
41	RIVET; INNER LINER	8-94221-150-0	08	1	9308-9504	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	30	1	9505-9510	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9511-9605	●	●
41	RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	18	1	9606-	●	●
41	RIVET; INNER LINER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9308-9504	●	●
41	RIVET; INNER LINER	8-94221-150-0	08	1	9511-	●	●
45	COVER; MUD,FENDER SKIRT	8-94359-624-2	01	1	9112-9504	●	●
45	COVER; MUD,FENDER SKIRT	8-94359-624-2	01	1	9505-9601	●	●
45	COVER; MUD,FENDER SKIRT	8-97138-226-1	01	1	9602-	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC)	8-97801-576-1	01	1	9112-9601	●	●
45	COVER; MUD,FENDER SKIRT	8-97138-227-0	01	1	9602-	●	●
45	COVER; MUD,FENDER SKIRT 6VD1 DOHC ENG(RLV)	8-94359-625-2	01	1	9112-9601	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> WELL NUT	8-94311-999-0	02	1	9112-9305	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> M6 RUBBER NUT	8-97023-281-0	02	1	9306-9605	●	●
92	NUT; MUD COVER COLOR KEYED ROCKER SKIRT<6YA> M6 RUBBER NUT	8-97023-281-0	02	1	9606-	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> M6 RUBBER NUT	8-97023-281-0	02	1	9606-		●
92	NUT; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> ID=5.2 H=10	8-97032-135-0	04	1	9505-9605		●
92	NUT; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> ID=5.2 H=10	8-97032-135-0	04	1	9606-		●
186	GROMMET; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> D=9.7X9.7 L=8	8-94222-314-0	02	1	9505-9605		●
186	GROMMET; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> D=9.7X9.7 L=8	8-94222-314-0	02	1	9606-		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ>	8-97121-240-0	01	1	9505-9605		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL>	8-97121-240-0	01	1	9606-		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ>	8-97121-239-0	01	1	9505-9605		●
219	FLAP; MUD GUARD GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL>	8-97121-239-0	01	1	9606-		●
225	NUT; MUD GUARD OVER FENDER<6GH> FORMED MUD FLAP<6WL> M6 FLANGE	8-97063-399-0	04	1	9505-9605	●	●
225	NUT; MUD GUARD OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) M6 FLANGE	8-97063-399-0	04	1	9606-	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (A) M6X12	0-28010-612-0	04	1	9112-9204	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (A) M6X12 FLANGE	0-28080-612-0	04	1	9205-9605	●	●
238	SCREW; MUD GUARD COLOR KEYED ROCKER SKIRT<6YA> (A) M6X12 FLANGE	0-28080-612-0	04	1	9606-	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (A) M6X12 FLANGE	0-28080-612-0	04	1	9606-		●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9112-9410	●	●
264	FINISHER; FRT FENDER	8-97808-857-0	02	1	9207-9504	●	●
264	FINISHER; FRT FENDER EXC. OVER FENDER<6GH>	8-97808-857-0	02	1	9505-	●	●
264	FINISHER; FRT FENDER OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37)	8-97107-799-0	02	1	9505-	●	●
294	CLIP; MUD COVER OD=22 L=10.7	8-94215-211-0	22	1	9112-	●	●
295	COVER; WHEEL HOUSE	8-97809-125-2	01	1	9308-9504	●	●
295	COVER; WHEEL HOUSE	8-97119-720-0	01	1	9505-9512	●	●
295	COVER; WHEEL HOUSE	8-97143-180-0	01	1	9601-	●	●
295	COVER; WHEEL HOUSE	8-97809-124-2	01	1	9308-9504	●	●
295	COVER; WHEEL HOUSE	8-97119-719-0	01	1	9505-9512	●	●
295	COVER; WHEEL HOUSE	8-97143-179-0	01	1	9601-	●	●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> (A) M6X16 TAPPING W/PL WASHER	0-74315-616-0	02	1	9505-9605		●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> (A) M6X16 TAPPING W/PL WASHER	0-74315-616-0	02	1	9606-		●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> EXC. CONVENIENT PACKAGE<6QZ> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	9505-9605		●
310	SCREW; MUD COVER GRADE LOTUS/LOTUS SE(RBL) FORMED MUD FLAP<6WL> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	9606-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
