6-43 — SIDE TRIM (#166951) — 168 parça

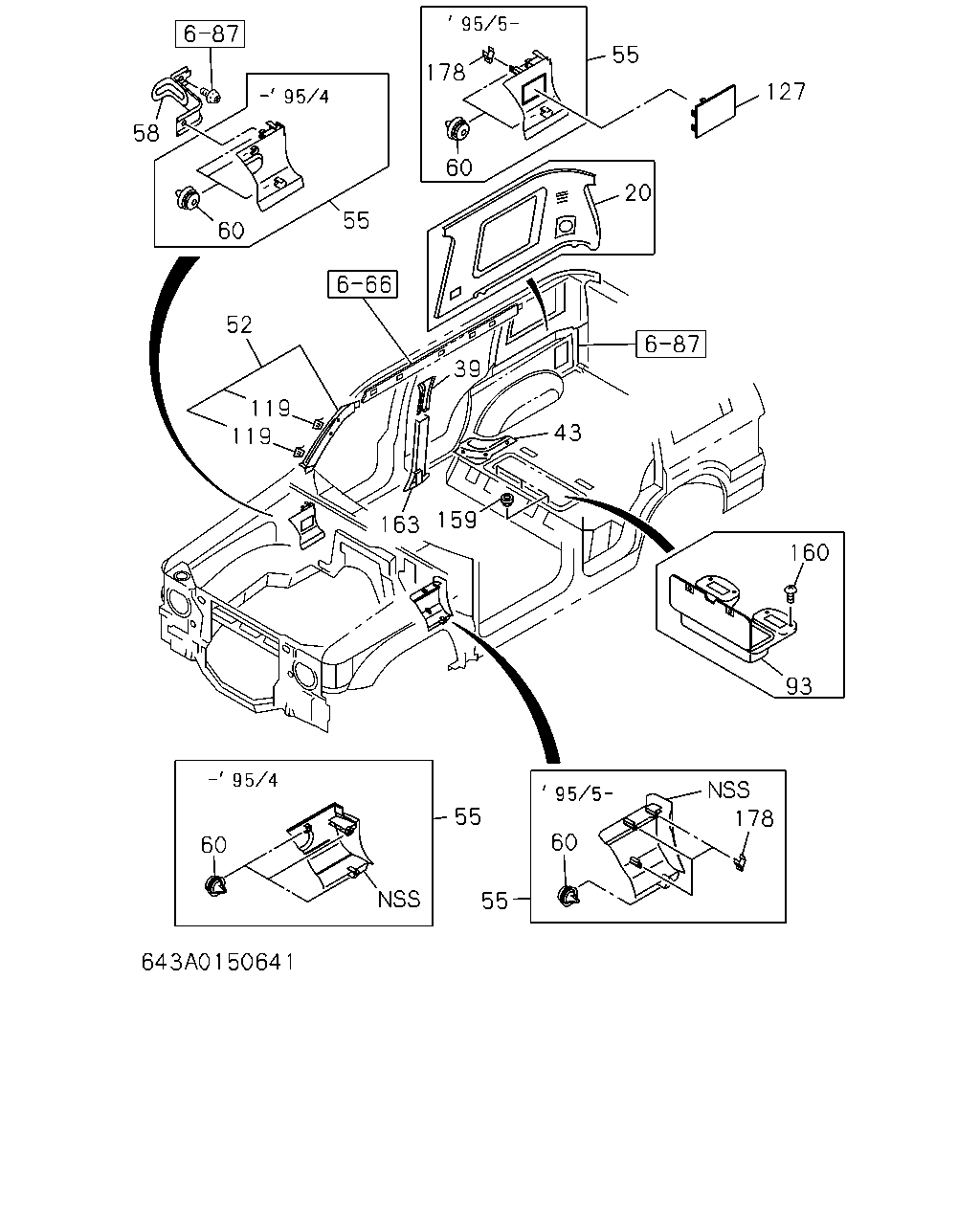

çizim 494188
58 60 55 52 119 119 163 159 43 39 20 127 55 60 178 160 93 178 60 55 55 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-102-8 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> 		8-97151-337-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-099-8 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> 		8-97151-336-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-326-7 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97151-339-0 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-323-7 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97151-338-0 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97154-067-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97154-066-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-094-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-740-1 01 1 9207-9307 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-091-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-738-1 01 1 9207-9307 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-093-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-739-1 01 1 9207-9208 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-739-1 01 1 9209-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> POWER ANTENNA<U75> DARK GRAY 		8-97151-324-8 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-096-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-741-1 01 1 9207-9208 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-741-1 01 1 9209-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> POWER ANTENNA<U75> DARK GRAY 		8-97151-325-8 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-100-8 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9308-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) POWER ANTENNA<U75> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-413-1 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-097-8 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-734-1 01 1 9308-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) POWER ANTENNA<U75> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-412-1 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) POWER ANTENNA<U75> DARK GRAY 		8-97151-327-1 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) POWER ANTENNA<U75> DARK GRAY 		8-97151-326-1 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-324-7 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-321-7 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-343-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-342-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-341-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-340-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DARK GRAY 		8-97098-411-7 01 1 9505- ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DARK GRAY 		8-97098-410-7 01 1 9505- ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-082-5 01 1 9112-9307 ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-302-3 01 1 9112-9307 ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-302-3 01 1 9112-9307 ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-304-3 01 1 9112-9504 ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-406-4 01 1 9505- ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-084-5 01 1 9112-9504 ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97151-320-5 01 1 9505- ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-298-3 01 1 9112-9307 ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-298-3 01 1 9112-9307 ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-300-3 01 1 9112-9504 ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97098-407-4 01 1 9505- ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-079-5 01 1 9112-9307 ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-081-5 01 1 9112-9504 ● ● ● ● ●
39 COVER; TRIM,CENTER PILLAR
LONG(UB***F) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97151-321-5 01 1 9505- ● ● ● ● ●
43 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-052-6 01 1 9112-9504 ● ● ●
43 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-052-6 01 1 9505- ● ● ● ●
43 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-051-6 01 1 9112-9504 ● ● ●
43 COVER; HEEL BOARD SIDE
LONG(UB***F) 		8-97804-051-6 01 1 9505- ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) WITHOUT HOLE DARK BROWN 		8-97804-272-5 01 1 9112-9307 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) WITHOUT HOLE DARK GRAY 		8-97804-274-5 01 1 9112-9504 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97151-285-0 01 1 9505-9510 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
DARK GRAY 		8-97151-285-0 01 1 9511- ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) WITHOUT HOLE DARK BROWN 		8-97806-064-4 01 1 9112-9208 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) WITH HOLE DARK BROWN 		8-97804-707-5 01 1 9209-9307 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) WITHOUT HOLE DARK GRAY 		8-97806-066-4 01 1 9112-9208 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) WITH HOLE DARK GRAY 		8-97804-709-5 01 1 9209-9504 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
DARK GRAY 		8-97098-379-0 01 1 9505- ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-061-3 01 1 9112-9307 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-063-3 01 1 9112-9504 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-283-0 01 1 9505- ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-058-3 01 1 9112-9307 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-060-3 01 1 9112-9504 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-281-2 01 1 9505- ● ● ● ● ●
58 BRACKET 8-97807-758-0 01 1 9112-9504 ● ● ● ● ●
60 CLIP; ANCHOR,TRIM PAD
H=16.7 		8-97022-017-0 02 1 9505- ● ● ● ● ●
60 CLIP; ANCHOR,TRIM PAD
H=16.7 		8-97022-017-0 06 1 9203-9504 ● ● ● ● ●
60 CLIP; ANCHOR,TRIM PAD
H=16.7 		8-97022-017-0 01 1 9505- ● ● ● ● ●
93 BOX; LUGGAGE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-015-3 01 1 9112-9307 ● ● ● ● ●
93 BOX; LUGGAGE
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-017-3 01 1 9112-9307 ● ● ● ● ●
93 BOX; LUGGAGE
LONG(UB***F) INTERIOR COLOR GRAY(153) BLACK 		8-97817-140-4 01 1 9308-9504 ● ● ● ● ●
93 BOX; LUGGAGE
BLACK 		8-97817-140-4 01 1 9505- ● ● ● ● ●
119 CLIP; FRT PILLAR 8-94313-458-0 04 1 9112- ● ● ● ● ●
127 LID; FUSE BOX
DARK GRAY 		8-97098-655-3 01 1 9505- ● ● ● ● ●
159 GROMMET; BOX
LONG(UB***F) 		8-94203-326-0 10 1 9112-9403 ● ● ●
159 GROMMET; BOX
LONG(UB***F) 		8-94203-326-0 08 1 9404-9504 ● ● ●
159 GROMMET; BOX
LONG(UB***F) 		8-94203-326-0 08 1 9505- ● ● ● ●
160 SCREW; BOX
LONG(UB***F) M5X16 		8-94295-854-0 11 1 9112-9403 ● ● ●
160 SCREW; BOX
LONG(UB***F) M5X16 		8-94295-854-0 09 1 9404-9504 ● ● ●
160 SCREW; BOX
LONG(UB***F) M5X16 		8-94295-854-0 09 1 9505- ● ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-310-4 01 1 9112-9307 ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-310-4 01 1 9112-9307 ●
163 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-312-4 01 1 9112-9504 ● ● ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) DARK GRAY 		8-97098-408-4 01 1 9505- ● ● ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-306-4 01 1 9112-9307 ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-306-4 01 1 9112-9307 ●
163 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-308-4 01 1 9112-9504 ● ● ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
LONG(UB***F) DARK GRAY 		8-97098-409-4 01 1 9505- ● ● ● ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) 		8-97122-119-0 01 1 9505- ● ● ● ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) 		8-97122-119-0 03 1 9505- ● ● ● ● ●

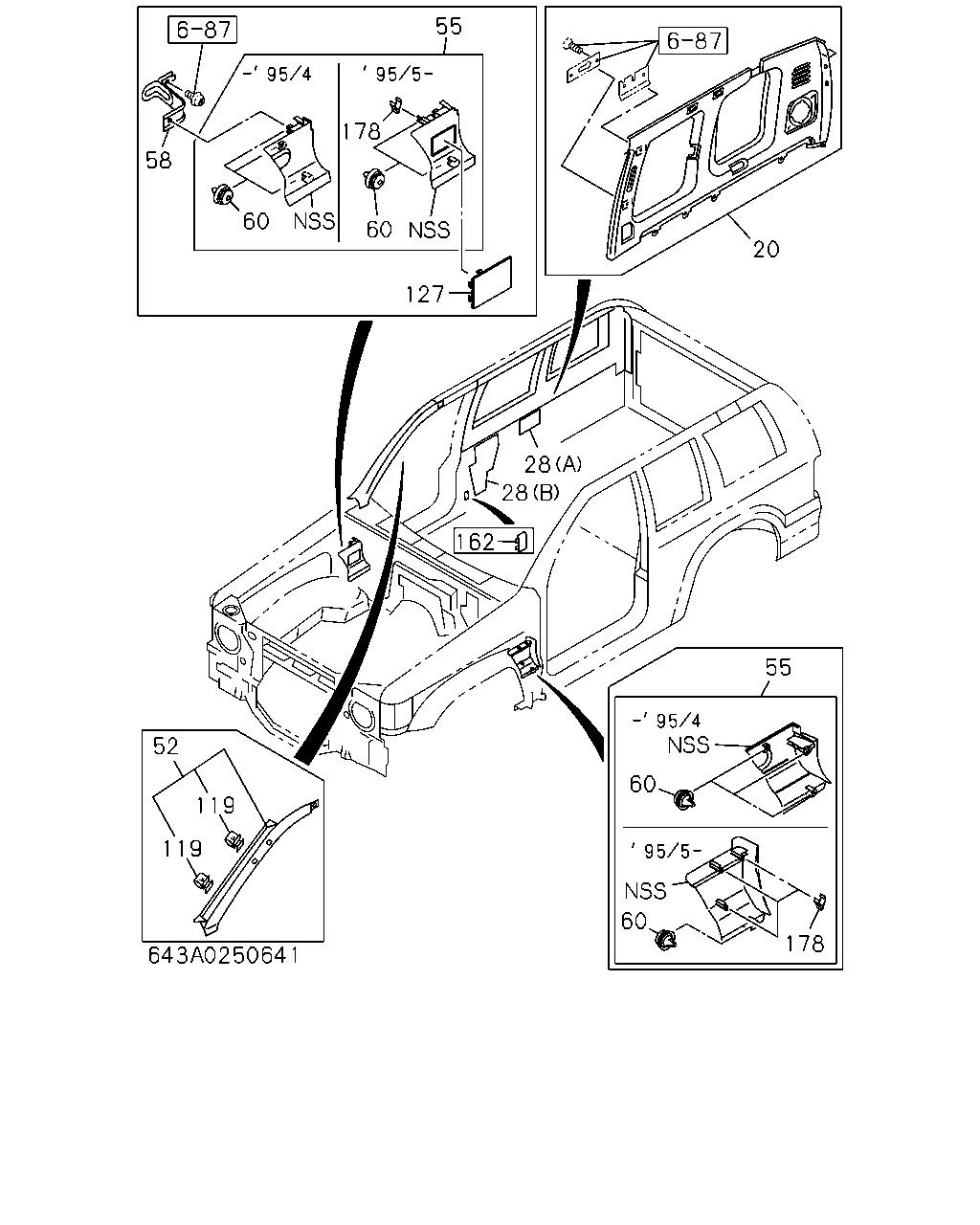

çizim 494218
55 178 60 127 60 58 20 28 28 162 55 60 60 178 119 119 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-102-8 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> 		8-97151-337-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97806-099-8 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> 		8-97151-336-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-326-7 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97151-339-0 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY 		8-97804-323-7 01 1 9112-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97151-338-0 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97154-067-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DIVERSITY ANTENNA<7HE> EXC. ADJ SHOULDER ANCHOR<AF8> 		8-97154-066-0 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-094-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-740-1 01 1 9207-9307 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-091-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-738-1 01 1 9207-9307 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-093-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-739-1 01 1 9207-9208 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-739-1 01 1 9209-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> POWER ANTENNA<U75> DARK GRAY 		8-97151-324-8 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-096-9 01 1 9112-9206 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-741-1 01 1 9207-9208 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-741-1 01 1 9209-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) ADJ SHOULDER ANCHOR<AF8> POWER ANTENNA<U75> DARK GRAY 		8-97151-325-8 01 1 9511- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-100-8 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-737-1 01 1 9308-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) POWER ANTENNA<U75> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-413-1 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97806-097-8 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97808-734-1 01 1 9308-9504 ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) POWER ANTENNA<U75> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-412-1 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) POWER ANTENNA<U75> DARK GRAY 		8-97151-327-1 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) POWER ANTENNA<U75> DARK GRAY 		8-97151-326-1 01 1 9505- ● ● ● ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-324-7 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN 		8-97804-321-7 01 1 9112-9307 ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-343-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-342-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-341-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-340-0 01 1 9505- ● ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DARK GRAY 		8-97098-411-7 01 1 9505- ●
20 COVER; TRIM,RR PILLAR
SHORT(UB***C) DARK GRAY 		8-97098-410-7 01 1 9505- ●
28 SEAL; QUARTER UPR
SHORT(UB***C) (A) 		8-97805-817-1 01 1 9112- ● ● ● ● ●
28 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97805-825-2 01 1 9112-9606 ● ● ● ● ●
28 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97176-005-0 01 1 9607- ● ● ● ● ●
28 SEAL; QUARTER UPR
SHORT(UB***C) (A) 		8-97805-816-1 01 1 9112- ● ● ● ● ●
28 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97805-824-2 01 1 9112-9606 ● ● ● ● ●
28 SEAL; QUARTER UPR
SHORT(UB***C) (B) 		8-97176-004-0 01 1 9607- ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) WITHOUT HOLE DARK BROWN 		8-97804-272-5 01 1 9112-9307 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) WITHOUT HOLE DARK GRAY 		8-97804-274-5 01 1 9112-9504 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97151-285-0 01 1 9505-9510 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
DARK GRAY 		8-97151-285-0 01 1 9511- ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) WITHOUT HOLE DARK BROWN 		8-97806-064-4 01 1 9112-9208 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BROWN(130) WITH HOLE DARK BROWN 		8-97804-707-5 01 1 9209-9307 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) WITHOUT HOLE DARK GRAY 		8-97806-066-4 01 1 9112-9208 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(153) WITH HOLE DARK GRAY 		8-97804-709-5 01 1 9209-9504 ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR
DARK GRAY 		8-97098-379-0 01 1 9505- ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-061-3 01 1 9112-9307 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-063-3 01 1 9112-9504 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-283-0 01 1 9505- ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-058-3 01 1 9112-9307 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-060-3 01 1 9112-9504 ● ● ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97151-281-2 01 1 9505- ● ● ● ● ●
58 BRACKET 8-97807-758-0 01 1 9112-9504 ● ● ● ● ●
60 CLIP; ANCHOR,TRIM PAD
H=16.7 		8-97022-017-0 02 1 9505- ● ● ● ● ●
60 CLIP; ANCHOR,TRIM PAD
H=16.7 		8-97022-017-0 06 1 9203-9504 ● ● ● ● ●
60 CLIP; ANCHOR,TRIM PAD
H=16.7 		8-97022-017-0 01 1 9505- ● ● ● ● ●
119 CLIP; FRT PILLAR 8-94313-458-0 04 1 9112- ● ● ● ● ●
127 LID; FUSE BOX
DARK GRAY 		8-97098-655-3 01 1 9505- ● ● ● ● ●
162 COVER; SEAT BELT ANCHOR
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-782-0 01 1 9112-9205 ● ● ● ● ●
162 COVER; SEAT BELT ANCHOR
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-780-0 01 1 9112-9205 ● ● ● ● ●
162 COVER; SEAT BELT ANCHOR
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-781-0 01 1 9112-9205 ● ●
162 COVER; SEAT BELT ANCHOR
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-779-0 01 1 9112-9205 ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) 		8-97122-119-0 01 1 9505- ● ● ● ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) 		8-97122-119-0 03 1 9505- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
