6-31 — FRONT DOOR GLASS AND REGULATOR (#166947) — 109 parça

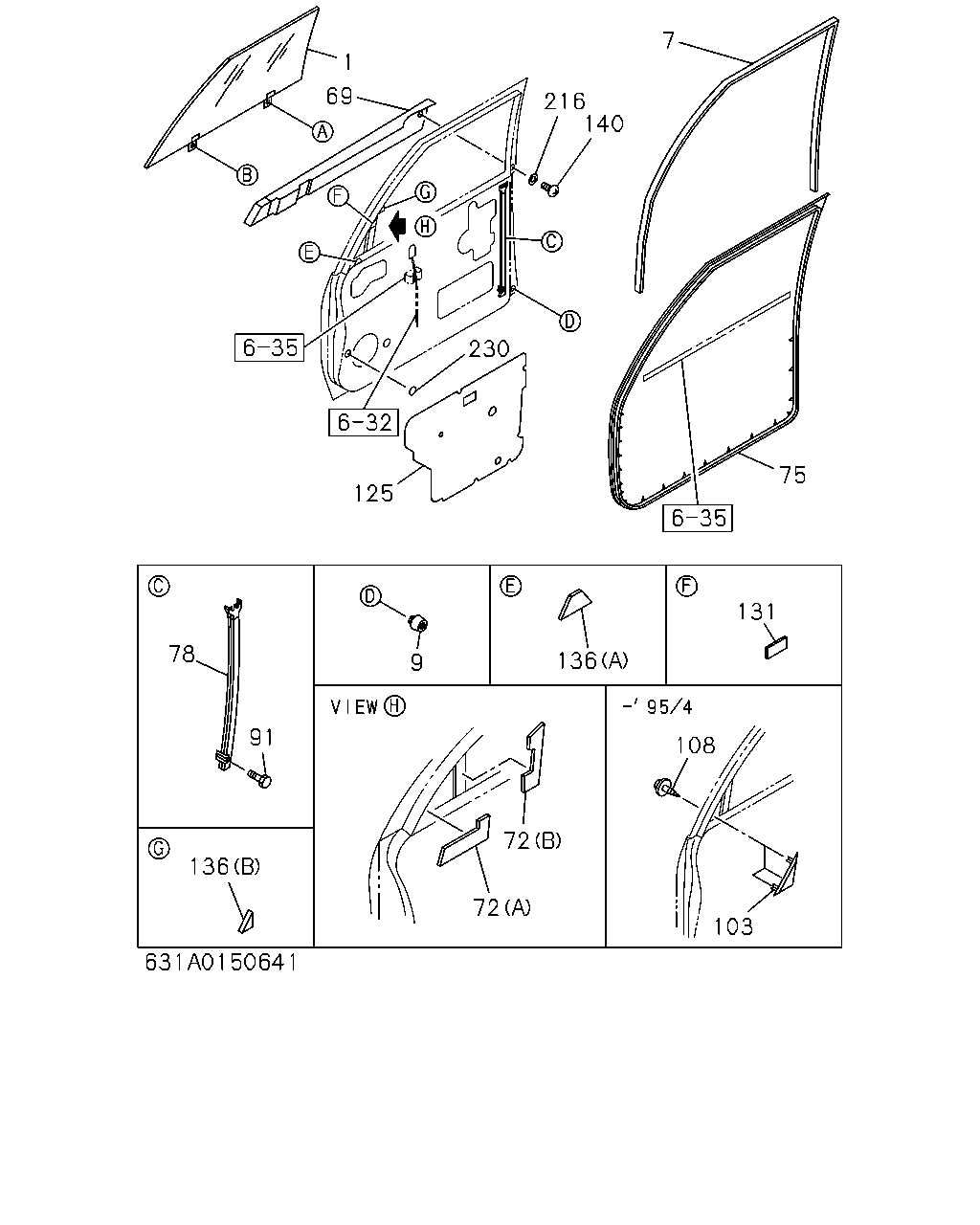

çizim 493995
7 1 69 216 140 230 125 75 131 136 91 78 136 72 72 108 103 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-94358-588-0 01 1 9112-9309 ● ●
1 GLASS; FRT DOOR
BRONZE GLASS(X72) NSG 		8-97810-967-0 01 1 9310-9404 ● ●
1 GLASS; FRT DOOR
BRONZE GLASS(X72) ASAHI 		8-97811-220-1 01 1 9405- ● ●
1 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-94358-587-0 01 1 9112-9309 ● ●
1 GLASS; FRT DOOR
BRONZE GLASS(X72) NSG 		8-97810-966-0 01 1 9310-9404 ● ●
1 GLASS; FRT DOOR
BRONZE GLASS(X72) ASAHI 		8-97811-219-1 01 1 9405- ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-94358-586-0 01 1 9112-9309 ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) NSG 		8-97810-965-0 01 1 9310-9404 ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) ASAHI 		8-97811-218-0 01 1 9405-9504 ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-97121-780-1 01 1 9505- ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-94358-585-0 01 1 9112-9309 ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) NSG 		8-97810-964-0 01 1 9310-9404 ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) ASAHI 		8-97811-217-0 01 1 9405-9504 ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72) 		8-97121-779-1 01 1 9505- ● ●
7 GLASS RUN; FRT DOOR 8-94358-578-4 01 1 9112-9208 ● ●
7 GLASS RUN; FRT DOOR 8-94358-577-4 01 1 9112-9208 ● ●
7 GLASS RUN; FRT DOOR 8-94358-578-6 01 1 9209-9307 ● ●
7 GLASS RUN; FRT DOOR 8-94358-577-6 01 1 9209-9307 ● ●
7 GLASS RUN; FRT DOOR 8-94358-578-7 01 1 9308-9604 ● ●
7 GLASS RUN; FRT DOOR 8-97128-688-0 01 1 9605- ● ●
7 GLASS RUN; FRT DOOR 8-94358-577-7 01 1 9308-9604 ● ●
7 GLASS RUN; FRT DOOR 8-97128-687-0 01 1 9605- ● ●
9 BUFFER; DOOR GLASS RUN 8-94358-581-0 04 1 9112- ● ●
69 SEAL; DOOR WAIST 8-94358-616-7 01 1 9112-9504 ●
69 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-616-7 01 1 9112-9504 ●
69 SEAL; DOOR WAIST
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-94358-616-7 01 1 9505- ●
69 SEAL; DOOR WAIST
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE IRMSHER(RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-616-7 01 1 9505- ●
69 SEAL; DOOR WAIST 8-94358-615-7 01 1 9112-9504 ●
69 SEAL; DOOR WAIST
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-615-7 01 1 9112-9504 ●
69 SEAL; DOOR WAIST
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-94358-615-7 01 1 9505- ●
69 SEAL; DOOR WAIST
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE IRMSHER(RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-615-7 01 1 9505- ●
69 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-661-6 01 1 9112-9504 ●
69 SEAL; DOOR WAIST
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE IRMSHER(RBQ) EXTERIOR CHROME PACKAGE<6CX> 		8-94358-661-6 01 1 9505- ●
69 SEAL; DOOR WAIST
GRADE LOTUS/LOTUS SE(RBL) 		8-94358-661-6 01 1 9505- ●
69 SEAL; DOOR WAIST
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-660-6 01 1 9112-9504 ●
69 SEAL; DOOR WAIST
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE IRMSHER(RBQ) EXTERIOR CHROME PACKAGE<6CX> 		8-94358-660-6 01 1 9505- ●
69 SEAL; DOOR WAIST
GRADE LOTUS/LOTUS SE(RBL) 		8-94358-660-6 01 1 9505- ●
72 SEAL; WAIST,FRT DOOR
(A) 		8-97137-579-2 01 1 9509- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		8-97137-578-2 01 1 9509- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		8-97139-401-0 01 1 9511- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		8-97139-400-0 01 1 9511- ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97807-357-3 01 1 9112-9302 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97810-335-0 01 1 9303-9503 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-400-0 01 1 9504-9504 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-424-0 01 1 9505-9602 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97128-680-1 01 1 9603- ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97807-356-3 01 1 9112-9302 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97810-334-0 01 1 9303-9503 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-399-0 01 1 9504-9504 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97811-423-0 01 1 9505-9602 ● ●
75 WEATHERSTRIP; FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97128-679-1 01 1 9603- ● ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-608-3 01 1 9112-9302 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97810-339-0 01 1 9303-9307 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97810-339-0 01 1 9308-9503 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97811-404-0 01 1 9504-9602 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97128-682-0 01 1 9603- ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-607-3 01 1 9112-9302 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97810-338-0 01 1 9303-9307 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97810-338-0 01 1 9308-9503 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97811-403-0 01 1 9504-9602 ●
75 WEATHERSTRIP; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-97128-681-0 01 1 9603- ●
78 RAIL; FRT GUIDE 8-94358-624-3 01 1 9112-9308 ● ●
78 RAIL; FRT GUIDE 8-97810-349-1 01 1 9309- ● ●
78 RAIL; FRT GUIDE 8-94358-623-3 01 1 9112-9308 ● ●
78 RAIL; FRT GUIDE 8-97810-348-1 01 1 9309- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 		8-94155-893-0 02 1 9112- ● ●
103 COVER; FRT DOOR CORNER
FENDER MIRROR(DG3) 		8-97803-045-1 01 1 9112-9504 ● ●
103 COVER; FRT DOOR CORNER
FENDER MIRROR(DG3) 		8-97803-044-1 01 1 9112-9504 ● ●
108 SCREW; CORNER COVER
FENDER MIRROR(DG3) M4X10 TAPPING W/PL WASHER 		0-74305-410-0 06 1 9112-9504 ● ●
125 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-163-4 02 1 9112- ● ●
125 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW W/TIMER<6WS> 		8-97800-161-4 02 1 9112- ● ●
131 SEAL; FRT DOOR
GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97808-593-0 02 1 9201-9210 ● ●
136 SEAL; DOOR INNER,FRT DOOR
(B) 		8-97808-076-0 04 1 9112-9301 ● ●
136 SEAL; DOOR INNER,FRT DOOR
(B) 		8-97808-076-0 02 1 9302-9312 ● ●
136 SEAL; DOOR INNER,FRT DOOR
(B) 		8-97811-165-0 02 1 9401-9504 ● ●
136 SEAL; DOOR INNER,FRT DOOR
(A) 		8-97807-983-1 02 1 9112-9503 ● ●
140 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 9112- ● ●
216 WASHER; WAIST SEAL
ID=6 		8-94126-642-0 02 1 9112-9404 ● ●
216 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 9405- ● ●
230 SEAL; DOOR 1-76798-005-0 04 1 9209-9312 ● ●
230 SEAL; DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9401- ● ●

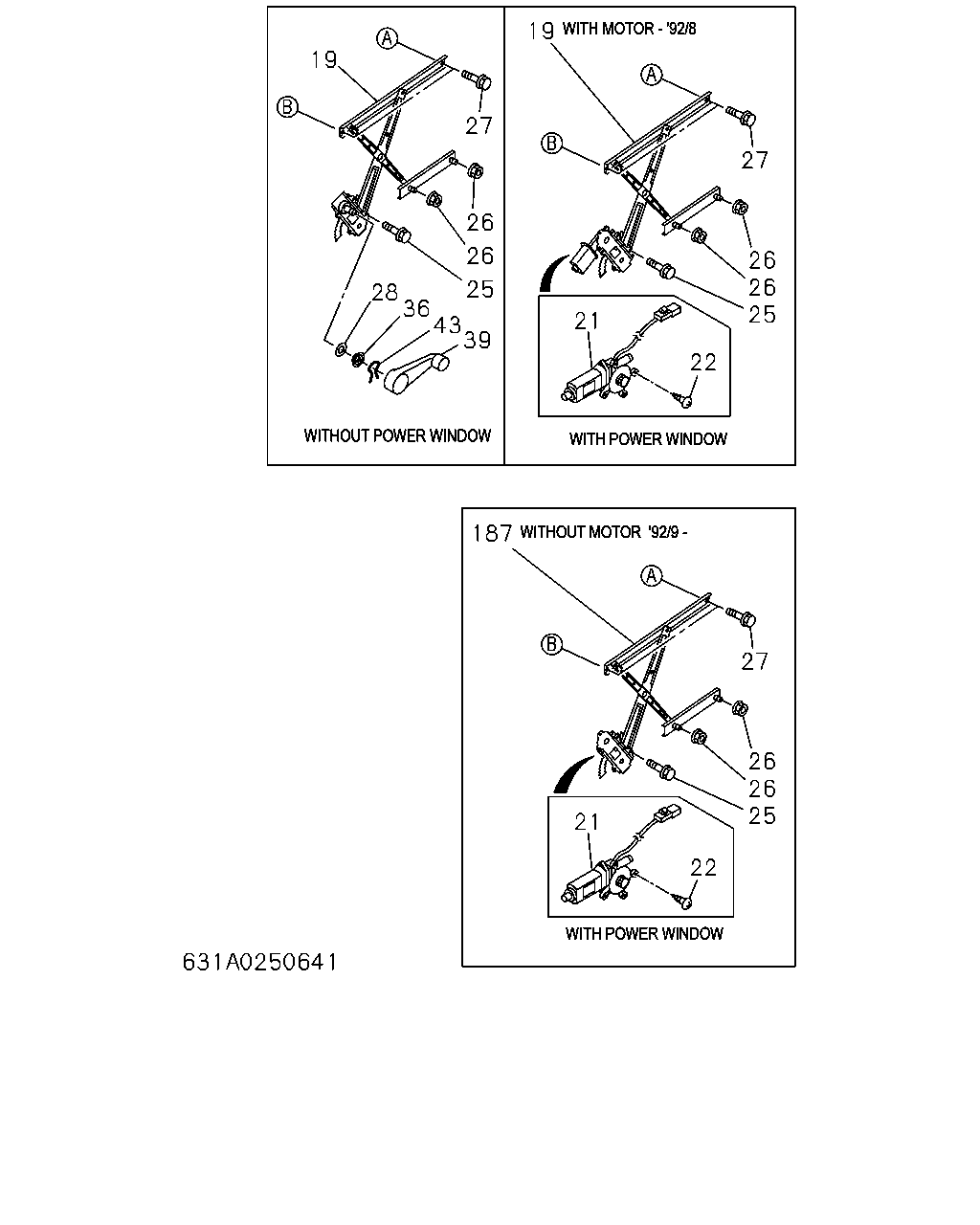

çizim 494032
19 27 26 25 26 39 43 36 28 21 22 25 26 26 27 19 187 27 26 26 25 22 21
BalonParca AdiParca NoAdetTipApplied Date A B
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-94358-570-0 01 1 9112-9208 ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-94358-569-0 01 1 9112-9208 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW W/TIMER<6WS> 		8-94358-572-0 01 1 9112-9510 ● ●
19 REGULATOR; WINDOW,FRT DOOR
INTERIOR COLOR GRAY(153) EXC. POWER WINDOW W/TIMER<6WS> 		8-94358-572-0 01 1 9511- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW W/TIMER<6WS> 		8-94358-571-0 01 1 9112-9510 ● ●
19 REGULATOR; WINDOW,FRT DOOR
INTERIOR COLOR GRAY(153) EXC. POWER WINDOW W/TIMER<6WS> 		8-94358-571-0 01 1 9511- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-047-0 01 1 9112-9510 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-047-0 01 1 9511-9608 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97165-864-0 01 1 9609- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-046-0 01 1 9112-9510 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-046-0 01 1 9511-9608 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-97165-863-0 01 1 9609- ● ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW W/TIMER<6WS> M6X14 W/LK WASHER 		9-03910-614-0 06 1 9112- ● ●
25 BOLT; WINDOW REG
M6X8 		8-94155-893-0 08 1 9112- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		5-09440-004-0 04 1 9112- ● ●
27 BOLT; GLASS FIX
M6X8 		8-94155-893-0 04 1 9112- ● ●
28 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW W/TIMER<6WS> 		8-94106-830-1 02 1 9112- ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW W/TIMER<6WS> 		8-94220-668-1 02 1 9112- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BROWN(130) EXC. POWER WINDOW W/TIMER<6WS> DARK BROWN 		8-97806-639-0 02 1 9112-9307 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR GRAY(153) EXC. POWER WINDOW W/TIMER<6WS> DARK GRAY 		8-97805-571-0 02 1 9112-9504 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
POWER WINDOW W/TIMER<6WS> DARK GRAY 		8-97098-453-0 02 1 9505- ● ●
43 CLIP; REG HANDLE,FRT DOOR
POWER WINDOW W/TIMER<6WS> 		8-94220-591-0 02 1 9502- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-043-0 01 1 9209-9510 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-043-0 01 1 9511-9608 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW W/TIMER<6WS> 		8-97165-862-0 01 1 9609- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-042-0 01 1 9209-9510 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW W/TIMER<6WS> 		8-97800-042-0 01 1 9511-9608 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW W/TIMER<6WS> 		8-97165-861-0 01 1 9609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
