Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#166945) — 642 parça

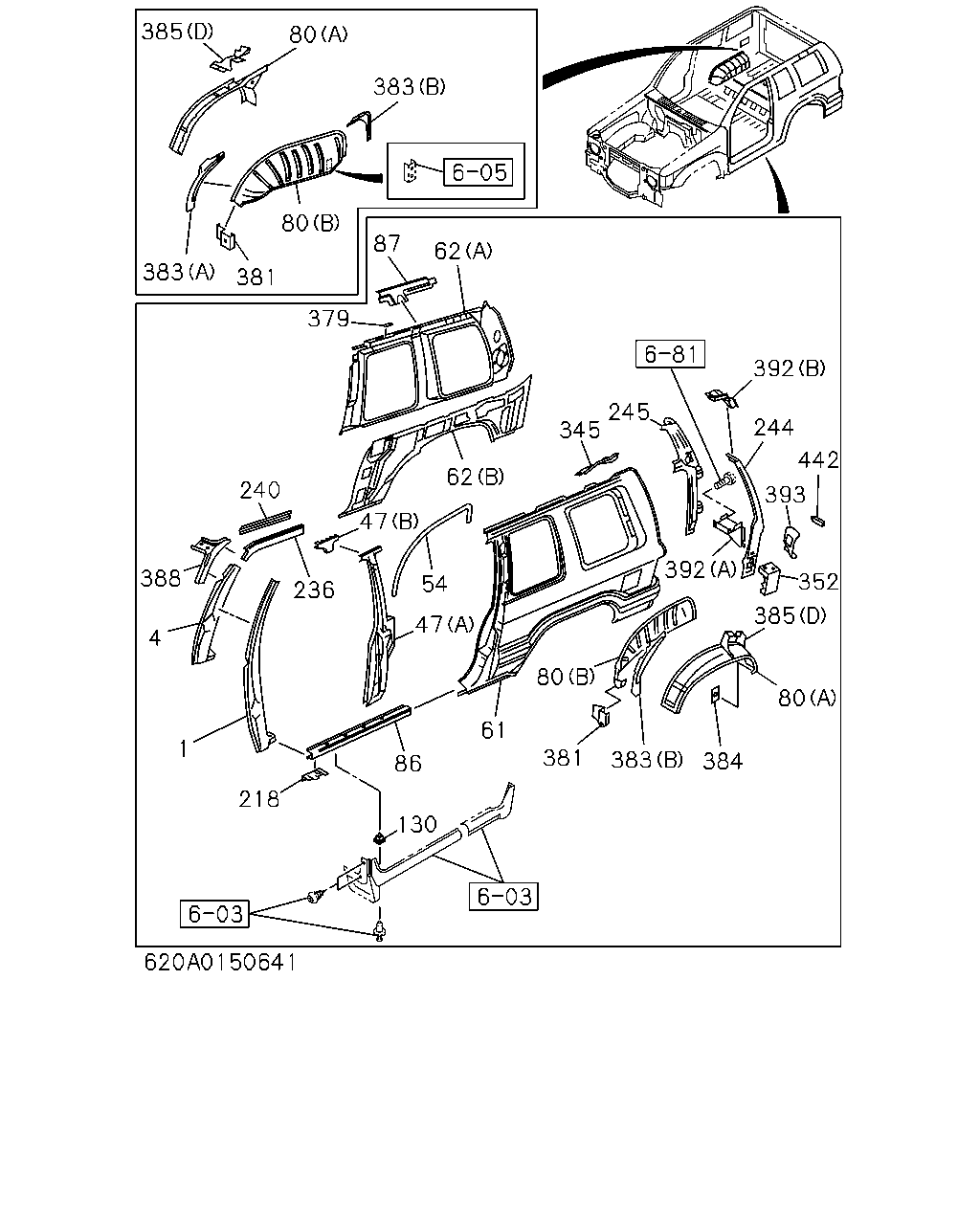

385 80 383 80 381 383 379 87 62 240 47 62 345 245 392 244 442 393 352 385 80 384 383 80 61 381 392 54 47 236 388 4 1 218 86 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; A-POST OUTER ASM,UPR	8-94359-854-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-440-0	01	1	9509-	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-94359-853-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-439-0	01	1	9509-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-918-0	01	1	9112-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-917-1	01	1	9112-	●	●
47	REINFORCEMENT; B-POST (A)	8-97801-871-2	01	1	9112-	●
47	REINFORCEMENT; B-POST (B)	8-97803-931-1	01	1	9112-	●
47	REINFORCEMENT; B-POST (A)	8-97801-870-2	01	1	9112-	●
47	REINFORCEMENT; B-POST (B)	8-97803-930-1	01	1	9112-	●
54	PATCH; DOOR STRIKER	8-97808-594-0	02	1	9112-	●	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-903-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-97802-903-9	01	1	9505-	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-904-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-97802-904-9	01	1	9505-	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9505-	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9505-	●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97103-246-1	01	1	9505-	●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97103-248-1	01	1	9505-	●
61	PANEL; SIDE OUTER	8-94358-357-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-711-0	01	1	9203-9504		●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-711-0	01	1	9505-		●
61	PANEL; SIDE OUTER	8-94358-358-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-712-0	01	1	9203-9504		●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-712-0	01	1	9505-		●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97183-082-0	01	1	9505-		●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97183-083-0	01	1	9505-		●
62	PANEL; BODY SIDE INNER (B)	8-97801-875-9	01	1	9112-9307	●
62	PANEL; BODY SIDE INNER (A)	8-94359-989-6	01	1	9308-9404	●
62	PANEL; BODY SIDE INNER (A)	8-97110-496-3	01	1	9405-	●
62	PANEL; BODY SIDE INNER (A)	8-94359-989-6	01	1	9112-9307	●
62	PANEL; BODY SIDE INNER (B)	8-97801-875-9	01	1	9308-9404	●
62	PANEL; BODY SIDE INNER (B)	8-97103-662-0	01	1	9405-	●
62	PANEL; BODY SIDE INNER (C)	8-94358-414-5	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (C)	8-97110-494-2	01	1	9405-		●
62	PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97808-789-1	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (D)	8-97801-091-9	01	1	9112-9203		●
62	PANEL; BODY SIDE INNER (D)	8-97808-789-1	01	1	9204-9404		●
62	PANEL; BODY SIDE INNER (D)	8-97104-211-0	01	1	9405-9504		●
62	PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH> (D)	8-97104-211-0	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (D)	8-97104-211-0	01	1	9510-		●
62	PANEL; BODY SIDE INNER (A)	8-94359-988-5	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (A)	8-97110-495-2	01	1	9405-	●
62	PANEL; BODY SIDE INNER (B)	8-97801-874-6	01	1	9112-9504	●
62	PANEL; BODY SIDE INNER (B)	8-97801-874-6	01	1	9505-	●
62	PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (C)	8-94358-413-6	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (C)	8-94358-413-4	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (C)	8-97110-493-1	01	1	9405-9504		●
62	PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH> (C)	8-97110-493-1	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (C)	8-97110-493-1	01	1	9510-		●
62	PANEL; BODY SIDE INNER (D)	8-97801-090-9	01	1	9112-		●
80	PANEL; WHEEL HOUSE,INNER (A)	8-94358-669-5	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97103-599-2	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97800-544-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97809-011-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97810-389-1	01	1	9306-	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-94358-668-7	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97103-598-1	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97800-543-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97809-010-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97810-388-1	01	1	9306-	●	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-902-4	01	1	9112-9605	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97802-902-4	01	1	9606-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97188-184-0	01	1	9712-	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-901-4	01	1	9112-9605	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97802-901-4	01	1	9606-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97188-183-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-967-4	01	1	9112-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-182-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-966-4	01	1	9112-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-181-0	01	1	9712-	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-161-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-180-0	01	1	9712-		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-160-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-179-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-667-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-179-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-977-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-666-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-178-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-976-0	01	1	9712-		●
87	REINFORCEMENT; SEAT BELT,RETRACTOR	8-97803-612-4	01	1	9112-9504	●
87	REINFORCEMENT; SEAT BELT,RETRACTOR	8-97803-612-4	01	1	9505-	●
87	REINFORCEMENT; SEAT BELT,RETRACTOR	8-97803-611-4	01	1	9112-9504	●
87	REINFORCEMENT; SEAT BELT,RETRACTOR	8-97803-611-4	01	1	9505-	●
130	GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> D=9.7X9.7 L=8	8-94222-314-0	02	1	9112-9504	●	●
130	GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> D=9.7X9.7 L=8	8-94222-314-0	02	1	9505-9508	●	●
218	PATCH; CAB MTG	8-97803-283-3	01	1	9112-	●	●
218	PATCH; CAB MTG	8-97803-282-3	01	1	9112-	●	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9112-9504	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9505-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-965-2	01	1	9112-9605		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-947-1	01	1	9606-		●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9112-9504	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9505-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-964-2	01	1	9112-9605		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-946-1	01	1	9606-		●
240	CANTRAIL; RR INNER	8-97801-919-0	01	1	9112-9504	●
240	CANTRAIL; RR INNER	8-97801-919-0	01	1	9505-	●
240	CANTRAIL; RR INNER	8-97801-918-0	01	1	9112-9504	●
240	CANTRAIL; RR INNER	8-97801-918-0	01	1	9505-	●
240	CANTRAIL; RR INNER	8-97801-528-0	01	1	9112-		●
240	CANTRAIL; RR INNER	8-97801-527-0	01	1	9112-		●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-369-7	01	1	9112-	●	●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-368-7	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-904-3	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-903-3	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-743-7	01	1	9112-		●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-742-7	01	1	9112-		●
345	PANEL; EXT,SIDE OUTER	8-94359-890-3	01	1	9112-	●	●
345	PANEL; EXT,SIDE OUTER	8-94359-889-3	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-97803-336-1	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-94359-915-2	01	1	9112-	●	●
379	PATCH; ROOF RACK	8-94359-867-1	02	1	9112-9504	●
379	PATCH; ROOF RACK	8-94359-867-1	02	1	9505-	●
379	PATCH; ROOF RACK	8-94359-867-1	06	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-995-2	01	1	9112-9504	●
381	GUSSET; WHEEL HOUSE	8-94359-995-3	01	1	9505-	●
381	GUSSET; WHEEL HOUSE	8-94359-994-2	01	1	9112-9504	●
381	GUSSET; WHEEL HOUSE	8-94359-994-3	01	1	9505-	●
381	GUSSET; WHEEL HOUSE	8-94359-941-2	01	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-940-2	01	1	9112-		●
383	PANEL; SIDE INNER (A)	8-94359-993-1	01	1	9112-9504	●
383	PANEL; SIDE INNER (A)	8-94359-993-1	01	1	9505-	●
383	PANEL; SIDE INNER (A)	8-94359-992-1	01	1	9112-9504	●
383	PANEL; SIDE INNER (A)	8-94359-992-1	01	1	9505-	●
383	PANEL; SIDE INNER (B)	8-94359-939-0	01	1	9112-	●	●
383	PANEL; SIDE INNER (A)	8-94359-938-1	01	1	9112-		●
383	PANEL; SIDE INNER (A)	8-94359-937-1	01	1	9112-		●
384	PATCH; WHEEL HOUSE	8-97805-173-1	01	1	9112-	●	●
385	BRACKET; ANCHOR (D)	8-97802-007-2	01	1	9112-9504	●
385	BRACKET; ANCHOR (D)	8-97802-007-2	01	1	9505-	●
385	BRACKET; ANCHOR (D)	8-97802-006-2	01	1	9112-9504	●
385	BRACKET; ANCHOR (D)	8-97802-006-2	01	1	9505-	●
385	BRACKET; ANCHOR (B)	8-94359-951-2	01	1	9112-9208		●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9209-9307		●
385	BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9209-9504		●
385	BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9505-		●
385	BRACKET; ANCHOR (A)	8-94359-945-1	01	1	9112-9208		●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9308-9504		●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9505-		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9112-9307		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9209-9307		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9308-9504		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9505-		●
385	BRACKET; ANCHOR (B)	8-94359-950-2	01	1	9112-9208		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9308-9504		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9505-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (C)	8-97802-235-1	01	1	9112-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (C)	8-97802-234-1	01	1	9112-		●
388	REINFORCEMENT; FRONT PILLAR	8-94359-922-4	01	1	9112-	●	●
388	REINFORCEMENT; FRONT PILLAR	8-94359-921-4	01	1	9112-	●	●
392	GUSSET; RR PILLAR (B)	8-94359-894-2	01	1	9112-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-896-4	01	1	9112-	●	●
392	GUSSET; RR PILLAR (B)	8-94359-893-2	01	1	9112-9307	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-2	01	1	9209-9307	●	●
392	GUSSET; RR PILLAR (B)	8-94359-893-2	01	1	9308-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-1	01	1	9112-9208	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-3	01	1	9308-	●	●
393	PANEL; LAMP HOUSING	8-94359-900-1	01	1	9112-	●	●
393	PANEL; LAMP HOUSING	8-94359-899-1	01	1	9112-	●	●
442	PATCH	8-97811-443-0	02	1	9602-	●	●

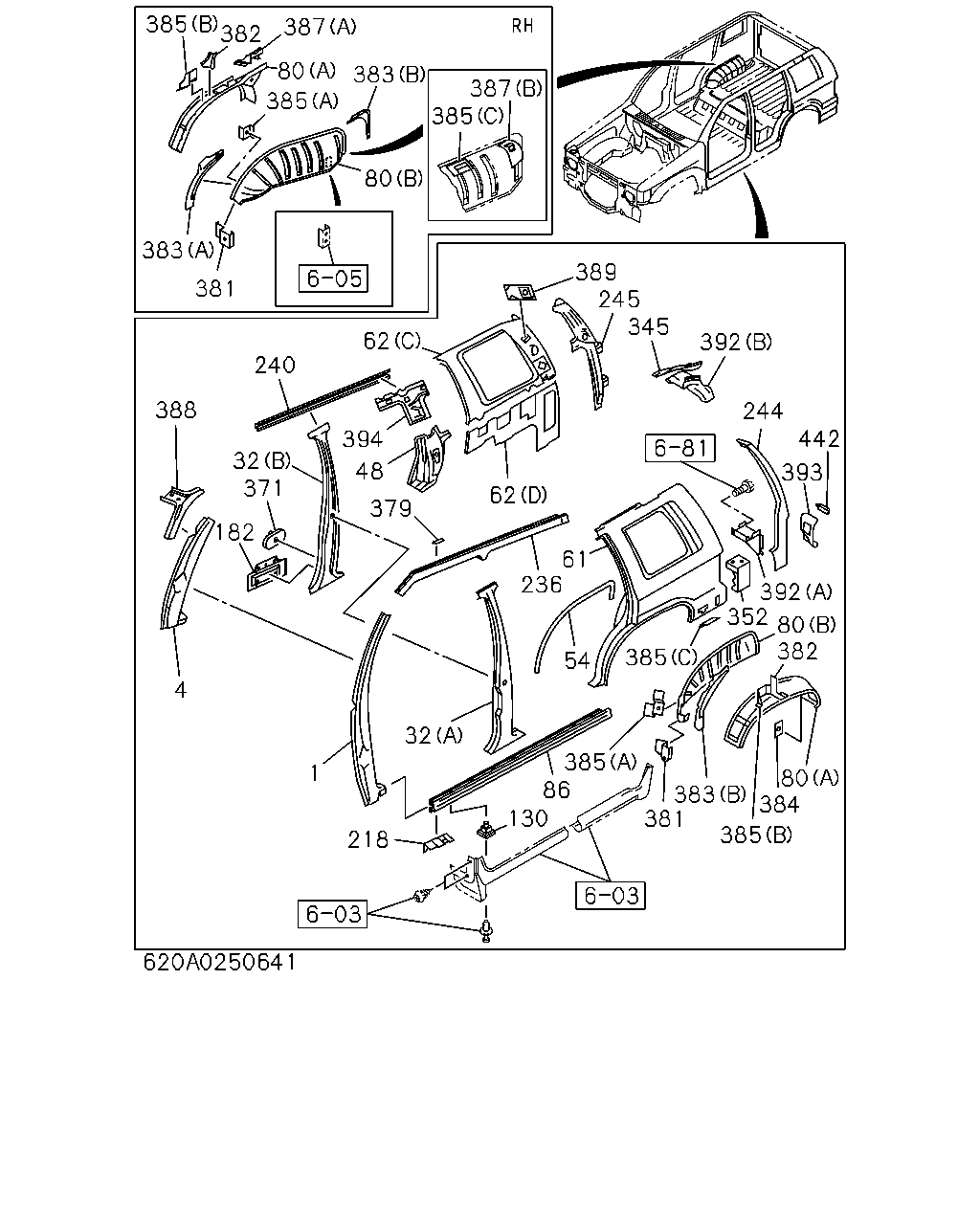

385 385 80 387 382 383 80 383 381 385 387 389 345 245 392 244 393 442 62 62 240 394 379 48 32 388 371 182 4 1 32 218 130 86 385 381 236 54 61 385 383 385 384 80 382 352 80 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; A-POST OUTER ASM,UPR	8-94359-854-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-440-0	01	1	9509-	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-94359-853-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-439-0	01	1	9509-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-918-0	01	1	9112-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-917-1	01	1	9112-	●	●
32	PANEL; BC-POST (B)	8-97800-568-0	01	1	9112-9307		●
32	PANEL; BC-POST (B)	8-94358-367-2	01	1	9308-9501		●
32	PANEL; BC-POST (B)	8-97811-380-0	01	1	9502-		●
32	PANEL; BC-POST (A)	8-94359-870-2	01	1	9112-9508		●
32	PANEL; BC-POST (A)	8-97811-436-0	01	1	9509-		●
32	PANEL; BC-POST (B)	8-97800-567-0	01	1	9112-9307		●
32	PANEL; BC-POST (B)	8-94358-366-2	01	1	9308-9501		●
32	PANEL; BC-POST (B)	8-97811-379-0	01	1	9502-		●
32	PANEL; BC-POST (A)	8-94359-869-2	01	1	9112-9508		●
32	PANEL; BC-POST (A)	8-97811-435-0	01	1	9509-		●
48	REINFORCEMENT; C POST	8-97803-010-2	01	1	9112-9403		●
48	REINFORCEMENT; C POST	8-97111-054-2	01	1	9404-		●
48	REINFORCEMENT; C POST	8-97803-009-2	01	1	9112-9403		●
48	REINFORCEMENT; C POST	8-97111-053-2	01	1	9404-		●
54	PATCH; DOOR STRIKER	8-97808-594-0	02	1	9112-	●	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-903-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-97802-903-9	01	1	9505-	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-904-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-97802-904-9	01	1	9505-	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9505-	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9505-	●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97103-246-1	01	1	9505-	●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97103-248-1	01	1	9505-	●
61	PANEL; SIDE OUTER	8-94358-357-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-711-0	01	1	9203-9504		●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-711-0	01	1	9505-		●
61	PANEL; SIDE OUTER	8-94358-358-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-712-0	01	1	9203-9504		●
61	PANEL; SIDE OUTER EXC. OVER FENDER<6GH>	8-97808-712-0	01	1	9505-		●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97183-082-0	01	1	9505-		●
61	PANEL; SIDE OUTER OVER FENDER<6GH>	8-97183-083-0	01	1	9505-		●
62	PANEL; BODY SIDE INNER (B)	8-97801-875-9	01	1	9112-9307	●
62	PANEL; BODY SIDE INNER (A)	8-94359-989-6	01	1	9308-9404	●
62	PANEL; BODY SIDE INNER (A)	8-97110-496-3	01	1	9405-	●
62	PANEL; BODY SIDE INNER (A)	8-94359-989-6	01	1	9112-9307	●
62	PANEL; BODY SIDE INNER (B)	8-97801-875-9	01	1	9308-9404	●
62	PANEL; BODY SIDE INNER (B)	8-97103-662-0	01	1	9405-	●
62	PANEL; BODY SIDE INNER (C)	8-94358-414-5	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (C)	8-97110-494-2	01	1	9405-		●
62	PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97808-789-1	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (D)	8-97801-091-9	01	1	9112-9203		●
62	PANEL; BODY SIDE INNER (D)	8-97808-789-1	01	1	9204-9404		●
62	PANEL; BODY SIDE INNER (D)	8-97104-211-0	01	1	9405-9504		●
62	PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH> (D)	8-97104-211-0	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (D)	8-97104-211-0	01	1	9510-		●
62	PANEL; BODY SIDE INNER (A)	8-94359-988-5	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (A)	8-97110-495-2	01	1	9405-	●
62	PANEL; BODY SIDE INNER (B)	8-97801-874-6	01	1	9112-9504	●
62	PANEL; BODY SIDE INNER (B)	8-97801-874-6	01	1	9505-	●
62	PANEL; BODY SIDE INNER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. 3RD SEAT 7 PASSENGERS(AS3) (C)	8-94358-413-6	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (C)	8-94358-413-4	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (C)	8-97110-493-1	01	1	9405-9504		●
62	PANEL; BODY SIDE INNER EXC. OVER FENDER<6GH> (C)	8-97110-493-1	01	1	9505-9509		●
62	PANEL; BODY SIDE INNER (C)	8-97110-493-1	01	1	9510-		●
62	PANEL; BODY SIDE INNER (D)	8-97801-090-9	01	1	9112-		●
80	PANEL; WHEEL HOUSE,INNER (A)	8-94358-669-5	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97103-599-2	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97800-544-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97809-011-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97810-389-1	01	1	9306-	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-94358-668-7	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97103-598-1	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97800-543-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97809-010-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97810-388-1	01	1	9306-	●	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-902-4	01	1	9112-9605	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97802-902-4	01	1	9606-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97188-184-0	01	1	9712-	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-901-4	01	1	9112-9605	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97802-901-4	01	1	9606-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH>	8-97188-183-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-967-4	01	1	9112-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-182-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-966-4	01	1	9112-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-181-0	01	1	9712-	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-161-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-180-0	01	1	9712-		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97133-160-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-179-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-667-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-179-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-977-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-666-4	01	1	9112-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-178-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-976-0	01	1	9712-		●
130	GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> D=9.7X9.7 L=8	8-94222-314-0	02	1	9112-9504	●	●
130	GROMMET; SCREW,PROTECTOR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> D=9.7X9.7 L=8	8-94222-314-0	02	1	9505-9508	●	●
182	PANEL; CLOSING,CTR PILLAR LWR	8-97802-757-2	01	1	9112-		●
182	PANEL; CLOSING,CTR PILLAR LWR	8-97802-756-2	01	1	9112-		●
218	PATCH; CAB MTG	8-97803-283-3	01	1	9112-	●	●
218	PATCH; CAB MTG	8-97803-282-3	01	1	9112-	●	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9112-9504	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9505-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-965-2	01	1	9112-9605		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-947-1	01	1	9606-		●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9112-9504	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9505-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-964-2	01	1	9112-9605		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-946-1	01	1	9606-		●
240	CANTRAIL; RR INNER	8-97801-919-0	01	1	9112-9504	●
240	CANTRAIL; RR INNER	8-97801-919-0	01	1	9505-	●
240	CANTRAIL; RR INNER	8-97801-918-0	01	1	9112-9504	●
240	CANTRAIL; RR INNER	8-97801-918-0	01	1	9505-	●
240	CANTRAIL; RR INNER	8-97801-528-0	01	1	9112-		●
240	CANTRAIL; RR INNER	8-97801-527-0	01	1	9112-		●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-369-7	01	1	9112-	●	●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-368-7	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-904-3	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-903-3	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-743-7	01	1	9112-		●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-742-7	01	1	9112-		●
345	PANEL; EXT,SIDE OUTER	8-94359-890-3	01	1	9112-	●	●
345	PANEL; EXT,SIDE OUTER	8-94359-889-3	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-97803-336-1	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-94359-915-2	01	1	9112-	●	●
371	PATCH; SEAT BELT	8-97804-637-1	02	1	9308-		●
379	PATCH; ROOF RACK	8-94359-867-1	02	1	9112-9504	●
379	PATCH; ROOF RACK	8-94359-867-1	02	1	9505-	●
379	PATCH; ROOF RACK	8-94359-867-1	06	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-995-2	01	1	9112-9504	●
381	GUSSET; WHEEL HOUSE	8-94359-995-3	01	1	9505-	●
381	GUSSET; WHEEL HOUSE	8-94359-994-2	01	1	9112-9504	●
381	GUSSET; WHEEL HOUSE	8-94359-994-3	01	1	9505-	●
381	GUSSET; WHEEL HOUSE	8-94359-941-2	01	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-940-2	01	1	9112-		●
382	GUSSET; QTR PLR	8-97801-478-0	01	1	9112-		●
382	GUSSET; QTR PLR	8-97801-477-0	01	1	9112-		●
383	PANEL; SIDE INNER (A)	8-94359-993-1	01	1	9112-9504	●
383	PANEL; SIDE INNER (A)	8-94359-993-1	01	1	9505-	●
383	PANEL; SIDE INNER (A)	8-94359-992-1	01	1	9112-9504	●
383	PANEL; SIDE INNER (A)	8-94359-992-1	01	1	9505-	●
383	PANEL; SIDE INNER (B)	8-94359-939-0	01	1	9112-	●	●
383	PANEL; SIDE INNER (A)	8-94359-938-1	01	1	9112-		●
383	PANEL; SIDE INNER (A)	8-94359-937-1	01	1	9112-		●
384	PATCH; WHEEL HOUSE	8-97805-173-1	01	1	9112-	●	●
385	BRACKET; ANCHOR (D)	8-97802-007-2	01	1	9112-9504	●
385	BRACKET; ANCHOR (D)	8-97802-007-2	01	1	9505-	●
385	BRACKET; ANCHOR (D)	8-97802-006-2	01	1	9112-9504	●
385	BRACKET; ANCHOR (D)	8-97802-006-2	01	1	9505-	●
385	BRACKET; ANCHOR (B)	8-94359-951-2	01	1	9112-9208		●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9209-9307		●
385	BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9209-9504		●
385	BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9505-		●
385	BRACKET; ANCHOR (A)	8-94359-945-1	01	1	9112-9208		●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9308-9504		●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9505-		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9112-9307		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9209-9307		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9308-9504		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9505-		●
385	BRACKET; ANCHOR (B)	8-94359-950-2	01	1	9112-9208		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9308-9504		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9505-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (C)	8-97802-235-1	01	1	9112-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (C)	8-97802-234-1	01	1	9112-		●
387	BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97802-007-2	01	1	9112-		●
387	BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (A)	8-97802-006-2	01	1	9112-		●
387	BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97803-403-1	01	1	9112-		●
388	REINFORCEMENT; FRONT PILLAR	8-94359-922-4	01	1	9112-	●	●
388	REINFORCEMENT; FRONT PILLAR	8-94359-921-4	01	1	9112-	●	●
389	BRACKET; SIDE 3RD SEAT 7 PASSENGERS(AS3)	8-97802-015-1	01	1	9112-		●
389	BRACKET; SIDE 3RD SEAT 7 PASSENGERS(AS3)	8-97802-014-1	01	1	9112-		●
392	GUSSET; RR PILLAR (B)	8-94359-894-2	01	1	9112-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-896-4	01	1	9112-	●	●
392	GUSSET; RR PILLAR (B)	8-94359-893-2	01	1	9112-9307	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-2	01	1	9209-9307	●	●
392	GUSSET; RR PILLAR (B)	8-94359-893-2	01	1	9308-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-1	01	1	9112-9208	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-3	01	1	9308-	●	●
393	PANEL; LAMP HOUSING	8-94359-900-1	01	1	9112-	●	●
393	PANEL; LAMP HOUSING	8-94359-899-1	01	1	9112-	●	●
394	BRACKET; QUARTER UPR	8-94359-957-2	01	1	9112-		●
394	BRACKET; QUARTER UPR	8-94359-956-2	01	1	9112-		●
442	PATCH	8-97811-443-0	02	1	9602-	●	●

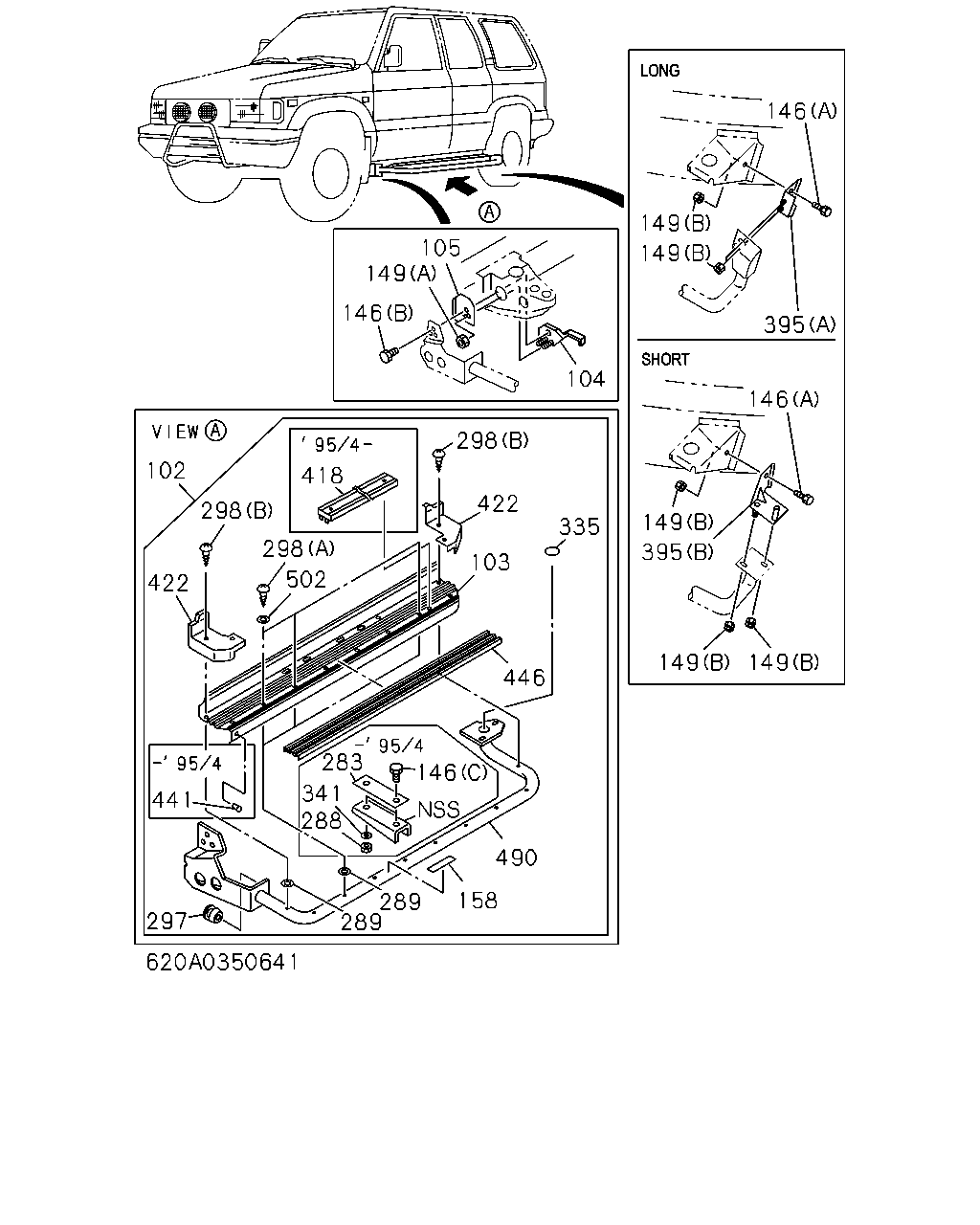

105 149 146 104 146 395 149 149 146 149 395 149 149 298 422 103 335 446 146 490 158 289 289 288 283 341 297 441 502 298 298 422 102 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	STEP; BODY SIDE IRMSHER KIT<6RS> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-677-4	01	1	9112-9307	●
102	STEP; BODY SIDE IRMSHER KIT<6RS>	8-97094-322-3	01	1	9308-9504	●
102	STEP; BODY SIDE IRMSHER KIT<6RS>	8-97132-904-0	01	1	9505-9605	●
102	STEP; BODY SIDE IRMSHER KIT<6RS>	1-88434-616-1	01	1	9606-9609	●
102	STEP; BODY SIDE IRMSHER KIT<6RS> EXC. OVER FENDER<6GH>	1-88434-616-1	01	1	9610-	●
102	STEP; BODY SIDE IRMSHER KIT<6RS> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-676-4	01	1	9112-9307	●
102	STEP; BODY SIDE IRMSHER KIT<6RS>	8-97094-321-3	01	1	9308-9504	●
102	STEP; BODY SIDE IRMSHER KIT<6RS>	8-97132-902-0	01	1	9505-9605	●
102	STEP; BODY SIDE IRMSHER KIT<6RS>	1-88434-615-1	01	1	9606-9609	●
102	STEP; BODY SIDE IRMSHER KIT<6RS> EXC. OVER FENDER<6GH>	1-88434-615-1	01	1	9610-	●
102	STEP; BODY SIDE OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-151-0	01	1	9610-	●
102	STEP; BODY SIDE OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-150-0	01	1	9610-	●
102	STEP; BODY SIDE IRMSHER KIT<6RS> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-675-6	01	1	9112-9307		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97094-324-2	01	1	9308-9308		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. HONDA BRAND PACKAGE<7EP>	8-97094-324-4	01	1	9309-9504		●
102	STEP; BODY SIDE IRMSHER KIT<6RS> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-674-6	01	1	9112-9307		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97094-323-2	01	1	9308-9308		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. HONDA BRAND PACKAGE<7EP>	8-97094-323-4	01	1	9309-9504		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97132-900-0	01	1	9505-9605		●
102	STEP; BODY SIDE GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	1-88434-614-1	01	1	9606-9609		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	1-88434-614-1	01	1	9606-9609		●
102	STEP; BODY SIDE GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	1-88434-614-1	01	1	9610-		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	1-88434-614-1	01	1	9610-		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97132-897-0	01	1	9505-9605		●
102	STEP; BODY SIDE GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	1-88434-613-1	01	1	9606-9609		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	1-88434-613-1	01	1	9606-9609		●
102	STEP; BODY SIDE GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	1-88434-613-1	01	1	9610-		●
102	STEP; BODY SIDE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	1-88434-613-1	01	1	9610-		●
102	STEP; BODY SIDE LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97808-082-5	01	1	9112-9307		●
102	STEP; BODY SIDE LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97808-081-5	01	1	9112-9307		●
102	STEP; BODY SIDE OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-147-0	01	1	9610-		●
102	STEP; BODY SIDE OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-146-0	01	1	9610-		●
103	PLATE; STEP IRMSHER KIT<6RS>	8-97132-916-0	02	1	9505-	●
103	PLATE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97132-915-0	02	1	9505-9605		●
103	PLATE; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97132-915-0	02	1	9606-9609		●
103	PLATE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97132-915-0	02	1	9606-9609		●
103	PLATE; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	8-97132-915-0	02	1	9610-		●
103	PLATE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	8-97132-915-0	02	1	9610-		●
103	PLATE; STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97132-915-0	02	1	9610-		●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-698-1	01	1	9112-9307	●	●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-698-1	01	1	9308-9605	●	●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>	8-97807-698-1	01	1	9606-	●
104	PLATE; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97807-698-1	01	1	9606-		●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-698-1	01	1	9606-		●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-697-1	01	1	9112-9307	●	●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-697-1	01	1	9308-9605	●	●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>	8-97807-697-1	01	1	9606-	●
104	PLATE; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97807-697-1	01	1	9606-		●
104	PLATE; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-697-1	01	1	9606-		●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-696-1	01	1	9112-9307	●	●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-696-1	01	1	9308-9605	●	●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>	8-97807-696-1	01	1	9606-	●
105	PLATE; SIDE STEP SETTING GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97807-696-1	01	1	9606-		●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-696-1	01	1	9606-		●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97807-695-1	01	1	9112-9307	●	●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-695-1	01	1	9308-9605	●	●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>	8-97807-695-1	01	1	9606-	●
105	PLATE; SIDE STEP SETTING GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97807-695-1	01	1	9606-		●
105	PLATE; SIDE STEP SETTING IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97807-695-1	01	1	9606-		●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (B) M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9112-9112	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-293-0	02	1	9201-9307	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97808-293-0	02	1	9308-9504	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B) M12X35 FLANGE	0-28681-235-0	02	1	9505-9605	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●
146	BOLT; STEP BRKT GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-		●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-		●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9112-9112	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9201-9307	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M10X40 W/LK&PL WASHER	8-97808-595-1	02	1	9308-9605	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS> (A) M10X40 W/LK&PL WASHER	8-97808-595-1	02	1	9606-	●
146	BOLT; STEP BRKT GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (A) M10X40 W/LK&PL WASHER	8-97808-595-1	02	1	9606-		●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M10X40 W/LK&PL WASHER	8-97808-595-1	02	1	9606-		●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (C)	8-97111-363-0	16	1	9410-9504	●	●
146	BOLT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (C)	8-97111-363-0	20	1	9308-9409		●
149	NUT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) M6 FLANGE	0-91150-106-0	04	1	9112-9307	●	●
149	NUT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M6 FLANGE	0-91150-106-0	04	1	9308-9605	●	●
149	NUT; STEP BRKT IRMSHER KIT<6RS> (A) M6 FLANGE	0-91150-106-0	04	1	9606-	●
149	NUT; STEP BRKT GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (A) M6 FLANGE	0-91150-106-0	04	1	9606-		●
149	NUT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M6 FLANGE	0-91150-106-0	04	1	9606-		●
149	NUT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (B) M10 FLANGE	0-91150-210-0	06	1	9112-9307	●	●
149	NUT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B) M10 FLANGE	0-91150-210-0	06	1	9308-9605	●	●
149	NUT; STEP BRKT IRMSHER KIT<6RS> (B) M10 FLANGE	0-91150-210-0	06	1	9606-	●
149	NUT; STEP BRKT GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (B) M10 FLANGE	0-91150-210-0	06	1	9606-		●
149	NUT; STEP BRKT IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B) M10 FLANGE	0-91150-210-0	06	1	9606-		●
158	CUSHION; STEP BOARD IRMSHER KIT<6RS>	8-97094-340-0	04	1	9405-9504	●
158	CUSHION; STEP BOARD IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97094-340-0	06	1	9405-9504		●
283	SHEET; STEP IRMSHER KIT<6RS>	8-97111-360-0	04	1	9308-9409	●
283	SHEET; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-360-0	04	1	9410-9504	●	●
283	SHEET; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-360-0	06	1	9308-9409		●
288	NUT; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-362-0	24	1	9410-9504	●	●
288	NUT; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-362-0	28	1	9308-9409		●
289	WASHER; PL,STEP IRMSHER KIT<6RS>	8-97103-800-0	16	1	9505-	●
289	WASHER; PL,STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-800-0	20	1	9505-9605		●
289	WASHER; PL,STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97103-800-0	20	1	9606-9609		●
289	WASHER; PL,STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-800-0	20	1	9606-9609		●
289	WASHER; PL,STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	8-97103-800-0	20	1	9610-		●
289	WASHER; PL,STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	8-97103-800-0	20	1	9610-		●
289	WASHER; PL,STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97103-800-0	20	1	9610-		●
297	GROMMET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> OD=32	8-94145-236-0	02	1	9505-9605	●	●
297	GROMMET; SIDE STEP IRMSHER KIT<6RS> OD=32	8-94145-236-0	02	1	9606-9609	●
297	GROMMET; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> OD=32	8-94145-236-0	02	1	9606-9609		●
297	GROMMET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> OD=32	8-94145-236-0	02	1	9606-9609		●
297	GROMMET; SIDE STEP IRMSHER KIT<6RS> OD=32	8-94145-236-0	02	1	9610-	●
297	GROMMET; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK> OD=32	8-94145-236-0	02	1	9610-		●
297	GROMMET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH> OD=32	8-94145-236-0	02	1	9610-		●
297	GROMMET; SIDE STEP OVER FENDER<6GH> IRMSHER KIT<6RS> OD=32	8-94145-236-0	02	1	9610-		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS> (A) M5X10	8-97104-350-0	08	1	9505-	●
298	SCREW; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97122-765-0	08	1	9505-9605	●	●
298	SCREW; SIDE STEP IRMSHER KIT<6RS> (B)	8-97122-765-0	08	1	9606-9609	●
298	SCREW; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (B)	8-97122-765-0	08	1	9606-9609		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97122-765-0	08	1	9606-9609		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS> (B)	8-97122-765-0	08	1	9610-	●
298	SCREW; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK> (B)	8-97122-765-0	08	1	9610-		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH> (B)	8-97122-765-0	08	1	9610-		●
298	SCREW; SIDE STEP OVER FENDER<6GH> IRMSHER KIT<6RS> (B)	8-97122-765-0	08	1	9610-		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M5X10	8-97104-350-0	12	1	9505-9605		●
298	SCREW; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (A) M5X10	8-97104-350-0	12	1	9606-9609		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M5X10	8-97104-350-0	12	1	9606-9609		●
298	SCREW; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK> (A) M5X10	8-97104-350-0	12	1	9610-		●
298	SCREW; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH> (A) M5X10	8-97104-350-0	12	1	9610-		●
298	SCREW; SIDE STEP OVER FENDER<6GH> IRMSHER KIT<6RS> (A) M5X10	8-97104-350-0	12	1	9610-		●
335	GASKET; SUPPORT IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-94296-870-0	02	1	9505-9605	●	●
335	GASKET; SUPPORT IRMSHER KIT<6RS>	8-94296-870-0	02	1	9606-9609	●
335	GASKET; SUPPORT GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-94296-870-0	02	1	9606-9609		●
335	GASKET; SUPPORT IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-94296-870-0	02	1	9606-9609		●
335	GASKET; SUPPORT IRMSHER KIT<6RS>	8-94296-870-0	02	1	9610-	●
335	GASKET; SUPPORT GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	8-94296-870-0	02	1	9610-		●
335	GASKET; SUPPORT IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	8-94296-870-0	02	1	9610-		●
335	GASKET; SUPPORT OVER FENDER<6GH> IRMSHER KIT<6RS>	8-94296-870-0	02	1	9610-		●
341	WASHER; PL,STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-361-0	08	1	9410-9504	●	●
341	WASHER; PL,STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-361-0	12	1	9308-9409		●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS> EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97807-903-3	01	1	9112-9307	●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97807-903-3	01	1	9308-9408	●	●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97811-309-0	01	1	9409-9605	●	●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS> (B)	8-97811-309-0	01	1	9606-	●
395	BRACKET; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (B)	8-97811-309-0	01	1	9606-		●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97811-309-0	01	1	9606-		●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS> EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97807-902-3	01	1	9112-9307	●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97807-902-3	01	1	9308-9408	●	●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (B)	8-97811-308-0	01	1	9409-9605	●	●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS> (A)	8-97811-308-0	01	1	9606-	●
395	BRACKET; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> (A)	8-97811-308-0	01	1	9606-		●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A)	8-97811-308-0	01	1	9606-		●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97807-700-2	01	1	9112-9307		●
395	BRACKET; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97807-699-2	01	1	9112-9307		●
418	RUBBER; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97096-779-1	02	1	9308-9504		●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97094-330-0	02	1	9308-9409	●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. HONDA BRAND PACKAGE<7EP> FRONT=LH REAR=RH	8-97094-330-0	02	1	9308-9409		●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97094-330-0	02	1	9410-9504	●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. HONDA BRAND PACKAGE<7EP> FRONT=LH REAR=RH	8-97094-330-0	02	1	9410-9504		●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-913-0	02	1	9505-9605	●	●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97132-913-0	02	1	9606-9609	●
422	COVER; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-913-0	02	1	9606-9609		●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-913-0	02	1	9606-9609		●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97132-913-0	02	1	9610-	●
422	COVER; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-913-0	02	1	9610-		●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH> FRONT=LH REAR=RH	8-97132-913-0	02	1	9610-		●
422	COVER; SIDE STEP OVER FENDER<6GH> IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97132-913-0	02	1	9610-		●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97094-331-0	02	1	9308-9409	●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. HONDA BRAND PACKAGE<7EP> FRONT=LH REAR=RH	8-97094-331-0	02	1	9308-9409		●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97094-331-0	02	1	9410-9504	●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. HONDA BRAND PACKAGE<7EP> FRONT=LH REAR=RH	8-97094-331-0	02	1	9410-9504		●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-914-0	02	1	9505-9605	●	●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97132-914-0	02	1	9606-9609	●
422	COVER; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-914-0	02	1	9606-9609		●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-914-0	02	1	9606-9609		●
422	COVER; SIDE STEP IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97132-914-0	02	1	9610-	●
422	COVER; SIDE STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK> FRONT=LH REAR=RH	8-97132-914-0	02	1	9610-		●
422	COVER; SIDE STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH> FRONT=LH REAR=RH	8-97132-914-0	02	1	9610-		●
422	COVER; SIDE STEP OVER FENDER<6GH> IRMSHER KIT<6RS> FRONT=LH REAR=RH	8-97132-914-0	02	1	9610-		●

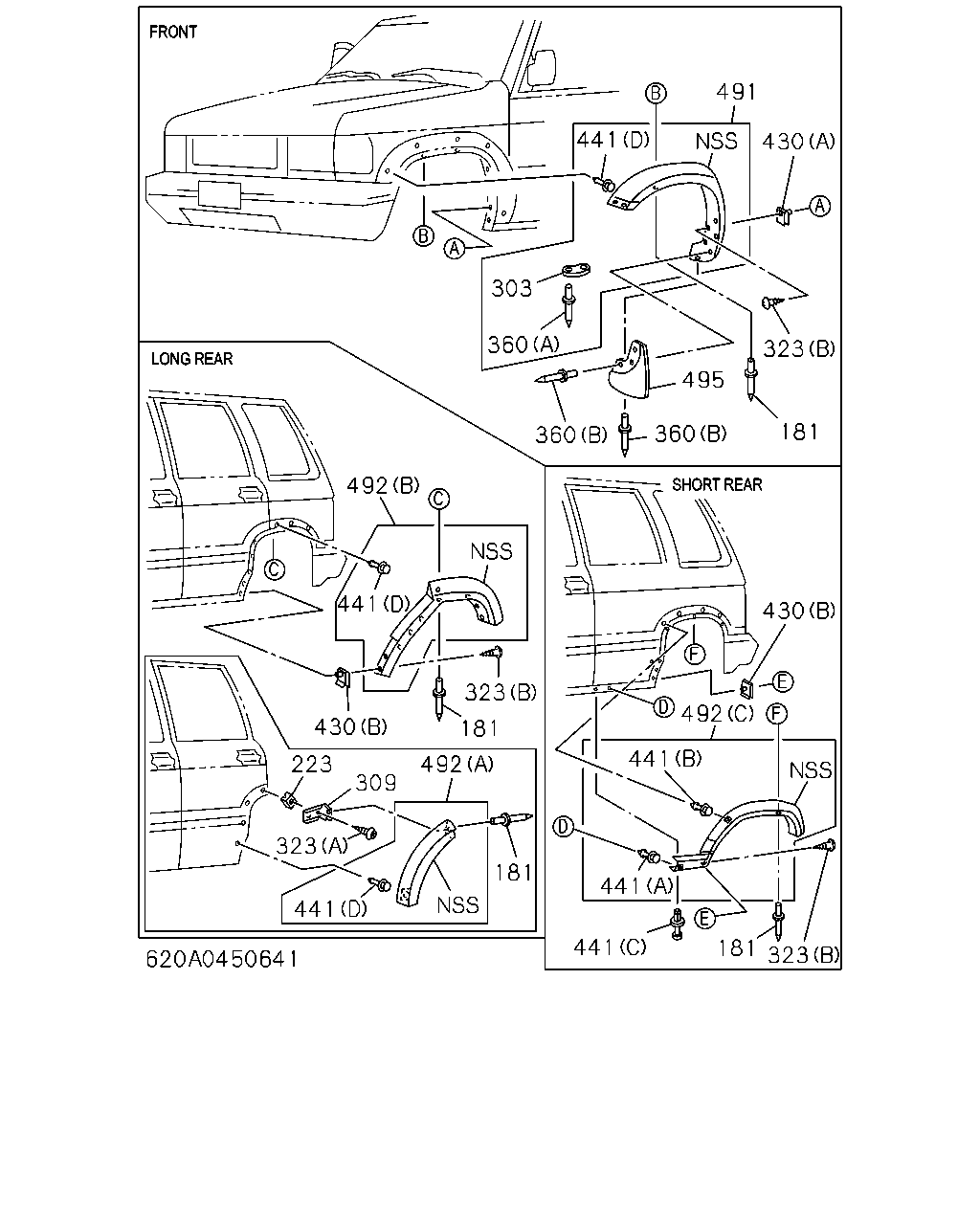

441	CLIP (D)	8-97117-942-0	26	1	9505-9505	●
441	CLIP OVER FENDER<6GH> (D)	8-97117-942-0	12	1	9506-9507	●	●
441	CLIP OVER FENDER<6GH> (D)	8-97117-942-0	12	1	9506-9507	●
441	CLIP OVER FENDER<6GH> (D)	8-97117-942-0	08	1	9508-	●	●
441	CLIP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (D)	8-97111-386-0	04	1	9308-9504	●	●
441	CLIP OVER FENDER<6GH> (C) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9505-9506	●
441	CLIP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-387-0	04	1	9308-9504	●	●
441	CLIP OVER FENDER<6GH> (A) OD=14.2 L=19.0	8-94340-505-0	02	1	9505-	●
441	CLIP OVER FENDER<6GH> (B)	8-97135-071-0	04	1	9508-9605	●	●
441	CLIP OVER FENDER<6GH> (B)	8-97135-071-0	04	1	9606-	●
441	CLIP OVER FENDER<6GH> (B)	8-97117-942-0	24	1	9505-9505		●
441	CLIP OVER FENDER<6GH> (B)	8-97117-942-0	14	1	9506-9507		●
441	CLIP OVER FENDER<6GH> (B)	8-97117-942-0	12	1	9508-	●	●
446	FINISHER; STEP IRMSHER KIT<6RS>	8-97103-793-0	02	1	9505-	●
446	FINISHER; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-792-0	02	1	9505-9605		●
446	FINISHER; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97103-792-0	02	1	9606-9609		●
446	FINISHER; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-792-0	02	1	9606-9609		●
446	FINISHER; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	8-97103-792-0	02	1	9610-		●
446	FINISHER; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	8-97103-792-0	02	1	9610-		●
446	FINISHER; STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97103-792-0	02	1	9610-		●
490	PIPE; STEP IRMSHER KIT<6RS>	8-97103-787-0	01	1	9505-9609	●
490	PIPE; STEP IRMSHER KIT<6RS> EXC. OVER FENDER<6GH>	8-97103-787-0	01	1	9610-	●
490	PIPE; STEP IRMSHER KIT<6RS>	8-97103-786-0	01	1	9505-9609	●
490	PIPE; STEP IRMSHER KIT<6RS> EXC. OVER FENDER<6GH>	8-97103-786-0	01	1	9610-	●
490	PIPE; STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-145-0	01	1	9610-	●
490	PIPE; STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-142-0	01	1	9610-	●
490	PIPE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-785-0	01	1	9505-9605		●
490	PIPE; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97103-785-0	01	1	9606-9609		●
490	PIPE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-785-0	01	1	9606-9609		●
490	PIPE; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	8-97103-785-0	01	1	9610-		●
490	PIPE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	8-97103-785-0	01	1	9610-		●
490	PIPE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-784-0	01	1	9505-9605		●
490	PIPE; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK>	8-97103-784-0	01	1	9606-9609		●
490	PIPE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97103-784-0	01	1	9606-9609		●
490	PIPE; STEP GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK>	8-97103-784-0	01	1	9610-		●
490	PIPE; STEP IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH>	8-97103-784-0	01	1	9610-		●
490	PIPE; STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-140-0	01	1	9610-		●
490	PIPE; STEP OVER FENDER<6GH> IRMSHER KIT<6RS>	8-97163-139-0	01	1	9610-		●
502	WASHER; NYLON IRMSHER KIT<6RS> ID=5 OD=11	8-94157-746-0	08	1	9602-	●
502	WASHER; NYLON IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=5 OD=11	8-94157-746-0	12	1	9602-9605		●
502	WASHER; NYLON GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. LOTUS KIT<6WK> ID=5 OD=11	8-94157-746-0	12	1	9606-9609		●
502	WASHER; NYLON IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=5 OD=11	8-94157-746-0	12	1	9606-9609		●
502	WASHER; NYLON GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> EXC. OVER FENDER<6GH>,LOTUS KIT<6WK> ID=5 OD=11	8-94157-746-0	12	1	9610-		●
502	WASHER; NYLON IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. OVER FENDER<6GH> ID=5 OD=11	8-94157-746-0	12	1	9610-		●
502	WASHER; NYLON OVER FENDER<6GH> IRMSHER KIT<6RS> ID=5 OD=11	8-94157-746-0	12	1	9610-		●

491 430 441 303 360 495 323 181 360 360 492 441 323 181 430 223 309 492 181 441 323 441 441 181 323 441 430 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	RIVET; OVER FENDER OVER FENDER<6GH>	8-97122-143-0	08	1	9505-	●	●
181	RIVET; OVER FENDER OVER FENDER<6GH>	8-97122-143-0	08	1	9505-	●
181	RIVET; OVER FENDER OVER FENDER<6GH>	8-97122-143-0	14	1	9505-		●
223	GROMMET; LOCATION HOLE OVER FENDER<6GH> D=7X7 L=7.5	8-94291-927-0	04	1	9505-		●
303	RETAINER; SIDE SKIRT,ROCKER OVER FENDER<6GH>	8-97117-762-1	02	1	9505-	●	●
309	BRACKET; FENDER COVER OVER FENDER<6GH>	8-97103-867-3	02	1	9505-		●
323	SCREW; SET OVER FENDER<6GH> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	08	1	9505-	●	●
323	SCREW; SET OVER FENDER<6GH> (A) M5X16 TAPPING CK-HEAD	9-07006-516-0	04	1	9505-		●
360	RIVET; FENDER OVER FENDER<6GH> (A)	8-97163-054-0	04	1	9505-	●	●
360	RIVET; FENDER OVER FENDER<6GH> (B)	8-97163-054-0	08	1	9505-	●	●
430	NUT; PANEL OVER FENDER<6GH> (A) ID=5.2 H=10	8-97032-135-0	04	1	9505-	●	●
430	NUT; PANEL OVER FENDER<6GH> (B) H=11.5	8-97807-757-0	04	1	9505-	●	●
441	CLIP (D)	8-97117-942-0	26	1	9505-9505	●
441	CLIP OVER FENDER<6GH> (D)	8-97117-942-0	12	1	9506-9507	●	●
441	CLIP OVER FENDER<6GH> (D)	8-97117-942-0	12	1	9506-9507	●
441	CLIP OVER FENDER<6GH> (D)	8-97117-942-0	08	1	9508-	●	●
441	CLIP IRMSHER KIT<6RS>,LOTUS KIT<6WK> (D)	8-97111-386-0	04	1	9308-9504	●	●
441	CLIP OVER FENDER<6GH> (C) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9505-9506	●
441	CLIP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97111-387-0	04	1	9308-9504	●	●
441	CLIP OVER FENDER<6GH> (A) OD=14.2 L=19.0	8-94340-505-0	02	1	9505-	●
441	CLIP OVER FENDER<6GH> (B)	8-97135-071-0	04	1	9508-9605	●	●
441	CLIP OVER FENDER<6GH> (B)	8-97135-071-0	04	1	9606-	●
441	CLIP OVER FENDER<6GH> (B)	8-97117-942-0	24	1	9505-9505		●
441	CLIP OVER FENDER<6GH> (B)	8-97117-942-0	14	1	9506-9507		●
441	CLIP OVER FENDER<6GH> (B)	8-97117-942-0	12	1	9508-	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> GRAY	8-97098-599-4	01	1	9505-9605	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY	8-97098-599-4	01	1	9606-9606	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY	8-97158-136-0	01	1	9607-9610	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY	8-97158-136-0	01	1	9611-	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> GRAY	8-97098-598-4	01	1	9505-9605	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY	8-97098-598-4	01	1	9606-9606	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY	8-97158-131-0	01	1	9607-9610	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY	8-97158-131-0	01	1	9611-	●	●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) LIGHT SILVER	8-97098-600-4	01	1	9606-9606		●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) LIGHT SILVER	8-97158-135-0	01	1	9607-9610		●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) LIGHT SILVER	8-97158-135-0	01	1	9611-		●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) LIGHT SILVER	8-97098-597-4	01	1	9606-9606		●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) LIGHT SILVER	8-97158-130-0	01	1	9607-9610		●
491	EXTENSION; WHL,FRT OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) LIGHT SILVER	8-97158-130-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (C) GRAY	8-97098-518-3	01	1	9505-9606	●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (C) GRAY	8-97158-107-0	01	1	9607-	●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (C) GRAY	8-97098-517-3	01	1	9505-9606	●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (C) GRAY	8-97158-106-0	01	1	9607-	●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (A) DOOR SIDE GRAY	8-97098-512-4	01	1	9505-9605		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE GRAY	8-97098-512-4	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE GRAY	8-97158-103-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE GRAY	8-97158-103-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (B) QUARTER SIDE GRAY	8-97098-516-4	01	1	9505-9507		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (B) QUARTER SIDE GRAY	8-97154-983-0	01	1	9508-9605		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE GRAY	8-97154-983-0	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE GRAY	8-97158-105-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE GRAY	8-97158-105-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (A) DOOR SIDE GRAY	8-97098-510-4	01	1	9505-9605		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE GRAY	8-97098-510-4	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE GRAY	8-97158-102-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE GRAY	8-97158-102-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (B) QUARTER SIDE GRAY	8-97098-514-4	01	1	9505-9507		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> (B) QUARTER SIDE GRAY	8-97154-981-0	01	1	9508-9605		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE GRAY	8-97154-981-0	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE GRAY	8-97158-104-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE GRAY	8-97158-104-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE LIGHT SILVER	8-97098-511-4	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE LIGHT SILVER	8-97158-113-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE LIGHT SILVER	8-97158-113-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE	8-97154-982-0	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE LIGHT SILVER	8-97158-115-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE LIGHT SILVER	8-97158-115-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE LIGHT SILVER	8-97098-509-4	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE LIGHT SILVER	8-97158-112-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (A) DOOR SIDE LIGHT SILVER	8-97158-112-0	01	1	9611-		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE	8-97154-980-0	01	1	9606-9606		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE LIGHT SILVER	8-97158-114-0	01	1	9607-9610		●
492	EXTENSION; WHL,RR OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B) QUARTER SIDE LIGHT SILVER	8-97158-114-0	01	1	9611-		●
495	FLAP OVER FENDER<6GH> DARK GRAY	8-97098-602-0	01	1	9505-9606	●	●
495	FLAP OVER FENDER<6GH> DARK GRAY	8-97158-139-0	01	1	9607-	●	●
495	FLAP OVER FENDER<6GH> DARK GRAY	8-97098-601-0	01	1	9505-9606	●	●
495	FLAP OVER FENDER<6GH> DARK GRAY	8-97158-134-0	01	1	9607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
