◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#166942) — 28 parça

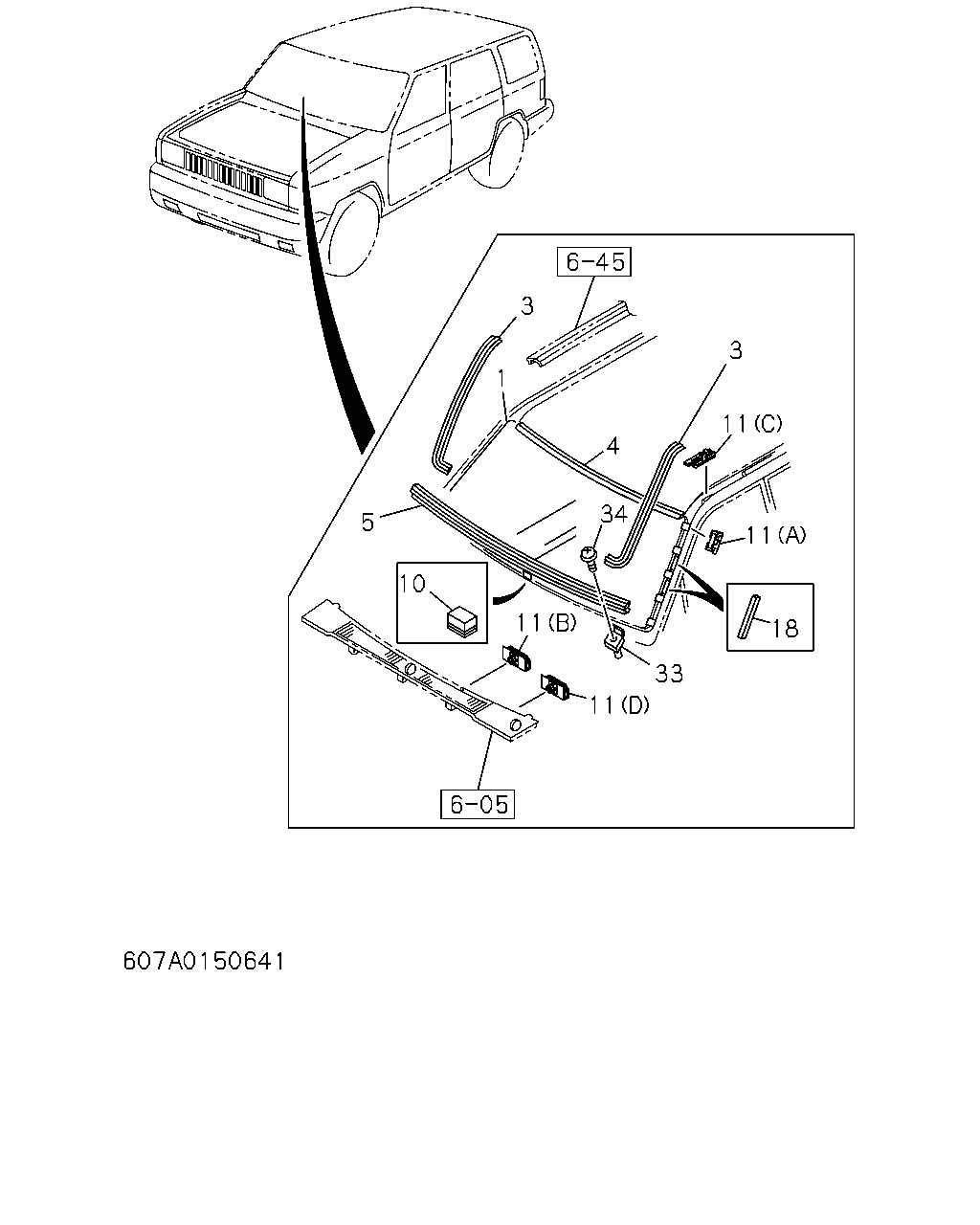

çizim 494322
3 3 11 11 18 4 1 5 10 11 11 34 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4) 		8-97807-078-2 01 1 9112-9309 ● ●
1 GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4) 		8-97810-930-0 01 1 9310-9504 ● ●
1 GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4) 		8-97121-768-2 01 1 9505- ● ●
1 GLASS; WINDSHIELD
BRONZE GLASS SHADED UPPER(6MG) 		8-97807-083-2 01 1 9112-9309 ● ●
1 GLASS; WINDSHIELD
BRONZE GLASS SHADED UPPER(6MG) 		8-97810-935-0 01 1 9310-9504 ● ●
1 GLASS; WINDSHIELD
BRONZE GLASS SHADED UPPER(6MG) 		8-97103-162-3 01 1 9505- ●
1 GLASS; WINDSHIELD
BRONZE GLASS(X72) EXC. BRONZE GLASS SHADED UPPER(6MG) ASAHI 		8-97807-082-2 01 1 9112-9309 ● ●
1 GLASS; WINDSHIELD
BRONZE GLASS(X72) EXC. BRONZE GLASS SHADED UPPER(6MG) 		8-97810-934-0 01 1 9310-9504 ● ●
1 GLASS; WINDSHIELD
BRONZE GLASS(X72) EXC. BRONZE GLASS SHADED UPPER(6MG) 		8-97103-159-3 01 1 9505- ● ●
3 MOLDING; WINDSHIELD 8-94358-797-6 01 1 9112- ● ●
3 MOLDING; WINDSHIELD 8-94358-796-6 01 1 9112- ● ●
4 MOLDING; WINDSHIELD,UPR 8-94358-795-0 01 1 9112-9604 ● ●
4 MOLDING; WINDSHIELD,UPR 8-97147-200-0 01 1 9605- ● ●
5 MOLDING; WINDSHIELD,LWR 8-94358-798-3 01 1 9112-9601 ● ●
5 MOLDING; WINDSHIELD,LWR 8-97811-431-0 01 1 9602- ● ●
10 SPACER; WINDSHIELD GLASS 8-94434-770-0 07 1 9112- ● ●
11 CLIP; WINDSHIELD MOLDING
(A) 		8-94467-458-5 08 1 9112-9202 ● ●
11 CLIP; WINDSHIELD MOLDING
(A) 		8-94467-458-5 10 1 9203-9505 ● ●
11 CLIP; WINDSHIELD MOLDING
(A) 		8-97134-978-0 10 1 9506- ● ●
11 CLIP; WINDSHIELD MOLDING
(D) 		8-97808-230-0 02 1 9203-9307 ● ●
11 CLIP; WINDSHIELD MOLDING
(B),(D) 		8-97803-159-3 04 1 9112-9202 ● ●
11 CLIP; WINDSHIELD MOLDING
(B) 		8-97803-159-4 02 1 9203-9307 ● ●
11 CLIP; WINDSHIELD MOLDING
(B),(D) 		8-97803-159-5 04 1 9308- ● ●
11 CLIP; WINDSHIELD MOLDING
(C) 		8-97805-738-3 01 1 9112- ● ●
11 CLIP; WINDSHIELD MOLDING
(C) 		8-97805-737-3 01 1 9112- ● ●
18 SEAL; WINDSHIELD 8-97161-712-0 04 1 9609- ● ●
33 SUPPORT; WINDSHIELD,LWR 8-97807-477-0 02 1 9112- ● ●
34 SCREW; SUPPORT TO BRKT
M6X16 		8-97805-189-0 02 1 9112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
