6-05 — FRONT PANEL (#166941) — 50 parça

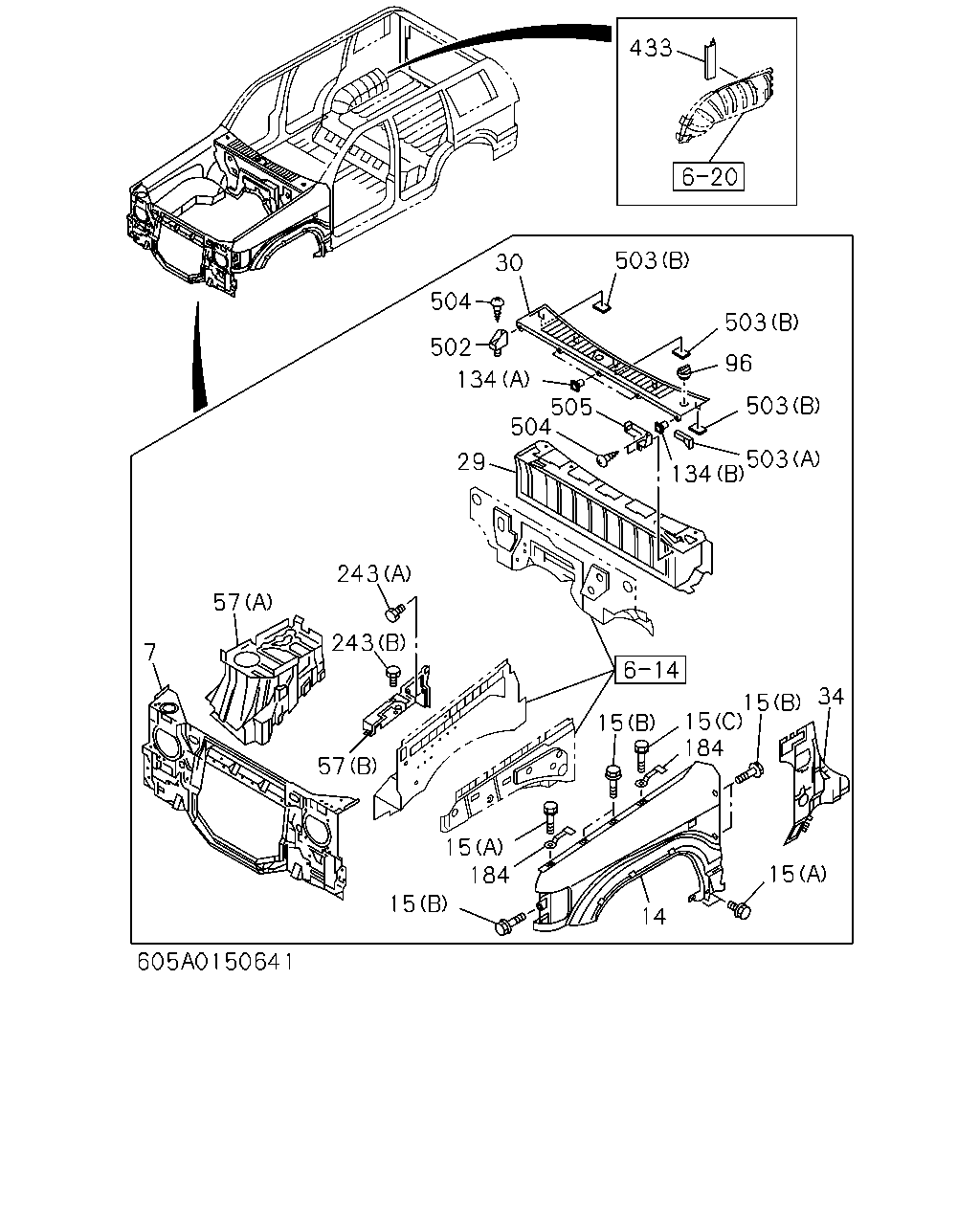

çizim 494253
433 503 30 504 502 505 504 134 503 96 503 503 134 29 243 57 7 57 243 15 15 184 14 15 34 15 15 184 15
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR 8-94358-951-1 01 1 9112-9203 ● ●
7 PANEL; DEFLECTOR 8-97808-655-0 01 1 9204-9404 ● ●
7 PANEL; DEFLECTOR 8-97811-186-0 01 1 9405-9501 ● ●
7 PANEL; DEFLECTOR 8-97125-459-0 01 1 9502- ● ●
14 FENDER; FRT 8-94358-949-0 01 1 9112-9504 ● ●
14 FENDER; FRT
POWER ANTENNA<U75> OVER FENDER<6GH> 		8-97114-387-1 01 1 9505- ● ●
14 FENDER; FRT
OVER FENDER<6GH> EXC. POWER ANTENNA<U75> 		8-97111-370-1 01 1 9505- ● ●
14 FENDER; FRT
POWER ANTENNA<U75> EXC. OVER FENDER<6GH> 		8-97114-385-1 01 1 9505- ● ●
14 FENDER; FRT
EXC. POWER ANTENNA<U75>,OVER FENDER<6GH> 		8-97111-368-1 01 1 9505- ● ●
14 FENDER; FRT
FENDER MIRROR(DG3) 		8-94358-946-0 01 1 9112-9504 ● ●
14 FENDER; FRT
OVER FENDER<6GH> 		8-97111-366-0 01 1 9505- ● ●
14 FENDER; FRT
EXC. FENDER MIRROR(DG3) 		8-94358-947-0 01 1 9112-9504 ● ●
14 FENDER; FRT
EXC. OVER FENDER<6GH> 		8-94358-947-0 01 1 9505- ● ●
15 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 12 1 9112- ● ●
15 BOLT; FENDER
(A) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ● ●
15 BOLT; FENDER
(A) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ● ●
15 BOLT; FENDER
(C) M6X14 W/LK WASHER 		9-01900-614-0 04 1 9112-9202 ● ●
15 BOLT; FENDER
(C) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9203-9206 ● ●
15 BOLT; FENDER
(C) M6X16 		0-20800-616-0 04 1 9207- ● ●
29 COWL ASM 8-94358-965-1 01 1 9112-9404 ● ●
29 COWL ASM 8-97811-193-2 01 1 9405-9504 ● ●
29 COWL ASM 8-97109-959-3 01 1 9505-9510 ● ●
29 COWL ASM
AIR BAG DRIVER<AJ3> 		8-97132-958-1 01 1 9511- ● ●
29 COWL ASM
EXC. AIR BAG DRIVER<AJ3> 		8-97132-957-1 01 1 9511- ● ●
30 PANEL; COWL UPR 8-97801-405-1 01 1 9112- ● ●
34 PANEL; DASH SIDE 8-94359-924-2 01 1 9112-9504 ● ●
34 PANEL; DASH SIDE 8-97093-865-3 01 1 9505- ● ●
34 PANEL; DASH SIDE 8-94359-923-3 01 1 9112-9504 ● ●
34 PANEL; DASH SIDE 8-97093-864-3 01 1 9505- ● ●
57 TRAY; BATTERY
(A) 		8-94359-074-5 01 1 9112-9509 ● ●
57 TRAY; BATTERY
(A) 		8-97137-900-0 01 1 9510- ● ●
57 TRAY; BATTERY
FRIGID ZONE(YL3) (B) 		8-97803-573-3 01 1 9112- ● ●
96 PLUG; DUMMY HOLE,COWL PANEL 8-97806-829-0 01 1 9112- ● ●
134 GROMMET; SCREW,COVER TO BODY
(B) 		8-97802-935-2 04 1 9112- ● ●
134 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 03 1 9112- ● ●
184 CLIP; REST,FENDER 8-94443-017-1 04 1 9112- ● ●
243 BOLT; BATTERY TRAY
FRIGID ZONE(YL3) (A) M6X16 W/PL WASHER 		8-97803-781-0 05 1 9112-9207 ● ●
243 BOLT; BATTERY TRAY
FRIGID ZONE(YL3) (A) M6X16 W/PL WASHER 		8-97803-781-0 04 1 9208- ● ●
243 BOLT; BATTERY TRAY
FRIGID ZONE(YL3) (B) M8X16 W/PL WASHER 		8-97803-782-0 03 1 9112- ● ●
433 BRACKET; FILLER NECK PROTECTOR 8-97803-294-1 01 1 9112-9305 ● ●
433 BRACKET; FILLER NECK PROTECTOR 8-97810-390-0 01 1 9306- ● ●
502 STOPPER; COWL 8-97801-409-5 05 1 9112- ● ●
503 RUBBER; SEAL,COWL
(A) 		8-97806-581-1 02 1 9112- ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 03 1 9112-9209 ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 9210-9307 ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 03 1 9308-9505 ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 9506- ● ●
504 SCREW; COWL
M6X16 		8-97805-189-0 12 1 9112- ● ●
505 BRACKET; COWL COVER 8-97806-835-1 01 1 9112- ● ●
505 BRACKET; COWL COVER 8-97806-834-1 01 1 9112- ● ●
