Sayfa 6-03 - Isuzu EPC

6-03 — RADIATOR GRILLE (#166940) — 296 parça

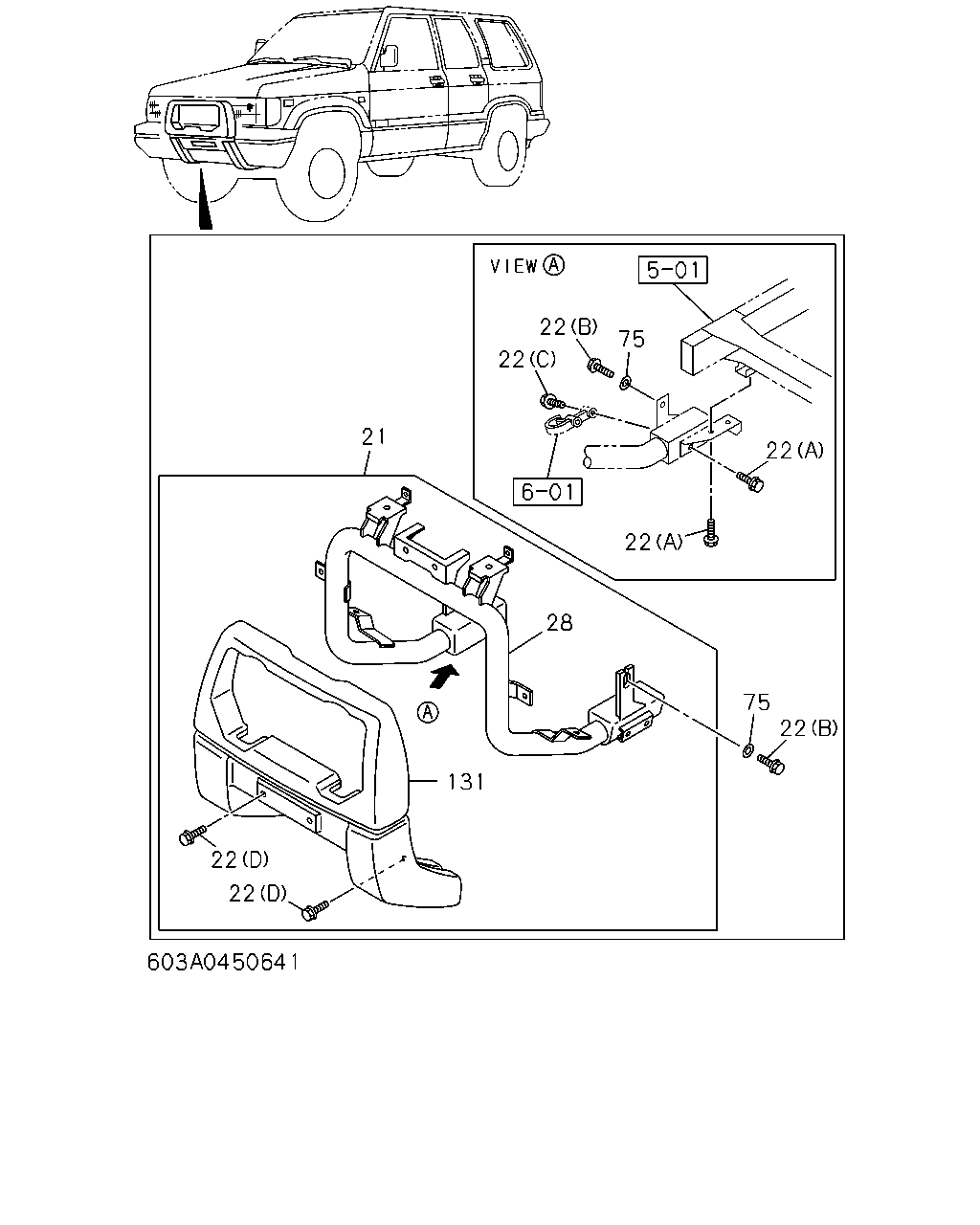

22 22 75 22 22 21 28 75 22 131 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97807-685-6	01	1	9112-9305	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97810-755-0	01	1	9306-9307	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97810-920-1	01	1	9308-9510	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97810-920-1	01	1	9511-9605	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97133-138-2	01	1	9511-9604	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97147-417-0	01	1	9605-9605	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97148-259-1	01	1	9606-9608	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97148-259-1	01	1	9609-	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> LOTUS KIT<6WK>	8-97133-137-1	01	1	9511-9604		●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> LOTUS KIT<6WK>	8-97147-418-0	01	1	9605-9605		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97147-418-0	01	1	9606-9608		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97807-686-8	01	1	9112-9307		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97810-714-0	01	1	9308-9504		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97110-391-2	01	1	9505-9510		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3>	8-97110-391-2	01	1	9511-9605		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X30 W/LK&PL WASHER	9-01961-030-0	06	1	9112-9204	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X30 W/LK&PL WASHER	9-01961-030-0	06	1	9112-9204		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X35 W/LK&PL WASHER	8-97074-134-0	06	1	9203-9206	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	06	1	9203-9206		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9207-9307	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9207-9307		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9308-9406	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-1	06	1	9407-9510	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3> M10X35 W/LK&PL WASHER	8-97074-134-1	06	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9207-9307	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9207-9307		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9308-9406	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (D) M6X10	8-97020-236-0	10	1	9606-9608	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> (D) M6X10	8-97020-236-0	10	1	9609-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X30 FLANGE	0-28091-030-0	08	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (A) M10X30 FLANGE	0-28091-030-0	08	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE LOTUS KIT<6WK> (A) M10X30 FLANGE	0-28091-030-0	08	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X50 FLANGE	0-28091-050-0	02	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (C) M10X50 FLANGE	0-28091-050-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE LOTUS KIT<6WK> (C) M10X50 FLANGE	0-28091-050-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M12X35 FLANGE	0-28681-235-0	02	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●	●
28	PIPE; GRILLE GUARD,RAD IRMSHER KIT<6RS>	8-97148-260-1	01	1	9606-9608	●	●
28	PIPE; GRILLE GUARD,RAD IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97148-260-1	01	1	9609-	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9204-9206	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9207-9510	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=12.5 OD=26	9-09164-612-0	02	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=12.5 OD=26	9-09164-612-0	02	1	9606-	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS> (A)	8-97809-618-3	01	1	9112-9605	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS> (B)	8-97807-912-4	01	1	9112-9605	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS> (B)	8-97807-911-4	01	1	9112-9605	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS>	8-97148-261-1	01	1	9606-9608	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97148-261-1	01	1	9609-	●	●

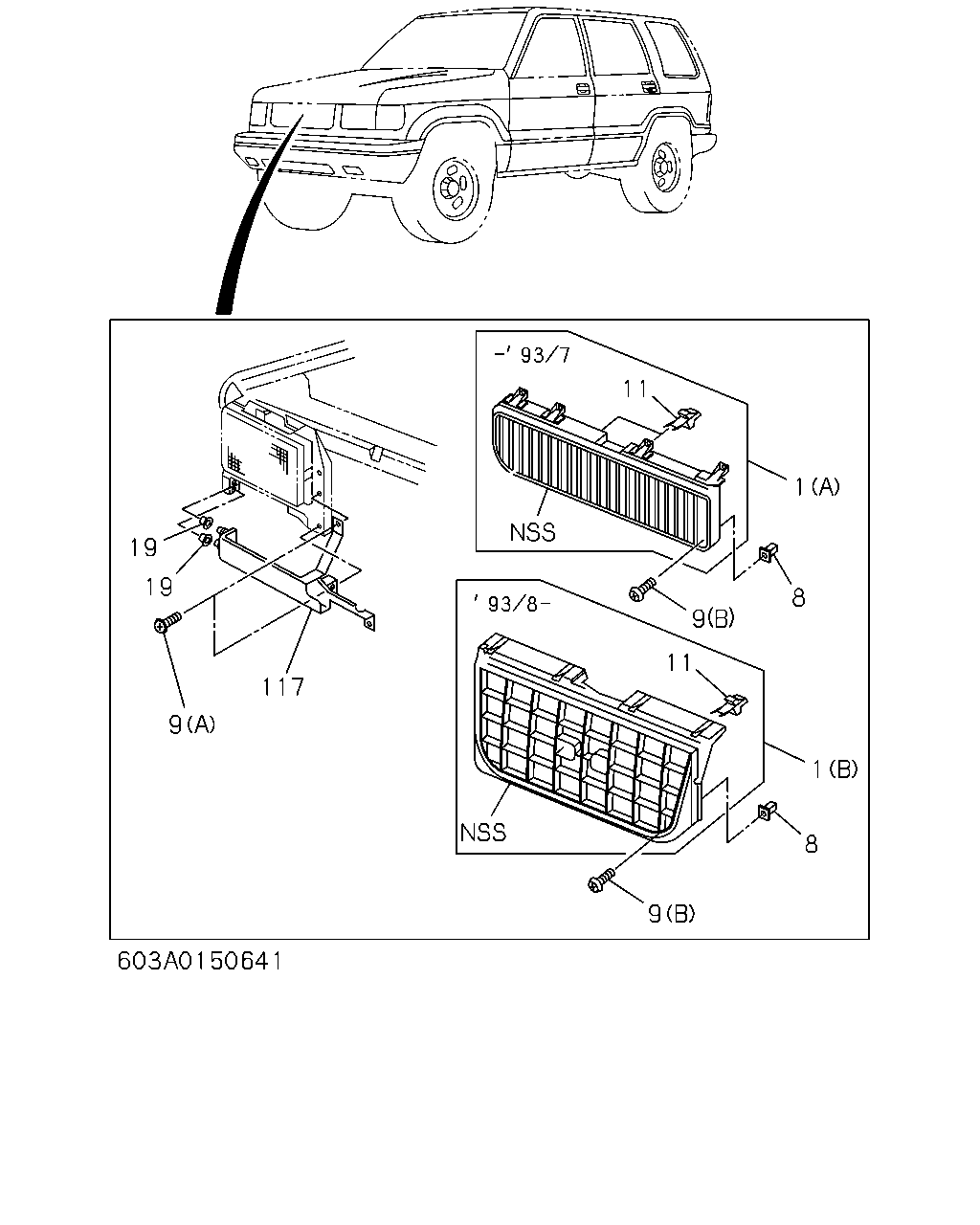

11 1 8 9 11 8 9 117 9 19 19 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD GRADE BASIC OR LS(RBA),GRADE RS(RBF),GRADE IRMSHER(RBQ) (A) BLACK	8-94359-181-2	01	1	9112-9307	●
1	GRILLE; RAD GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) BLACK	8-94359-181-2	01	1	9112-9307		●
1	GRILLE; RAD GRADE RS(RBF),GRADE IRMSHER (RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) GRAY	8-97817-019-2	01	1	9308-9406	●	●
1	GRILLE; RAD BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) GRAY	8-97817-019-2	01	1	9308-9406	●	●
1	GRILLE; RAD BODY COLOR IRON GRAY MET/LT.SILVER MET(777) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,BRIGHT HEAVY DUTY RAD GRILLE<6QR> (B) GRAY	8-97817-019-2	01	1	9308-9406		●
1	GRILLE; RAD BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784),BODY COLOR IRON GRAY MET(849) (B) GRAY	8-97817-019-2	01	1	9407-9504	●	●
1	GRILLE; RAD IRMSHER SEPTEMBER LIMITED MODEL(7JZ) (B) GRAY	8-97817-019-2	01	1	9407-9504	●	●
1	GRILLE; RAD BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX>,HONDA BRAND PACKAGE<7EP> (B) GRAY	8-97817-019-2	01	1	9505-9510		●
1	GRILLE; RAD BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) GRAY	8-97817-019-2	01	1	9511-		●
1	GRILLE; RAD BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) LIGHT SILVER	8-97817-020-2	01	1	9308-9504	●	●
1	GRILLE; RAD BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) LIGHT SILVER	8-97817-020-2	01	1	9505-		●
1	GRILLE; RAD EXTERIOR CHROME PACKAGE<6CX> (A)	8-94359-185-2	01	1	9112-9208		●
1	GRILLE; RAD EXTERIOR CHROME PACKAGE<6CX> BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A)	8-97808-892-1	01	1	9209-9307		●
1	GRILLE; RAD BODY COLOR CRANBERRY MICA(758) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) DARK PURPLE	8-97817-021-2	01	1	9308-9504	●	●
1	GRILLE; RAD BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,CONVENIENT PACKAGE<6QZ> (A) DARK PURPLE	8-97817-021-2	01	1	9308-9504		●
1	GRILLE; RAD GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX> (B)	8-97123-108-0	01	1	9505-9605	●	●
1	GRILLE; RAD GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX>,AUGUST LIMITED MODEL(7RE) (B)	8-97123-108-0	01	1	9606-9610	●	●
1	GRILLE; RAD GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX>,SPECIAL PACKAGE<7BB>,JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B)	8-97123-108-0	01	1	9611-	●	●
1	GRILLE; RAD EXTERIOR CHROME PACKAGE<6CX> EXC. BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A)	8-94359-185-2	01	1	9209-9307		●
1	GRILLE; RAD BODY COLOR BRONZE BLUE MICA(760) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) DARK BLUE	8-97817-022-2	01	1	9308-9504	●	●
1	GRILLE; RAD BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,CONVENIENT PACKAGE<6QZ> (B) DARK BLUE	8-97817-022-2	01	1	9308-9504		●
1	GRILLE; RAD BODY COLOR RED ROCK MICA(872) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) DARK RED	8-97153-195-2	01	1	9505-	●	●
1	GRILLE; RAD EXTERIOR CHROME PACKAGE<6CX> EXC. BRIGHT HEAVY DUTY RAD GRILLE<6QR> (B)	8-97809-910-2	01	1	9308-9504		●
1	GRILLE; RAD GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXTERIOR CHROME PACKAGE<6CX> (B)	8-97809-910-2	01	1	9505-9605	●	●
1	GRILLE; RAD GRADE LOTUS/LOTUS SE(RBL) (B)	8-97809-910-2	01	1	9505-9605		●
1	GRILLE; RAD GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXTERIOR CHROME PACKAGE<6CX> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B)	8-97809-910-2	01	1	9606-9704	●	●
1	GRILLE; RAD GRADE XS(RBB) JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B)	8-97809-910-2	01	1	9606-9704	●	●
1	GRILLE; RAD GRADE LOTUS/LOTUS SE(RBL) (B)	8-97809-910-2	01	1	9606-9704		●
1	GRILLE; RAD GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXTERIOR CHROME PACKAGE<6CX> EXC. SPECIAL PACKAGE<7BB>,JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B)	8-97809-910-2	01	1	9705-	●	●
1	GRILLE; RAD GRADE XS(RBB) SPECIAL PACKAGE<7BB>,JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B)	8-97809-910-2	01	1	9705-	●	●
1	GRILLE; RAD GRADE LOTUS/LOTUS SE(RBL) (B)	8-97809-910-2	01	1	9705-		●
1	GRILLE; RAD BRIGHT HEAVY DUTY RAD GRILLE<6QR> (B) COATING	8-97808-940-3	01	1	9308-9504		●
1	GRILLE; RAD BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) GRAY	8-97805-405-2	01	1	9112-9210		●
1	GRILLE; RAD BODY COLOR IRON GRAY MET/LT.SILVER MET(777) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) GRAY	8-97805-405-2	01	1	9211-9307		●
1	GRILLE; RAD BODY COLOR WINDSOR BLUE MICA(755) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) DARK BLUE	8-97805-413-2	01	1	9112-9210		●
1	GRILLE; RAD BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,CONVENIENT PACKAGE<6QZ> (B) BLACK	8-97817-024-2	01	1	9308-9309		●
1	GRILLE; RAD BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,CONVENIENT PACKAGE<6QZ> (B) BLACK	8-97817-024-2	01	1	9310-9504		●
1	GRILLE; RAD BODY COLOR EBONY BLACK(826) GRADE BASIC OR LS(RBA) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) BLACK	8-97817-024-2	01	1	9505-		●
1	GRILLE; RAD BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK/IRON GRAY MET(775) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) BLACK	8-97805-411-2	01	1	9112-9307		●
1	GRILLE; RAD BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) LIGHT BROWN	8-97805-412-2	01	1	9112-9307		●
1	GRILLE; RAD BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/IRON GRAY MET(776) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) WHITE	8-97805-404-2	01	1	9112-9210		●
1	GRILLE; RAD BODY COLOR CREAM WHITE/IRON GRAY MET(776) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) WHITE	8-97805-404-2	01	1	9211-9307		●
1	GRILLE; RAD BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) DARK GREEN	8-97805-410-2	01	1	9112-9307		●
1	GRILLE; RAD BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,CONVENIENT PACKAGE<6QZ> (B) DARK GREEN	8-97817-023-2	01	1	9308-9309		●
1	GRILLE; RAD BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX>,CONVENIENT PACKAGE<6QZ> (B) DARK GREEN	8-97817-023-2	01	1	9310-9504		●
1	GRILLE; RAD BODY COLOR NEW MED.BROWN MET(754),BODY COLOR NEW MED.BROWN MET/LT.SILVER MET(778) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) DARK BROWN	8-97805-408-2	01	1	9112-9208		●
1	GRILLE; RAD BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) DARK BLUE	8-97806-601-2	01	1	9112-9210		●
1	GRILLE; RAD BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) DARK BLUE	8-97806-601-2	01	1	9211-9307		●
1	GRILLE; RAD BODY COLOR LT.SILVER MET(753) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) LIGHT SILVER	8-97805-406-2	01	1	9112-9210		●
1	GRILLE; RAD BODY COLOR RADIANT RED(756) GRADE LOTUS/LOTUS SE(RBL) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) RED	8-97805-409-2	01	1	9112-9210		●
8	GROMMET; SCREW,RAD GRILLE	8-97802-507-0	02	1	9112-	●	●
9	SCREW; RAD GRILLE (A) M6X16	8-94381-646-0	04	1	9112-9208	●	●
9	SCREW; RAD GRILLE (B) M5X20	8-94436-927-0	02	1	9112-9208	●	●
9	SCREW; RAD GRILLE (A) M6X16	8-94381-646-0	04	1	9209-9307	●	●
9	SCREW; RAD GRILLE (B) M5X20	8-94436-927-0	02	1	9209-9307	●	●
9	SCREW; RAD GRILLE (A) M6X16	8-94381-646-0	04	1	9308-	●	●
9	SCREW; RAD GRILLE (B) M5X20	8-94436-927-0	02	1	9308-	●	●
11	CLIP; RAD GRILLE BLACK	8-94218-027-0	05	1	9112-	●	●
19	GROMMET; SCREW,RAD GRILLE	8-97805-191-0	04	1	9112-	●	●
117	PANEL; RAD GRILLE HEADLAMP WASHER<CE3>	8-97802-514-2	01	1	9112-9307	●	●
117	PANEL; RAD GRILLE HEADLAMP WASHER<CE3>	8-97802-514-3	01	1	9308-	●	●
117	PANEL; RAD GRILLE HEADLAMP WASHER<CE3>	8-97802-513-2	01	1	9112-9307	●	●
117	PANEL; RAD GRILLE HEADLAMP WASHER<CE3>	8-97802-513-3	01	1	9308-	●	●
117	PANEL; RAD GRILLE EXC. HEADLAMP WASHER<CE3>	8-97802-512-3	01	1	9112-	●	●
117	PANEL; RAD GRILLE EXC. HEADLAMP WASHER<CE3>	8-97802-511-3	01	1	9112-	●	●

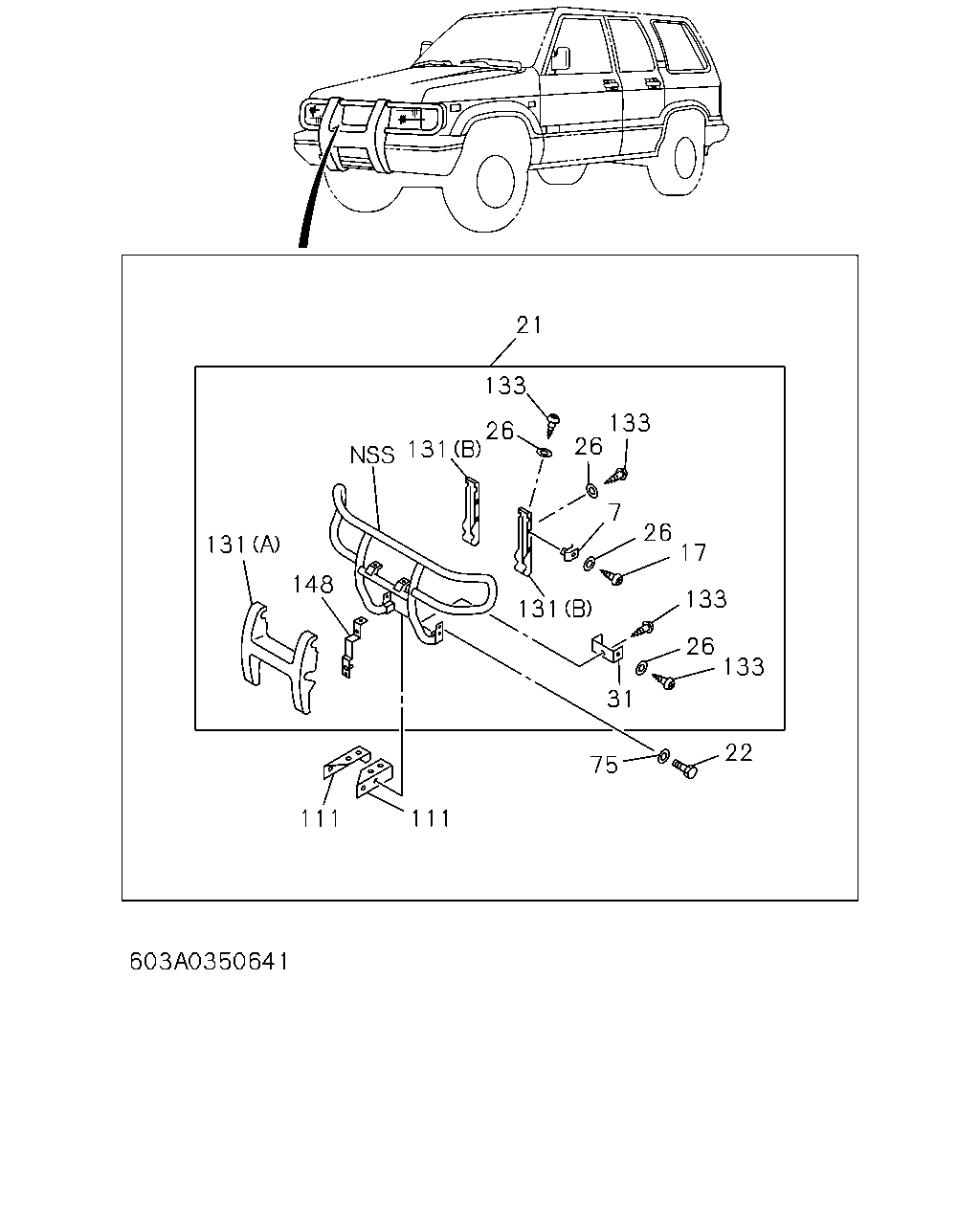

111 22 111 21 75 22 97 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97807-685-6	01	1	9112-9305	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97810-755-0	01	1	9306-9307	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97810-920-1	01	1	9308-9510	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97810-920-1	01	1	9511-9605	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97133-138-2	01	1	9511-9604	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97147-417-0	01	1	9605-9605	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97148-259-1	01	1	9606-9608	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97148-259-1	01	1	9609-	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> LOTUS KIT<6WK>	8-97133-137-1	01	1	9511-9604		●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> LOTUS KIT<6WK>	8-97147-418-0	01	1	9605-9605		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97147-418-0	01	1	9606-9608		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97807-686-8	01	1	9112-9307		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97810-714-0	01	1	9308-9504		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97110-391-2	01	1	9505-9510		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3>	8-97110-391-2	01	1	9511-9605		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X30 W/LK&PL WASHER	9-01961-030-0	06	1	9112-9204	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X30 W/LK&PL WASHER	9-01961-030-0	06	1	9112-9204		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X35 W/LK&PL WASHER	8-97074-134-0	06	1	9203-9206	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	06	1	9203-9206		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9207-9307	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9207-9307		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9308-9406	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-1	06	1	9407-9510	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3> M10X35 W/LK&PL WASHER	8-97074-134-1	06	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9207-9307	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9207-9307		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9308-9406	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (D) M6X10	8-97020-236-0	10	1	9606-9608	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> (D) M6X10	8-97020-236-0	10	1	9609-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X30 FLANGE	0-28091-030-0	08	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (A) M10X30 FLANGE	0-28091-030-0	08	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE LOTUS KIT<6WK> (A) M10X30 FLANGE	0-28091-030-0	08	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X50 FLANGE	0-28091-050-0	02	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (C) M10X50 FLANGE	0-28091-050-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE LOTUS KIT<6WK> (C) M10X50 FLANGE	0-28091-050-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M12X35 FLANGE	0-28681-235-0	02	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●	●
46	SCREW LOTUS KIT<6WK>	8-97116-420-0	04	1	9505-9608		●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9204-9206	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9207-9510	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=12.5 OD=26	9-09164-612-0	02	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=12.5 OD=26	9-09164-612-0	02	1	9606-	●	●
97	CAP IRMSHER KIT<6RS>	8-97136-060-0	02	1	9606-	●	●
97	CAP LOTUS KIT<6WK>	8-97109-081-0	02	1	9505-9608		●
111	BRACKET; FRT ORNAMENT AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-140-1	01	1	9511-9605	●	●
111	BRACKET; FRT ORNAMENT IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-140-1	01	1	9606-	●	●
111	BRACKET; FRT ORNAMENT AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-139-1	01	1	9511-9605	●	●
111	BRACKET; FRT ORNAMENT IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-139-1	01	1	9606-	●	●

21 133 26 133 26 7 26 17 133 26 133 22 75 31 131 131 131 148 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	NUT; SPIRE,RAD GRILLE IRMSHER KIT<6RS>	8-97805-829-0	10	1	9112-9605	●	●
17	SCREW; RAD GRILLE IRMSHER KIT<6RS>	8-97808-137-0	10	1	9112-9605	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97807-685-6	01	1	9112-9305	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97810-755-0	01	1	9306-9307	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97810-920-1	01	1	9308-9510	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97810-920-1	01	1	9511-9605	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97133-138-2	01	1	9511-9604	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97147-417-0	01	1	9605-9605	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>	8-97148-259-1	01	1	9606-9608	●	●
21	GUARD ASM; RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97148-259-1	01	1	9609-	●	●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> LOTUS KIT<6WK>	8-97133-137-1	01	1	9511-9604		●
21	GUARD ASM; RAD GRILLE AIR BAG DRIVER<AJ3> LOTUS KIT<6WK>	8-97147-418-0	01	1	9605-9605		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97147-418-0	01	1	9606-9608		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97807-686-8	01	1	9112-9307		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97810-714-0	01	1	9308-9504		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK>	8-97110-391-2	01	1	9505-9510		●
21	GUARD ASM; RAD GRILLE LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3>	8-97110-391-2	01	1	9511-9605		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X30 W/LK&PL WASHER	9-01961-030-0	06	1	9112-9204	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X30 W/LK&PL WASHER	9-01961-030-0	06	1	9112-9204		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X35 W/LK&PL WASHER	8-97074-134-0	06	1	9203-9206	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	06	1	9203-9206		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9207-9307	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9207-9307		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-0	04	1	9308-9406	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X35 W/LK&PL WASHER	8-97074-134-1	06	1	9407-9510	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3> M10X35 W/LK&PL WASHER	8-97074-134-1	06	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9207-9307	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9207-9307		●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X40 W/LK&PL WASHER	8-97808-595-0	02	1	9308-9406	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (D) M6X10	8-97020-236-0	10	1	9606-9608	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> (D) M6X10	8-97020-236-0	10	1	9609-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X30 FLANGE	0-28091-030-0	08	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (A) M10X30 FLANGE	0-28091-030-0	08	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE LOTUS KIT<6WK> (A) M10X30 FLANGE	0-28091-030-0	08	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X50 FLANGE	0-28091-050-0	02	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (C) M10X50 FLANGE	0-28091-050-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE LOTUS KIT<6WK> (C) M10X50 FLANGE	0-28091-050-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> M12X35 FLANGE	0-28681-235-0	02	1	9511-9605	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●	●
22	BOLT; GUARD,RAD GRILLE IRMSHER KIT<6RS> (B) M12X35 FLANGE	0-28681-235-0	02	1	9606-	●	●
26	WASHER; PL IRMSHER KIT<6RS>	8-97808-135-0	30	1	9112-9405	●	●
26	WASHER; PL IRMSHER KIT<6RS>	8-97808-135-0	24	1	9406-9510	●	●
26	WASHER; PL IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97808-135-0	24	1	9511-9605	●	●
31	BRACKET; FRT GUARD,RAD GRILLE IRMSHER KIT<6RS>	8-97808-131-2	02	1	9112-9510	●	●
31	BRACKET; FRT GUARD,RAD GRILLE IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97808-131-2	02	1	9511-9605	●	●
31	BRACKET; FRT GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97136-250-1	01	1	9511-9605	●	●
31	BRACKET; FRT GUARD,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97136-249-1	01	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9204-9206	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9207-9510	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> EXC. AIR BAG DRIVER<AJ3> OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=12.5 OD=26	9-09164-612-0	02	1	9511-9605	●	●
75	WASHER; PL,RAD GRILLE IRMSHER KIT<6RS>,LOTUS KIT<6WK> ID=12.5 OD=26	9-09164-612-0	02	1	9606-	●	●
111	BRACKET; FRT ORNAMENT AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-140-1	01	1	9511-9605	●	●
111	BRACKET; FRT ORNAMENT IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-140-1	01	1	9606-	●	●
111	BRACKET; FRT ORNAMENT AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-139-1	01	1	9511-9605	●	●
111	BRACKET; FRT ORNAMENT IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97133-139-1	01	1	9606-	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS> (A)	8-97809-618-3	01	1	9112-9605	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS> (B)	8-97807-912-4	01	1	9112-9605	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS> (B)	8-97807-911-4	01	1	9112-9605	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS>	8-97148-261-1	01	1	9606-9608	●	●
131	COVER; GRILLE GUARD IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97148-261-1	01	1	9609-	●	●
133	SCREW; COVER IRMSHER KIT<6RS>	8-97808-257-1	18	1	9112-9405	●	●
133	SCREW; COVER IRMSHER KIT<6RS>	8-97808-257-1	14	1	9406-9510	●	●
133	SCREW; COVER IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97808-257-1	14	1	9511-9605	●	●
133	SCREW; COVER AIR BAG DRIVER<AJ3> IRMSHER KIT<6RS>	8-97808-257-1	12	1	9511-9605	●	●
148	BRACKET; LICENCE PLATE IRMSHER KIT<6RS>	8-97808-134-3	02	1	9112-9604	●	●
148	BRACKET; LICENCE PLATE IRMSHER KIT<6RS> EXC. AIR BAG DRIVER<AJ3>	8-97808-134-3	02	1	9605-9605	●	●

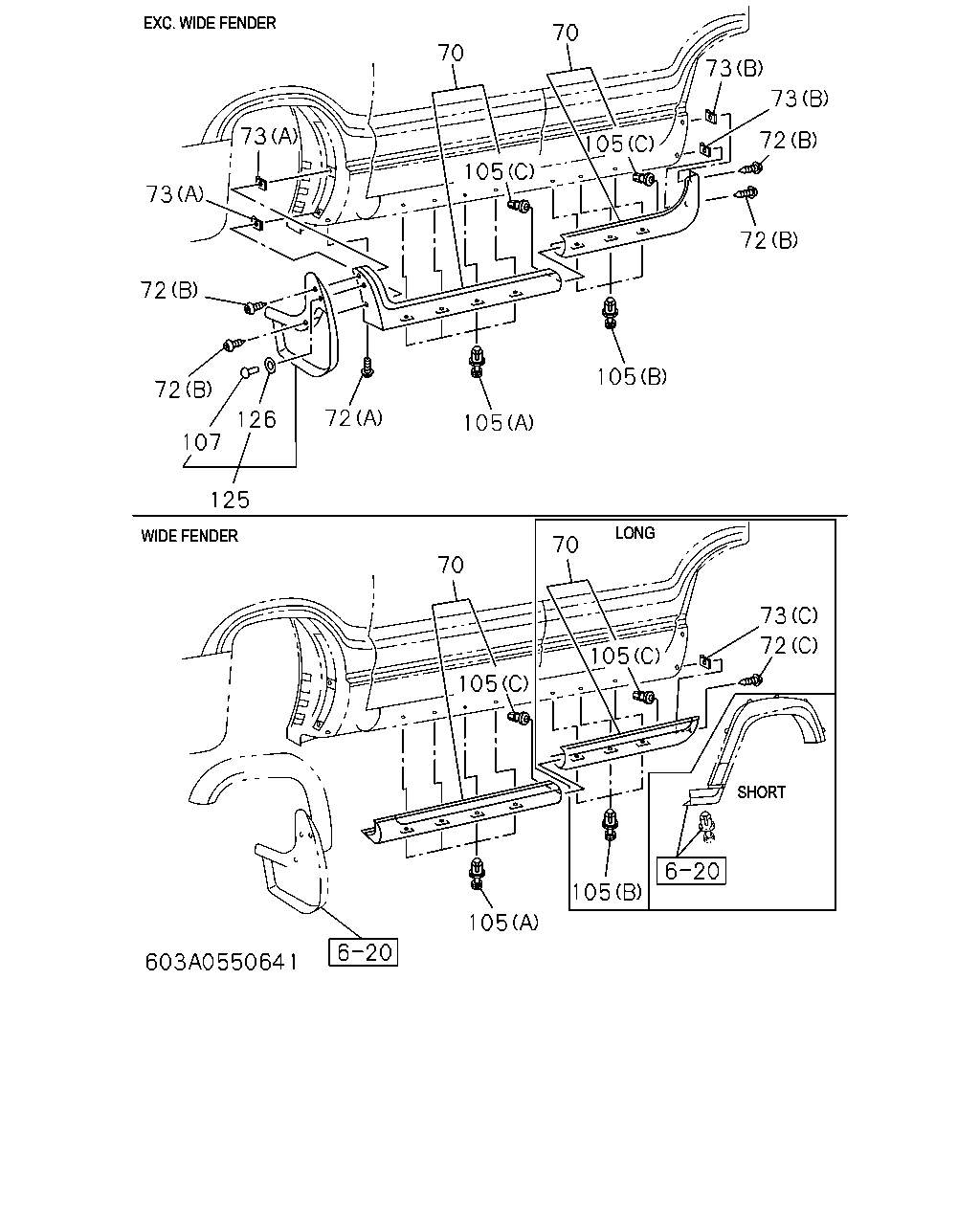

73 73 72 72 107 126 125 70 70 105 105 73 73 72 72 105 105 72 70 70 73 72 105 105 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> FRONT PRIMER	8-97809-196-1	01	1	9112-9504	●	●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> FRONT	8-97809-196-1	01	1	9505-	●	●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> FRONT PRIMER	8-97809-183-1	01	1	9112-9504	●	●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> FRONT	8-97809-183-1	01	1	9505-	●	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> FRONT FRONT	8-97157-258-0	01	1	9505-9606	●	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> FRONT GRAY	8-97158-093-0	01	1	9607-9610	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. AUGUST LIMITED MODEL(7RE) FRONT GRAY	8-97158-093-0	01	1	9607-9610		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> FRONT GRAY	8-97158-093-0	01	1	9611-	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) FRONT GRAY	8-97158-093-0	01	1	9611-		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> FRONT FRONT	8-97157-257-1	01	1	9505-9606	●	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> FRONT GRAY	8-97158-092-0	01	1	9607-9610	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. AUGUST LIMITED MODEL(7RE) FRONT GRAY	8-97158-092-0	01	1	9607-9610		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> FRONT GRAY	8-97158-092-0	01	1	9611-	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) FRONT GRAY	8-97158-092-0	01	1	9611-		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) FRONT	8-97153-535-0	01	1	9606-9606		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) FRONT LIGHT SILVER	8-97158-119-0	01	1	9606-		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) FRONT	8-97153-534-1	01	1	9606-9606		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) FRONT LIGHT SILVER	8-97158-118-0	01	1	9606-		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97153-260-0	01	1	9505-9605		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. AUGUST LIMITED MODEL(7RE) REAR	8-97153-260-0	01	1	9606-9606		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. AUGUST LIMITED MODEL(7RE) GRAY	8-97158-095-0	01	1	9607-9610		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) REAR GRAY	8-97158-095-0	01	1	9611-		●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97807-866-2	01	1	9112-9504		●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> REAR PRIMER	8-97807-866-2	01	1	9505-		●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> REAR PRIMER	8-97807-868-1	01	1	9112-9504	●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> REAR GRAY	8-97153-259-1	01	1	9505-9605		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. AUGUST LIMITED MODEL(7RE) REAR GRAY	8-97153-259-1	01	1	9606-9606		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. AUGUST LIMITED MODEL(7RE) REAR GRAY	8-97158-094-0	01	1	9607-9610		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) REAR GRAY	8-97158-094-0	01	1	9611-		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) REAR	8-97153-530-1	01	1	9606-9606		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) REAR LIGHT SILVER	8-97158-111-0	01	1	9606-		●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> REAR PRIMER	8-97807-869-1	01	1	9112-9504	●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> REAR	8-97807-867-2	01	1	9112-9504		●
70	COVER; ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> REAR PRIMER	8-97807-867-2	01	1	9505-		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> AUGUST LIMITED MODEL(7RE) REAR	8-97153-531-0	01	1	9606-9606		●
70	COVER; ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) REAR LIGHT SILVER	8-97158-109-0	01	1	9606-		●
72	SCREW; COVER,ROCKER COLOR KEYED ROCKER SKIRT<6YA> (A) M6X16 TAPPING W/PL WASHER	0-74315-616-0	02	1	9112-9504	●	●
72	SCREW; COVER,ROCKER COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> (A) M6X16 TAPPING W/PL WASHER	0-74315-616-0	02	1	9505-9508	●	●
72	SCREW; COVER,ROCKER COLOR KEYED ROCKER SKIRT<6YA> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	08	1	9112-9606	●	●
72	SCREW; COVER,ROCKER COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	08	1	9607-	●	●
72	SCREW; COVER,ROCKER OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> (C) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9505-		●
73	NUT; SPIRE,ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> (A) FRONT ID=5.2 H=10	8-97032-135-0	04	1	9112-9504	●	●
73	NUT; SPIRE,ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> (A) FRONT ID=5.2 H=10	8-97032-135-0	04	1	9505-	●	●
73	NUT; SPIRE,ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> (B) REAR H=11.5	8-97807-757-0	04	1	9112-9504	●	●
73	NUT; SPIRE,ROCKER PNL COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> (B) REAR H=11.5	8-97807-757-0	04	1	9505-	●	●
73	NUT; SPIRE,ROCKER PNL OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> (C) REAR H=11.5	8-97807-757-0	02	1	9505-		●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	10	1	9112-9504	●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	10	1	9505-	●
105	CLIP; ROCKER CVR OVER FENDER<6GH> COLOR KEYED ROCKER SKIRT<6YA> (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	08	1	9505-	●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> (C) OD=14.2 L=19.0	8-94340-505-0	10	1	9112-9504	●	●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> (C) OD=14.2 L=19.0	8-94340-505-0	10	1	9505-9510	●	●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> (C) OD=14.2 L=19.0	8-94340-505-0	10	1	9611-	●	●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> (A),(B) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	14	1	9112-		●
105	CLIP; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> OVER FENDER<6GH> (C) REAR OD=14.2 L=19.0	8-94340-505-0	08	1	9112-		●
107	RIVET; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA>	8-94487-995-0	06	1	9112-9504	●	●
107	RIVET; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-94487-995-0	06	1	9505-	●	●
125	FLAP; MUD,ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA>	8-97808-993-0	01	1	9112-9208	●	●
125	FLAP; MUD,ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA>	8-97808-993-1	01	1	9209-9504	●	●
125	FLAP; MUD,ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-97808-993-2	01	1	9505-	●	●
125	FLAP; MUD,ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA>	8-97808-992-0	01	1	9112-9208	●	●
125	FLAP; MUD,ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA>	8-97808-992-1	01	1	9209-9504	●	●
125	FLAP; MUD,ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH>	8-97808-992-2	01	1	9505-	●	●
126	WASHER; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> ID=5.3 OD=14	1-74618-022-0	06	1	9112-9504	●	●
126	WASHER; ROCKER CVR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> ID=5.3 OD=14	1-74618-022-0	06	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
