6-01 — FRONT BUMPER (#166939) — 143 parça

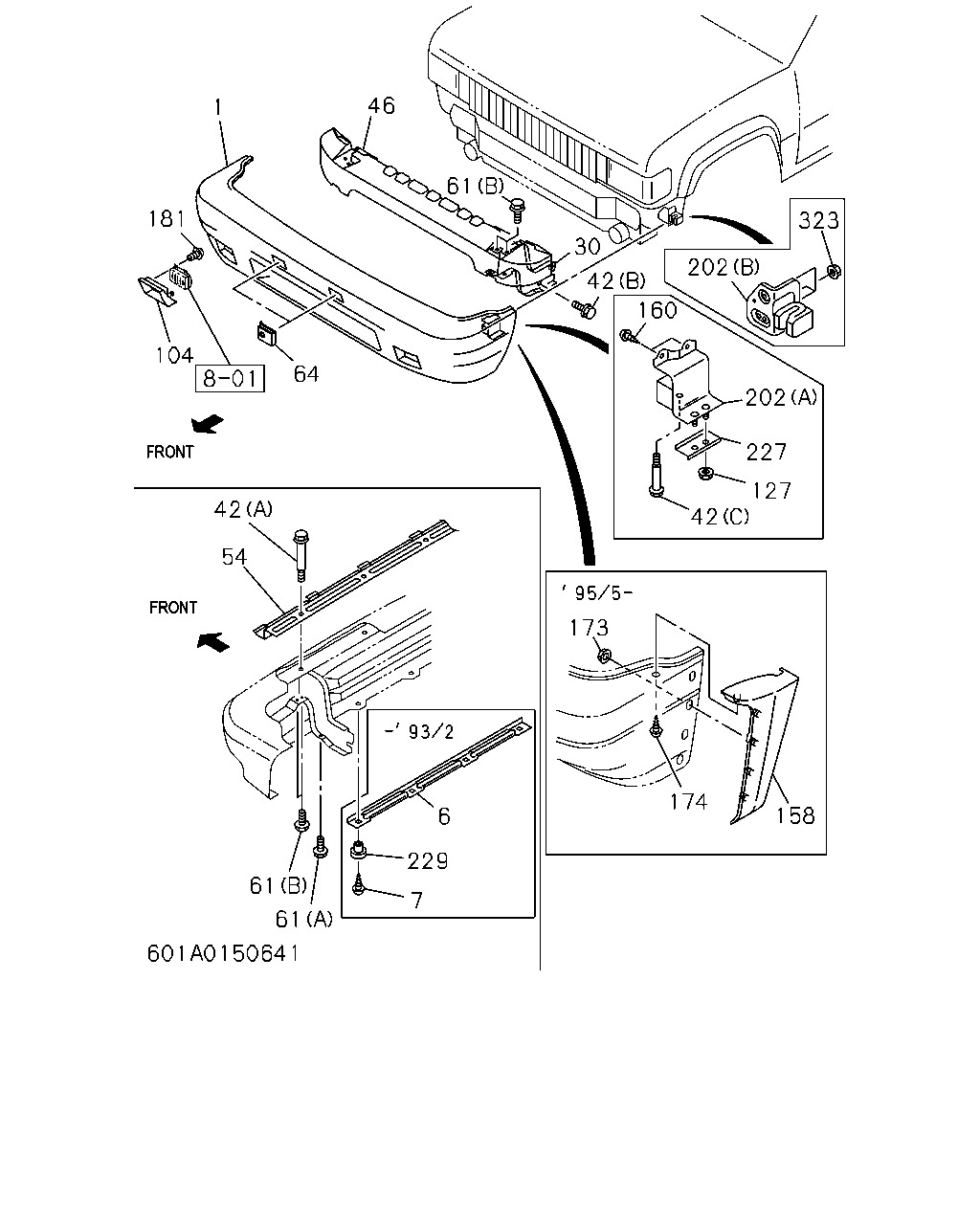

çizim 494090
323 202 46 61 30 42 160 202 227 127 42 1 181 104 64 42 54 6 229 7 61 61 173 174 158
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
FRT BUMPER DARK GRAY<EQ9> GRAY 		8-97153-831-0 01 1 9112-9307 ● ●
1 BUMPER ASM; FRT
BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784) COLOR KEYED BUMPER<S4H> GRAY 		8-97153-831-0 01 1 9112-9307 ●
1 BUMPER ASM; FRT
GRADE RS(RBF),GRADE IRMSHER (RBQ) GRAY 		8-97153-831-0 01 1 9308-9406 ● ●
1 BUMPER ASM; FRT
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) GRAY 		8-97153-831-0 01 1 9308-9406 ● ●
1 BUMPER ASM; FRT
BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784),BODY COLOR IRON GRAY MET(849) GRADE RS(RBF),GRADE IRMSHER (RBQ) GRAY 		8-97153-831-0 01 1 9407-9504 ● ●
1 BUMPER ASM; FRT
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) GRAY 		8-97153-831-0 01 1 9407-9504 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHTSILVER METALIC(798),BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH> GRAY 		8-97153-831-0 01 1 9505-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHTSILVER METALIC(798),BODY COLOR IRON GRAY MET(849) EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH> GRAY 		8-97153-831-0 01 1 9511-9605 ● ●
1 BUMPER ASM; FRT
BODY COLOR BALTIC BLUE MICA/IRON GRAY MET(741), BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAMWHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHT SILVER METALIC(798),BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH>, AUGUSTLIMITED MODEL(7RE) GRAY 		8-97153-831-0 01 1 9606-9610 ● ●
1 BUMPER ASM; FRT
BODY COLOR BALTIC BLUE MICA/IRON GRAY MET(741), BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAMWHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHT SILVER METALIC(798),BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH>, JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-831-0 01 1 9611- ● ●
1 BUMPER ASM; FRT
BODY COLOR EBONY BLACK/LT.SILVER MET(774) COLOR KEYED BUMPER<S4H> LIGHT SILVER 		8-97153-832-0 01 1 9112-9208 ●
1 BUMPER ASM; FRT
BODY COLOR EBONY BLACK/LT.SILVER MET(774) COLOR KEYED BUMPER<S4H> LIGHT SILVER 		8-97153-832-0 01 1 9209-9307 ●
1 BUMPER ASM; FRT
LOTUS JUNE LIMITED EDITION(EA4) LIGHT SILVER 		8-97153-832-0 01 1 9209-9307 ●
1 BUMPER ASM; FRT
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737), BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLORGOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> DELUXE TWO TONE C TYPE<7BD> LIGHT SILVER 		8-97153-832-0 01 1 9308-9403 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) LIGHT SILVER 		8-97153-832-0 01 1 9308-9403 ● ●
1 BUMPER ASM; FRT
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737), BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLORGOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> DELUXE TWO TONE C TYPE<7BD> LIGHT SILVER 		8-97153-832-0 01 1 9404-9406 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. LS FIELD STAR JUNE LIMITED EDITION(ET7) LIGHT SILVER 		8-97153-832-0 01 1 9404-9406 ● ●
1 BUMPER ASM; FRT
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737), BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLORGOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> DELUXE TWO TONE C TYPE<7BD> LIGHT SILVER 		8-97153-832-0 01 1 9407-9410 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. LS FIELD STAR JUNE LIMITED EDITION(ET7),FOG LAMP HALOGEN(T37),LS FIELD STAR(7KB) LIGHT SILVER 		8-97153-832-0 01 1 9407-9410 ● ●
1 BUMPER ASM; FRT
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE IRMSHER (RBQ) LIGHT SILVER 		8-97153-832-0 01 1 9407-9410 ● ●
1 BUMPER ASM; FRT
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737), BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLORGOLD MICA GREEN/LT.SILVER MET(780) GRADE LOTUS/LOTUS SE(RBL) CONVENIENT PACKAGE<6QZ> DELUXE TWO TONE C TYPE<7BD> LIGHT SILVER 		8-97153-832-0 01 1 9411-9504 ● ●
1 BUMPER ASM; FRT
BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LOTUS/LOTUS SE(RBL) DELUXE TWO TONE C TYPE<7BD> DECEMPER LIMITED EDITION LS FIELD STAR/LOTUS JB 		8-97153-832-0 01 1 9411-9504 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. LS FIELD STAR JUNE LIMITED EDITION(ET7),FOG LAMP HALOGEN(T37),LS FIELD STAR(7KB) LIGHT SILVER 		8-97153-832-0 01 1 9411-9504 ● ●
1 BUMPER ASM; FRT
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE IRMSHER (RBQ) LIGHT SILVER 		8-97153-832-0 01 1 9411-9504 ● ●
1 BUMPER ASM; FRT
GRADE LOTUS/LOTUS SE(RBL) EXC. FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-832-0 01 1 9505-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH> LIGHT SILVER 		8-97153-832-0 01 1 9505-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737), BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOREBONY BLACK/LT.SILVER MET(774),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RED ROCK MICA/LIGHT SILVER METALIC(882),BODY COLOR GREEN MICA/LIGHT SILVER METALIC (883) GRADE LOTUS/LOTUS SE(RBL) EXC. FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-832-0 01 1 9511-9605 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-832-0 01 1 9511-9605 ● ●
1 BUMPER ASM; FRT
GRADE LOTUS/LOTUS SE(RBL) EXC. FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-832-0 01 1 9606- ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) EXC. FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-832-0 01 1 9606- ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHTSILVER METALIC(798),BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH> GRAY 		8-97153-822-0 01 1 9505-9506 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH> GRAY 		8-97153-822-0 01 1 9507-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) FOG LAMP HALOGEN(T37) GRAY 		8-97153-822-0 01 1 9507-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHTSILVER METALIC(798),BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH> GRAY 		8-97153-822-0 01 1 9511-9511 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHTSILVER METALIC(798),BODY COLOR IRON GRAY MET(849) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH> GRAY 		8-97153-822-0 01 1 9512-9512 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/LIGHTSILVER METALIC(798),BODY COLOR IRON GRAY MET(849) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH>,PAINT TWO TONE DLX D TYPE<7KD> GRAY 		8-97153-822-0 01 1 9601-9605 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH>,AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-822-0 01 1 9606-9610 ● ●
1 BUMPER ASM; FRT
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) FOG LAMP HALOGEN(T37) GRAY 		8-97153-822-0 01 1 9606-9610 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH>,JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-822-0 01 1 9611- ● ●
1 BUMPER ASM; FRT
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) FOG LAMP HALOGEN(T37) GRAY 		8-97153-822-0 01 1 9611- ● ●
1 BUMPER ASM; FRT
GRADE LOTUS/LOTUS SE(RBL) FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-823-0 01 1 9505-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-823-0 01 1 9505-9510 ● ●
1 BUMPER ASM; FRT
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737), BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOREBONY BLACK/LT.SILVER MET(774),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RED ROCK MICA/LIGHT SILVER METALIC(882),BODY COLOR GREEN MICA/LIGHT SILVER METALIC (883) GRADE LOTUS/LOTUS SE(RBL) FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-823-0 01 1 9511-9605 ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-823-0 01 1 9511-9605 ● ●
1 BUMPER ASM; FRT
GRADE LOTUS/LOTUS SE(RBL) FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-823-0 01 1 9606- ● ●
1 BUMPER ASM; FRT
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) FOG LAMP HALOGEN(T37) LIGHT SILVER 		8-97153-823-0 01 1 9606- ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) OVER FENDER<6GH> GRAY 		8-97153-835-0 01 1 9505-9605 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-835-0 01 1 9606-9610 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) FOG LAMP HALOGEN(T37) OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-835-0 01 1 9611- ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) GRAY 		8-97153-837-0 01 1 9505-9605 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37),AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-837-0 01 1 9606-9610 ● ●
1 BUMPER ASM; FRT
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37),JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97153-837-0 01 1 9611- ● ●
1 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37),OVER FENDER<6GH> PRIMER 		8-97127-882-0 01 1 9505- ● ●
1 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-858-0 01 1 9404-9504 ● ●
1 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) OVER FENDER<6GH> PRIMER 		8-97127-821-0 01 1 9505- ● ●
1 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) EXC. OVER FENDER<6GH> PRIMER 		8-97127-880-0 01 1 9505- ● ●
1 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97807-861-1 01 1 9112-9504 ● ●
1 BUMPER ASM; FRT
OVER FENDER<6GH> EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97127-820-0 01 1 9505- ● ●
6 SUPPORT; FRT BUMPER SIDE 8-97804-155-0 01 1 9112-9302 ● ●
7 SCREW; FRT BUMPER
M6X20 W/PL WASHER TAPPING 		8-94321-767-0 04 1 9112-9302 ● ●
30 BRACKET; FRT BUMPER 8-97800-078-6 01 1 9112-9410 ● ●
30 BRACKET; FRT BUMPER 8-97811-368-0 01 1 9411- ● ●
30 BRACKET; FRT BUMPER 8-97800-076-6 01 1 9112-9410 ● ●
30 BRACKET; FRT BUMPER 8-97811-367-0 01 1 9411- ● ●
42 BOLT; BUMPER
(A) M6X16 FLANGE 		0-28210-616-0 05 1 9112-9204 ● ●
42 BOLT; BUMPER
(A) M6X16 FLANGE 		0-28280-616-0 05 1 9205- ● ●
42 BOLT; BUMPER
(B) M12X30 FLANGE 		8-94475-424-0 04 1 9112-9509 ● ●
42 BOLT; BUMPER
(B) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ●
42 BOLT; BUMPER
(C) 		8-97807-321-0 02 1 9112-9507 ● ●
42 BOLT; BUMPER
(C) 		8-97131-643-0 02 1 9508- ● ●
46 REINFORCEMENT; BUMPER 8-97800-088-8 01 1 9112- ● ●
54 RETAINER; FRT BUMPER 8-97804-154-2 01 1 9112- ● ●
61 BOLT; BACK BAR
(B) M8X20 		8-94198-479-0 08 1 9112-9405 ● ●
61 BOLT; BACK BAR
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 08 1 9406-9412 ● ●
61 BOLT; BACK BAR
(B) M8X20 FLANGE 		0-28680-820-0 08 1 9501-9605 ● ●
61 BOLT; BACK BAR
(A) M6X16 FLANGE 		8-97804-671-1 02 1 9112- ● ●
61 BOLT; BACK BAR
(B) M8X35 FLANGE 		0-28680-835-0 08 1 9708-9710 ● ●
61 BOLT; BACK BAR
(B) M8X20 FLANGE 		0-28680-820-0 08 1 9711- ● ●
64 NUT; CLIP
EXC. IRMSHER KIT<6RS>,LOTUS KIT<6WK> 		8-94342-576-1 02 1 9112- ● ●
104 COVER; HOLE,FOG LAMP
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-827-1 01 1 9404- ● ●
104 COVER; HOLE,FOG LAMP
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-826-1 01 1 9404- ● ●
127 NUT; FRT BUMPER
M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> PRIMER 		8-97103-297-1 01 1 9505- ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> PRIMER 		8-97103-296-1 01 1 9505- ● ●
158 EXTENSION; FRT BUMPER
FOG LAMP HALOGEN(T37) OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) LIGHT SILVER 		8-97098-611-3 01 1 9606-9610 ● ●
158 EXTENSION; FRT BUMPER
FOG LAMP HALOGEN(T37) OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) LIGHT SILVER 		8-97098-611-3 01 1 9611- ● ●
158 EXTENSION; FRT BUMPER
FOG LAMP HALOGEN(T37) OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) LIGHT SILVER 		8-97098-610-3 01 1 9606-9610 ● ●
158 EXTENSION; FRT BUMPER
FOG LAMP HALOGEN(T37) OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) LIGHT SILVER 		8-97098-610-3 01 1 9611- ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> GRAY 		8-97098-609-3 01 1 9505-9605 ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY 		8-97098-609-3 01 1 9606-9610 ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97098-609-3 01 1 9611- ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> GRAY 		8-97098-608-3 01 1 9505-9605 ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY 		8-97098-608-3 01 1 9606-9610 ● ●
158 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97098-608-3 01 1 9611- ● ●
160 SCREW 8-94198-480-0 04 1 9112- ● ●
173 NUT; EXT
M6 FLANGE 		8-97063-399-0 08 1 9505- ● ●
174 SCREW; EXT
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 02 1 9505- ● ●
181 SCREW; TAP,FOG LAMP COVER
FOG LAMP HALOGEN(T37) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9404- ● ●
202 BRACKET; BUMPER SIDE
(A) BUMPER SIDE 		8-97800-096-1 01 1 9112- ● ●
202 BRACKET; BUMPER SIDE
(A) BUMPER SIDE 		8-97805-154-1 01 1 9112- ● ●
202 BRACKET; BUMPER SIDE
(B) BODY SIDE 		8-97807-316-2 01 1 9112-9610 ● ●
202 BRACKET; BUMPER SIDE
(B) BODY SIDE 		8-97161-070-0 01 1 9611- ● ●
202 BRACKET; BUMPER SIDE
(B) BODY SIDE 		8-97807-315-2 01 1 9112-9501 ● ●
202 BRACKET; BUMPER SIDE
(B) BODY SIDE 		8-97811-364-0 01 1 9502-9610 ● ●
202 BRACKET; BUMPER SIDE
(B) BODY SIDE 		8-97161-072-0 01 1 9611- ● ●
227 WASHER; SPECIAL,BUMPER LWR 8-97800-981-1 02 1 9112- ● ●
229 GROMMET 8-97804-050-2 04 1 9112-9302 ● ●
323 NUT; FLANGE
M6 FLANGE 		0-91150-106-0 06 1 9112- ● ●

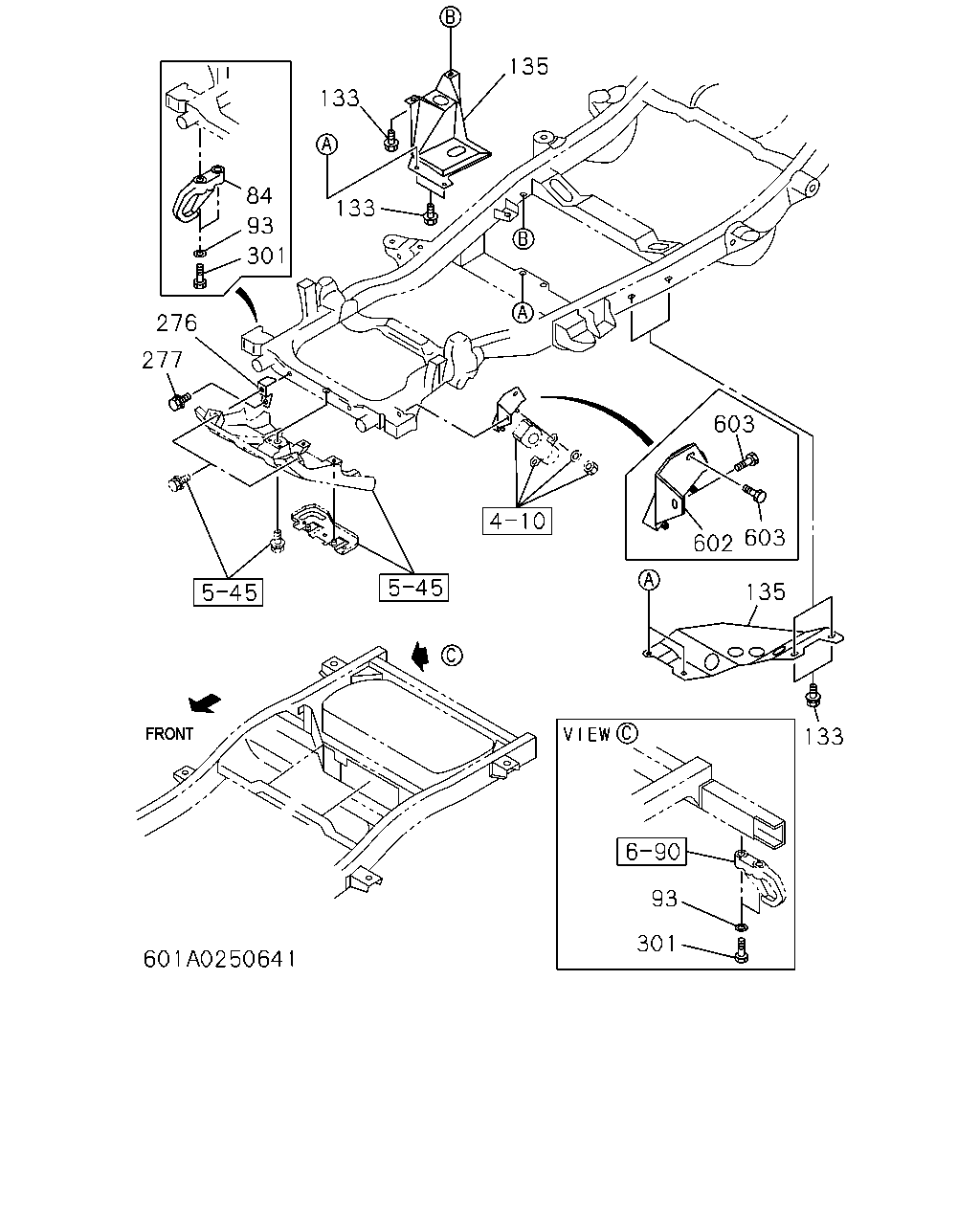

çizim 494124
135 133 133 84 93 301 276 277 603 602 603 135 133 93 301
BalonParca AdiParca NoAdetTipApplied Date A B
84 HOOK
6VD1 DOHC ENG(RLV) A/T THM(RMQ) AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA> 		8-97041-464-2 02 1 9512-9512 ● ●
84 HOOK
M/T MUA 5 SPEED(RMN) AIR BAG DRIVER<AJ3> 		8-97041-464-2 02 1 9512-9512 ●
84 HOOK
AIR BAG DRIVER<AJ3> EXC. IRMSHER KIT<6RS>,LOTUS KIT<6WK> 		8-94183-262-0 01 1 9512- ● ●
84 HOOK 8-97041-464-2 01 1 9112-9603 ● ●
84 HOOK
IRMSHER KIT<6RS>,LOTUS KIT<6WK> 		8-97041-464-2 01 1 9604- ● ●
93 WASHER; LK,HOOK
ID=10.2 		9-09150-810-0 04 1 9112-9307 ● ●
133 BOLT; PROTECTOR FIX
A/T AISIN(RMD) M10X25 		8-94492-949-0 05 1 9112-9307 ● ●
133 BOLT; PROTECTOR FIX
A/T AISIN(RMD) M10X25 		8-94492-949-0 05 1 9308-9310 ● ●
133 BOLT; PROTECTOR FIX
A/T AISIN(RMD) M10X28 W/LK&PL WASHER 		8-97104-788-0 05 1 9311- ● ●
133 BOLT; PROTECTOR FIX
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M10X25 		8-94492-949-0 04 1 9112-9307 ● ●
133 BOLT; PROTECTOR FIX
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M10X25 		8-94492-949-0 04 1 9308-9310 ● ●
133 BOLT; PROTECTOR FIX
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M10X28 W/LK&PL WASHER 		8-97104-788-0 04 1 9311- ● ●
135 PROTECTOR; TRANSFER
M/T MUA 5 SPEED(RMN) 		8-94375-527-2 01 1 9112- ● ●
135 PROTECTOR; TRANSFER
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-94375-528-0 01 1 9112-9307 ● ●
135 PROTECTOR; TRANSFER
A/T AISIN(RMD) 		8-94375-528-0 01 1 9308-9504 ● ●
135 PROTECTOR; TRANSFER
A/T AISIN(RMD) 		8-97123-947-0 01 1 9505- ● ●
135 PROTECTOR; TRANSFER
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-97049-784-0 01 1 9112-9307 ● ●
135 PROTECTOR; TRANSFER
A/T THM(RMQ) 		8-97049-784-0 01 1 9308- ● ●
276 BRACKET; GUARD 8-97063-046-2 01 1 9112- ● ●
276 BRACKET; GUARD 8-97063-045-2 01 1 9112- ● ●
277 BOLT; GUARD TO BRKT
M10X25 		8-94492-949-0 02 1 9112-9310 ● ●
277 BOLT; GUARD TO BRKT
M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9311-9502 ● ●
277 BOLT; GUARD TO BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9503- ● ●
301 BOLT; HOOK TO FRAME 9-02061-045-0 04 1 9112-9208 ● ●
301 BOLT; HOOK TO FRAME
M10X45 		9-02061-045-0 04 1 9112-9210 ● ●
301 BOLT; HOOK TO FRAME
M10X50 FLANGE 		0-28091-050-0 04 1 9211-9605 ● ●
301 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> M10X45 FLANGE 		0-28091-045-0 02 1 9511-9512 ● ●
301 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EXC. IRMSHER KIT<6RS>,LOTUS KIT<6WK> M10X45 FLANGE 		0-28091-045-0 02 1 9601- ● ●
301 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9511-9605 ● ●
301 BOLT; HOOK TO FRAME
M10X50 FLANGE 		0-28091-050-0 02 1 9606- ● ●
602 BRACKET; FRT STABILIZER 8-97801-156-4 01 1 9112- ● ●
602 BRACKET; FRT STABILIZER 8-97801-155-4 01 1 9112- ● ●
603 BOLT; BRKT
M10X25 FLANGE 		0-28281-025-0 06 1 9112-9411 ● ●
603 BOLT; BRKT
M10X25 FLANGE 		0-28281-025-0 04 1 9412-9412 ● ●
603 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
