Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
5 - Frame, Cab Mounting
▶

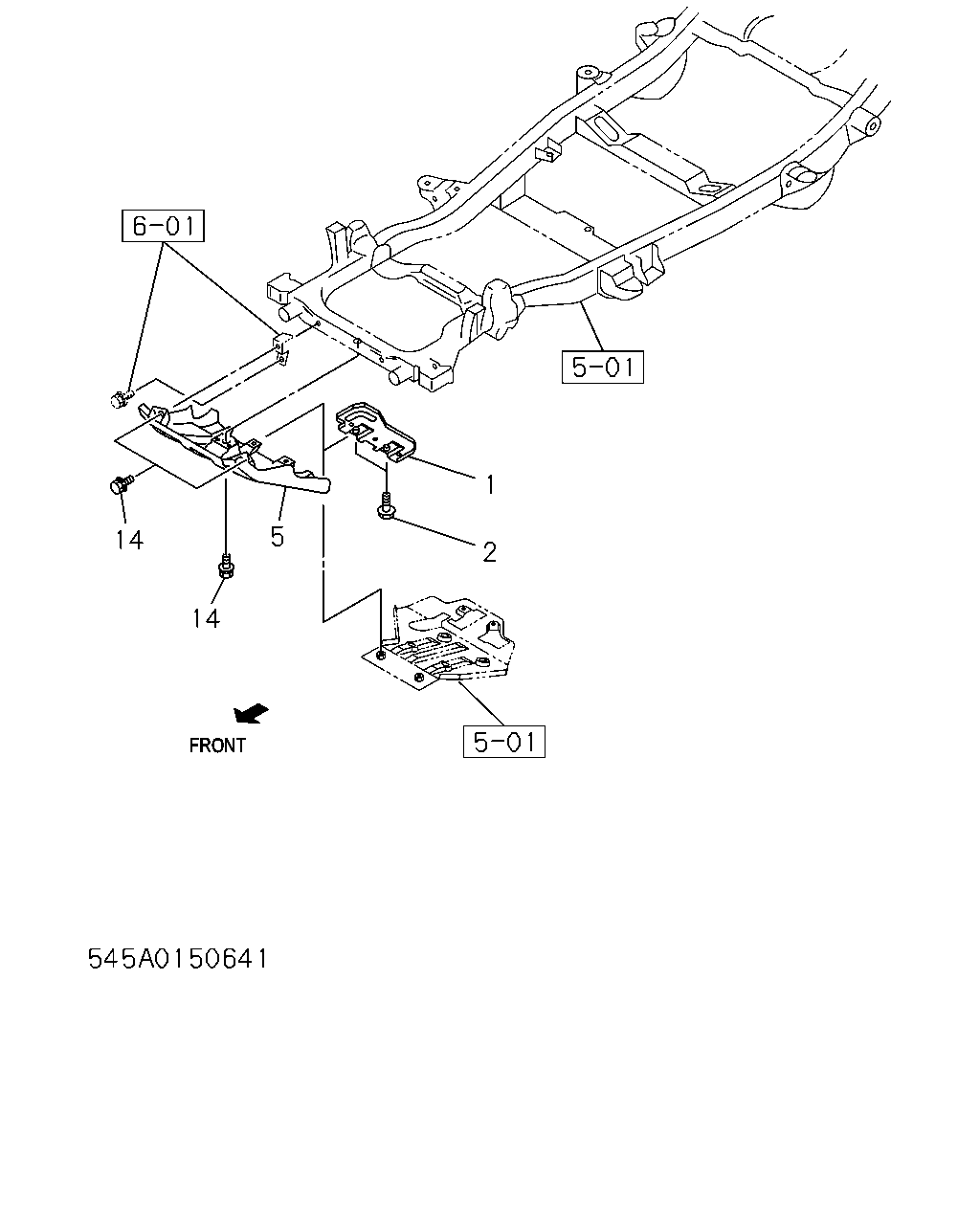

5-45 - UNDER GUARD
▶
5-45 — UNDER GUARD
(#166938) — 17 parça
Tümü
A - UBS1VC
B - UBS1VF
1
2
5
14
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; MUD,ENG
8-97018-376-3
01
1
9112-9503
●
●
1
COVER; MUD,ENG
8-97123-328-0
01
1
9504-9504
●
●
1
COVER; MUD,ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)
8-97123-328-0
01
1
9505-9510
●
●
1
COVER; MUD,ENG
6VD1 DOHC ENG(RLV)
8-97123-328-0
01
1
9505-9510
●
●
1
COVER; MUD,ENG
8-97123-328-0
01
1
9511-
●
●
2
BOLT; MUD COVER
M10X25
8-94492-949-0
02
1
9112-9310
●
●
2
BOLT; MUD COVER
M10X28 W/LK&PL WASHER
8-97104-788-0
02
1
9311-9503
●
●
2
BOLT; MUD COVER
M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
9504-9504
●
●
2
BOLT; MUD COVER
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
9505-9510
●
●
2
BOLT; MUD COVER
6VD1 DOHC ENG(RLV) M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
9505-9510
●
●
2
BOLT; MUD COVER
M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
9511-
●
●
5
GUARD; UNDER,FRT
8-97049-702-2
01
1
9112-9312
●
●
5
GUARD; UNDER,FRT
8-97106-743-0
01
1
9401-9510
●
●
5
GUARD; UNDER,FRT
EXC. AIR BAG DRIVER<AJ3>
8-97106-743-0
01
1
9511-9511
●
●
5
GUARD; UNDER,FRT
EXC. AIR BAG DRIVER<AJ3>
8-97134-924-0
01
1
9511-
●
●
5
GUARD; UNDER,FRT
AIR BAG DRIVER<AJ3>
8-97136-378-2
01
1
9511-
●
●
14
BOLT; UNDER GUARD
M10X28 W/LK&PL WASHER
8-97104-788-0
03
1
9112-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
