Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

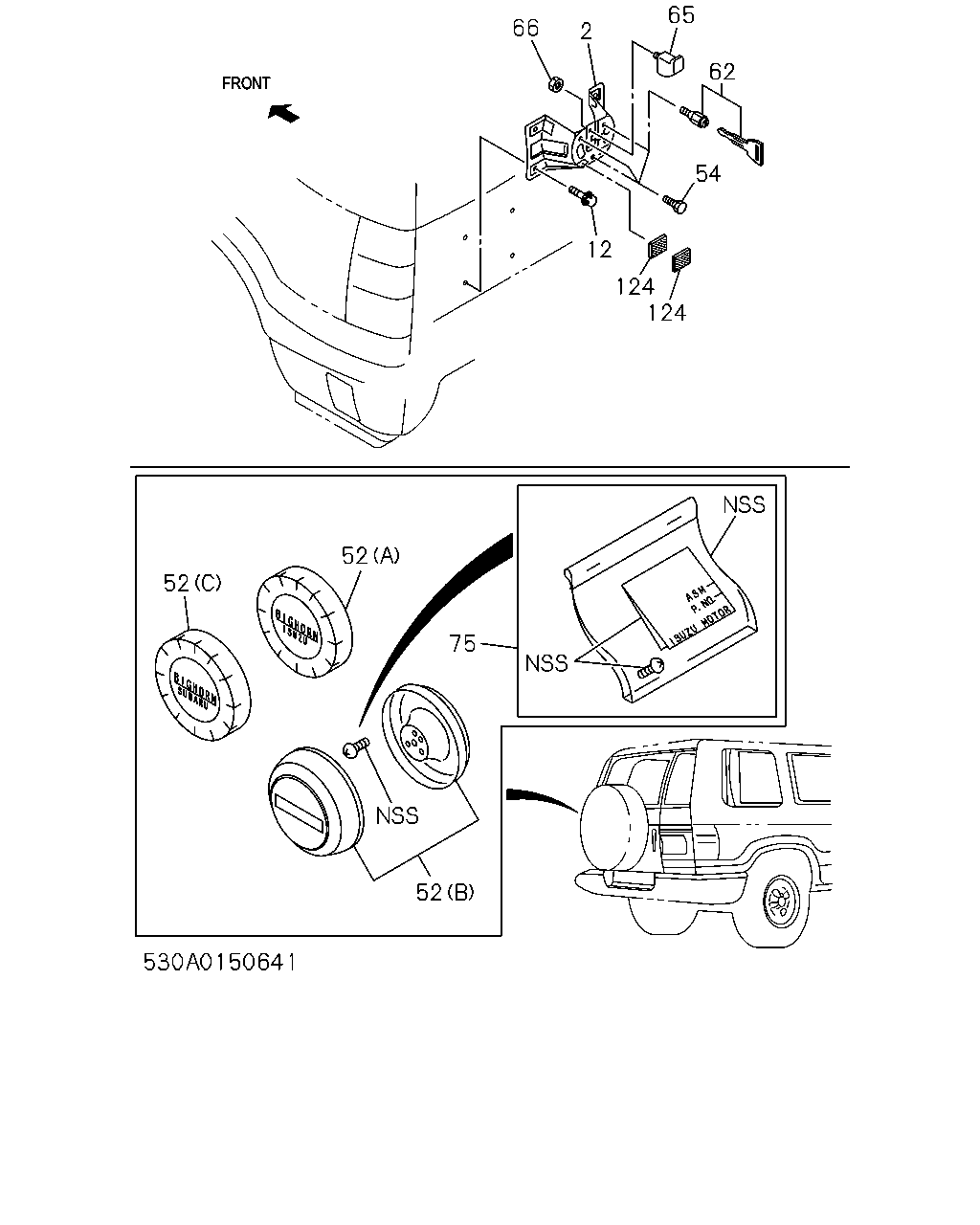

5-30 — SPARE TIRE CARRIER AND COVER
(#166936) — 24 parça
Tümü
A - UBS1VC
B - UBS1VF
124
124
12
66
2
65
62
54
52
52
75
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CARRIER ASM; SPARE TIRE
8-97801-181-2
01
1
9112-9203
●
●
2
CARRIER ASM; SPARE TIRE
8-97809-166-1
01
1
9204-9606
●
●
2
CARRIER ASM; SPARE TIRE
8-97138-457-0
01
1
9607-
●
●
12
BOLT; SPARE TIRE CARRIER
M10X20
9-01961-020-0
04
1
9112-9204
●
●
12
BOLT; SPARE TIRE CARRIER
M10X20 W/LK&PL WASHER
0-50141-020-0
04
1
9205-9205
●
●
12
BOLT; SPARE TIRE CARRIER
M10X20 W/LK&PL WASHER
8-97808-826-0
04
1
9206-
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER<P17> FOR SUBARU<6RB> (C)
8-97807-709-0
01
1
9112-9307
●
52
COVER; SPARE TIRE
SPARE TIRE COVER HARD<6SU> (B) PRIMER
8-97807-892-2
01
1
9112-9204
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER HARD<6SU> (B) PRIMER
8-97809-180-2
01
1
9205-
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER<P17> EXC. FOR SUBARU<6RB> (A)
8-94359-358-0
01
1
9112-9307
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER<P17> (A)
8-94359-358-0
01
1
9308-9309
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER<P17> EXC. HONDA BRAND PACKAGE<7EP> (A)
8-94359-358-1
01
1
9310-9605
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER<P17> (A)
8-94359-358-1
01
1
9606-9711
●
●
52
COVER; SPARE TIRE
SPARE TIRE COVER<P17> (A)
8-97202-625-0
01
1
9712-
●
●
54
BOLT; SPARE TIRE MTG,STEEL WHEEL
SPARE TIRE FIX BOLT<6CT>
8-97803-462-0
02
1
9112-
●
●
54
BOLT; SPARE TIRE MTG,STEEL WHEEL
EXC. SPARE TIRE FIX BOLT<6CT>
8-97803-462-0
03
1
9112-
●
●
62
BOLT; LK,SPARE TIRE
SPARE TIRE FIX BOLT<6CT>
8-94183-694-0
01
1
9112-9709
●
●
62
BOLT; LK,SPARE TIRE
SPARE TIRE FIX BOLT<6CT>
8-97185-582-0
01
1
9710-9711
●
●
62
BOLT; LK,SPARE TIRE
SPARE TIRE FIX BOLT<6CT>
8-97190-774-0
01
1
9712-
●
●
65
SADDLE; SPARE TIRE
8-97808-117-0
01
1
9112-9606
●
●
65
SADDLE; SPARE TIRE
8-97148-837-0
01
1
9607-
●
●
66
NUT; SADDLE,SPARE TIRE
M8 FLANGE
0-91150-108-0
01
1
9112-
●
●
75
SCREW
SPARE TIRE COVER HARD<6SU>
8-97809-156-0
01
1
9505-
●
●
124
FASTENER; COVER,SPARE TIRE
SPARE TIRE COVER HARD<6SU>
8-97809-181-0
04
1
9204-9208
●
●
