5-10 — CAB MOUNTING; FRAME SIDE (#166934) — 83 parça

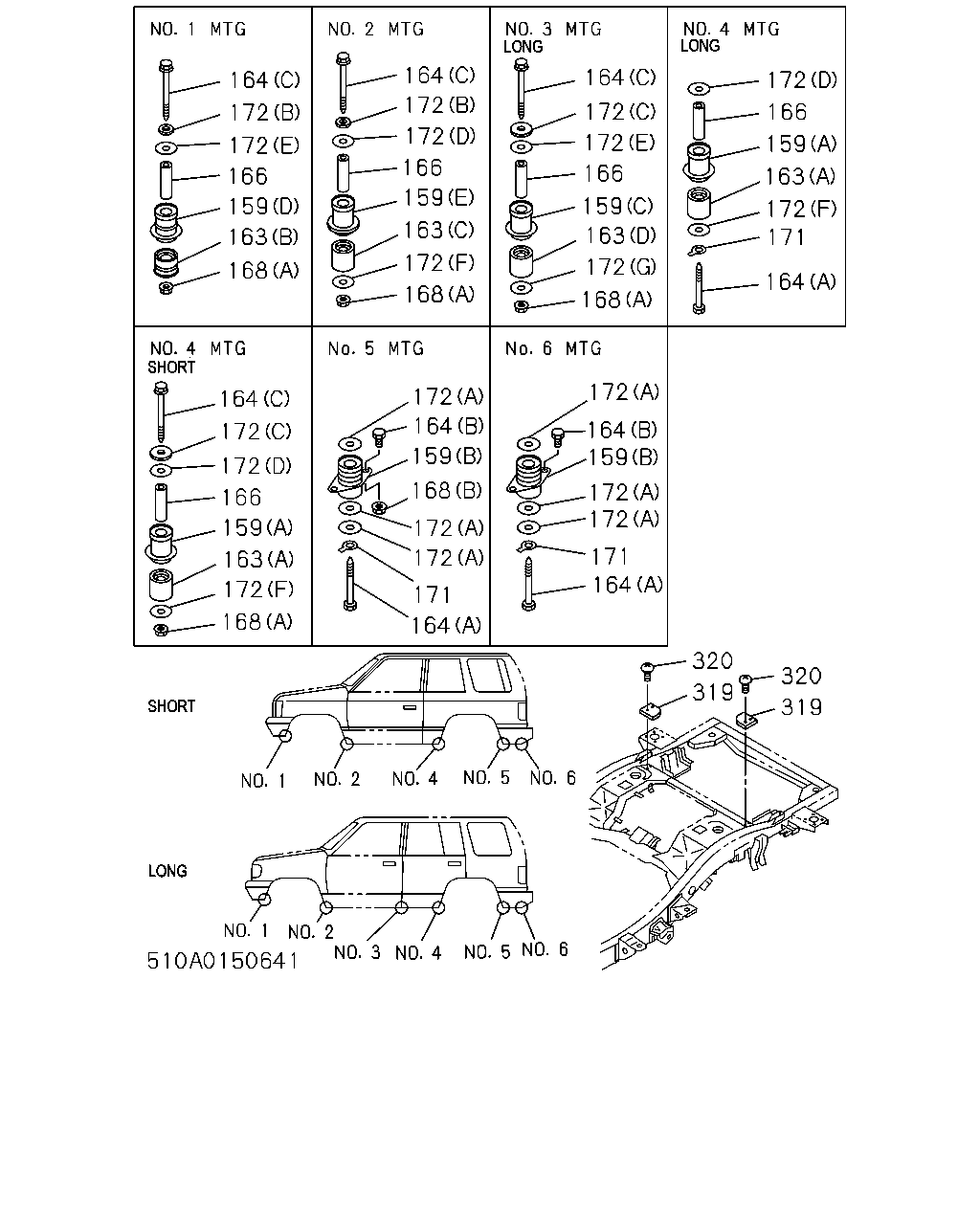

164 172 172 166 159 163 168 164 172 172 166 159 163 172 168 164 172 172 166 159 163 172 168 172 166 159 163 172 171 164 172 164 159 172 172 171 164 172 164 159 168 172 172 171 164 168 172 163 159 166 172 172 164 320 319 320 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (B) NO.5 NO.6 MTG	8-97077-844-0	02	1	9202-	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (B) NO.5 NO.6 MTG	8-97077-843-0	02	1	9202-	●
159	RUBBER; CUSHION,CAB MTG (B) NO.5 NO.6 MTG	8-94370-631-1	04	1	9112-9201	●	●
159	RUBBER; CUSHION,CAB MTG 6VD1 DOHC ENG(RLV) (B) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-	●
159	RUBBER; CUSHION,CAB MTG (B) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-		●
159	RUBBER; CUSHION,CAB MTG 6VD1 DOHC ENG(RLV) (E) NO.2 MTG	8-97132-078-0	02	1	9507-	●
159	RUBBER; CUSHION,CAB MTG (D) NO.1 MTG	8-94325-155-2	02	1	9112-	●	●
159	RUBBER; CUSHION,CAB MTG (A) NO.4 MTG	8-94370-629-2	02	1	9112-	●	●
159	RUBBER; CUSHION,CAB MTG (E) NO.2 MTG	8-97035-571-2	02	1	9112-9410	●	●
159	RUBBER; CUSHION,CAB MTG 6VD1 DOHC ENG(RLV) (E) NO.2 MTG	8-97035-571-2	02	1	9411-9506	●	●
159	RUBBER; CUSHION,CAB MTG 6VD1 DOHC ENG(RLV) (E) NO.2 MTG	8-97035-571-2	02	1	9507-		●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.2 MTG	8-94227-778-3	02	1	9411-	●	●
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-94325-158-2	02	1	9112-		●
163	RUBBER; CUSHION,BODY MTG,REBOUND 6VD1 DOHC ENG(RLV) (C) NO.2 MTG	8-97132-079-0	02	1	9507-	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) N0.4 MTG	8-94227-777-1	02	1	9112-9410	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC) (C) NO.2 MTG	8-94227-777-1	02	1	9411-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.4 MTG	8-94227-777-1	02	1	9411-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.1 MTG	8-94325-156-0	02	1	9112-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.2 MTG	8-97035-572-1	02	1	9112-9307	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.2 MTG	8-97035-572-1	02	1	9308-9410	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 6VD1 DOHC ENG(RLV) (C) NO.2 MTG	8-97035-572-1	02	1	9411-9506	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 6VD1 DOHC ENG(RLV) (C) NO.2 MTG	8-97035-572-1	02	1	9507-		●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.3 MTG	8-94157-885-0	02	1	9112-		●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.4 MTG M10X125	8-97042-439-1	02	1	9112-	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 N0.6 MTG M10X20 FLANGE	0-28081-020-0	08	1	9112-9412	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 N0.6 MTG M10X20 FLANGE	0-28681-020-0	08	1	9501-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.5 NO.6 MTG M10X100	8-94318-911-2	04	1	9112-9302	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.5 NO.6 MTG M10X102	8-97091-599-0	04	1	9303-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.1 NO.2 NO.3 MTG M10X125	8-97042-439-1	06	1	9112-9501	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.1 NO.2 NO.3 MTG M10X120	8-97122-607-1	06	1	9502-9507	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.1,NO.2,NO.3 MTG M10X120	8-97134-968-0	06	1	9508-9511	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.1 MTG M10X120	8-97134-968-0	02	1	9511-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.2,NO.3 MTG M10X105	8-97142-724-0	04	1	9511-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.4 MTG M10X100	8-94318-911-2	02	1	9112-9302		●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.4 MTG M10X102	8-97091-599-0	02	1	9303-		●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.3 NO.4 MTG L=70	8-97042-440-0	08	1	9112-9504	●	●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.3 NO.4 MTG L=70	8-97042-440-0	06	1	9505-9605	●	●
166	PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	06	1	9606-	●	●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.3 NO.4 MTG L=70	8-97042-440-0	02	1	9505-9605		●
166	PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	02	1	9606-		●
168	NUT; CUSHION RUBBER,BODY MTG (A) NO.4 MTG M10 FLANGE	0-91150-210-0	02	1	9112-	●
168	NUT; CUSHION RUBBER,BODY MTG (B) NO.5 MTG M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) NO.1 NO.2 NO.3 MTG M10 FLANGE	0-91150-210-0	06	1	9112-	●	●
171	WASHER; BODY MTG RUBBER NO.5 NO.6 MTG ID=10.2	9-09150-810-0	04	1	9112-9302	●	●
171	WASHER; BODY MTG RUBBER NO.4 MTG ID=10.2	9-09150-810-0	02	1	9112-9302		●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC) (A) OD=62 T=2.9	8-97077-385-1	08	1	9208-9307	●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC) (A),(D) ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9308-	●
172	WASHER; BODY MTG RUBBER 6VD1 DOHC ENG(RLV) (A) OD=62 T=2.9	8-97077-385-1	12	1	9208-9307	●
172	WASHER; BODY MTG RUBBER (A) OD=62 T=2.9	8-97077-385-1	12	1	9208-9307		●
172	WASHER; BODY MTG RUBBER 6VD1 DOHC ENG(RLV) (A),(D) ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9308-	●
172	WASHER; BODY MTG RUBBER (A),(D) ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9308-		●
172	WASHER; BODY MTG RUBBER (E),(F) ID=11 OD=48 T=2.9	8-94223-170-0	06	1	9112-9207	●	●
172	WASHER; BODY MTG RUBBER (E),(F) OD=48 T=2.9	8-97077-386-1	06	1	9208-9307	●	●
172	WASHER; BODY MTG RUBBER (E),(F) ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9308-	●	●
172	WASHER; BODY MTG RUBBER (B) OD=32 T=6.0	8-94416-693-0	04	1	9112-	●	●
172	WASHER; BODY MTG RUBBER (C) OD=48 T=6.0	8-94416-694-0	02	1	9112-	●	●
172	WASHER; BODY MTG RUBBER (A),(D) ID=11 OD=62 T=2.9	8-97037-993-0	16	1	9112-9207	●	●
172	WASHER; BODY MTG RUBBER (D) OD=62 T=2.9	8-97077-385-1	04	1	9208-	●	●
172	WASHER; BODY MTG RUBBER (E) OD=48 T=2.9	8-97077-386-1	02	1	9308-	●	●
172	WASHER; BODY MTG RUBBER (E) OD=48 T=2.9	8-97077-386-1	02	1	9308-		●
172	WASHER; BODY MTG RUBBER (G) ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9112-9207		●
172	WASHER; BODY MTG RUBBER (G) OD=48 T=2.9	8-97077-386-1	02	1	9208-9307		●
172	WASHER; BODY MTG RUBBER (G) ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9308-		●
319	GASKET; BODY MTG BOLT	8-97021-539-3	02	1	9112-	●	●
320	SCREW; BODY MTG GASKET M6X16 TAPPING CK-HEAD	0-70180-616-0	04	1	9112-	●	●

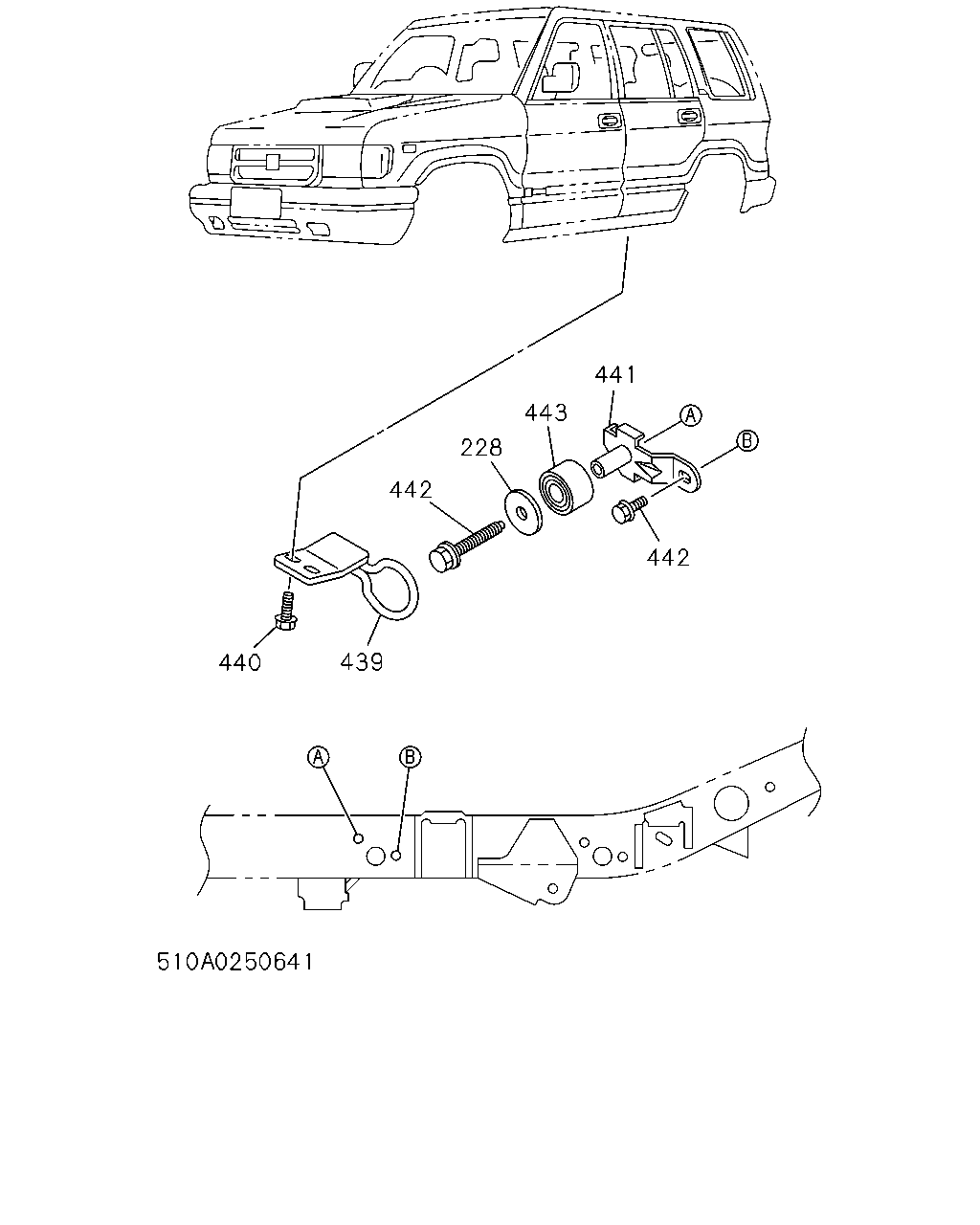

442 441 443 228 442 439 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
228	WASHER; PL AIR BAG DRIVER<AJ3> ID=15 OD=36	9-09164-714-0	02	1	9511-9605	●	●
228	WASHER; PL ID=15 OD=36	9-09164-714-0	02	1	9606-	●	●
439	ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-499-1	01	1	9511-9605	●	●
439	ROD; CAB STOPPER	8-97122-499-1	01	1	9606-	●	●
439	ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-498-1	01	1	9511-9605	●	●
439	ROD; CAB STOPPER	8-97122-498-1	01	1	9606-	●	●
440	BOLT; ROD AIR BAG DRIVER<AJ3> M14X30 FLANGE	0-28691-430-0	04	1	9511-9605	●	●
440	BOLT; ROD M14X30 FLANGE	0-28691-430-0	04	1	9606-	●	●
441	BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-500-1	01	1	9511-9605	●	●
441	BRACKET; CAB STOPPER	8-97122-500-1	01	1	9606-	●	●
441	BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-501-1	01	1	9511-9605	●	●
441	BRACKET; CAB STOPPER	8-97122-501-1	01	1	9606-	●	●
442	BOLT; BRKT AIR BAG DRIVER<AJ3> M10X25 FLANGE	0-28691-025-0	02	1	9511-9605	●	●
442	BOLT; BRKT M10X25 FLANGE	0-28691-025-0	02	1	9606-	●	●
442	BOLT; BRKT AIR BAG DRIVER<AJ3> M14X85 FLANGE	8-97022-802-2	02	1	9511-9605	●	●
442	BOLT; BRKT M14X85 FLANGE	8-97022-802-2	02	1	9606-	●	●
443	CUSHION; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-502-0	02	1	9511-9605	●	●
443	CUSHION; CAB STOPPER	8-97122-502-0	02	1	9606-	●	●
