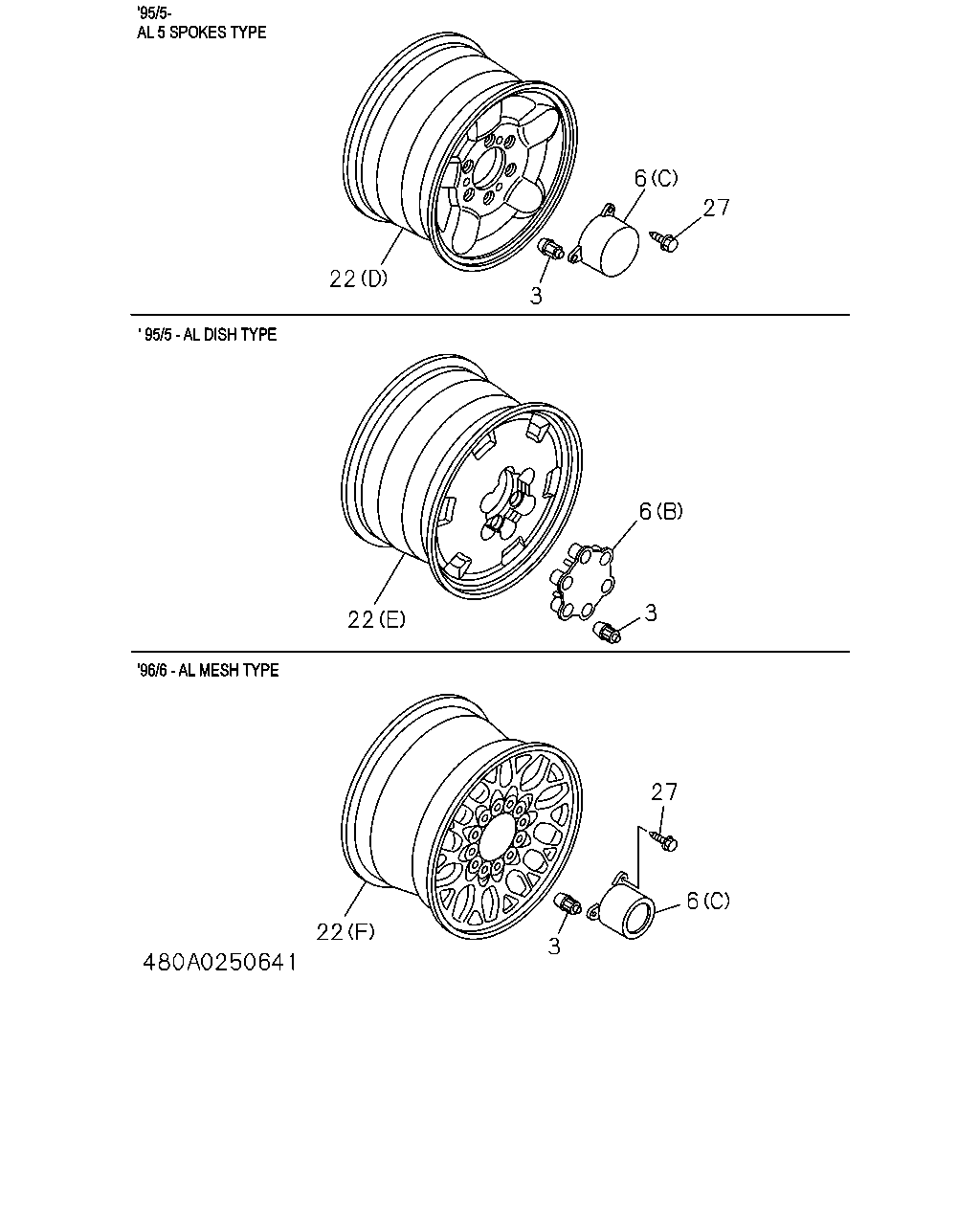

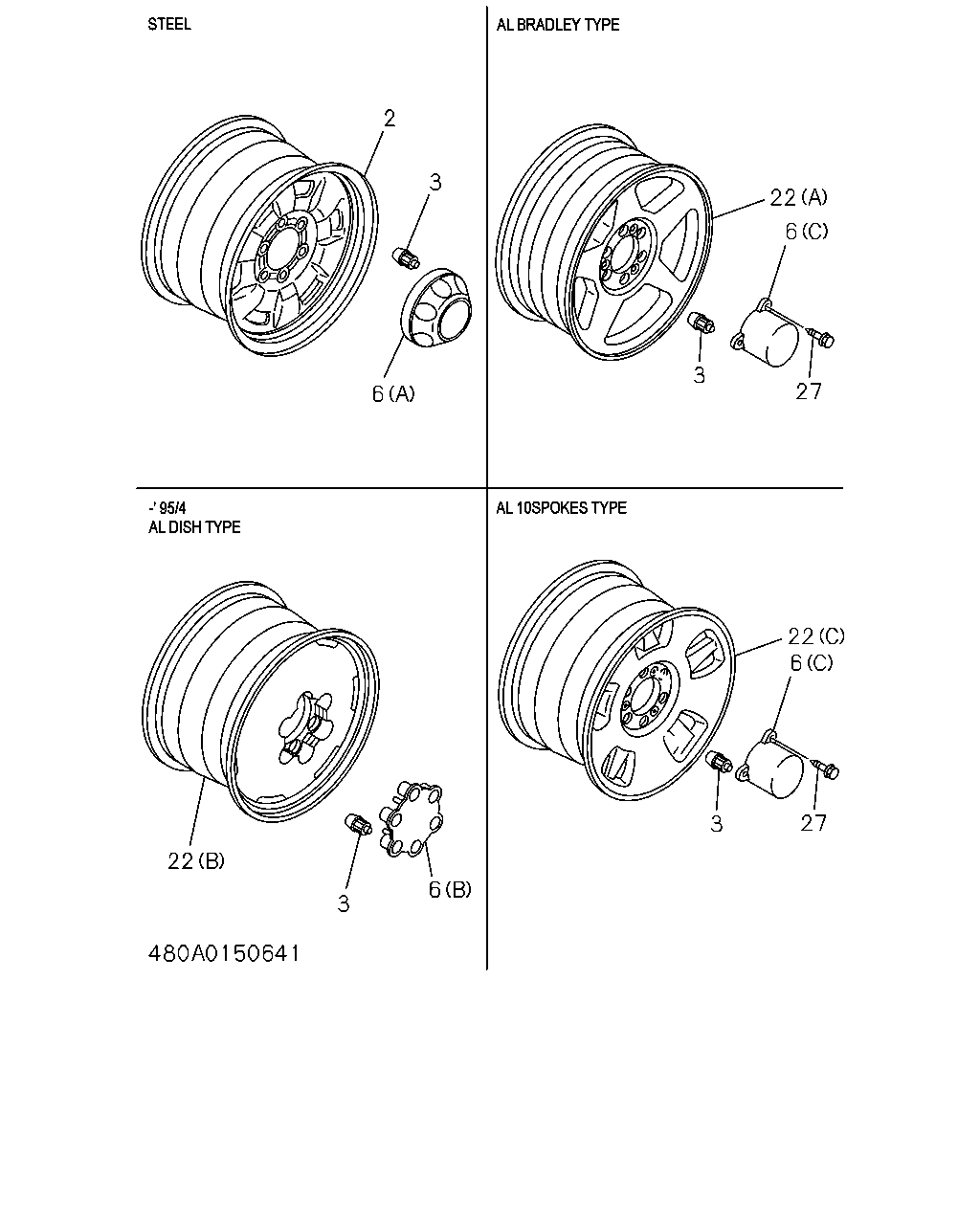

4-80 — ROAD WHEEL (#166932) — 120 parça

2 3 22 3 6 3 27 6 22 27 3 6 22 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 245/70R16 7JJX16 STYLED WHL(9RG) OFFSET=38	8-94374-795-0	05	1	9112-9307	●	●
2	WHEEL; DISC FRT&RR 245/70R16 7JJX16 STYLED(9VM) OFFSET=38	8-94374-795-1	05	1	9308-9504	●	●
2	WHEEL; DISC FRT&RR 245/70R16 7JJX16 STYLED(9VM) OFFSET=38	8-94374-795-1	05	1	9505-9605		●
2	WHEEL; DISC FRT&RR 245/70R16 7JJX16 STYLED(AQN) OFFSET=38	8-94374-795-1	05	1	9606-9711		●
2	WHEEL; DISC FRT&RR 245/70R16 7JJX16 STYLED(AQN) OFFSET=38	8-97170-821-0	01	1	9712-		●
2	WHEEL; DISC FRT&RR 245/70R16 7JJX16 STYLED(AQN) OFFSET=38	8-97170-821-0	04	1	9712-		●
3	NUT; WHEEL,FRT AXLE M12 H=30.5	8-94101-242-1	24	1	9112-9201	●	●
3	NUT; WHEEL,FRT AXLE M12 H=30.5	8-97073-118-0	24	1	9202-9605	●	●
3	NUT; WHEEL,FRT AXLE M12 H=30.5	8-97176-091-0	24	1	9606-	●	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97807-456-0	02	1	9112-9307	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97807-456-0	02	1	9308-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97807-456-0	02	1	9505-	●	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) REAR WHEEL	8-97807-457-0	02	1	9112-9307	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) REAR WHEEL	8-97807-457-0	02	1	9308-	●	●
6	CAP; WHEEL HUB CAP ALUMI<7ET> EXC. MANUAL LOCKING HUB(ED2) (B)	8-97817-118-0	04	1	9308-9504	●	●
6	CAP; WHEEL HUB CAP WHEEL BLACK<PA5> (A) FRONT WHEEL	8-94359-267-1	02	1	9112-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP WHEEL BLACK<PA5> (A) FRONT WHEEL	8-94359-267-1	02	1	9505-		●
6	CAP; WHEEL HUB CAP WHEEL BLACK<PA5> (A) REAR WHEEL	8-94359-268-1	02	1	9112-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP WHEEL BLACK<PA5> (A) REAR WHEEL	8-94359-268-1	02	1	9505-		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI<7ET> (B) FRONT WHEEL	8-97817-117-0	02	1	9308-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI<7ET> (B) REAR WHEEL	8-97817-118-0	02	1	9308-9504	●	●
6	CAP; WHEEL SHIFT ON THE FLY(7EX) HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97090-653-0	02	1	9505-	●	●
6	CAP; WHEEL SHIFT ON THE FLY(7EX) HUB CAP WHEEL BLACK<PA5> (A)	8-94359-268-1	04	1	9505-		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-94359-270-1	05	1	9112-9207		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-97808-917-0	05	1	9208-9307		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-97810-263-0	04	1	9308-9501		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-97123-639-0	04	1	9502-9504		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-94359-269-1	02	1	9112-9207		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97808-914-0	02	1	9208-9208		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL AND SPARE WHEEL	8-94359-270-1	03	1	9112-9207		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL AND SPARE WHEEL	8-97808-917-0	03	1	9208-9208		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97808-914-0	02	1	9209-9307		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL	8-97808-917-0	03	1	9209-9307		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97810-262-0	02	1	9308-9501		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97123-638-0	02	1	9502-9504		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL	8-97810-263-0	02	1	9308-9501		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL	8-97123-639-0	02	1	9502-9504		●
22	WHEEL; DISC,AL (D)	8-97131-912-0	05	1	9505-9511	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(ANK) (D)	8-97131-912-0	05	1	9505-9511		●
22	WHEEL; DISC,AL (D)	8-97131-912-0	05	1	9511-9605	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(ANK) (D)	8-97131-912-0	05	1	9511-9605		●
22	WHEEL; DISC,AL (D)	8-97131-912-0	05	1	9606-9701	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(AQS) (D)	8-97131-912-0	05	1	9606-9701		●
22	WHEEL; DISC,AL (D)	8-97172-065-0	04	1	9702-	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(AQS) (D)	8-97172-065-0	04	1	9702-		●
22	WHEEL; DISC,AL (D)	8-97172-065-0	01	1	9702-	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(AQS) (D)	8-97172-065-0	01	1	9702-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI WHL BRADLEY(9RL) (A)	8-97037-663-0	05	1	9112-9307	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI BRADLEY(9VF) (A)	8-97037-663-2	05	1	9308-9406	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI BRADLEY(9VF) (A)	8-97037-663-2	05	1	9407-9504	●	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI DISH(9VQ) (B)	8-97094-474-0	05	1	9308-9504	●	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI WHL(9RV) (B)	8-97018-903-3	05	1	9112-9307		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI DISH(9VD) (B)	8-97018-903-3	05	1	9308-9504		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 10 SPOKE(ANJ) (C)	8-97103-366-0	05	1	9505-9605		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 10SPOKE(AQU) (C)	8-97103-366-0	05	1	9606-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI 10SPOKE(9VC) (C)	8-97085-739-1	05	1	9308-9504		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 DISH(APD) (E)	8-97121-315-0	05	1	9505-9505		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 DISH(APD),FRT&RR 245/70R167JJX16 DISH(AQJ) (E)	8-97121-315-0	05	1	9506-9605		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 DISH(AQW),FRT&RR 245/70R167JJX16 DISH(ARC) (E)	8-97121-315-0	05	1	9606-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 BRADLEY(ARV) (A)	8-97037-663-2	05	1	9511-9605		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 MESH ALUMI(AQH) (F)	8-97149-118-0	05	1	9606-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE W/BRIGHT RIM(ATA) (D)	8-97162-345-0	05	1	9606-		●
27	BOLT; COVER HUB CAP ALUMI WHEEL<6ZR> M6X16 W/FLANGE	8-97807-546-0	12	1	9112-	●	●

22 3 6 27 22 6 3 27 3 22 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; WHEEL,FRT AXLE M12 H=30.5	8-94101-242-1	24	1	9112-9201	●	●
3	NUT; WHEEL,FRT AXLE M12 H=30.5	8-97073-118-0	24	1	9202-9605	●	●
3	NUT; WHEEL,FRT AXLE M12 H=30.5	8-97176-091-0	24	1	9606-	●	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97807-456-0	02	1	9112-9307	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97807-456-0	02	1	9308-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97807-456-0	02	1	9505-	●	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) REAR WHEEL	8-97807-457-0	02	1	9112-9307	●
6	CAP; WHEEL HUB CAP ALUMI WHEEL<6ZR> (C) REAR WHEEL	8-97807-457-0	02	1	9308-	●	●
6	CAP; WHEEL HUB CAP ALUMI<7ET> EXC. MANUAL LOCKING HUB(ED2) (B)	8-97817-118-0	04	1	9308-9504	●	●
6	CAP; WHEEL HUB CAP WHEEL BLACK<PA5> (A) FRONT WHEEL	8-94359-267-1	02	1	9112-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP WHEEL BLACK<PA5> (A) FRONT WHEEL	8-94359-267-1	02	1	9505-		●
6	CAP; WHEEL HUB CAP WHEEL BLACK<PA5> (A) REAR WHEEL	8-94359-268-1	02	1	9112-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP WHEEL BLACK<PA5> (A) REAR WHEEL	8-94359-268-1	02	1	9505-		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI<7ET> (B) FRONT WHEEL	8-97817-117-0	02	1	9308-9504	●	●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI<7ET> (B) REAR WHEEL	8-97817-118-0	02	1	9308-9504	●	●
6	CAP; WHEEL SHIFT ON THE FLY(7EX) HUB CAP ALUMI WHEEL<6ZR> (C) FRONT WHEEL	8-97090-653-0	02	1	9505-	●	●
6	CAP; WHEEL SHIFT ON THE FLY(7EX) HUB CAP WHEEL BLACK<PA5> (A)	8-94359-268-1	04	1	9505-		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-94359-270-1	05	1	9112-9207		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-97808-917-0	05	1	9208-9307		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-97810-263-0	04	1	9308-9501		●
6	CAP; WHEEL HUB CAP ALUMI WHEEL(S8M) EXC. MANUAL LOCKING HUB(ED2) (B)	8-97123-639-0	04	1	9502-9504		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-94359-269-1	02	1	9112-9207		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97808-914-0	02	1	9208-9208		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL AND SPARE WHEEL	8-94359-270-1	03	1	9112-9207		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL AND SPARE WHEEL	8-97808-917-0	03	1	9208-9208		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97808-914-0	02	1	9209-9307		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL	8-97808-917-0	03	1	9209-9307		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97810-262-0	02	1	9308-9501		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) FRONT WHEEL	8-97123-638-0	02	1	9502-9504		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL	8-97810-263-0	02	1	9308-9501		●
6	CAP; WHEEL MANUAL LOCKING HUB(ED2) HUB CAP ALUMI WHEEL(S8M) (B) REAR WHEEL	8-97123-639-0	02	1	9502-9504		●
22	WHEEL; DISC,AL (D)	8-97131-912-0	05	1	9505-9511	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(ANK) (D)	8-97131-912-0	05	1	9505-9511		●
22	WHEEL; DISC,AL (D)	8-97131-912-0	05	1	9511-9605	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(ANK) (D)	8-97131-912-0	05	1	9511-9605		●
22	WHEEL; DISC,AL (D)	8-97131-912-0	05	1	9606-9701	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(AQS) (D)	8-97131-912-0	05	1	9606-9701		●
22	WHEEL; DISC,AL (D)	8-97172-065-0	04	1	9702-	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(AQS) (D)	8-97172-065-0	04	1	9702-		●
22	WHEEL; DISC,AL (D)	8-97172-065-0	01	1	9702-	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE(AQS) (D)	8-97172-065-0	01	1	9702-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI WHL BRADLEY(9RL) (A)	8-97037-663-0	05	1	9112-9307	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI BRADLEY(9VF) (A)	8-97037-663-2	05	1	9308-9406	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI BRADLEY(9VF) (A)	8-97037-663-2	05	1	9407-9504	●	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI DISH(9VQ) (B)	8-97094-474-0	05	1	9308-9504	●	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI WHL(9RV) (B)	8-97018-903-3	05	1	9112-9307		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI DISH(9VD) (B)	8-97018-903-3	05	1	9308-9504		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 10 SPOKE(ANJ) (C)	8-97103-366-0	05	1	9505-9605		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 10SPOKE(AQU) (C)	8-97103-366-0	05	1	9606-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 ALMI 10SPOKE(9VC) (C)	8-97085-739-1	05	1	9308-9504		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 DISH(APD) (E)	8-97121-315-0	05	1	9505-9505		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 DISH(APD),FRT&RR 245/70R167JJX16 DISH(AQJ) (E)	8-97121-315-0	05	1	9506-9605		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 DISH(AQW),FRT&RR 245/70R167JJX16 DISH(ARC) (E)	8-97121-315-0	05	1	9606-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 BRADLEY(ARV) (A)	8-97037-663-2	05	1	9511-9605		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 MESH ALUMI(AQH) (F)	8-97149-118-0	05	1	9606-		●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE W/BRIGHT RIM(ATA) (D)	8-97162-345-0	05	1	9606-		●
27	BOLT; COVER HUB CAP ALUMI WHEEL<6ZR> M6X16 W/FLANGE	8-97807-546-0	12	1	9112-	●	●
