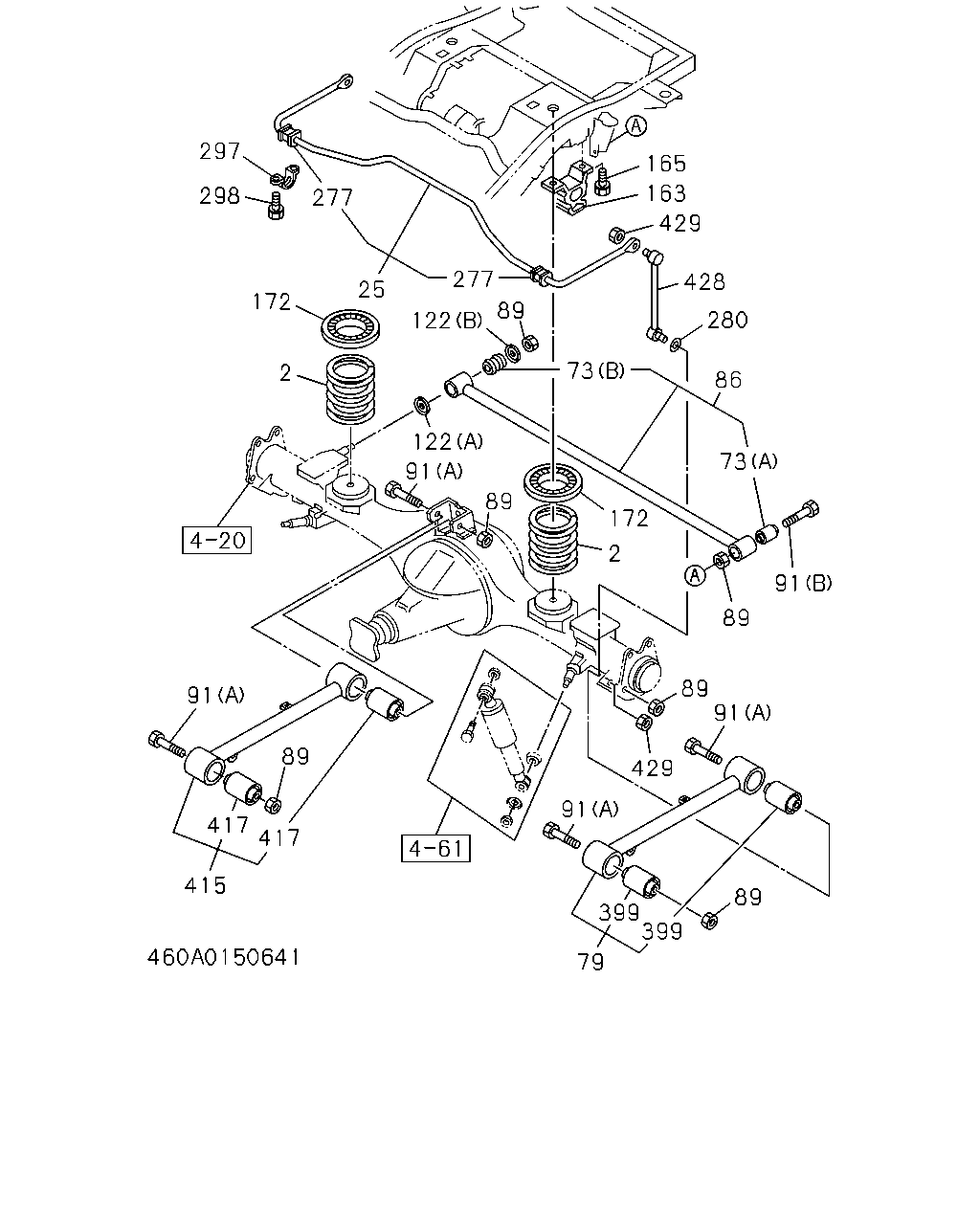

4-60 — REAR SUSPENSION (#166930) — 120 parça

165 89 399 79 399 91 429 91 89 91 89 73 86 280 428 429 163 172 2 415 417 417 91 89 89 91 122 122 2 172 25 89 277 73 277 298 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING; COIL,RR SUSP GRADE BASIC OR LS(RBA)	8-97018-124-0	02	1	9112-9504	●
2	SPRING; COIL,RR SUSP GRADE RS(RBF),GRADE IRMSHER (RBQ)	8-97024-489-0	02	1	9112-9504	●
2	SPRING; COIL,RR SUSP	8-97108-028-0	02	1	9505-	●
2	SPRING; COIL,RR SUSP GRADE BASIC OR LS(RBA)	8-97043-848-0	02	1	9112-9504		●
2	SPRING; COIL,RR SUSP GRADE BASIC OR LS(RBA)	8-97108-027-0	02	1	9505-		●
2	SPRING; COIL,RR SUSP GRADE IRMSHER (RBQ)	8-94375-109-1	02	1	9112-9504		●
2	SPRING; COIL,RR SUSP GRADE XS(RBB),GRADE IRMSHER (RBQ)	8-97114-055-0	02	1	9505-		●
2	SPRING; COIL,RR SUSP GRADE LOTUS/LOTUS SE(RBL)	8-94375-108-1	02	1	9112-9307		●
2	SPRING; COIL,RR SUSP GRADE LOTUS/LOTUS SE(RBL)	8-94375-108-1	02	1	9308-9504		●
2	SPRING; COIL,RR SUSP GRADE LOTUS/LOTUS SE(RBL)	8-97114-054-0	02	1	9505-		●
25	BAR ASM; STAB,RR SUSP	8-97039-331-2	01	1	9112-9504	●
25	BAR ASM; STAB,RR SUSP GRADE IRMSHER (RBQ)	8-97039-331-2	01	1	9112-9504		●
25	BAR ASM; STAB,RR SUSP GRADE XS(RBB),GRADE IRMSHER (RBQ)	8-97039-331-2	01	1	9505-		●
25	BAR ASM; STAB,RR SUSP GRADE BASIC OR LS(RBA),GRADE LOTUS/LOTUS SE(RBL)	8-97047-737-2	01	1	9112-9504		●
25	BAR ASM; STAB,RR SUSP	8-97047-737-2	01	1	9505-	●
25	BAR ASM; STAB,RR SUSP GRADE BASIC OR LS(RBA),GRADE LOTUS/LOTUS SE(RBL)	8-97047-737-2	01	1	9505-		●
73	BUSHING; LATERAL ROD,RR SUSP (A)	8-94375-106-0	01	1	9112-	●	●
73	BUSHING; LATERAL ROD,RR SUSP (B)	8-94375-107-1	01	1	9112-9205	●	●
73	BUSHING; LATERAL ROD,RR SUSP (B)	8-97081-408-0	01	1	9206-	●	●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97069-398-0	01	1	9112-9505	●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97130-543-0	01	1	9505-	●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97069-399-1	01	1	9112-9505	●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97130-544-0	01	1	9505-	●
79	LINK; TRAILING,RR SUSP EXC. RR STABILIZER W/CLUTCH<6WV>	8-97069-398-0	02	1	9112-9505	●
79	LINK; TRAILING,RR SUSP EXC. RR STABILIZER W/CLUTCH<6WV>	8-97130-543-0	02	1	9505-	●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-94374-441-2	01	1	9112-9505		●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97130-541-0	01	1	9505-		●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97022-686-3	01	1	9112-9505		●
79	LINK; TRAILING,RR SUSP RR STABILIZER W/CLUTCH<6WV>	8-97130-542-0	01	1	9505-		●
79	LINK; TRAILING,RR SUSP EXC. RR STABILIZER W/CLUTCH<6WV>	8-94374-441-2	02	1	9112-9505		●
79	LINK; TRAILING,RR SUSP EXC. RR STABILIZER W/CLUTCH<6WV>	8-97130-541-0	02	1	9505-		●
86	ROD; LATERAL,RR SUSP	8-94374-445-2	01	1	9112-	●	●
89	NUT; LATERAL ROD TO RR AXLE M14 FLANGE	8-94137-483-0	08	1	9112-	●	●
91	BOLT; LATERAL ROD TO BODY (A) M14X106 FLANGE	8-97022-753-2	06	1	9112-	●	●
91	BOLT; LATERAL ROD TO BODY (B) M14X85 FLANGE	8-97022-802-2	01	1	9112-	●	●
122	WASHER; LK,LATERAL ROD TO RR AXLE (A)	8-94379-595-1	01	1	9112-	●	●
122	WASHER; LK,LATERAL ROD TO RR AXLE (B)	8-94379-596-1	01	1	9112-	●	●
163	RUBBER; HELPER,RR SPR	8-94374-448-1	02	1	9112-	●	●
165	BOLT; HELPER RUBBER M10X20 W/LK WASHER	8-97033-053-1	04	1	9112-	●	●
172	INSULATOR; RR SPR UPR	8-94374-447-1	02	1	9112-9410	●	●
172	INSULATOR; RR SPR UPR	8-97113-325-0	02	1	9411-	●	●
277	BUSHING; STAB,RR UPR	8-97039-520-0	02	1	9112-9504	●
277	BUSHING; STAB,RR UPR GRADE IRMSHER (RBQ)	8-97039-520-0	02	1	9112-9504		●
277	BUSHING; STAB,RR UPR GRADE XS(RBB),GRADE IRMSHER (RBQ)	8-97039-520-0	02	1	9505-		●
277	BUSHING; STAB,RR UPR GRADE BASIC OR LS(RBA),GRADE LOTUS/LOTUS SE(RBL)	8-97048-318-0	02	1	9112-9504		●
277	BUSHING; STAB,RR UPR	8-97048-318-0	02	1	9505-	●
277	BUSHING; STAB,RR UPR GRADE BASIC OR LS(RBA),GRADE LOTUS/LOTUS SE(RBL)	8-97048-318-0	02	1	9505-		●
280	WASHER; PL,STAB BAR RR STABILIZER W/CLUTCH<6WV>	8-97049-475-0	01	1	9112-	●	●
280	WASHER; PL,STAB BAR EXC. RR STABILIZER W/CLUTCH<6WV>	8-97049-475-0	02	1	9112-	●	●
297	CAP; STAB BAR ID=36	8-97032-869-0	02	1	9112-	●	●
298	BOLT; STAB BAR TO BODY M8X20 W/LK WASHER	0-50040-820-0	04	1	9112-	●	●
399	BUSHING; TRAILING ROD	8-94375-105-0	04	1	9112-	●
399	BUSHING; TRAILING ROD	8-97021-055-0	04	1	9112-		●
415	LINK; CENTER,RR SUSP	8-94374-443-0	01	1	9112-	●	●
417	BUSHING; CENTER LINK	8-97021-055-0	02	1	9112-	●	●
428	LINK; RR STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97018-498-2	01	1	9112-	●	●
428	LINK; RR STABILIZER EXC. RR STABILIZER W/CLUTCH<6WV>	8-97018-125-2	02	1	9112-	●	●
429	NUT; LINK	8-97035-383-0	04	1	9112-	●	●

429 420 429 423 427 426 445 421 345 323 424 422 425

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
323	NUT; LINK ROD RR STABILIZER W/CLUTCH<6WV>	8-97039-201-0	03	1	9112-9510	●	●
323	NUT; LINK ROD RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97039-201-0	03	1	9511-9605	●
323	NUT; LINK ROD RR STABILIZER W/CLUTCH<6WV>	8-97039-201-0	03	1	9511-9605		●
323	NUT; LINK ROD RR STABILIZER W/CLUTCH<6WV>	8-97039-201-0	03	1	9606-		●
345	BOLT; BRKT RR STABILIZER W/CLUTCH<6WV> M8X25 W/LK&PL WASHER	9-01960-825-0	03	1	9112-9204	●	●
345	BOLT; BRKT RR STABILIZER W/CLUTCH<6WV> M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9205-9510	●	●
345	BOLT; BRKT RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3> M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9511-9605	●
345	BOLT; BRKT RR STABILIZER W/CLUTCH<6WV> M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9511-9605		●
345	BOLT; BRKT RR STABILIZER W/CLUTCH<6WV> M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9606-		●
420	CLUTCH; RR STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97018-499-1	01	1	9112-9307	●	●
420	CLUTCH; RR STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97092-482-0	01	1	9308-9510	●	●
420	CLUTCH; RR STABILIZER RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97092-482-0	01	1	9511-9511	●
420	CLUTCH; RR STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97092-482-0	01	1	9511-9511		●
420	CLUTCH; RR STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97092-482-0	01	1	9512-	●	●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97145-490-0	01	1	9610-	●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97018-500-2	01	1	9112-9307	●	●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-494-0	01	1	9308-9510	●	●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97092-494-0	01	1	9511-9511	●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-494-0	01	1	9511-9511		●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-494-0	01	1	9512-9609	●	●
421	MOTOROIDO; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-494-0	01	1	9610-		●
422	BRACKET; MOTOROIDO AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV>	8-97134-287-0	01	1	9512-9605	●
422	BRACKET; MOTOROIDO RR STABILIZER W/CLUTCH<6WV>	8-97134-287-0	01	1	9606-9609	●
422	BRACKET; MOTOROIDO RR STABILIZER W/CLUTCH<6WV>	8-97145-496-0	01	1	9610-	●
422	BRACKET; MOTOROIDO RR STABILIZER W/CLUTCH<6WV>	8-97018-501-1	01	1	9112-9510	●	●
422	BRACKET; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97018-501-1	01	1	9511-9605	●
422	BRACKET; MOTOROIDO RR STABILIZER W/CLUTCH<6WV>	8-97018-501-1	01	1	9511-9605		●
422	BRACKET; MOTOROIDO RR STABILIZER W/CLUTCH<6WV>	8-97018-501-1	01	1	9606-		●
423	CABLE; STABILIZER CLU AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV>	8-97134-288-0	01	1	9512-9605	●
423	CABLE; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97134-288-0	01	1	9606-	●
423	CABLE; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97018-502-1	01	1	9112-9307	●	●
423	CABLE; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-491-0	01	1	9308-9510	●	●
423	CABLE; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97092-491-0	01	1	9511-9605	●
423	CABLE; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-491-0	01	1	9511-9605		●
423	CABLE; STABILIZER CLU RR STABILIZER W/CLUTCH<6WV>	8-97092-491-0	01	1	9606-		●
424	BOLT; MOTOROIDO AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV> M10X20 FLANGE	0-28681-020-0	02	1	9511-9605	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M10X20 FLANGE	0-28681-020-0	02	1	9606-	●
424	BOLT; MOTOROIDO AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV> M6X12 W/LK WASHER	0-50040-612-0	01	1	9512-9605	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6X12 W/LK WASHER	0-50040-612-0	01	1	9606-9609	●
424	BOLT; MOTOROIDO AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV> M6X25 W/LK WASHER	0-50040-625-0	01	1	9512-9605	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6X25 W/LK WASHER	0-50040-625-0	01	1	9606-	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6X12 W/LK WASHER	9-01900-612-0	02	1	9112-9202	●	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6X12 W/LK WASHER	0-50040-612-0	02	1	9203-9510	●	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3> M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-9605	●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6X12 W/LK WASHER	0-50040-612-0	02	1	9511-9605		●
424	BOLT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6X12 W/LK WASHER	0-50040-612-0	02	1	9606-		●
425	NUT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6 FLANGE	0-91150-106-0	01	1	9112-9510	●	●
425	NUT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3> M6 FLANGE	0-91150-106-0	01	1	9511-9511	●
425	NUT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6 FLANGE	0-91150-106-0	01	1	9511-9511		●
425	NUT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6 FLANGE	0-91150-106-0	01	1	9512-9609	●	●
425	NUT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6 FLANGE	0-91150-106-0	03	1	9610-	●
425	NUT; MOTOROIDO RR STABILIZER W/CLUTCH<6WV> M6 FLANGE	0-91150-106-0	01	1	9610-		●
426	BOLT; CABLE RR STABILIZER W/CLUTCH<6WV> M8X16 W/LK WASHER	9-01900-816-0	01	1	9112-9204	●	●
426	BOLT; CABLE RR STABILIZER W/CLUTCH<6WV> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9211	●	●
426	BOLT; CABLE RR STABILIZER W/CLUTCH<6WV> M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●	●
427	WASHER; PL,MOTOROIDO RR STABILIZER W/CLUTCH<6WV> ID=8.4 OD=18	9-09160-608-0	01	1	9112-9510	●	●
427	WASHER; PL,MOTOROIDO RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3> ID=8.4 OD=18	9-09160-608-0	01	1	9511-9605	●
427	WASHER; PL,MOTOROIDO RR STABILIZER W/CLUTCH<6WV> ID=8.4 OD=18	9-09160-608-0	01	1	9511-9605		●
427	WASHER; PL,MOTOROIDO RR STABILIZER W/CLUTCH<6WV> ID=8.4 OD=18	9-09160-608-0	01	1	9606-		●
429	NUT; LINK	8-97035-383-0	04	1	9112-	●	●
445	CLIP AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV>	8-94373-241-0	01	1	9512-9605	●
445	CLIP RR STABILIZER W/CLUTCH<6WV>	8-94373-241-0	01	1	9606-	●
