◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#166929) — 88 parça

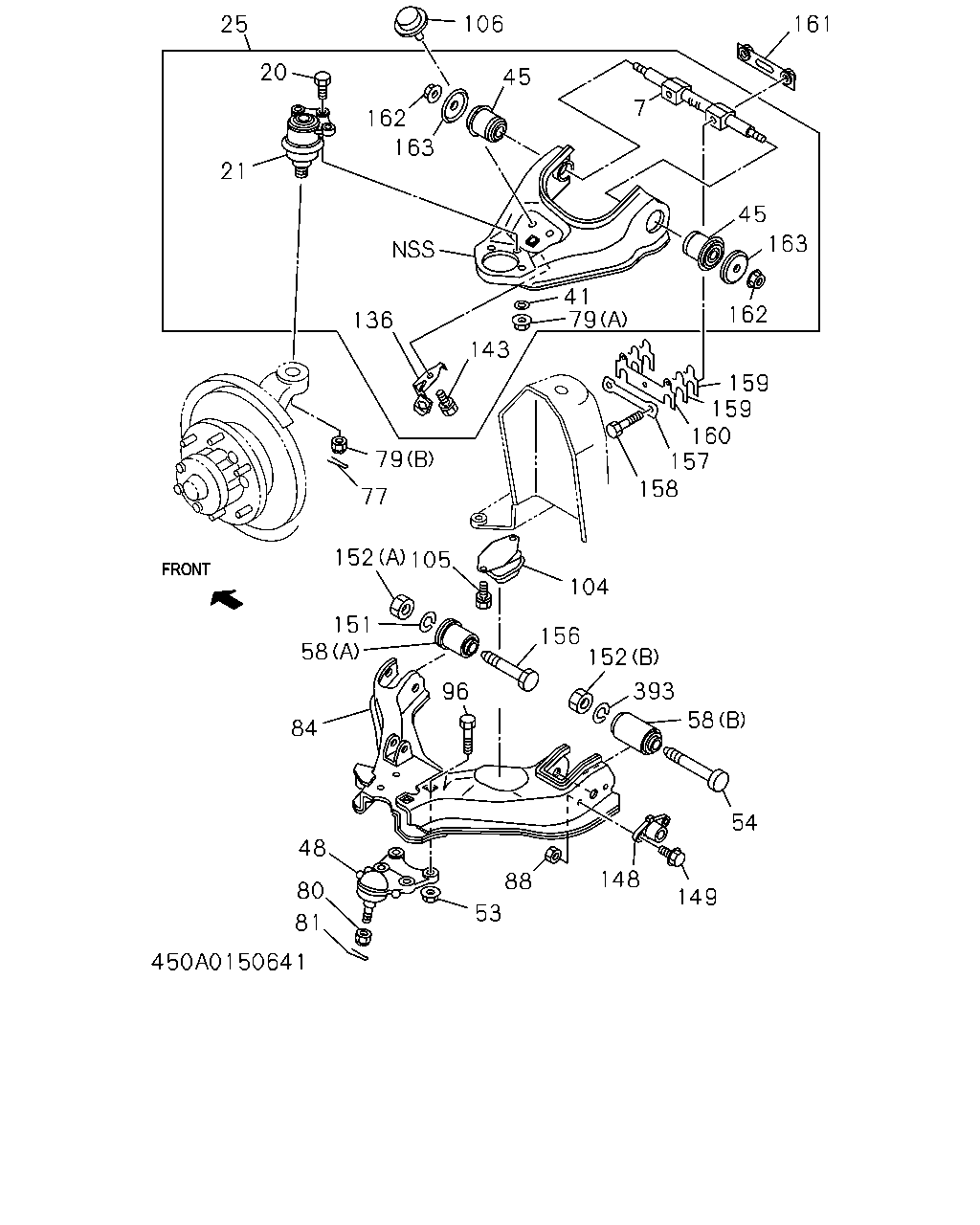

çizim 493773
161 106 45 162 20 25 21 163 136 41 79 7 45 163 162 143 159 159 160 157 158 79 77 152 105 104 151 58 84 156 152 393 58 54 149 148 88 53 96 48 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
7 PIN; FULCRUM,UPR LINK 8-94381-234-3 02 1 9112- ● ●
20 BOLT; UPR LINK END TO UPR LINK
M10X28 		8-94382-103-0 06 1 9112-9401 ● ●
20 BOLT; UPR LINK END TO UPR LINK
M10X30 		8-97010-129-0 06 1 9402- ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-94374-424-0 02 1 9112- ● ●
25 ARM; UPR CONT 8-94374-419-5 01 1 9112-9504 ● ●
25 ARM; UPR CONT
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94374-419-5 01 1 9505- ● ●
25 ARM; UPR CONT 8-94374-418-5 01 1 9112-9504 ● ●
25 ARM; UPR CONT
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94374-418-5 01 1 9505- ● ●
25 ARM; UPR CONT
WIDE TREAD SUSPENSION<7FC> 		8-97104-175-1 01 1 9505- ● ●
25 ARM; UPR CONT
WIDE TREAD SUSPENSION<7FC> 		8-97104-174-1 01 1 9505- ● ●
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=10.2 		9-09150-810-0 06 1 9112-9401 ● ●
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 9112-9504 ● ●
45 BUSHING; UPR LINK,FRT
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94408-840-3 04 1 9505- ● ●
45 BUSHING; UPR LINK,FRT
WIDE TREAD SUSPENSION<7FC> 		8-97104-178-0 04 1 9505- ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-94459-465-2 02 1 9112-9504 ● ●
48 JOINT ASM; BALL,LWR CONT ARM
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94459-465-2 02 1 9505- ● ●
48 JOINT ASM; BALL,LWR CONT ARM
WIDE TREAD SUSPENSION<7FC> 		8-97103-437-0 02 1 9505- ● ●
53 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 08 1 9112- ● ●
54 PIN; FULCRUM,LWR LINK
M18X127 		8-97032-986-0 02 1 9112- ● ●
58 BUSHING; LWR LINK
(A) 		8-97018-165-0 02 1 9112- ● ●
58 BUSHING; LWR LINK
(B) ID=18.2 OD=44.1 L=85.2 		8-97018-166-1 02 1 9112- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 9112- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 9112- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M10 FLANGE 		8-94383-595-0 06 1 9112- ● ●
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 9112- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 9112- ● ●
84 ARM; LWR CONT 8-94374-429-1 01 1 9112- ● ●
84 ARM; LWR CONT 8-94374-428-1 01 1 9112- ● ●
88 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 04 1 9112- ● ●
96 BOLT; LWR LINK
M12X35 		9-92061-235-0 08 1 9112-9407 ● ●
96 BOLT; LWR LINK
M12X50 		9-92061-250-0 08 1 9408- ● ●
104 RUBBER; BUMPER,STRUT 8-94374-431-0 01 1 9112- ● ●
104 RUBBER; BUMPER,STRUT 8-94374-430-0 01 1 9112- ● ●
105 BOLT; STRUT BAR TO LWR LINK
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9112- ● ●
106 RUBBER; REBOUND,STRUT 8-94374-432-0 02 1 9112- ● ●
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-605-1 01 1 9112- ● ●
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-604-1 01 1 9112- ● ●
143 BOLT; BRKT,FLEX HOSE,FRT BRAKE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9112- ● ●
148 ARM; LWR LINK 8-97018-220-0 02 1 9112- ● ●
149 BOLT; ARM TO LWR CONT ARM
M12X37 FLANGE 		8-94382-104-1 04 1 9112- ● ●
151 WASHER; LK,LWR LINK TO FRT C/MBR
ID=16.2 		9-09150-616-0 02 1 9112- ● ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 9112-9307 ● ●
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9209-9307 ● ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 9308- ● ●
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9112-9208 ● ●
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9308- ● ●
156 PIN; FULCRUM,FRT SUSPENSION
M16X91 		8-94173-359-0 02 1 9112- ● ●
157 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 9112- ● ●
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 9112- ● ●
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=0.40 		8-94227-053-1 AR 1 9112- ● ●
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=1.60 		8-94227-054-2 AR 1 9112- ● ●
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=3.20 		8-94241-885-3 AR 1 9112- ● ●
160 SHIM; CAMBER ANGLE,FRT SUSPENSION
T=3.20 		8-94381-376-1 AR 1 9112- ● ●
160 SHIM; CAMBER ANGLE,FRT SUSPENSION
T=1.60 		8-94381-377-1 AR 1 9112- ● ●
161 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 9112- ● ●
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE 		8-94137-483-0 04 1 9112- ● ●
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 9112- ● ●
393 WASHER; PL
ID=18.2 		9-09150-818-0 02 1 9112-9411 ● ●
393 WASHER; PL
ID=19 OD=36 		9-09164-618-0 02 1 9412- ● ●
çizim 493779
14 65 17 18 17 62 65 103 76 60
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9112-9504 ● ●
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9505- ●
14 NUT; S/ABS,UPR
GRADE XS(RBB),GRADE LOTUS/LOTUS SE(RBL),GRADE IRMSHER (RBQ) M10 		8-94317-772-0 02 1 9505- ●
14 NUT; S/ABS,UPR
GRADE BASIC OR LS(RBA) 		8-97120-140-0 02 1 9505- ●
17 BUSHING; RUBBER,S/ABS 8-97036-284-0 04 1 9112-9504 ●
17 BUSHING; RUBBER,S/ABS
GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) 		8-97036-284-0 04 1 9112-9504 ●
17 BUSHING; RUBBER,S/ABS 8-97036-284-0 04 1 9505- ●
17 BUSHING; RUBBER,S/ABS
GRADE XS(RBB),GRADE IRMSHER (RBQ) 		8-97036-284-0 04 1 9505- ●
17 BUSHING; RUBBER,S/ABS
GRADE BASIC OR LS(RBA) 		8-97120-138-0 04 1 9505- ●
17 BUSHING; RUBBER,S/ABS
GRADE LOTUS/LOTUS SE(RBL) 		8-97070-135-0 04 1 9112- ●
18 WASHER; CENTERING,S/ABS 8-97036-285-0 02 1 9112-9504 ● ●
18 WASHER; CENTERING,S/ABS 8-97036-285-0 02 1 9505- ●
18 WASHER; CENTERING,S/ABS
GRADE XS(RBB),GRADE LOTUS/LOTUS SE(RBL),GRADE IRMSHER (RBQ) 		8-97036-285-0 02 1 9505- ●
18 WASHER; CENTERING,S/ABS
GRADE BASIC OR LS(RBA) 		8-97120-137-0 02 1 9505- ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		0-10811-250-0 02 1 9112-9611 ● ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 9612- ● ●
62 ABSORBER ASM; SHOCK,FRT
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97043-816-1 02 1 9112-9504 ●
62 ABSORBER ASM; SHOCK,FRT
GRADE IRMSHER (RBQ) 		8-97043-816-1 02 1 9112-9504 ●
62 ABSORBER ASM; SHOCK,FRT 8-97113-500-0 02 1 9505- ●
62 ABSORBER ASM; SHOCK,FRT
GRADE XS(RBB),GRADE IRMSHER (RBQ) 		8-97113-500-0 02 1 9505- ●
62 ABSORBER ASM; SHOCK,FRT
GRADE BASIC OR LS(RBA) 		8-94374-635-1 02 1 9112-9504 ● ●
62 ABSORBER ASM; SHOCK,FRT
GRADE BASIC OR LS(RBA) 		8-97120-036-0 02 1 9505- ●
62 ABSORBER ASM; SHOCK,FRT
GRADE LOTUS/LOTUS SE(RBL) 		8-97039-321-3 02 1 9112- ●
65 WASHER; S/ABS
ID=10.8 		8-97036-286-0 04 1 9112-9504 ● ●
65 WASHER; S/ABS
ID=10.8 		8-97036-286-0 04 1 9505- ●
65 WASHER; S/ABS
GRADE XS(RBB),GRADE LOTUS/LOTUS SE(RBL),GRADE IRMSHER (RBQ) ID=10.8 		8-97036-286-0 04 1 9505- ●
65 WASHER; S/ABS
GRADE BASIC OR LS(RBA) 		8-97120-136-0 04 1 9505- ●
76 WASHER; LK,S/ABS TO LWR LINK
ID=12.2 		9-09150-512-0 02 1 9112- ● ●
103 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 9112- ● ●
