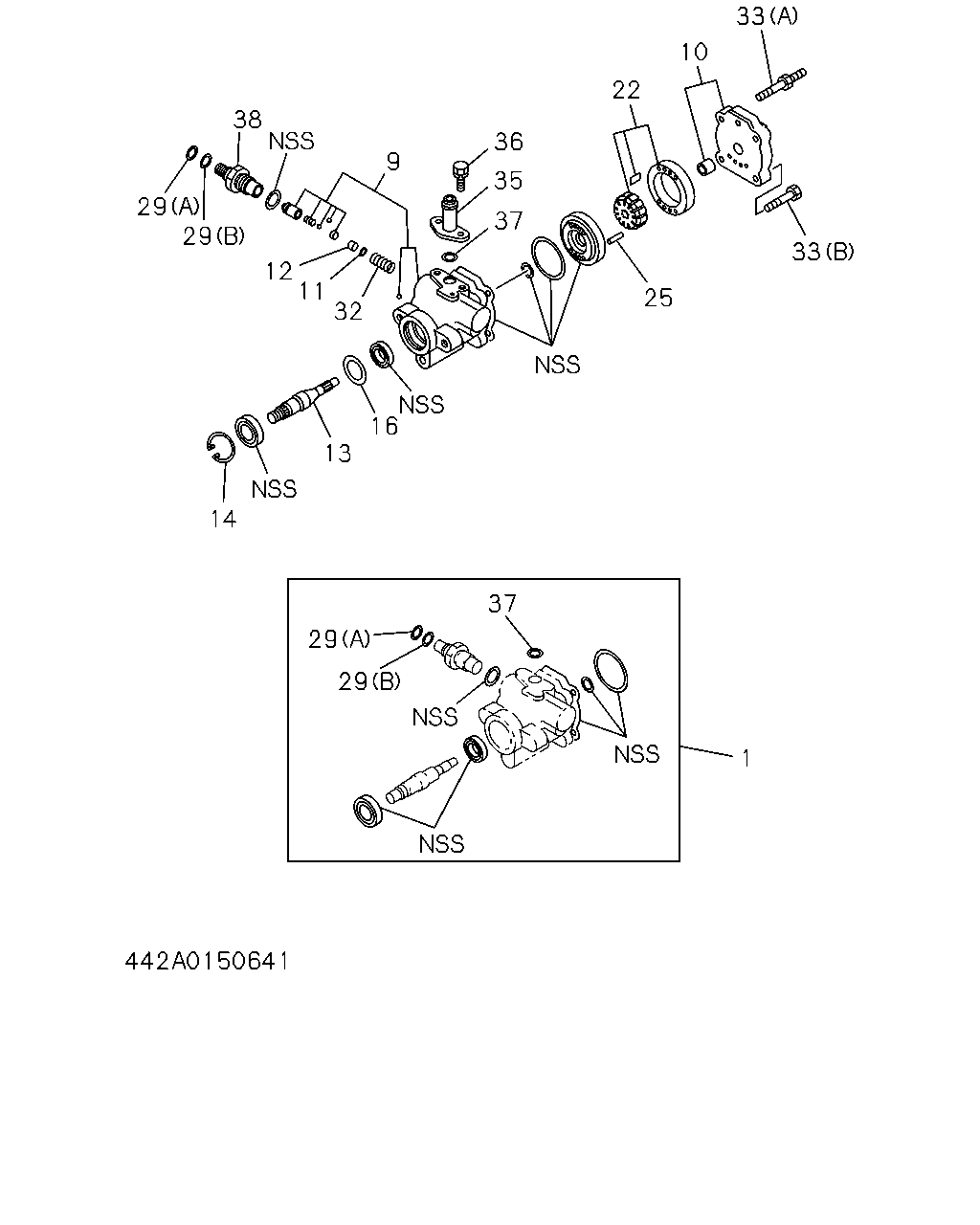

4-42 — POWER STEERING OIL PUMP (#166928) — 145 parça

1 33 33 10 22 25 37 35 36 9 38 12 29 29 11 16 32 13 14 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-058-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97061-711-2	8-97061-640-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-143-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1	8-97085-147-0	01	1	-9505
1	REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, G = 8-97110-269-0	8-97085-147-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1	8-97131-341-0	01	1	9506-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-642-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-888-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-638-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-139-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-885-0	01	1	-9308
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97102-294-0	01	1	9309-
11	RING; RET,OIL TANK ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94175-185-0	01	1	-
12	FILTER; OIL PUMP ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94175-184-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-059-0	01	1	-9308
13	SHAFT KIT; RET ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-633-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97102-297-0	01	1	9309-
14	RING; RET,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-636-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	9-09180-135-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-94475-374-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-637-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1	8-94475-369-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-619-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-136-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: G = 8-97110-269-0, H = 8-97129-593-1	8-97110-274-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-984-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-137-0	02	1	-
29	GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	9-09561-111-0	01	1	-
29	GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	9-09561-113-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-987-0	01	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97061-711-2	8-94311-982-1	01	1	-
33	BOLT; COVER (B) ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-94475-381-0	04	1	-
33	BOLT; COVER (B) ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-381-0	03	1	-
33	BOLT; COVER ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: H = 8-97129-593-1	8-97084-979-0	01	1	-9505
33	BOLT; COVER (A) ASM PART: E = 8-97084-953-1, G = 8-97110-269-0	8-97084-979-0	01	1	-
33	BOLT; COVER ASM PART: H = 8-97129-593-1	8-97131-502-0	01	1	9506-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94461-138-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-057-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-142-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ID=11.0 ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	9-09561-111-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-140-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-890-0	01	1	-

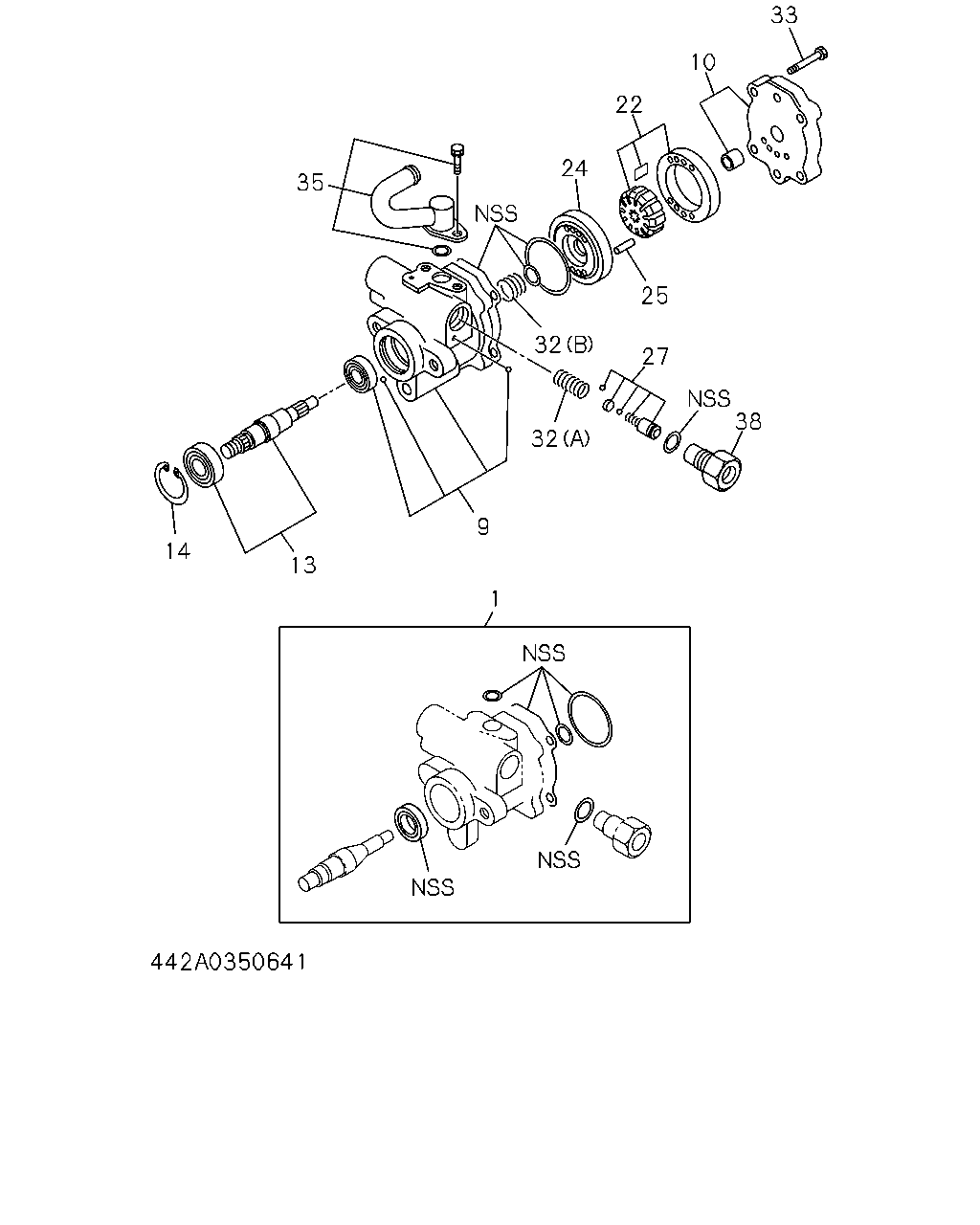

33 10 22 24 25 38 12 11 32 16 13 14 35 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-058-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97061-711-2	8-97061-640-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-143-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1	8-97085-147-0	01	1	-9505
1	REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, G = 8-97110-269-0	8-97085-147-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1	8-97131-341-0	01	1	9506-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-638-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-139-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-885-0	01	1	-9308
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97102-294-0	01	1	9309-
11	RING; RET,OIL TANK ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94175-185-0	01	1	-
12	FILTER; OIL PUMP ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94175-184-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-059-0	01	1	-9308
13	SHAFT KIT; RET ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-633-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97102-297-0	01	1	9309-
14	RING; RET,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-636-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	9-09180-135-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-94475-374-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-637-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1	8-94475-369-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-619-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-136-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: G = 8-97110-269-0, H = 8-97129-593-1	8-97110-274-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97061-632-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97063-133-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-981-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-984-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-137-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-987-0	01	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97061-711-2	8-94311-982-1	01	1	-
33	BOLT; COVER (B) ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-94475-381-0	04	1	-
33	BOLT; COVER (B) ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-381-0	03	1	-
33	BOLT; COVER ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: H = 8-97129-593-1	8-97084-979-0	01	1	-9505
33	BOLT; COVER (A) ASM PART: E = 8-97084-953-1, G = 8-97110-269-0	8-97084-979-0	01	1	-
33	BOLT; COVER ASM PART: H = 8-97129-593-1	8-97131-502-0	01	1	9506-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94461-138-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-057-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-142-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94461-139-1	02	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-140-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-890-0	01	1	-

14 13 32 32 38 27 35 24 22 10 33 25 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-058-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97061-711-2	8-97061-640-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-143-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1	8-97085-147-0	01	1	-9505
1	REPAIR KIT; OIL PUMP ASM PART: E = 8-97084-953-1, G = 8-97110-269-0	8-97085-147-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: H = 8-97129-593-1	8-97131-341-0	01	1	9506-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-642-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-888-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-638-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-139-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-885-0	01	1	-9308
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97102-294-0	01	1	9309-
13	SHAFT KIT; RET ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-059-0	01	1	-9308
13	SHAFT KIT; RET ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-633-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97102-297-0	01	1	9309-
14	RING; RET,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97061-636-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	9-09180-135-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1	8-94475-369-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-619-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-136-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: G = 8-97110-269-0, H = 8-97129-593-1	8-97110-274-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97061-632-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-97063-133-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-981-0	01	1	-
25	PIN; HSG,P/S ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-984-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-137-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-94375-242-2	8-97064-986-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: F = 8-97094-200-1	8-97094-142-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-94365-012-5, C = 8-97061-711-2, D = 8-97070-004-3, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-987-0	01	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97061-711-2	8-94311-982-1	01	1	-
33	BOLT; COVER (B) ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-94475-381-0	04	1	-
33	BOLT; COVER (B) ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94475-381-0	03	1	-
33	BOLT; COVER ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: H = 8-97129-593-1	8-97084-979-0	01	1	-9505
33	BOLT; COVER (A) ASM PART: E = 8-97084-953-1, G = 8-97110-269-0	8-97084-979-0	01	1	-
33	BOLT; COVER ASM PART: H = 8-97129-593-1	8-97131-502-0	01	1	9506-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94461-138-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97044-057-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-142-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97061-711-2, E = 8-97084-953-1, G = 8-97110-269-0, H = 8-97129-593-1	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-94365-012-5, D = 8-97070-004-3	8-97065-140-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-94375-242-2, F = 8-97094-200-1	8-97072-890-0	01	1	-
