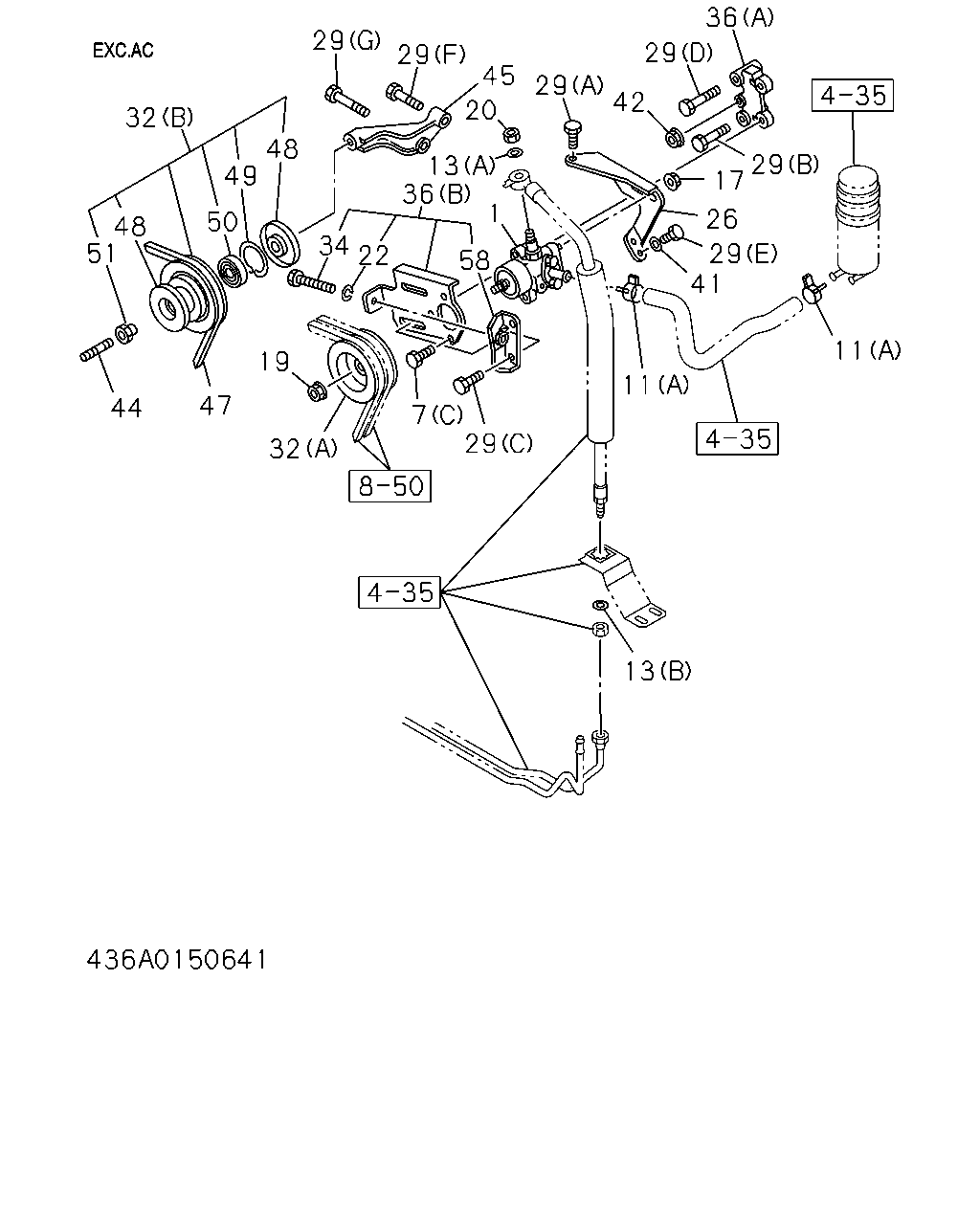

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#166926) — 91 parça

11 41 29 26 17 29 36 29 42 29 45 20 13 36 29 29 48 49 32 58 1 11 29 7 13 22 34 50 19 32 47 44 48 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-94365-012-4	01	1	9112-9307	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-94375-242-2	01	1	9308-9605	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97061-711-2	01	1	9112-9211	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97084-953-1	01	1	9212-9405	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97110-269-0	01	1	9406-9505	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-1	01	1	9506-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97070-004-2	01	1	9112-9307		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97094-200-1	01	1	9308-9605		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97094-200-1	01	1	9606-	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) (C) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 DOHC ENG(RLV) (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 DOHC ENG(RLV) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 DOHC ENG(RLV) (D) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	CLIP; FLEX HOSE 6VD1 DOHC ENG(RLV) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) (A) ID=12.2	9-09150-512-0	01	1	9112-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) (B) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9112-	●	●
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC) M10 FLANGE	0-91150-210-0	01	1	9112-	●	●
17	NUT; POWER STRG PUMP 6VD1 DOHC ENG(RLV) M12	8-94139-015-0	01	1	9112-	●	●
19	NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC) M12	8-94139-015-0	01	1	9112-	●	●
20	NUT; HOSE TO PUMP 4JG2 ENG(RJC) M12	9-99111-412-0	01	1	9112-	●	●
22	WASHER; LK,OIL PUMP,P/S 4JG2 ENG(RJC) ID=10.2	9-09150-510-0	01	1	9112-	●	●
26	BRACKET; P/S PUMP,RR 4JG2 ENG(RJC)	8-97062-791-3	01	1	9112-9507	●	●
26	BRACKET; P/S PUMP,RR 4JG2 ENG(RJC)	8-97134-149-0	01	1	9508-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9112-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (B) M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (D) M10X60 W/LK WASHER	0-50041-060-0	01	1	9112-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (E) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9202	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (E) M6X16 W/WASHER	8-97075-268-0	01	1	9203-9207	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (E) M6X16 FLANGE	0-28080-616-0	01	1	9208-9507	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) (E) M8X35 FLANGE	0-28080-835-0	01	1	9508-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) (A)	8-97042-266-1	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-94434-864-0	01	1	9308-9405	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-97112-740-0	01	1	9406-	●	●
32	PULLEY; IDLER,P/S 6VD1 DOHC ENG(RLV)	8-94386-088-0	01	1	9112-9208	●	●
32	PULLEY; IDLER,P/S 6VD1 DOHC ENG(RLV)	8-97068-765-0	01	1	9209-9307	●	●
32	PULLEY; IDLER,P/S 6VD1 DOHC ENG(RLV)	8-97068-764-0	01	1	9308-	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC) M10X70	9-02051-070-0	01	1	9112-9304	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC) M10X70	0-20801-070-0	01	1	9305-	●	●
36	BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (B)	8-97066-758-1	01	1	9112-	●	●
36	BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (A)	8-94478-880-1	01	1	9209-	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) ID=6.4 OD=18	9-09164-706-0	01	1	9208-9507	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9508-	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) ID=10 OD=18 T=2	9-09651-116-0	01	1	9211-9507	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) ID=8.4	9-09164-508-0	01	1	9508-	●	●
42	NUT; ADJ PLATE 4JG2 ENG(RJC) M8 FLANGE	0-91150-208-0	01	1	9112-	●	●
44	STUD; IDLER PULLEY 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) M10X25 L=40	9-04411-025-0	01	1	9308-	●	●
45	BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94449-652-0	01	1	9112-	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94450-395-0	01	1	9112-9210	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-	●	●
47	BELT; P/S PUMP 6VD1 DOHC ENG(RLV)	8-94382-105-0	01	1	9112-	●	●
48	COVER; IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94476-310-0	02	1	9112-9405	●	●
48	COVER; IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRONT SIDE	8-97092-819-0	01	1	9406-	●	●
48	COVER; IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) REAR SIDE	9-13669-603-0	01	1	9406-	●	●
49	RING; SNAP,IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) OD=50.5	9-09180-147-0	01	1	9112-9405	●	●
49	RING; SNAP,IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94175-036-0	01	1	9406-	●	●
50	BEARING; IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94251-052-0	01	1	9112-	●	●
51	NUT; IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94372-495-0	01	1	9112-9405	●	●
51	NUT; IDLER 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97092-813-0	01	1	9406-	●	●
58	SLIDER; BELT ADJ,P/S OIL PUMP 4JG2 ENG(RJC)	8-94479-122-0	01	1	9112-	●	●

7 7 7 1 11 11 25 7 17 47 11 32 31

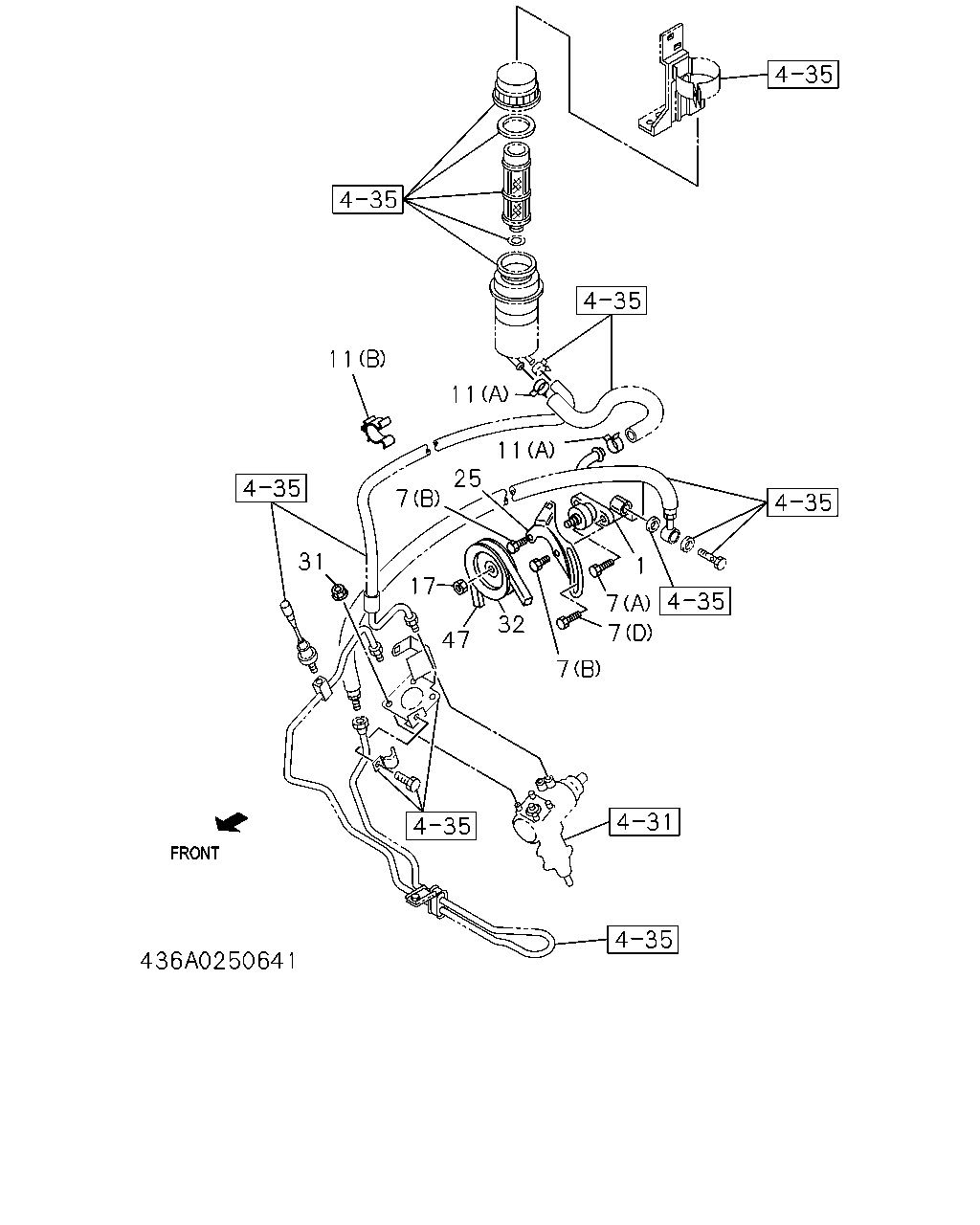

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-94365-012-4	01	1	9112-9307	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-94375-242-2	01	1	9308-9605	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97061-711-2	01	1	9112-9211	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97084-953-1	01	1	9212-9405	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97110-269-0	01	1	9406-9505	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-1	01	1	9506-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97070-004-2	01	1	9112-9307		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97094-200-1	01	1	9308-9605		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97094-200-1	01	1	9606-	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) (C) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 DOHC ENG(RLV) (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 DOHC ENG(RLV) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 DOHC ENG(RLV) (D) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	CLIP; FLEX HOSE 6VD1 DOHC ENG(RLV) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC) M10 FLANGE	0-91150-210-0	01	1	9112-	●	●
17	NUT; POWER STRG PUMP 6VD1 DOHC ENG(RLV) M12	8-94139-015-0	01	1	9112-	●	●
25	BRACKET; P/S PUMP 6VD1 DOHC ENG(RLV)	8-94374-508-1	01	1	9112-	●	●
31	NUT; FLEX HOSE 6VD1 DOHC ENG(RLV) M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) (A)	8-97042-266-1	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-94434-864-0	01	1	9308-9405	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B)	8-97112-740-0	01	1	9406-	●	●
32	PULLEY; IDLER,P/S 6VD1 DOHC ENG(RLV)	8-94386-088-0	01	1	9112-9208	●	●
32	PULLEY; IDLER,P/S 6VD1 DOHC ENG(RLV)	8-97068-765-0	01	1	9209-9307	●	●
32	PULLEY; IDLER,P/S 6VD1 DOHC ENG(RLV)	8-97068-764-0	01	1	9308-	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-94450-395-0	01	1	9112-9210	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-	●	●
47	BELT; P/S PUMP 6VD1 DOHC ENG(RLV)	8-94382-105-0	01	1	9112-	●	●
