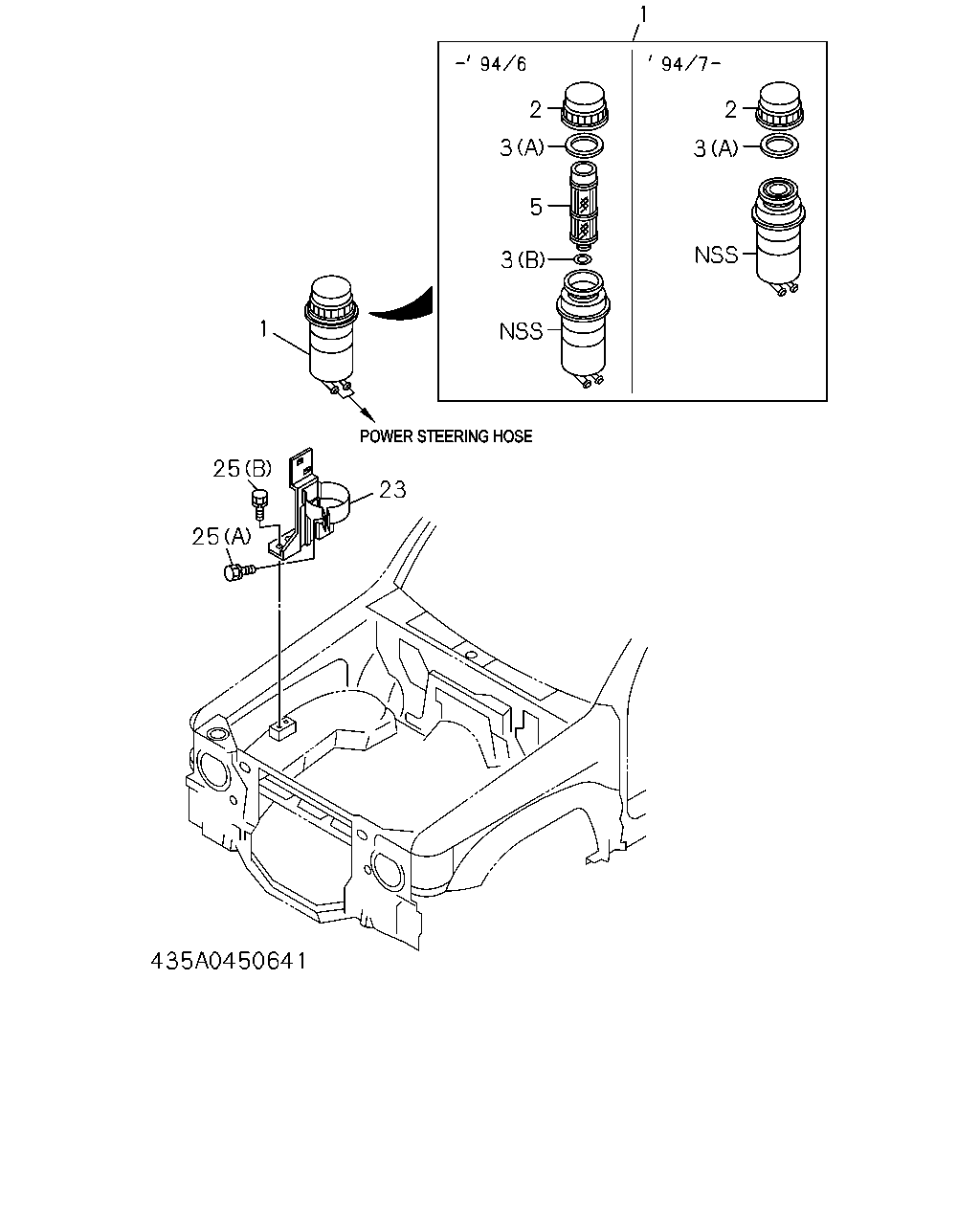

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#166925) — 120 parça

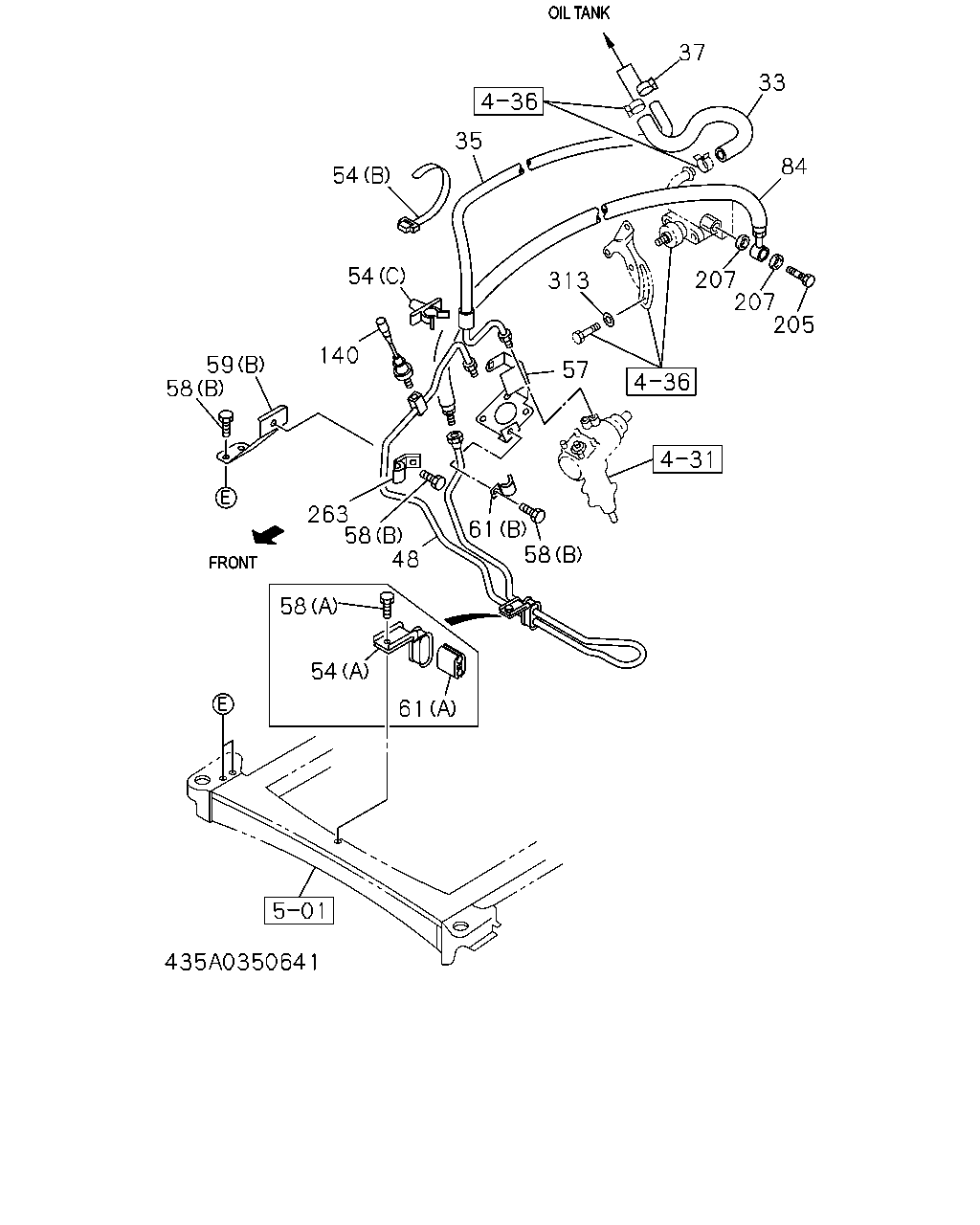

1 2 3 2 3 5 3 26 25 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9112-	●	●
23	BRACKET; OIL TANK,P/S 6VD1 DOHC ENG(RLV)	8-94381-052-1	01	1	9112-	●	●
25	BOLT; OIL TANK BRKT (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
25	BOLT; OIL TANK BRKT 6VD1 DOHC ENG(RLV) (B) M6X16 FLANGE	0-28480-616-0	02	1	9112-	●	●
26	NUT; OIL TANK TO BRKT 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	02	1	9112-	●	●

61 54 58 58 59 263 140 58 61 48 58 54 54 35 313 57 207 205 207 84 33 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC)	8-97037-467-0	01	1	9112-	●	●
33	HOSE; RUBBER,POWER STRG 6VD1 DOHC ENG(RLV)	8-97023-665-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 6VD1 DOHC ENG(RLV)	8-97023-716-2	01	1	9112-9605	●	●
35	HOSE; RETURN,P/S TANK 6VD1 DOHC ENG(RLV)	8-97133-567-0	01	1	9606-	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC) ID=16	8-94238-568-0	02	1	9112-	●	●
37	CLIP; HOSE,P/S 6VD1 DOHC ENG(RLV) ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	CLIP; HOSE,P/S 6VD1 DOHC ENG(RLV) ID=17.1	8-94122-679-0	01	1	9609-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97023-036-1	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97076-455-0	01	1	9204-9605	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97111-114-2	01	1	9606-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 DOHC ENG(RLV)	8-94374-924-2	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 DOHC ENG(RLV)	8-97076-453-0	01	1	9204-9605	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 DOHC ENG(RLV)	8-97111-113-0	01	1	9606-	●	●
54	CLIP; OIL PIPE (B) L=170	5-09707-054-0	01	1	9112-	●	●
54	CLIP; OIL PIPE (A)	8-97026-703-0	01	1	9112-	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC) (D)	8-94222-795-1	02	1	9112-	●	●
54	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (C)	8-94147-869-0	01	1	9112-	●	●
57	BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-94454-664-0	01	1	9112-9211	●	●
57	BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-97087-533-1	01	1	9212-	●	●
57	BRACKET; POWER STRG PIPE 6VD1 DOHC ENG(RLV)	8-94387-726-2	01	1	9112-9605	●	●
57	BRACKET; POWER STRG PIPE 6VD1 DOHC ENG(RLV)	8-97133-469-0	01	1	9606-	●	●
58	BOLT; CLIP (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) (B) M6X16	0-28410-616-0	08	1	9112-9204	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) (B) M6X16 FLANGE	0-28480-616-0	08	1	9205-9510	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) (B) M6X16 FLANGE	0-28480-616-0	06	1	9511-	●	●
58	BOLT; CLIP 6VD1 DOHC ENG(RLV) (B) M6X16	0-28410-616-0	03	1	9112-9204	●	●
58	BOLT; CLIP 6VD1 DOHC ENG(RLV) (B) M6X16 FLANGE	0-28480-616-0	04	1	9205-9510	●	●
58	BOLT; CLIP 6VD1 DOHC ENG(RLV) (B) M6X16 FLANGE	0-28480-616-0	03	1	9511-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-94442-104-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97075-969-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97120-705-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC) (A)	8-94442-105-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC) (A)	8-97075-968-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC) (A)	8-97120-706-0	01	1	9502-	●	●
61	CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	9112-	●	●
61	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (B)	8-94363-358-0	01	1	9112-	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97038-205-0	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-979-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 6VD1 DOHC ENG(RLV)	8-97020-589-2	01	1	9112-9509	●	●
84	HOSE; FLEX,P/S 6VD1 DOHC ENG(RLV)	8-97137-019-1	01	1	9510-9608	●	●
84	HOSE; FLEX,P/S 6VD1 DOHC ENG(RLV)	8-97165-975-0	01	1	9609-	●	●
140	SWITCH; PRESSURE,POWER STEERING 6VD1 DOHC ENG(RLV)	8-94384-434-1	01	1	9112-9607	●	●
140	SWITCH; PRESSURE,POWER STEERING 6VD1 DOHC ENG(RLV)	8-97162-814-0	01	1	9608-	●	●
205	BOLT; EYE,FLEX HOSE,P/S 6VD1 DOHC ENG(RLV) M16X28	8-94383-489-0	01	1	9112-	●	●
207	GASKET; FLEX HOSE,P/S PUMP 6VD1 DOHC ENG(RLV) ID=16.2 OD=24	9-09571-416-0	02	1	9112-	●	●
263	BRACKET; P/S PIPE 6VD1 DOHC ENG(RLV)	8-97035-367-0	01	1	9112-9203	●	●
263	BRACKET; P/S PIPE 6VD1 DOHC ENG(RLV)	8-97076-470-0	01	1	9204-	●	●
313	WASHER; PL,FLEX HOSE,P/S 6VD1 DOHC ENG(RLV) ID=10.5 OD=26	9-09164-710-0	01	1	9112-	●	●

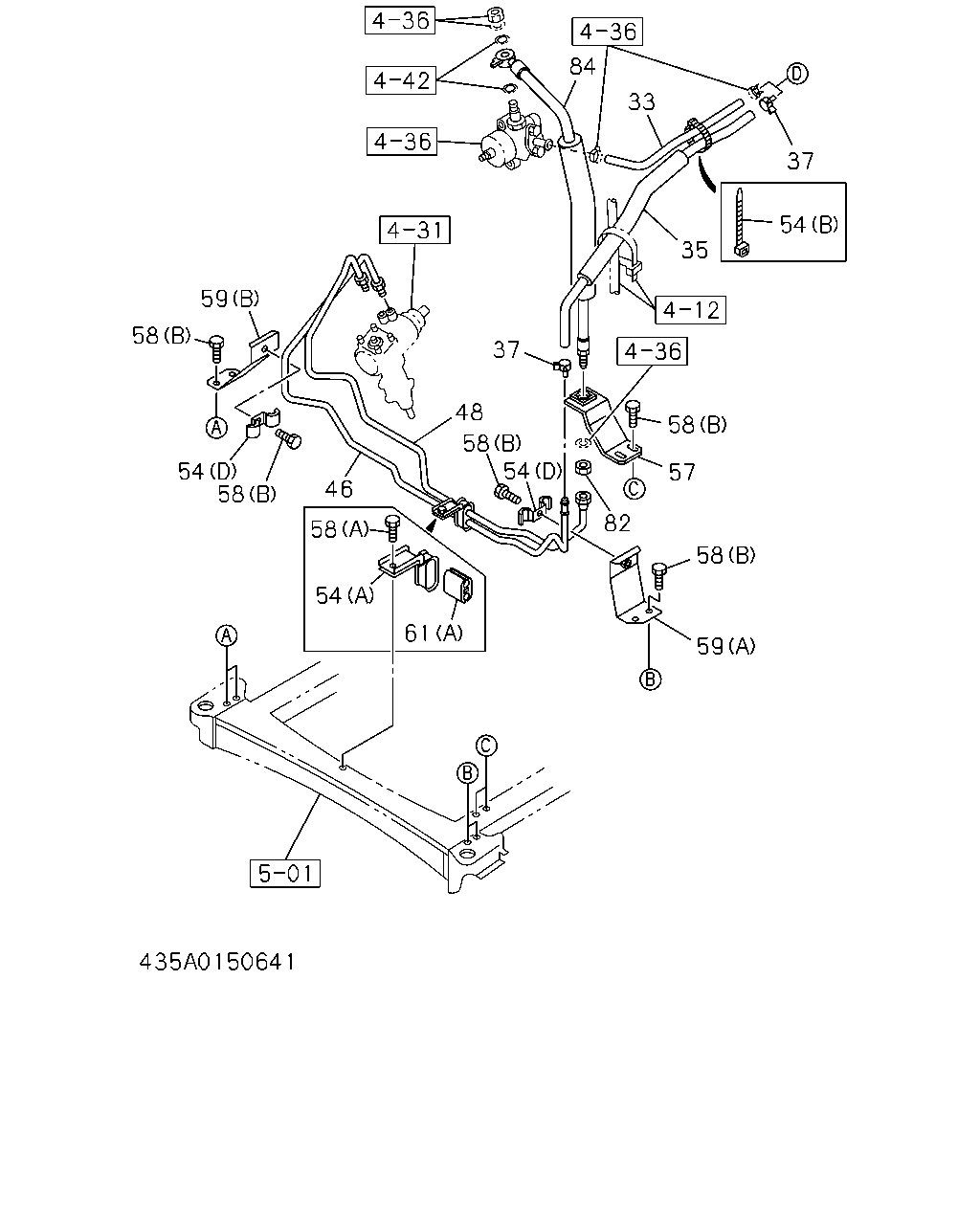

1 2 3 2 3 5 3 1 23 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9112-	●	●
23	BRACKET; OIL TANK,P/S 6VD1 DOHC ENG(RLV)	8-94381-052-1	01	1	9112-	●	●
25	BOLT; OIL TANK BRKT (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
25	BOLT; OIL TANK BRKT 6VD1 DOHC ENG(RLV) (B) M6X16 FLANGE	0-28480-616-0	02	1	9112-	●	●

59 57 58 35 37 33 84 37 48 58 82 61 54 58 58 46 54 59 58 54 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC)	8-97037-467-0	01	1	9112-	●	●
33	HOSE; RUBBER,POWER STRG 6VD1 DOHC ENG(RLV)	8-97023-665-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 6VD1 DOHC ENG(RLV)	8-97023-716-2	01	1	9112-9605	●	●
35	HOSE; RETURN,P/S TANK 6VD1 DOHC ENG(RLV)	8-97133-567-0	01	1	9606-	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC) ID=16	8-94238-568-0	02	1	9112-	●	●
37	CLIP; HOSE,P/S 6VD1 DOHC ENG(RLV) ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	CLIP; HOSE,P/S 6VD1 DOHC ENG(RLV) ID=17.1	8-94122-679-0	01	1	9609-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97023-037-1	01	1	9112-9203	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97076-456-0	01	1	9204-9605	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97111-119-0	01	1	9606-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97023-036-1	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97076-455-0	01	1	9204-9605	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97111-114-2	01	1	9606-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 DOHC ENG(RLV)	8-94374-924-2	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 DOHC ENG(RLV)	8-97076-453-0	01	1	9204-9605	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 DOHC ENG(RLV)	8-97111-113-0	01	1	9606-	●	●
54	CLIP; OIL PIPE (B) L=170	5-09707-054-0	01	1	9112-	●	●
54	CLIP; OIL PIPE (A)	8-97026-703-0	01	1	9112-	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC) (D)	8-94222-795-1	02	1	9112-	●	●
54	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (C)	8-94147-869-0	01	1	9112-	●	●
57	BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-94454-664-0	01	1	9112-9211	●	●
57	BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-97087-533-1	01	1	9212-	●	●
57	BRACKET; POWER STRG PIPE 6VD1 DOHC ENG(RLV)	8-94387-726-2	01	1	9112-9605	●	●
57	BRACKET; POWER STRG PIPE 6VD1 DOHC ENG(RLV)	8-97133-469-0	01	1	9606-	●	●
58	BOLT; CLIP (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) (B) M6X16	0-28410-616-0	08	1	9112-9204	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) (B) M6X16 FLANGE	0-28480-616-0	08	1	9205-9510	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) (B) M6X16 FLANGE	0-28480-616-0	06	1	9511-	●	●
58	BOLT; CLIP 6VD1 DOHC ENG(RLV) (B) M6X16	0-28410-616-0	03	1	9112-9204	●	●
58	BOLT; CLIP 6VD1 DOHC ENG(RLV) (B) M6X16 FLANGE	0-28480-616-0	04	1	9205-9510	●	●
58	BOLT; CLIP 6VD1 DOHC ENG(RLV) (B) M6X16 FLANGE	0-28480-616-0	03	1	9511-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-94442-104-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97075-969-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97120-705-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC) (A)	8-94442-105-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC) (A)	8-97075-968-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC) (A)	8-97120-706-0	01	1	9502-	●	●
61	CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	9112-	●	●
61	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (B)	8-94363-358-0	01	1	9112-	●	●
82	NUT; FLEX HOSE,P/S 4JG2 ENG(RJC) M16	9-99111-416-0	01	1	9112-	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97038-205-0	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-979-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 6VD1 DOHC ENG(RLV)	8-97020-589-2	01	1	9112-9509	●	●
84	HOSE; FLEX,P/S 6VD1 DOHC ENG(RLV)	8-97137-019-1	01	1	9510-9608	●	●
84	HOSE; FLEX,P/S 6VD1 DOHC ENG(RLV)	8-97165-975-0	01	1	9609-	●	●
