Sayfa 4-31 - Isuzu EPC

4-31 — STEERING COLUMN AND SHAFT (#166923) — 313 parça

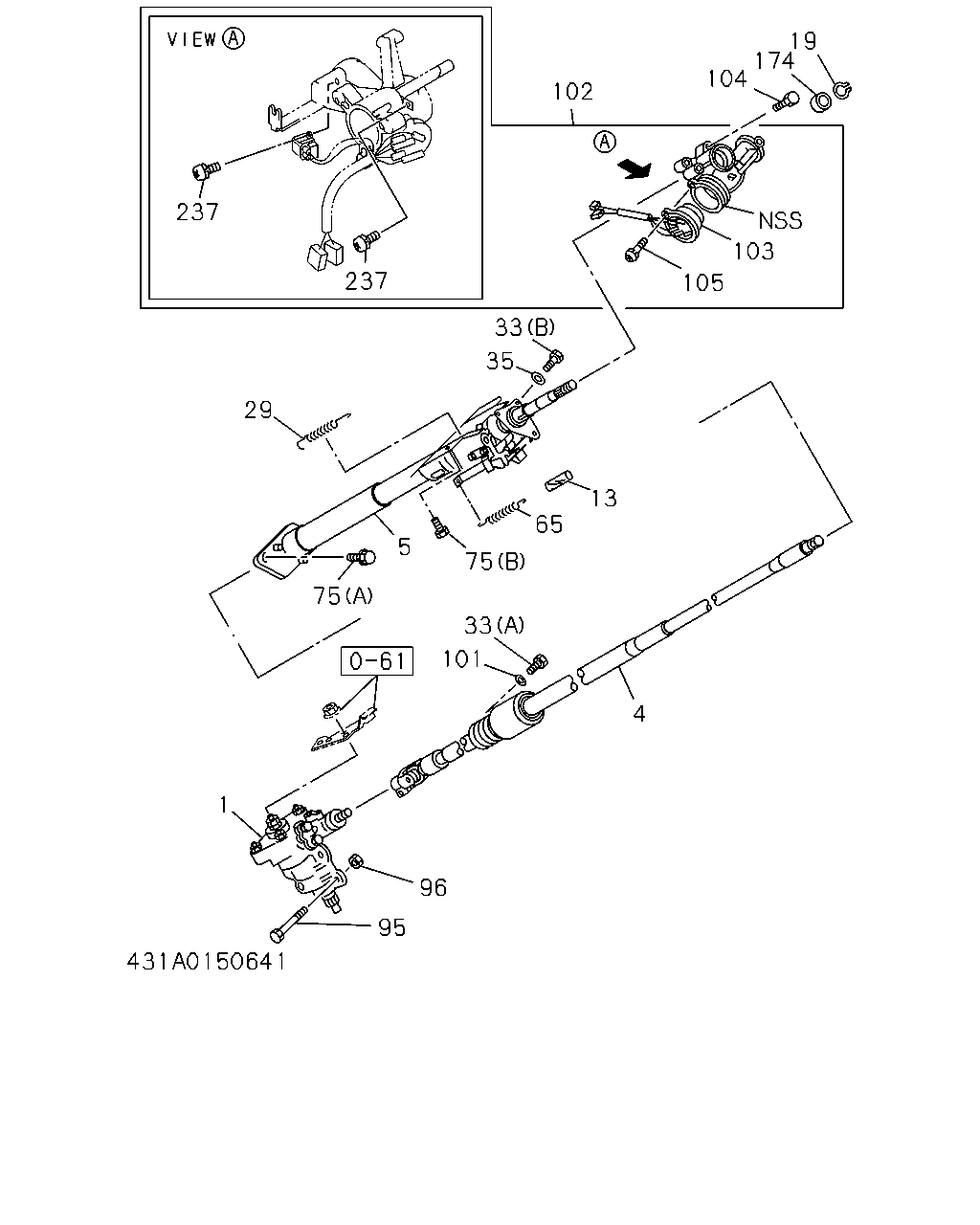

237 237 102 104 174 19 103 105 33 35 13 65 75 5 29 75 33 101 4 96 95 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE BASIC OR LS(RBA),GRADE RS(RBF),GRADE IRMSHER(RBQ)	8-94375-204-3	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE RS(RBF)	8-94375-204-4	01	1	9209-9403	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9605	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97101-357-1	01	1	9404-9605		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9606-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-0	01	1	9112-9208		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97070-003-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-1	01	1	9209-9403		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9404-9605		●
4	SHAFT; STRG	8-97069-493-0	01	1	9201-9312	●
4	SHAFT; STRG GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) TILT STEERING<N33>	8-97069-493-0	01	1	9201-9312		●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-415-0	01	1	9511-9605	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9606-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-0	01	1	9112-9112	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-1	01	1	9401-9504	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9510	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-177-0	01	1	9511-9605	●	●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9606-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9605	●	●
4	SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9606-	●	●
4	SHAFT; STRG GRADE LOTUS/LOTUS SE(RBL) TILT STEERING<N33>	8-97077-930-0	01	1	9201-9312		●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-412-0	01	1	9511-9605	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9606-9708	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97203-773-0	01	1	9709-	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97069-496-0	01	1	9112-9312	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97088-690-1	01	1	9401-9504	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97112-184-0	01	1	9505-9510	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-184-0	01	1	9511-9605	●	●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9606-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9605	●	●
5	COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9606-	●	●
13	COVER; SPR TILT STEERING<N33>	8-94477-983-0	01	1	9112-9312	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97069-501-1	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33>	8-94477-979-0	01	1	9112-	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97069-500-0	01	1	9112-9112	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97077-926-0	01	1	9201-9504	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97130-082-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97135-995-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ) LAMP GLOVE COMPARTMENT<U27>	8-97132-110-0	01	1	9606-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-508-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97130-081-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-993-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) LAMP GLOVE COMPARTMENT<U27>	8-97132-109-0	01	1	9606-	●	●
103	SWITCH; IGNITION	8-97017-855-0	01	1	9112-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION A/T AISIN(RMD),A/T THM(RMQ)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION	8-97123-780-0	01	1	9505-9605	●	●
103	SWITCH; IGNITION LAMP GLOVE COMPARTMENT<U27>	8-97123-780-0	01	1	9606-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9411	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW (A) M4X12	9-03465-412-0	01	1	9505-9605	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (A) M4X12	9-03465-412-0	01	1	9606-	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (B)	8-97145-456-0	01	1	9606-	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	03	1	9112-9504	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9605	●	●
237	SCREW; DOOR WARNING SW LAMP GLOVE COMPARTMENT<U27> M3X8 W/LK WASHER	9-03910-308-0	01	1	9606-	●	●

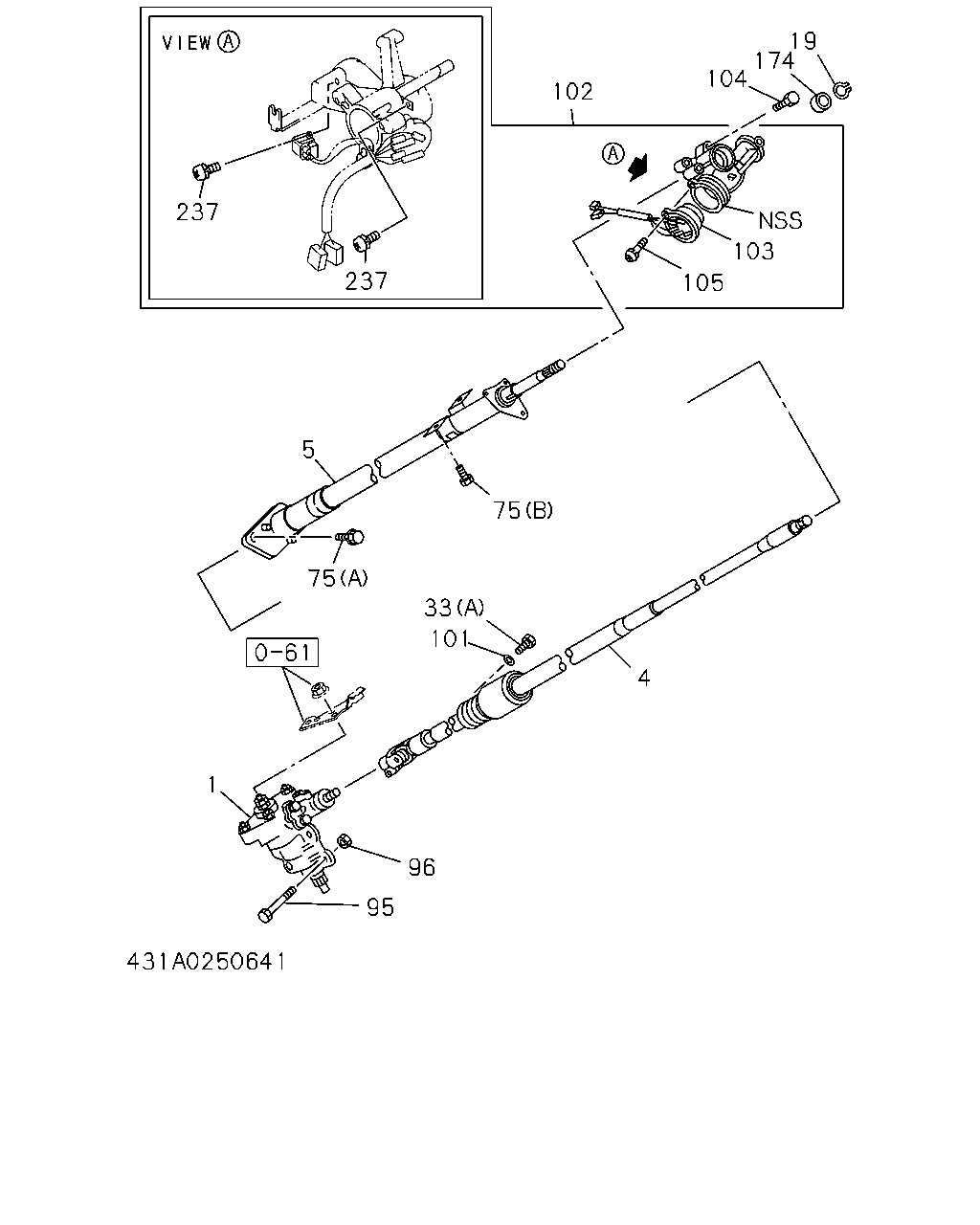

102 104 174 19 103 105 237 237 75 4 33 101 75 5 96 95 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE BASIC OR LS(RBA),GRADE RS(RBF),GRADE IRMSHER(RBQ)	8-94375-204-3	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE RS(RBF)	8-94375-204-4	01	1	9209-9403	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9605	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97101-357-1	01	1	9404-9605		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9606-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-0	01	1	9112-9208		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97070-003-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-1	01	1	9209-9403		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9404-9605		●
4	SHAFT; STRG	8-97069-493-0	01	1	9201-9312	●
4	SHAFT; STRG GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) TILT STEERING<N33>	8-97069-493-0	01	1	9201-9312		●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-415-0	01	1	9511-9605	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9606-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-0	01	1	9112-9112	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-1	01	1	9401-9504	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9510	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-177-0	01	1	9511-9605	●	●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9606-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9605	●	●
4	SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9606-	●	●
4	SHAFT; STRG GRADE LOTUS/LOTUS SE(RBL) TILT STEERING<N33>	8-97077-930-0	01	1	9201-9312		●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-412-0	01	1	9511-9605	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9606-9708	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97203-773-0	01	1	9709-	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97069-496-0	01	1	9112-9312	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97088-690-1	01	1	9401-9504	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97112-184-0	01	1	9505-9510	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-184-0	01	1	9511-9605	●	●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9606-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9605	●	●
5	COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9606-	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97130-082-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97135-995-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ) LAMP GLOVE COMPARTMENT<U27>	8-97132-110-0	01	1	9606-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-508-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97130-081-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-993-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) LAMP GLOVE COMPARTMENT<U27>	8-97132-109-0	01	1	9606-	●	●
103	SWITCH; IGNITION	8-97017-855-0	01	1	9112-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION A/T AISIN(RMD),A/T THM(RMQ)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION	8-97123-780-0	01	1	9505-9605	●	●
103	SWITCH; IGNITION LAMP GLOVE COMPARTMENT<U27>	8-97123-780-0	01	1	9606-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9411	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW (A) M4X12	9-03465-412-0	01	1	9505-9605	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (A) M4X12	9-03465-412-0	01	1	9606-	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (B)	8-97145-456-0	01	1	9606-	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	03	1	9112-9504	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9605	●	●
237	SCREW; DOOR WARNING SW LAMP GLOVE COMPARTMENT<U27> M3X8 W/LK WASHER	9-03910-308-0	01	1	9606-	●	●

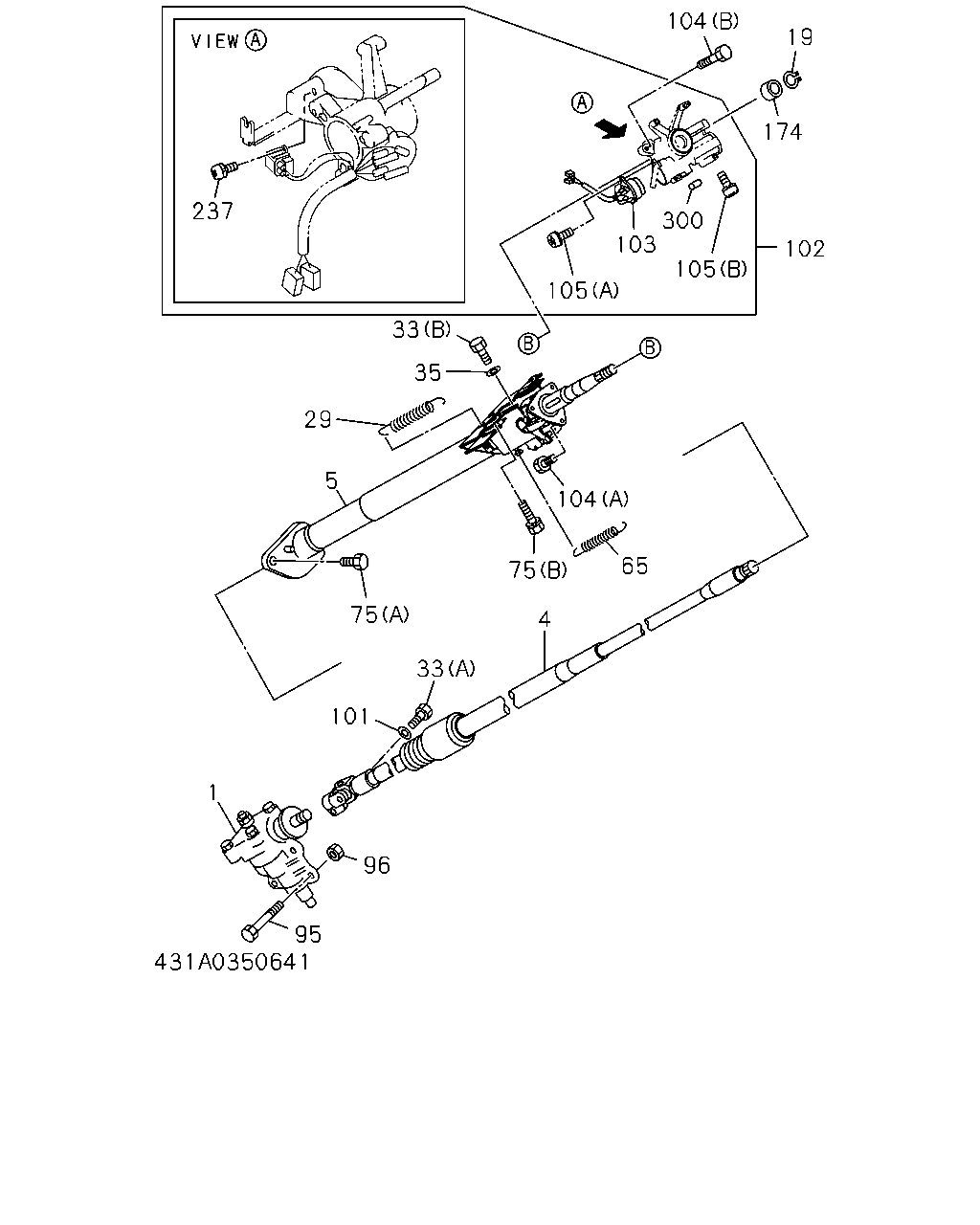

237 104 19 174 102 300 105 103 105 33 35 104 65 75 29 5 75 33 4 101 96 95 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE BASIC OR LS(RBA),GRADE RS(RBF),GRADE IRMSHER(RBQ)	8-94375-204-3	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE RS(RBF)	8-94375-204-4	01	1	9209-9403	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9605	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97101-357-1	01	1	9404-9605		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9606-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-0	01	1	9112-9208		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97070-003-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-1	01	1	9209-9403		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9404-9605		●
4	SHAFT; STRG	8-97069-493-0	01	1	9201-9312	●
4	SHAFT; STRG GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) TILT STEERING<N33>	8-97069-493-0	01	1	9201-9312		●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-415-0	01	1	9511-9605	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9606-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-0	01	1	9112-9112	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-1	01	1	9401-9504	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9510	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-177-0	01	1	9511-9605	●	●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9606-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9605	●	●
4	SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9606-	●	●
4	SHAFT; STRG GRADE LOTUS/LOTUS SE(RBL) TILT STEERING<N33>	8-97077-930-0	01	1	9201-9312		●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-412-0	01	1	9511-9605	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9606-9708	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97203-773-0	01	1	9709-	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97069-496-0	01	1	9112-9312	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97088-690-1	01	1	9401-9504	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97112-184-0	01	1	9505-9510	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-184-0	01	1	9511-9605	●	●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9606-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9605	●	●
5	COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9606-	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97069-501-1	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33>	8-94477-979-0	01	1	9112-	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97069-500-0	01	1	9112-9112	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97077-926-0	01	1	9201-9504	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97130-082-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97135-995-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ) LAMP GLOVE COMPARTMENT<U27>	8-97132-110-0	01	1	9606-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-508-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97130-081-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-993-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) LAMP GLOVE COMPARTMENT<U27>	8-97132-109-0	01	1	9606-	●	●
103	SWITCH; IGNITION	8-97017-855-0	01	1	9112-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION A/T AISIN(RMD),A/T THM(RMQ)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION	8-97123-780-0	01	1	9505-9605	●	●
103	SWITCH; IGNITION LAMP GLOVE COMPARTMENT<U27>	8-97123-780-0	01	1	9606-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9411	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW (A) M4X12	9-03465-412-0	01	1	9505-9605	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (A) M4X12	9-03465-412-0	01	1	9606-	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (B)	8-97145-456-0	01	1	9606-	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	03	1	9112-9504	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9605	●	●
237	SCREW; DOOR WARNING SW LAMP GLOVE COMPARTMENT<U27> M3X8 W/LK WASHER	9-03910-308-0	01	1	9606-	●	●
300	BULB; STRG LOCK LAMP GLOVE COMPARTMENT<U27>	8-97145-455-0	01	1	9606-	●	●

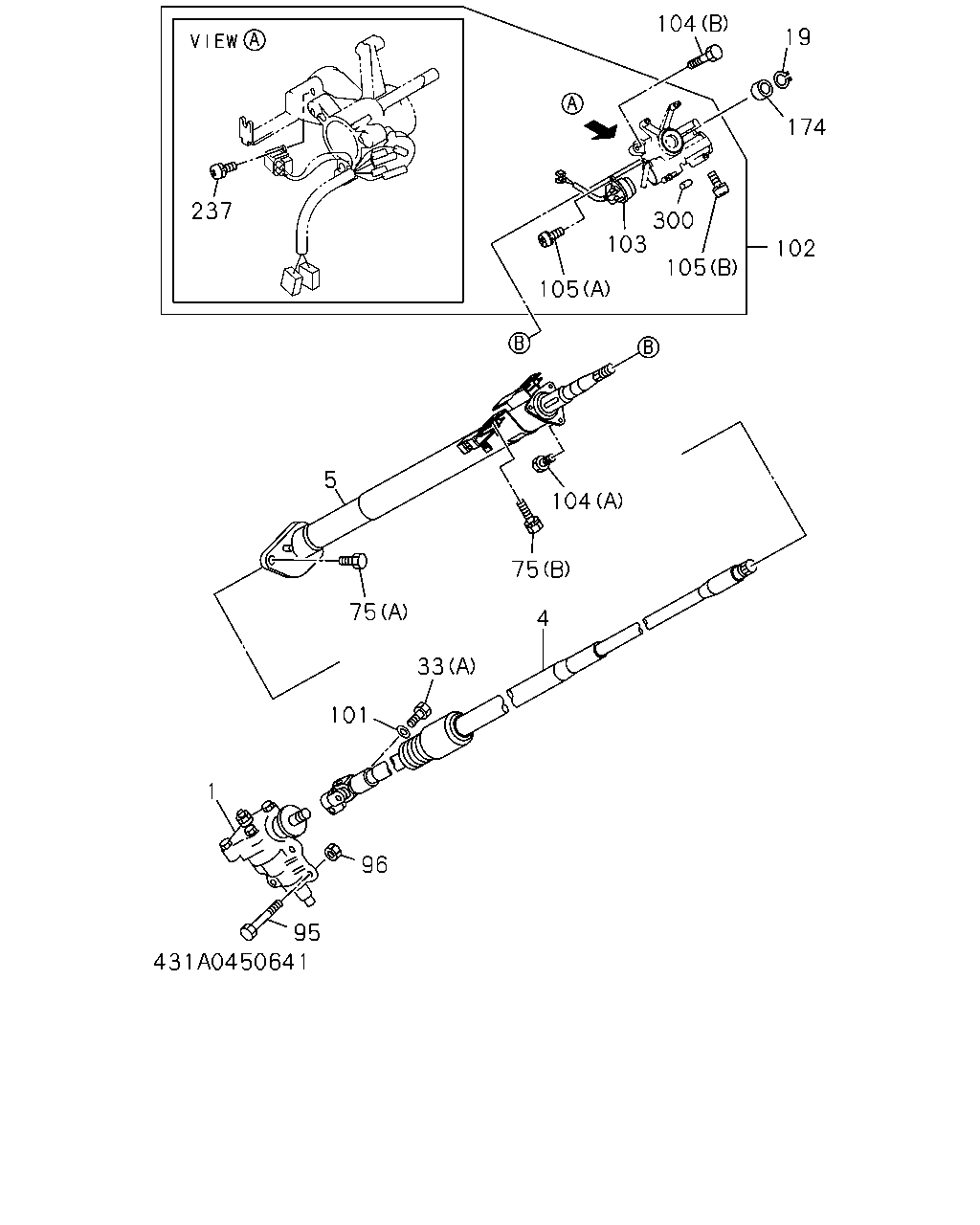

237 104 19 174 102 105 300 103 105 104 5 75 75 33 4 101 96 95 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE BASIC OR LS(RBA),GRADE RS(RBF),GRADE IRMSHER(RBQ)	8-94375-204-3	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE RS(RBF)	8-94375-204-4	01	1	9209-9403	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-357-1	01	1	9404-9605	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV)	8-97101-357-1	01	1	9404-9605		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-987-0	01	1	9606-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-0	01	1	9112-9208		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97070-003-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL)	8-97070-003-1	01	1	9209-9403		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-356-1	01	1	9404-9605		●
4	SHAFT; STRG	8-97069-493-0	01	1	9201-9312	●
4	SHAFT; STRG GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) TILT STEERING<N33>	8-97069-493-0	01	1	9201-9312		●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-415-0	01	1	9511-9605	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97134-415-0	01	1	9606-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-0	01	1	9112-9112	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97069-493-1	01	1	9401-9504	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-97112-177-0	01	1	9505-9510	●	●
4	SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-177-0	01	1	9511-9605	●	●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-417-0	01	1	9606-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97069-492-1	01	1	9112-9504	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-179-0	01	1	9505-9605	●	●
4	SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-179-0	01	1	9606-	●	●
4	SHAFT; STRG GRADE LOTUS/LOTUS SE(RBL) TILT STEERING<N33>	8-97077-930-0	01	1	9201-9312		●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> TILT STEERING<N33>	8-97134-412-0	01	1	9511-9605	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9606-9708	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97203-773-0	01	1	9709-	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97069-496-0	01	1	9112-9312	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97088-690-1	01	1	9401-9504	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97112-184-0	01	1	9505-9510	●	●
5	COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>	8-97112-184-0	01	1	9511-9605	●	●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9606-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97069-498-0	01	1	9112-9312	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9605	●	●
5	COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9606-	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97130-082-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ)	8-97135-995-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG A/T AISIN(RMD),A/T THM(RMQ) LAMP GLOVE COMPARTMENT<U27>	8-97132-110-0	01	1	9606-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-508-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97130-081-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-97135-993-0	01	1	9510-9605	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) LAMP GLOVE COMPARTMENT<U27>	8-97132-109-0	01	1	9606-	●	●
103	SWITCH; IGNITION	8-97017-855-0	01	1	9112-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION A/T AISIN(RMD),A/T THM(RMQ)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION	8-97123-780-0	01	1	9505-9605	●	●
103	SWITCH; IGNITION LAMP GLOVE COMPARTMENT<U27>	8-97123-780-0	01	1	9606-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9411	●	●
104	BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW (A) M4X12	9-03465-412-0	01	1	9505-9605	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (A) M4X12	9-03465-412-0	01	1	9606-	●	●
105	SCREW; IGN SW LAMP GLOVE COMPARTMENT<U27> (B)	8-97145-456-0	01	1	9606-	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	03	1	9112-9504	●	●
237	SCREW; DOOR WARNING SW M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9605	●	●
237	SCREW; DOOR WARNING SW LAMP GLOVE COMPARTMENT<U27> M3X8 W/LK WASHER	9-03910-308-0	01	1	9606-	●	●
300	BULB; STRG LOCK LAMP GLOVE COMPARTMENT<U27>	8-97145-455-0	01	1	9606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
