4-30 — STEERING WHEEL AND COWL (#166922) — 228 parça

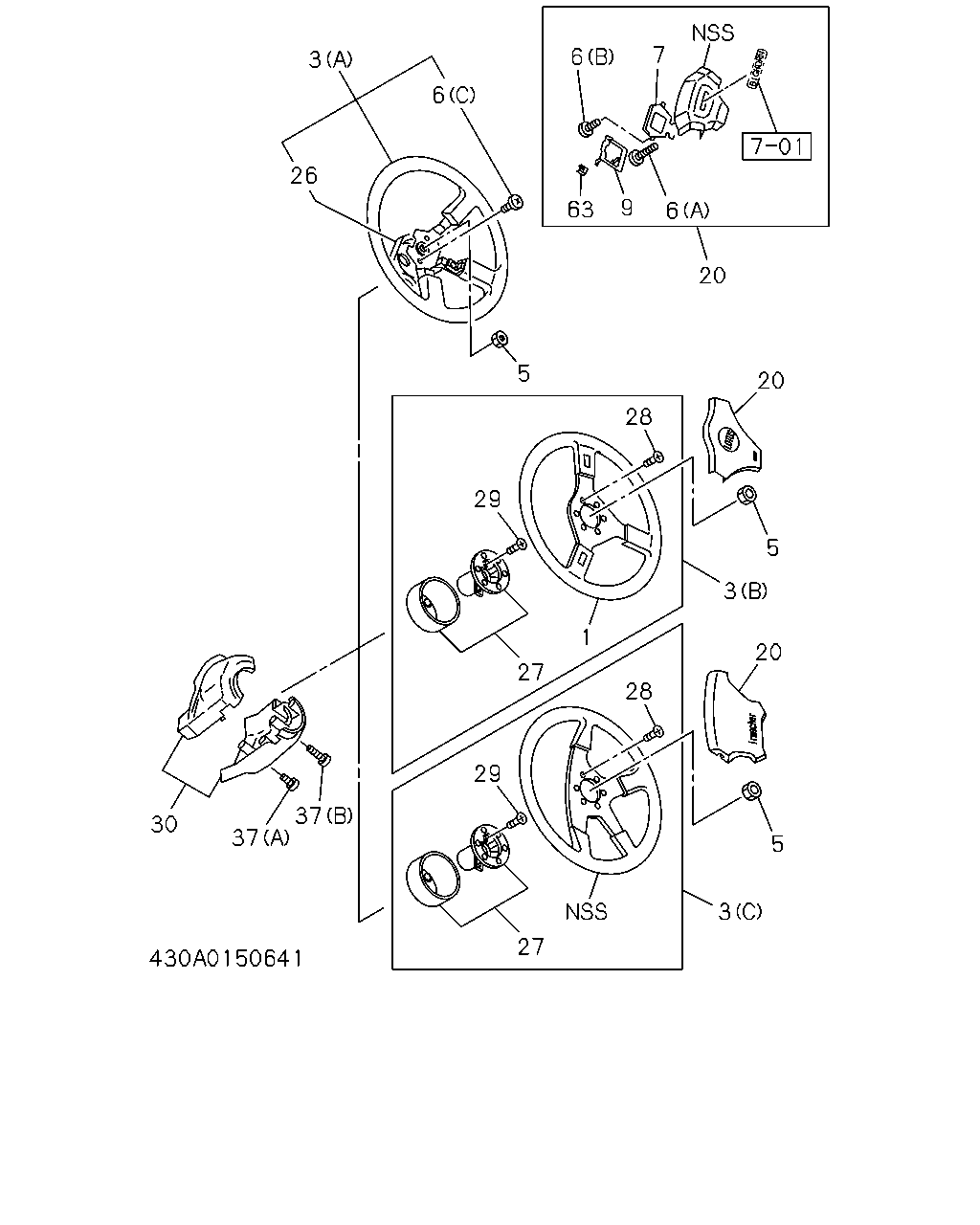

3 6 5 26 6 7 9 63 6 20 20 5 28 3 20 5 3 27 29 27 29 1 28 37 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-94412-176-1	01	1	9511-9605	●	●
1	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-94329-533-1	01	1	9112-9605		●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) (A) DARK BROWN	8-97004-133-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) (A) DARK BROWN	8-97009-176-0	01	1	9201-9307	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) (A) DARK GRAY	8-97003-122-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) (A) DARK GRAY	8-97009-175-0	01	1	9201-9504	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) (D) BLACK	8-97151-440-3	01	1	9505-9510	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97151-440-3	01	1	9511-9511	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97156-020-0	01	1	9512-9605	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3) (E) BLACK	8-97155-689-1	01	1	9511-	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> URETHANE STEERING WHEEL(NK4) (E) BLACK	8-97155-250-0	01	1	9511-	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) (A) DARK GRAY	8-97009-178-0	01	1	9407-9504	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) (D) BLACK	8-97151-441-3	01	1	9510-9510	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97155-688-0	01	1	9511-9605	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) (C)	8-97014-991-0	01	1	9112-9504	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) (C)	8-97111-146-1	01	1	9505-9605	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) (B)	8-97014-995-0	01	1	9112-9504		●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) (B)	8-97111-147-1	01	1	9505-9605		●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-0	01	1	9112-	●	●
6	SCREW; HORN SPR CONTACT URETHANE STEERING WHEEL(NK4) (A)	8-97036-514-0	01	1	9112-9406	●	●
6	SCREW; HORN SPR CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) (A)	8-97036-514-0	01	1	9407-9504	●	●
6	SCREW; HORN SPR CONTACT URETHANE STEERING WHEEL(NK4) (B)	8-97036-515-0	02	1	9112-9406	●	●
6	SCREW; HORN SPR CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) (B)	8-97036-515-0	02	1	9407-9504	●	●
6	SCREW; HORN SPR CONTACT URETHANE STEERING WHEEL(NK4) (C)	8-97061-474-0	02	1	9112-9406	●	●
6	SCREW; HORN SPR CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) (C)	8-97061-474-0	02	1	9407-9504	●	●
6	SCREW; HORN SPR CONTACT AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-618-0	03	1	9511-	●	●
7	SPRING; HORN CONTACT URETHANE STEERING WHEEL(NK4)	8-97036-511-1	01	1	9112-9406	●	●
7	SPRING; HORN CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97036-511-1	01	1	9407-9504	●	●
9	PLATE; HORN CONTACT URETHANE STEERING WHEEL(NK4)	8-97036-510-0	01	1	9112-9406	●	●
9	PLATE; HORN CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97036-510-0	01	1	9407-9504	●	●
9	PLATE; HORN CONTACT AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-394-0	01	1	9511-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) DARK BROWN	8-97004-134-0	01	1	9112-9307	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-553-0	01	1	9112-9406	●	●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-553-0	01	1	9407-9504	●	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97151-448-2	01	1	9505-9505	●	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97151-448-2	01	1	9506-9509	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) EXC. HONDA BRAND PACKAGE<7EP> BLACK	8-97151-448-2	01	1	9506-9509		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97151-448-2	01	1	9510-9510	●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. HONDA BRAND PACKAGE<7EP> BLACK	8-97151-448-2	01	1	9510-9510		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>,HONDA BRAND PACKAGE<7EP> BLACK	8-97151-448-2	01	1	9511-9605	●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-94412-177-0	01	1	9112-9605	●	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) HONDA BRAND PACKAGE<7EP> BLACK	8-97154-093-1	01	1	9506-9510		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) HONDA BRAND PACKAGE<7EP> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97154-093-1	01	1	9511-9605		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-94385-417-2	01	1	9112-9605		●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) DARK BROWN	8-97006-500-0	01	1	9112-9307	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-502-0	01	1	9112-9406	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-502-0	01	1	9407-9504	●	●
26	COVER; STRG WHEEL,LWR URETHANE STEERING WHEEL(NK4) BLACK	8-97153-234-0	01	1	9505-9509	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-234-0	01	1	9510-9510	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-234-0	01	1	9511-9605	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-000-0	01	1	9511-	●	●
27	BOSS; STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-97014-999-0	01	1	9112-9504	●
27	BOSS; STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5), LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-97014-999-0	01	1	9112-9504		●
27	BOSS; STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-97122-274-1	01	1	9505-9605	●
27	BOSS; STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5), LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-97122-274-1	01	1	9505-9605		●
28	SCREW; BOSS TO STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-97014-184-0	06	1	9112-9605	●
28	SCREW; BOSS TO STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5), LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-97014-184-0	06	1	9112-9605		●
29	SCREW; HORN CORD LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) M4X8 W/LK WASHER	9-03910-408-0	01	1	9112-9504	●
29	SCREW; HORN CORD LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5), LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) M4X8 W/LK WASHER	9-03910-408-0	01	1	9112-9504		●
29	SCREW; HORN CORD LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-97122-794-0	01	1	9505-9605	●
29	SCREW; HORN CORD LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5), LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-97122-794-0	01	1	9505-9605		●
30	COWL; STEERING INTERIOR COLOR BROWN(130) AUTO CRUISE CONT<K30> DARK BROWN	8-97004-131-2	01	1	9112-9307	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) EXC. AUTO CRUISE CONT<K30> DARK BROWN	8-97004-129-2	01	1	9112-9307	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) AUTO CRUISE CONT<K30> DARK GRAY	8-97004-132-2	01	1	9112-9504	●	●
30	COWL; STEERING BLACK	8-97151-865-4	01	1	9505-9605	●	●
30	COWL; STEERING EXC. LAMP GLOVE COMPARTMENT<U27> BLACK	8-97151-865-5	01	1	9606-9707	●	●
30	COWL; STEERING EXC. LAMP GLOVE COMPARTMENT<U27> BLACK	8-97195-721-0	01	1	9708-	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) EXC. AUTO CRUISE CONT<K30> DARK GRAY	8-97004-130-2	01	1	9112-9504	●	●
30	COWL; STEERING LAMP GLOVE COMPARTMENT<U27> BLACK	8-97153-246-5	01	1	9606-9708	●	●
30	COWL; STEERING LAMP GLOVE COMPARTMENT<U27> BLACK	8-97195-722-0	01	1	9708-	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	02	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9505-	●	●
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9112-	●	●
63	SPACER; HORN CONTACT URETHANE STEERING WHEEL(NK4)	8-97036-512-0	01	1	9112-9406	●	●
63	SPACER; HORN CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97036-512-0	01	1	9407-9504	●	●

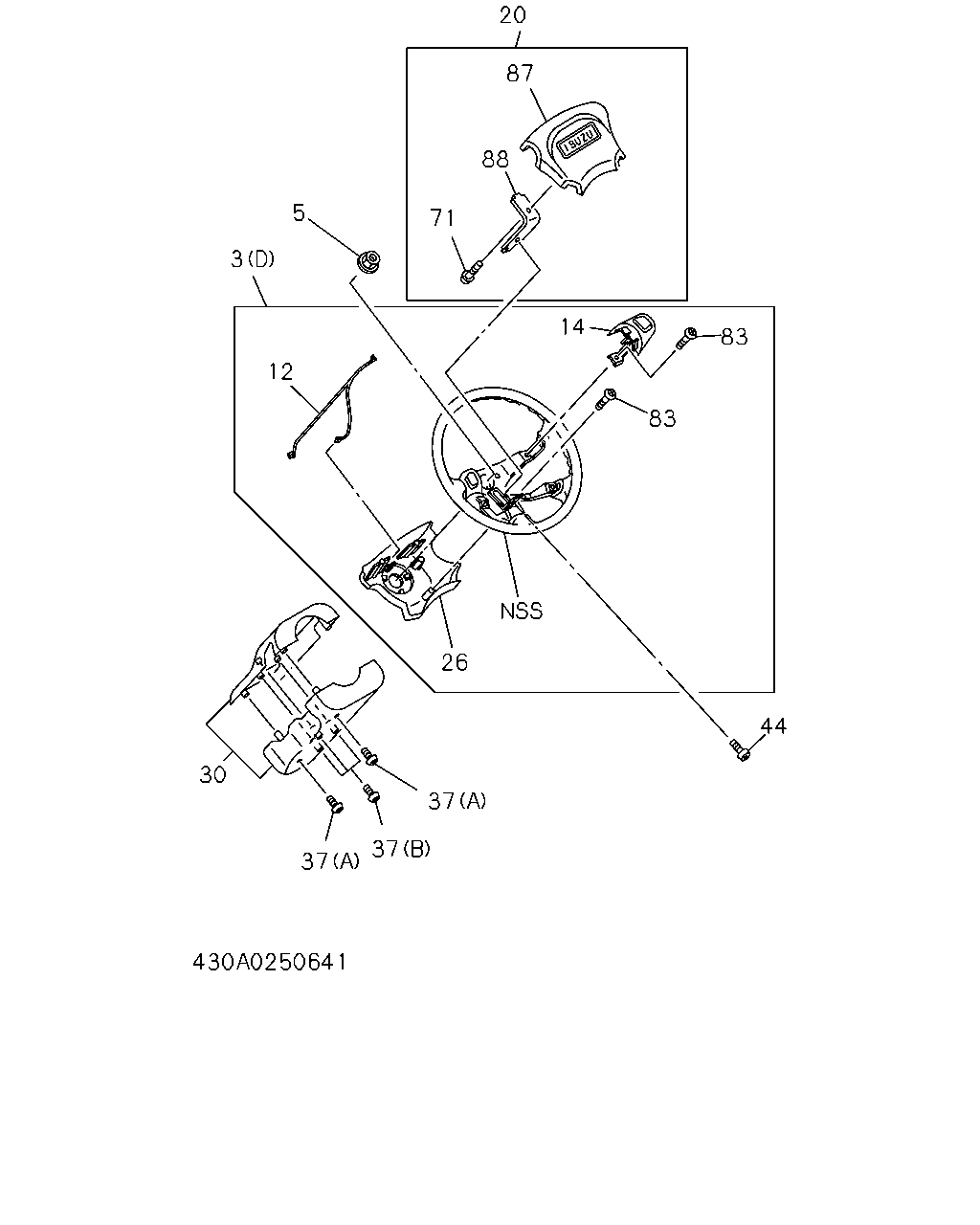

20 87 88 83 14 83 44 12 3 5 71 26 37 37 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) (A) DARK BROWN	8-97004-133-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) (A) DARK BROWN	8-97009-176-0	01	1	9201-9307	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) (A) DARK GRAY	8-97003-122-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) (A) DARK GRAY	8-97009-175-0	01	1	9201-9504	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) (D) BLACK	8-97151-440-3	01	1	9505-9510	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97151-440-3	01	1	9511-9511	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97156-020-0	01	1	9512-9605	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3) (E) BLACK	8-97155-689-1	01	1	9511-	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> URETHANE STEERING WHEEL(NK4) (E) BLACK	8-97155-250-0	01	1	9511-	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) (A) DARK GRAY	8-97009-178-0	01	1	9407-9504	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) (D) BLACK	8-97151-441-3	01	1	9510-9510	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97155-688-0	01	1	9511-9605	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) (C)	8-97014-991-0	01	1	9112-9504	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) (C)	8-97111-146-1	01	1	9505-9605	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) (B)	8-97014-995-0	01	1	9112-9504		●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) (B)	8-97111-147-1	01	1	9505-9605		●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-0	01	1	9112-	●	●
12	CORD; HORN AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-397-0	01	1	9511-	●	●
12	CORD; HORN URETHANE STEERING WHEEL(NK4)	8-97124-010-0	01	1	9505-9509	●	●
12	CORD; HORN LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97124-010-0	01	1	9510-9510	●	●
12	CORD; HORN LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-010-0	01	1	9511-9605	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97155-253-0	01	1	9511-	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97155-252-0	01	1	9511-	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-693-0	01	1	9511-9511	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-693-0	01	1	9512-9605	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-692-0	01	1	9511-9511	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-692-0	01	1	9512-9605	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97153-236-0	01	1	9505-9509	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-236-0	01	1	9510-9510	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-236-0	01	1	9511-9511	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97153-235-0	01	1	9505-9509	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-235-0	01	1	9510-9510	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-235-0	01	1	9511-9511	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) DARK BROWN	8-97004-134-0	01	1	9112-9307	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-553-0	01	1	9112-9406	●	●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-553-0	01	1	9407-9504	●	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97151-448-2	01	1	9505-9505	●	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97151-448-2	01	1	9506-9509	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) EXC. HONDA BRAND PACKAGE<7EP> BLACK	8-97151-448-2	01	1	9506-9509		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97151-448-2	01	1	9510-9510	●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. HONDA BRAND PACKAGE<7EP> BLACK	8-97151-448-2	01	1	9510-9510		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>,HONDA BRAND PACKAGE<7EP> BLACK	8-97151-448-2	01	1	9511-9605	●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5)	8-94412-177-0	01	1	9112-9605	●	●
20	SHROUD; PAD,STRG WHEEL URETHANE STEERING WHEEL(NK4) HONDA BRAND PACKAGE<7EP> BLACK	8-97154-093-1	01	1	9506-9510		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) HONDA BRAND PACKAGE<7EP> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97154-093-1	01	1	9511-9605		●
20	SHROUD; PAD,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW)	8-94385-417-2	01	1	9112-9605		●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) DARK BROWN	8-97006-500-0	01	1	9112-9307	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-502-0	01	1	9112-9406	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-502-0	01	1	9407-9504	●	●
26	COVER; STRG WHEEL,LWR URETHANE STEERING WHEEL(NK4) BLACK	8-97153-234-0	01	1	9505-9509	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-234-0	01	1	9510-9510	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-234-0	01	1	9511-9605	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-000-0	01	1	9511-	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) AUTO CRUISE CONT<K30> DARK BROWN	8-97004-131-2	01	1	9112-9307	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) EXC. AUTO CRUISE CONT<K30> DARK BROWN	8-97004-129-2	01	1	9112-9307	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) AUTO CRUISE CONT<K30> DARK GRAY	8-97004-132-2	01	1	9112-9504	●	●
30	COWL; STEERING BLACK	8-97151-865-4	01	1	9505-9605	●	●
30	COWL; STEERING EXC. LAMP GLOVE COMPARTMENT<U27> BLACK	8-97151-865-5	01	1	9606-9707	●	●
30	COWL; STEERING EXC. LAMP GLOVE COMPARTMENT<U27> BLACK	8-97195-721-0	01	1	9708-	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) EXC. AUTO CRUISE CONT<K30> DARK GRAY	8-97004-130-2	01	1	9112-9504	●	●
30	COWL; STEERING LAMP GLOVE COMPARTMENT<U27> BLACK	8-97153-246-5	01	1	9606-9708	●	●
30	COWL; STEERING LAMP GLOVE COMPARTMENT<U27> BLACK	8-97195-722-0	01	1	9708-	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	02	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9505-	●	●
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9112-	●	●
44	SCREW; STRG COWL URETHANE STEERING WHEEL(NK4) M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9505-9510	●	●
44	SCREW; STRG COWL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9511-9605	●	●
71	SCREW; BRKT,STRG WHEEL URETHANE STEERING WHEEL(NK4)	8-97124-023-0	01	1	9505-9505	●	●
71	SCREW; BRKT,STRG WHEEL URETHANE STEERING WHEEL(NK4)	8-97124-023-0	01	1	9506-9509	●	●
71	SCREW; BRKT,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97124-023-0	01	1	9510-9510	●	●
71	SCREW; BRKT,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-023-0	01	1	9511-9605	●	●
83	SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-619-0	04	1	9511-	●	●
83	SCREW; LWR COVER TO WHEEL URETHANE STEERING WHEEL(NK4)	8-97124-009-0	04	1	9505-9509	●	●
83	SCREW; LWR COVER TO WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97124-009-0	04	1	9510-9510	●	●
83	SCREW; LWR COVER TO WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-009-0	04	1	9511-9605	●	●
87	PAD; STEERING URETHANE STEERING WHEEL(NK4) BLACK	8-97153-238-0	01	1	9505-9505	●	●
87	PAD; STEERING URETHANE STEERING WHEEL(NK4) BLACK	8-97153-238-0	01	1	9506-9509	●
87	PAD; STEERING URETHANE STEERING WHEEL(NK4) EXC. HONDA BRAND PACKAGE<7EP> BLACK	8-97153-238-0	01	1	9506-9509		●
87	PAD; STEERING LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-238-0	01	1	9510-9510	●
87	PAD; STEERING LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. HONDA BRAND PACKAGE<7EP> BLACK	8-97153-238-0	01	1	9510-9510		●
87	PAD; STEERING LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>,HONDA BRAND PACKAGE<7EP> BLACK	8-97153-238-0	01	1	9511-9605	●
87	PAD; STEERING URETHANE STEERING WHEEL(NK4) HONDA BRAND PACKAGE<7EP> BLACK	8-97153-247-0	01	1	9506-9510		●
87	PAD; STEERING LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) HONDA BRAND PACKAGE<7EP> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-247-0	01	1	9511-9605		●
88	BRACKET PAD; STEERING URETHANE STEERING WHEEL(NK4)	8-97124-022-0	01	1	9505-9505	●	●
88	BRACKET PAD; STEERING URETHANE STEERING WHEEL(NK4)	8-97124-022-0	01	1	9506-9509	●	●
88	BRACKET PAD; STEERING LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97124-022-0	01	1	9510-9510	●	●
88	BRACKET PAD; STEERING LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-022-0	01	1	9511-9605	●	●

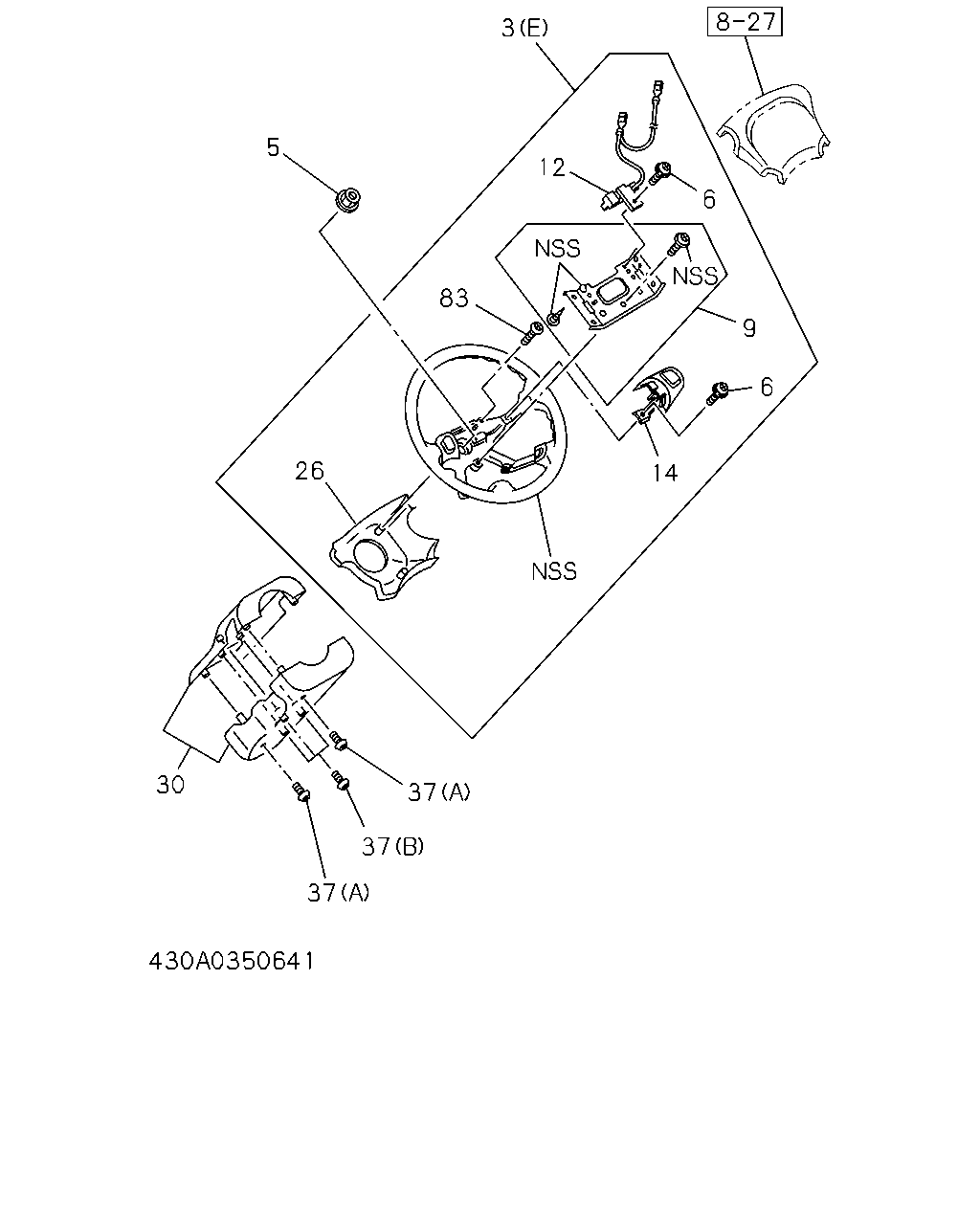

3 5 12 6 9 6 14 83 26 37 37 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) (A) DARK BROWN	8-97004-133-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) (A) DARK BROWN	8-97009-176-0	01	1	9201-9307	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) (A) DARK GRAY	8-97003-122-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) (A) DARK GRAY	8-97009-175-0	01	1	9201-9504	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) (D) BLACK	8-97151-440-3	01	1	9505-9510	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97151-440-3	01	1	9511-9511	●	●
3	WHEEL; STRG URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97156-020-0	01	1	9512-9605	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3) (E) BLACK	8-97155-689-1	01	1	9511-	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> URETHANE STEERING WHEEL(NK4) (E) BLACK	8-97155-250-0	01	1	9511-	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) (A) DARK GRAY	8-97009-178-0	01	1	9407-9504	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) (D) BLACK	8-97151-441-3	01	1	9510-9510	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> (D) BLACK	8-97155-688-0	01	1	9511-9605	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) (C)	8-97014-991-0	01	1	9112-9504	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 4SPOKES(NP5) (C)	8-97111-146-1	01	1	9505-9605	●	●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) (B)	8-97014-995-0	01	1	9112-9504		●
3	WHEEL; STRG LEATHER-WRAPPED STEERING WHEEL 3SPOKES MOMO(6PW) (B)	8-97111-147-1	01	1	9505-9605		●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-0	01	1	9112-	●	●
6	SCREW; HORN SPR CONTACT URETHANE STEERING WHEEL(NK4) (A)	8-97036-514-0	01	1	9112-9406	●	●
6	SCREW; HORN SPR CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) (A)	8-97036-514-0	01	1	9407-9504	●	●
6	SCREW; HORN SPR CONTACT URETHANE STEERING WHEEL(NK4) (B)	8-97036-515-0	02	1	9112-9406	●	●
6	SCREW; HORN SPR CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) (B)	8-97036-515-0	02	1	9407-9504	●	●
6	SCREW; HORN SPR CONTACT URETHANE STEERING WHEEL(NK4) (C)	8-97061-474-0	02	1	9112-9406	●	●
6	SCREW; HORN SPR CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) (C)	8-97061-474-0	02	1	9407-9504	●	●
6	SCREW; HORN SPR CONTACT AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-618-0	03	1	9511-	●	●
9	PLATE; HORN CONTACT URETHANE STEERING WHEEL(NK4)	8-97036-510-0	01	1	9112-9406	●	●
9	PLATE; HORN CONTACT LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97036-510-0	01	1	9407-9504	●	●
9	PLATE; HORN CONTACT AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-394-0	01	1	9511-	●	●
12	CORD; HORN AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-397-0	01	1	9511-	●	●
12	CORD; HORN URETHANE STEERING WHEEL(NK4)	8-97124-010-0	01	1	9505-9509	●	●
12	CORD; HORN LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97124-010-0	01	1	9510-9510	●	●
12	CORD; HORN LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-010-0	01	1	9511-9605	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97155-253-0	01	1	9511-	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97155-252-0	01	1	9511-	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-693-0	01	1	9511-9511	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-693-0	01	1	9512-9605	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-692-0	01	1	9511-9511	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-692-0	01	1	9512-9605	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97153-236-0	01	1	9505-9509	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-236-0	01	1	9510-9510	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-236-0	01	1	9511-9511	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) BLACK	8-97153-235-0	01	1	9505-9509	●	●
14	BUTTON; HORN,STRG WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-235-0	01	1	9510-9510	●	●
14	BUTTON; HORN,STRG WHEEL URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-235-0	01	1	9511-9511	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BROWN(130) URETHANE STEERING WHEEL(NK4) DARK BROWN	8-97006-500-0	01	1	9112-9307	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(153) URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-502-0	01	1	9112-9406	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) DARK GRAY	8-97006-502-0	01	1	9407-9504	●	●
26	COVER; STRG WHEEL,LWR URETHANE STEERING WHEEL(NK4) BLACK	8-97153-234-0	01	1	9505-9509	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-234-0	01	1	9510-9510	●	●
26	COVER; STRG WHEEL,LWR LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-234-0	01	1	9511-9605	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) BLACK	8-97153-000-0	01	1	9511-	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) AUTO CRUISE CONT<K30> DARK BROWN	8-97004-131-2	01	1	9112-9307	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) EXC. AUTO CRUISE CONT<K30> DARK BROWN	8-97004-129-2	01	1	9112-9307	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) AUTO CRUISE CONT<K30> DARK GRAY	8-97004-132-2	01	1	9112-9504	●	●
30	COWL; STEERING BLACK	8-97151-865-4	01	1	9505-9605	●	●
30	COWL; STEERING EXC. LAMP GLOVE COMPARTMENT<U27> BLACK	8-97151-865-5	01	1	9606-9707	●	●
30	COWL; STEERING EXC. LAMP GLOVE COMPARTMENT<U27> BLACK	8-97195-721-0	01	1	9708-	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) EXC. AUTO CRUISE CONT<K30> DARK GRAY	8-97004-130-2	01	1	9112-9504	●	●
30	COWL; STEERING LAMP GLOVE COMPARTMENT<U27> BLACK	8-97153-246-5	01	1	9606-9708	●	●
30	COWL; STEERING LAMP GLOVE COMPARTMENT<U27> BLACK	8-97195-722-0	01	1	9708-	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	02	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9505-	●	●
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9112-	●	●
83	SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3> LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97122-619-0	04	1	9511-	●	●
83	SCREW; LWR COVER TO WHEEL URETHANE STEERING WHEEL(NK4)	8-97124-009-0	04	1	9505-9509	●	●
83	SCREW; LWR COVER TO WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4)	8-97124-009-0	04	1	9510-9510	●	●
83	SCREW; LWR COVER TO WHEEL LEATHER-WRAPPED STEERING WHEEL(NK3),URETHANE STEERING WHEEL(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-009-0	04	1	9511-9605	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
