Isuzu WW
▶
TRUCKS
▶
NKR
▶
50814 - NKR(THAILAND)
▶
5 - Frame, Cab Mounting
▶

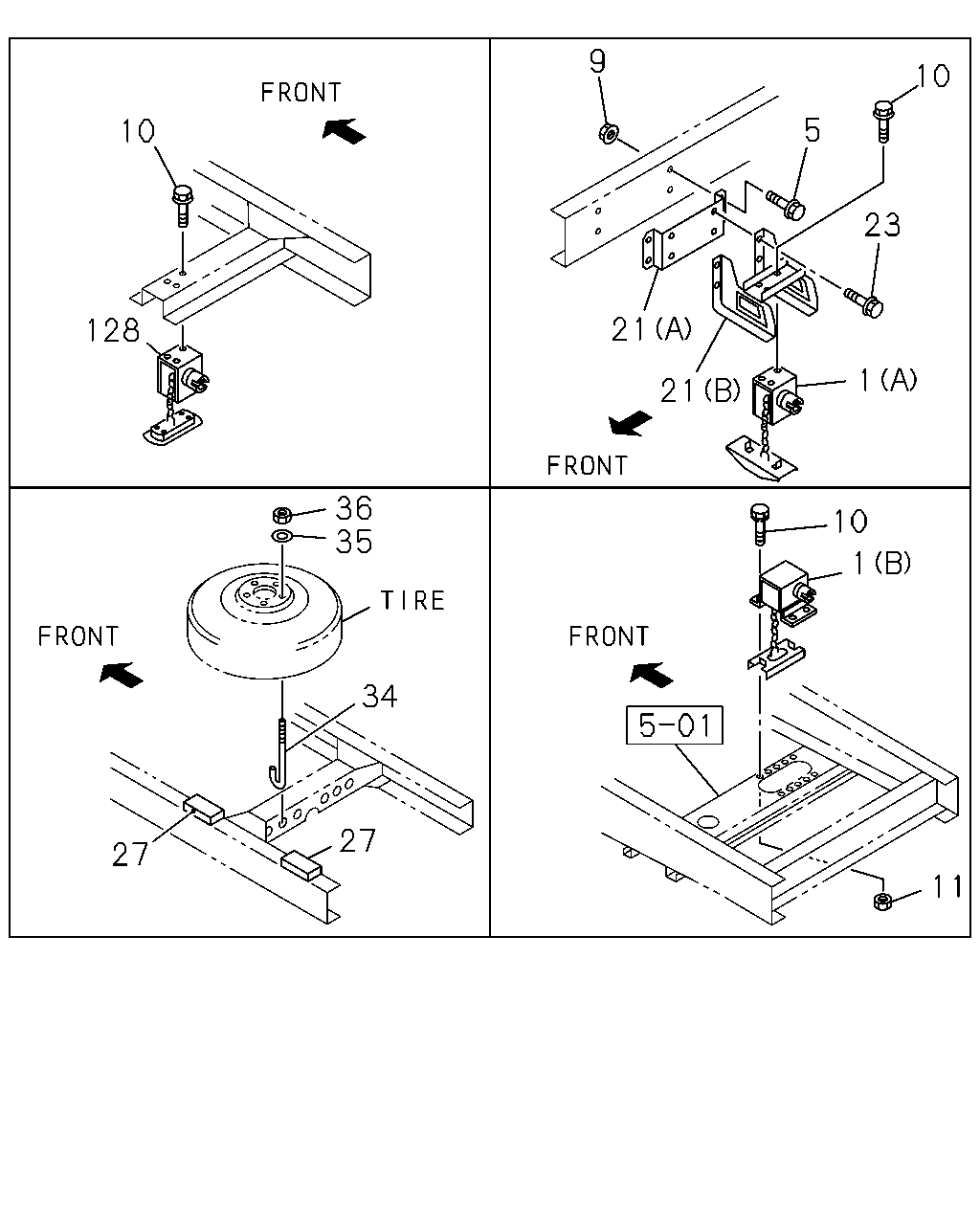

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#16692) — 16 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKB5SC
9
10
5
10
23
21
128
1
21
36
35
10
1
34
27
27
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HANGER ASM; TIRE FT
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A)
8-94382-875-0
01
1
0009-
●
1
HANGER ASM; TIRE FT
(B)
8-97182-113-0
01
1
0009-
●
5
BOLT; BRKT TO FRAME
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X30 FLANGE
0-28681-030-0
04
1
0009-
●
9
NUT; BRKT TO FRAME
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10 FLANGE
0-91150-110-0
04
1
0009-
●
10
BOLT; TIRE HANGER
M8X20 FLANGE
0-28680-820-0
03
1
0009-
●
10
BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M8X20 FLANGE
0-28680-820-0
03
1
0009-
●
10
BOLT; TIRE HANGER
M8X20 FLANGE
0-28680-820-0
04
1
0009-
●
11
NUT; TIRE HANGER
M8 FLANGE
0-91150-108-0
04
1
0009-
●
21
BRACKET; SPARE TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A)
8-94176-764-1
01
1
0009-
●
21
BRACKET; SPARE TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B)
8-97230-355-0
01
1
0009-
●
23
BOLT; BRKT,SPARE TIRE
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> M10X25 FLANGE
0-28681-025-0
04
1
0009-
●
27
CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10
8-94341-284-0
04
1
0009-
●
34
BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305
8-94441-189-0
01
1
0009-
●
35
WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> ID=12.5 OD=54
8-94466-483-0
01
1
0009-
●
36
NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12
9-99110-412-0
01
1
0009-
●
128
HANGER ASM; TIRE END
8-94380-175-0
01
1
0009-
●
