4-15 — FRONT FINAL DRIVE (#166918) — 136 parça

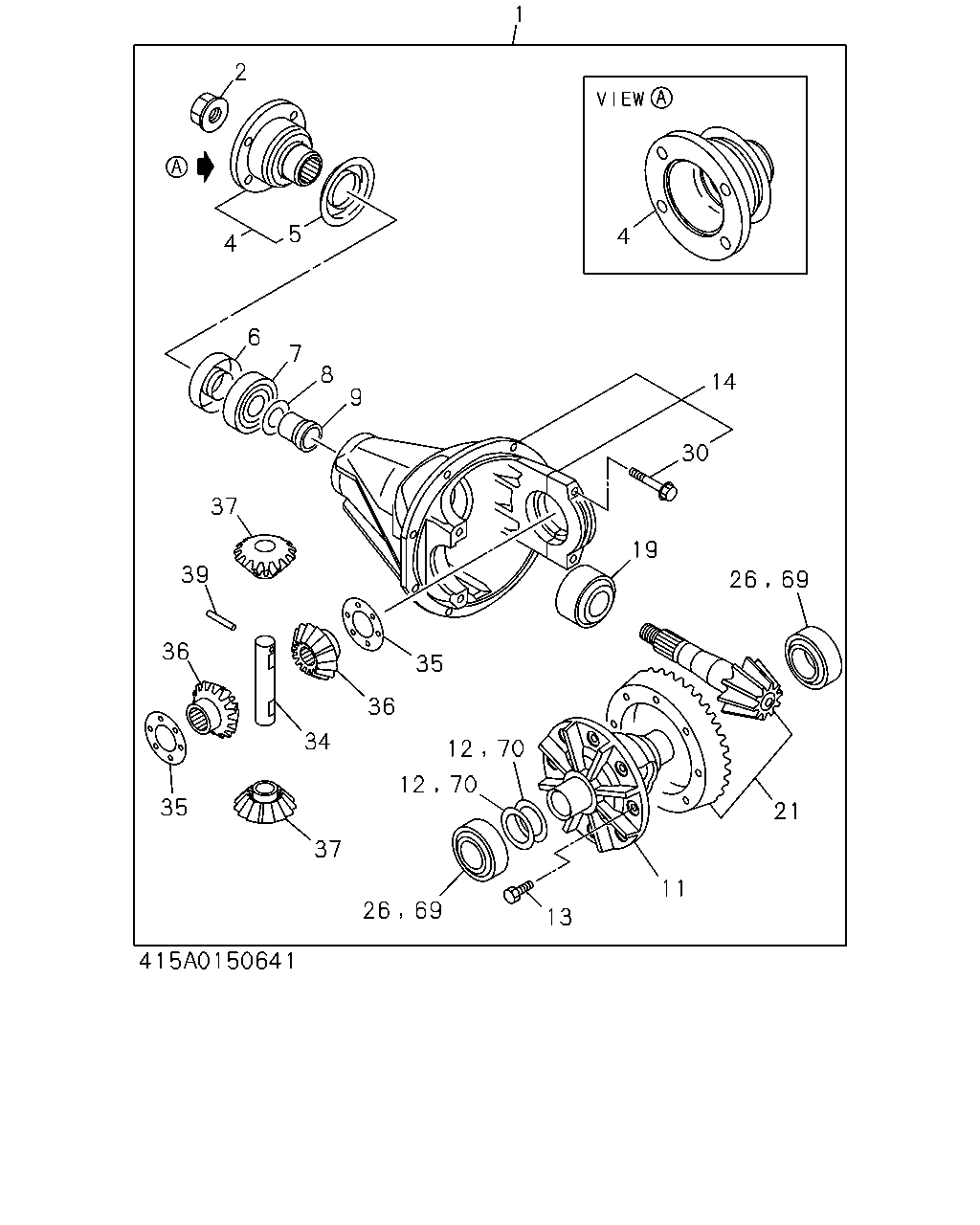

çizim 493988
1 4 5 4 2 6 9 8 7 14 30 19 26 69 21 11 13 69 26 12 70 36 12 70 35 34 37 35 36 39 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,FRT
41/9 		8-94376-220-1 01 1 9112-9504 ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(HC6) EXC. VARIABLE TORQUE SPRIT<7HA> 41/9 		8-94376-220-1 01 1 9505- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) EXC. VARIABLE TORQUE SPRIT<7HA> 43/10 		8-97039-250-0 01 1 9505- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(HC6) VARIABLE TORQUE SPRIT<7HA> 41/9 		8-97111-815-0 01 1 9505- ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) VARIABLE TORQUE SPRIT<7HA> 43/10 		8-97119-307-0 01 1 9505-9605 ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) VARIABLE TORQUE SPRIT<7HA> 43/10 		8-97119-307-0 01 1 9606- ●
2 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 9112- ● ●
4 COUPLING; FINAL DRIVE PINION 8-94318-527-3 01 1 9112-9504 ● ●
4 COUPLING; FINAL DRIVE PINION
EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94318-527-3 01 1 9505- ● ●
4 COUPLING; FINAL DRIVE PINION
VARIABLE TORQUE SPRIT<7HA> 		8-97110-873-0 01 1 9505-9511 ●
4 COUPLING; FINAL DRIVE PINION
VARIABLE TORQUE SPRIT<7HA> 		8-97139-548-0 01 1 9512- ●
5 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-0 01 1 9112- ● ●
6 SEAL; OIL,FINAL PINION 8-94318-520-1 01 1 9112- ● ●
7 BEARING; PINION,OUTER
NSK 		8-94472-099-0 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 9112- ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 9112-9208 ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 9408- ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 9209-9407 ● ●
11 CAGE; FINAL PINION 8-94313-589-0 01 1 9112-9310 ● ●
11 CAGE; FINAL PINION 8-97038-515-1 01 1 9311- ● ●
12 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 9112- ● ●
12 SHIM; FINAL PINION CAGE
T=0.18 		9-41519-110-0 AR 1 9112-9504 ● ●
12 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 9505- ● ●
12 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 9112- ● ●
12 SHIM; FINAL PINION CAGE
T=0.12 		9-41519-112-0 AR 1 9112-9504 ● ●
12 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 9505- ● ●
13 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 9112- ● ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 8-94376-231-2 01 1 9112- ● ●
19 BEARING; PINION,INNER
NSK 		9-00093-621-0 01 1 9112- ● ●
21 GEAR SET; FINAL DRIVE,FRT
41/9 		8-94376-223-1 01 1 9112-9504 ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/9(HC6) 41/9 		8-94376-223-1 01 1 9505- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C) 43/10 		8-97039-251-1 01 1 9505- ● ●
26 BEARING; DIFF CAGE
NSK 		9-00093-074-0 02 1 9112-9505 ● ●
26 BEARING; DIFF CAGE
NSK 		9-00093-074-0 02 1 9505- ● ●
30 BOLT; DIFF CAGE SETTING
M12X62 		8-94376-322-0 04 1 9112- ● ●
34 PIN; CROSS,DIFF PINION 9-41521-044-1 01 1 9112- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-0 02 1 9112- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-0 02 1 9112- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-0 02 1 9112- ● ●
36 GEAR; SIDE,DIFF 8-94474-302-0 02 1 9112-9210 ● ●
36 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 9211- ● ●
37 GEAR; PINION DIFF 8-94474-301-0 02 1 9112-9210 ● ●
37 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 9211- ● ●
39 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 9112- ● ●
69 BEARING; DIFF SIDE
WIDE TREAD SUSPENSION<7FC> NSK 		9-00093-074-0 02 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.10 		8-97130-386-0 AR 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.50 		8-97130-387-0 AR 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.24 		9-41519-109-0 AR 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.15 		9-41519-111-0 AR 1 9505- ● ●

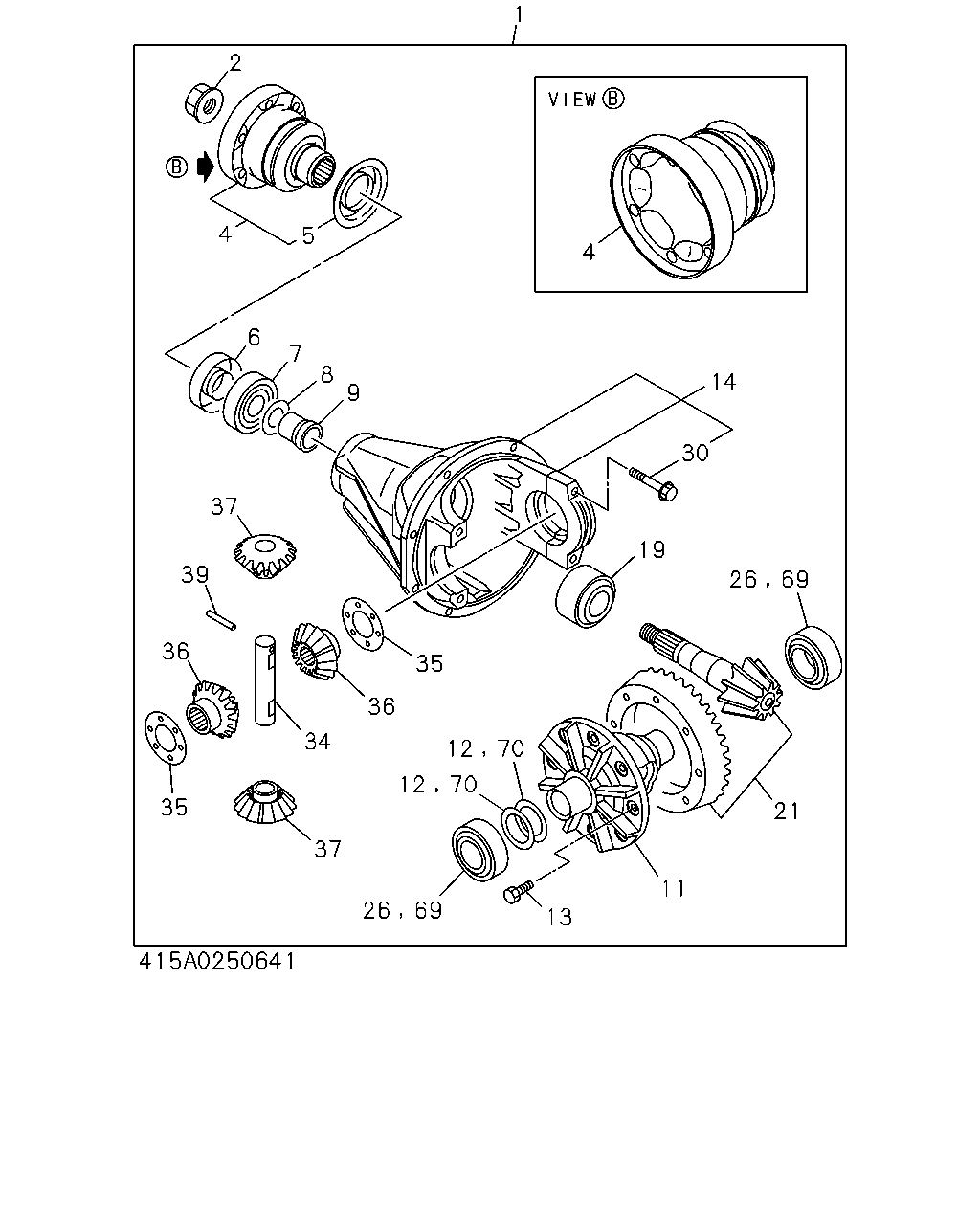

çizim 494025
1 4 5 4 2 6 9 8 7 14 30 19 26 69 21 11 13 69 26 12 70 12 70 35 36 34 35 37 36 39 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,FRT
41/9 		8-94376-220-1 01 1 9112-9504 ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(HC6) EXC. VARIABLE TORQUE SPRIT<7HA> 41/9 		8-94376-220-1 01 1 9505- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) EXC. VARIABLE TORQUE SPRIT<7HA> 43/10 		8-97039-250-0 01 1 9505- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(HC6) VARIABLE TORQUE SPRIT<7HA> 41/9 		8-97111-815-0 01 1 9505- ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) VARIABLE TORQUE SPRIT<7HA> 43/10 		8-97119-307-0 01 1 9505-9605 ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) VARIABLE TORQUE SPRIT<7HA> 43/10 		8-97119-307-0 01 1 9606- ●
2 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 9112- ● ●
4 COUPLING; FINAL DRIVE PINION 8-94318-527-3 01 1 9112-9504 ● ●
4 COUPLING; FINAL DRIVE PINION
EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94318-527-3 01 1 9505- ● ●
4 COUPLING; FINAL DRIVE PINION
VARIABLE TORQUE SPRIT<7HA> 		8-97110-873-0 01 1 9505-9511 ●
4 COUPLING; FINAL DRIVE PINION
VARIABLE TORQUE SPRIT<7HA> 		8-97139-548-0 01 1 9512- ●
5 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-0 01 1 9112- ● ●
6 SEAL; OIL,FINAL PINION 8-94318-520-1 01 1 9112- ● ●
7 BEARING; PINION,OUTER
NSK 		8-94472-099-0 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 9112- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 9112- ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 9112-9208 ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 9408- ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 9209-9407 ● ●
11 CAGE; FINAL PINION 8-94313-589-0 01 1 9112-9310 ● ●
11 CAGE; FINAL PINION 8-97038-515-1 01 1 9311- ● ●
12 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 9112- ● ●
12 SHIM; FINAL PINION CAGE
T=0.18 		9-41519-110-0 AR 1 9112-9504 ● ●
12 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 9505- ● ●
12 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 9112- ● ●
12 SHIM; FINAL PINION CAGE
T=0.12 		9-41519-112-0 AR 1 9112-9504 ● ●
12 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 9505- ● ●
13 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 9112- ● ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 8-94376-231-2 01 1 9112- ● ●
19 BEARING; PINION,INNER
NSK 		9-00093-621-0 01 1 9112- ● ●
21 GEAR SET; FINAL DRIVE,FRT
41/9 		8-94376-223-1 01 1 9112-9504 ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/9(HC6) 41/9 		8-94376-223-1 01 1 9505- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(S7C) 43/10 		8-97039-251-1 01 1 9505- ● ●
26 BEARING; DIFF CAGE
NSK 		9-00093-074-0 02 1 9112-9505 ● ●
26 BEARING; DIFF CAGE
NSK 		9-00093-074-0 02 1 9505- ● ●
30 BOLT; DIFF CAGE SETTING
M12X62 		8-94376-322-0 04 1 9112- ● ●
34 PIN; CROSS,DIFF PINION 9-41521-044-1 01 1 9112- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-0 02 1 9112- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-0 02 1 9112- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-0 02 1 9112- ● ●
36 GEAR; SIDE,DIFF 8-94474-302-0 02 1 9112-9210 ● ●
36 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 9211- ● ●
37 GEAR; PINION DIFF 8-94474-301-0 02 1 9112-9210 ● ●
37 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 9211- ● ●
39 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 9112- ● ●
69 BEARING; DIFF SIDE
WIDE TREAD SUSPENSION<7FC> NSK 		9-00093-074-0 02 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.10 		8-97130-386-0 AR 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.50 		8-97130-387-0 AR 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.24 		9-41519-109-0 AR 1 9505- ● ●
70 SHIM
WIDE TREAD SUSPENSION<7FC> T=0.15 		9-41519-111-0 AR 1 9505- ● ●
