Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#166917) — 348 parça

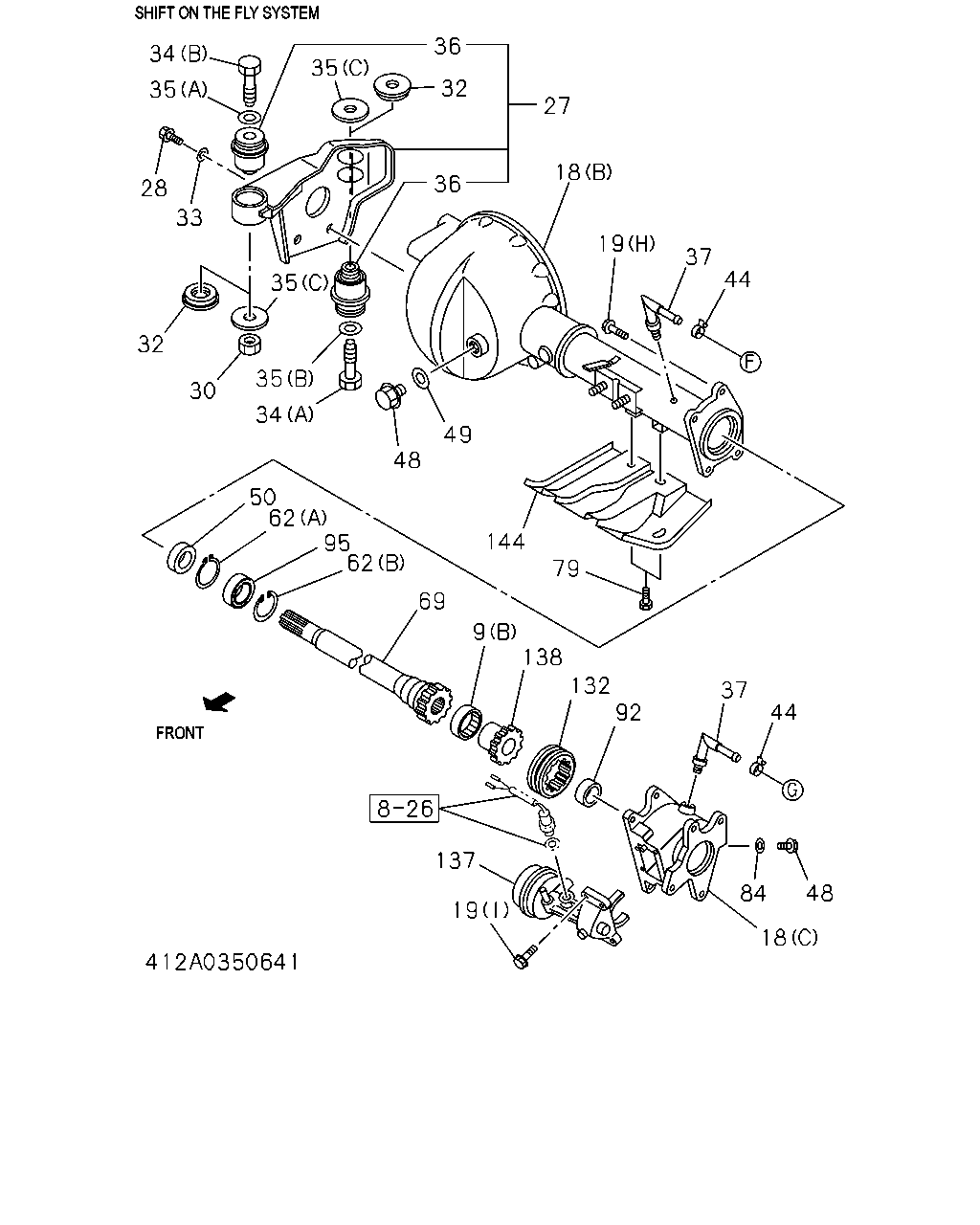

34 35 28 33 35 36 32 27 36 35 32 30 35 34 48 49 144 79 18 19 37 44 50 62 95 62 69 9 138 132 92 37 44 48 84 18 19 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9112-	●	●
9	BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	9505-	●	●
18	CASE; FRT AXLE (A)	8-97018-230-0	01	1	9112-9504	●	●
18	CASE; FRT AXLE MANUAL LOCKING HUB(ED2) (A)	8-97018-230-0	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (C)	8-97081-658-2	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (B)	8-97101-757-3	01	1	9505-	●	●
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
27	BRACKET; AXLE CASE	8-94382-043-0	01	1	9112-9409	●	●
27	BRACKET; AXLE CASE	8-97113-948-0	01	1	9410-9504	●	●
27	BRACKET; AXLE CASE EXC. VARIABLE TORQUE SPRIT<7HA>	8-97113-948-0	01	1	9505-	●	●
27	BRACKET; AXLE CASE	8-94382-042-0	01	1	9112-9504	●	●
27	BRACKET; AXLE CASE EXC. VARIABLE TORQUE SPRIT<7HA>	8-94382-042-0	01	1	9505-	●	●
27	BRACKET; AXLE CASE VARIABLE TORQUE SPRIT<7HA>	8-97131-941-0	01	1	9505-		●
27	BRACKET; AXLE CASE VARIABLE TORQUE SPRIT<7HA>	8-97114-277-0	01	1	9505-		●
28	BOLT; BRKT TO AXLE CASE M12X25	0-20801-225-0	08	1	9112-9501	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9502-	●	●
30	NUT; FRT AXLE MTG M14	9-99110-514-0	02	1	9112-	●	●
32	SPACER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	9112-9303	●	●
33	WASHER; LK,BRKT TO AXLE CASE ID=12.2	9-09150-512-0	08	1	9112-9408	●	●
33	WASHER; LK,BRKT TO AXLE CASE ID=12.2	9-09150-612-0	08	1	9409-9501	●	●
34	BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9112-	●	●
34	BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (B) ID=15 OD=36	9-09164-714-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9304-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9112-	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9112-9504	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9505-	●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	9505-	●	●
44	CLIP; AIR BREATHER HOSE ID=11 WHITE	5-09707-005-1	01	1	9112-9306	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9307-9504	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	01	1	9710-	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-97173-219-0	01	1	9710-	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	01	1	9112-9504	●	●
48	PLUG; DRAIN,AXLE CASE MANUAL LOCKING HUB(ED2) M20X10.5	9-09662-005-0	01	1	9505-	●	●
48	PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY(7EX) M20X10.5	9-09662-005-0	02	1	9505-	●	●
49	GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9112-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE SHIFT ON THE FLY(7EX)	8-97084-507-0	01	1	9505-	●	●
62	RING; SNAP,AXLE SHAFT SHIFT ON THE FLY(7EX) (A) ID=37.0	9-09180-040-0	01	1	9505-	●	●
62	RING; SNAP,AXLE SHAFT SHIFT ON THE FLY(7EX) (B) ID=57.9	9-09180-162-0	01	1	9505-	●	●
69	SHAFT; AXLE,FRT INNER SHIFT ON THE FLY(7EX)	8-97130-566-1	01	1	9505-9711	●	●
69	SHAFT; AXLE,FRT INNER SHIFT ON THE FLY(7EX)	8-97188-174-0	01	1	9712-	●	●
79	BOLT; BRKT SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	9505-9508	●	●
79	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	9509-9605	●	●
79	BOLT; BRKT 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	9509-9605	●	●
79	BOLT; BRKT SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	9606-	●	●
84	GASKET; PLUG,OIL FILLER SHIFT ON THE FLY(7EX) ID=20 OD=30	8-94462-734-0	01	1	9505-	●	●
92	SPACER; FRT DRIVE SHAFT SHIFT ON THE FLY(7EX)	8-97101-762-0	01	1	9505-9512	●	●
95	BEARING; AXLE SHAFT,FRT SHIFT ON THE FLY(7EX)	8-97103-392-0	01	1	9505-	●	●
132	SLEEVE; RUBBER,HOSE SHIFT ON THE FLY(7EX)	8-97130-567-1	01	1	9505-	●	●
137	ACTUATOR; AXLE SHIFT ON THE FLY(7EX)	8-97101-856-3	01	1	9505-	●	●
138	GEAR; CLUTCH SHIFT ON THE FLY(7EX)	8-97081-660-0	01	1	9505-9512	●	●
138	GEAR; CLUTCH SHIFT ON THE FLY(7EX) Z=17	8-97134-857-0	01	1	9601-	●	●
144	PROTECTOR SHIFT ON THE FLY(7EX)	8-97101-788-2	01	1	9505-9508	●	●
144	PROTECTOR 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97101-788-2	01	1	9509-9605	●	●
144	PROTECTOR 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX)	8-97101-788-2	01	1	9509-9605	●	●
144	PROTECTOR SHIFT ON THE FLY(7EX)	8-97101-788-2	01	1	9606-	●	●

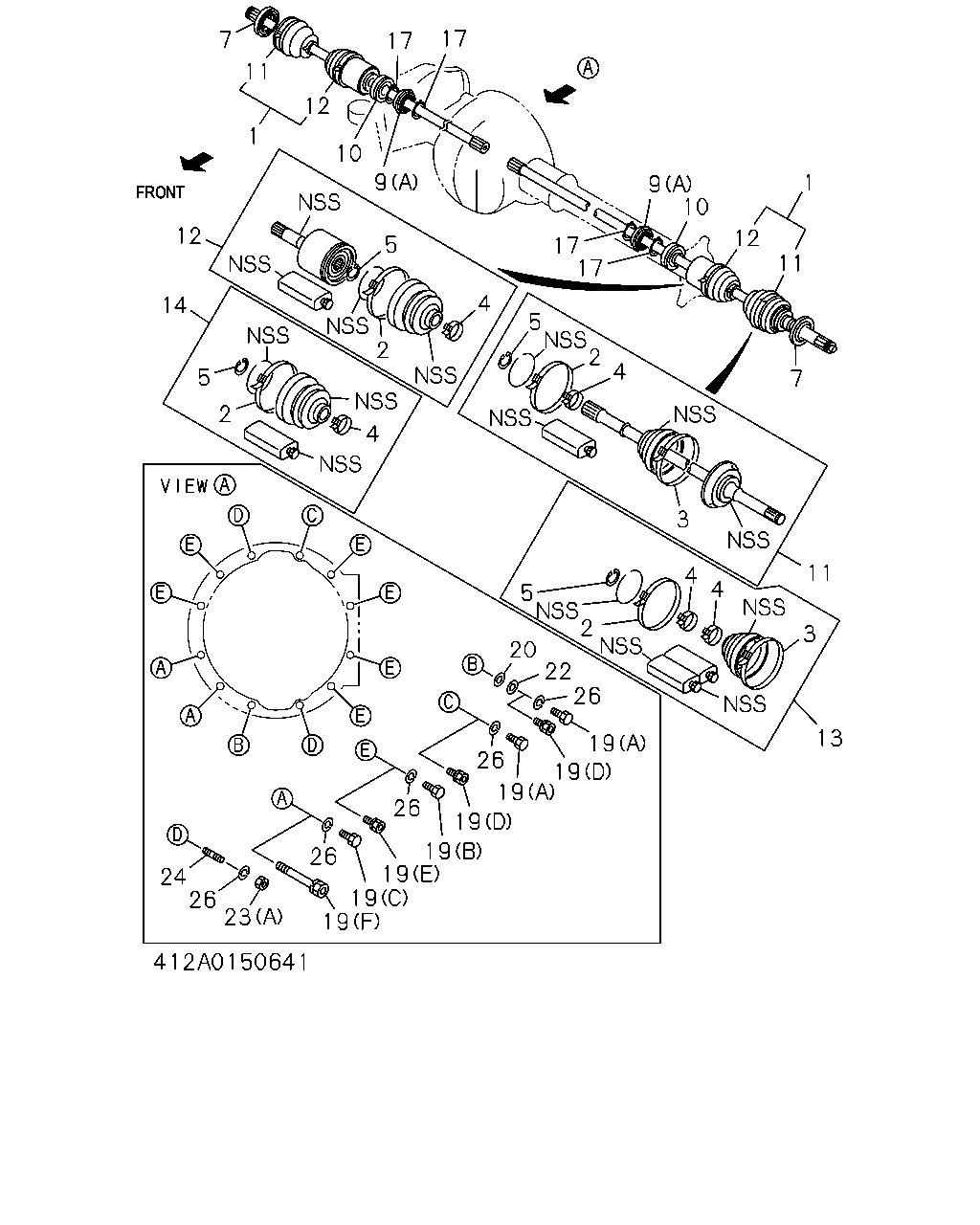

17 17 7 11 1 12 10 9 17 17 9 10 12 1 11 7 11 3 4 2 5 4 2 5 12 14 5 2 4 5 2 4 4 3 13 20 22 26 19 19 19 19 19 19 19 19 26 26 26 23 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT ASM; FRT DRIVE	8-94374-780-1	01	1	9112-9301	●	●
1	SHAFT ASM; FRT DRIVE	8-97016-099-2	01	1	9302-9410	●	●
1	SHAFT ASM; FRT DRIVE	8-97116-333-0	01	1	9411-9504	●	●
1	SHAFT ASM; FRT DRIVE MANUAL LOCKING HUB(ED2) EXC. WIDE TREAD SUSPENSION<7FC>	8-97116-333-0	01	1	9505-	●	●
1	SHAFT ASM; FRT DRIVE	8-94374-779-1	01	1	9112-9301	●	●
1	SHAFT ASM; FRT DRIVE	8-97016-098-2	01	1	9302-9410	●	●
1	SHAFT ASM; FRT DRIVE	8-97116-332-0	01	1	9411-9504	●	●
1	SHAFT ASM; FRT DRIVE MANUAL LOCKING HUB(ED2) EXC. WIDE TREAD SUSPENSION<7FC>	8-97116-332-0	01	1	9505-	●	●
1	SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC>	8-97116-334-0	02	1	9505-	●	●
1	SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. WIDE TREAD SUSPENSION<7FC>	8-97116-332-0	02	1	9505-	●	●
1	SHAFT ASM; FRT DRIVE MANUAL LOCKING HUB(ED2) WIDE TREAD SUSPENSION<7FC>	8-97116-335-0	01	1	9505-	●	●
1	SHAFT ASM; FRT DRIVE MANUAL LOCKING HUB(ED2) WIDE TREAD SUSPENSION<7FC>	8-97116-334-0	01	1	9505-	●	●
2	BAND; "A",FRT DRIVE SHAFT	8-94313-084-0	02	1	9112-9301	●	●
2	BAND; "A",FRT DRIVE SHAFT	8-94313-066-0	02	1	9302-	●	●
3	BAND; "B",FRT DRIVE SHAFT	8-94313-082-0	02	1	9112-9301	●	●
3	BAND; "B",FRT DRIVE SHAFT	8-94313-066-0	02	1	9302-	●	●
4	BAND; "C",FRT DRIVE SHAFT	8-94313-094-0	04	1	9112-9301	●	●
4	BAND; "C",FRT DRIVE SHAFT	8-94313-068-0	04	1	9302-	●	●
5	RING; RET,FRT DRIVE SHAFT ID=26.9	9-09180-029-0	02	1	9112-9301	●	●
5	RING; RET,FRT DRIVE SHAFT	8-97123-950-0	02	1	9302-9311	●	●
5	RING; RET,FRT DRIVE SHAFT	8-97116-074-0	02	1	9312-9410	●	●
5	RING; RET,FRT DRIVE SHAFT	8-97117-241-0	02	1	9411-	●	●
7	SEAL; DUST,DRIVE SHAFT	8-94407-726-2	02	1	9112-9501	●	●
7	SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9502-	●	●
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9112-	●	●
9	BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	9505-	●	●
10	SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	9112-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97063-621-0	01	1	9112-9301	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97063-620-0	01	1	9112-9301	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97065-119-0	02	1	9302-9311	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97109-762-0	02	1	9312-9410	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97117-215-0	02	1	9411-9504	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT EXC. WIDE TREAD SUSPENSION<7FC>	8-97117-215-0	02	1	9505-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT WIDE TREAD SUSPENSION<7FC>	8-97117-244-0	02	1	9505-	●	●
12	JOINT ASM	8-94313-100-1	01	1	9112-9301	●	●
12	JOINT ASM	8-94313-063-0	01	1	9302-9311	●	●
12	JOINT ASM	8-97109-764-0	01	1	9312-9410	●	●
12	JOINT ASM	8-97117-217-0	01	1	9411-9504	●	●
12	JOINT ASM MANUAL LOCKING HUB(ED2)	8-97117-217-0	01	1	9505-	●	●
12	JOINT ASM	8-94313-099-1	01	1	9112-9301	●	●
12	JOINT ASM	8-94313-062-0	01	1	9302-9311	●	●
12	JOINT ASM	8-97109-763-0	01	1	9312-9410	●	●
12	JOINT ASM	8-97117-216-0	01	1	9411-9504	●	●
12	JOINT ASM MANUAL LOCKING HUB(ED2)	8-97117-216-0	01	1	9505-	●	●
12	JOINT ASM SHIFT ON THE FLY(7EX)	8-97117-216-0	02	1	9505-	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-94313-105-0	02	1	9112-9301	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-94313-064-0	02	1	9302-9311	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-97109-765-0	02	1	9312-9410	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-97117-221-0	02	1	9411-	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-94313-080-0	02	1	9112-9301	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-94313-065-0	02	1	9302-9311	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-97109-766-0	02	1	9312-9410	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-97117-220-0	02	1	9411-	●	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9	9-09180-030-0	04	1	9112-	●	●
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9112-	●	●
22	WASHER; PL,AXLE CASE ID=8.4	9-09164-508-0	01	1	9112-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	9112-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	12	1	9112-9306	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	02	1	9307-	●	●

38 45 43 40 130 45 43 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9709	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9710-	●	●
40	CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC) L=140	5-09707-031-0	01	1	9112-9206	●	●
40	CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC) L=170	5-09707-054-0	01	1	9207-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) L=1000 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9307	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9308-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-281-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) L=1400 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9212	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) L=1400	8-97084-538-0	01	1	9301-9307	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9308-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (F)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC) (D)	8-94161-321-1	01	1	9112-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
130	FILTER; OIL,FRT AXLE SHIFT ON THE FLY(7EX)	8-97101-779-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●

34 35 28 33 32 30 35 34 35 35 36 32 27 18 36 49 48 45 135 37 44 38 43 45 45 40 45 43 135 47 136 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	CASE; FRT AXLE (A)	8-97018-230-0	01	1	9112-9504	●	●
18	CASE; FRT AXLE MANUAL LOCKING HUB(ED2) (A)	8-97018-230-0	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (C)	8-97081-658-2	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (B)	8-97101-757-3	01	1	9505-	●	●
27	BRACKET; AXLE CASE	8-94382-043-0	01	1	9112-9409	●	●
27	BRACKET; AXLE CASE	8-97113-948-0	01	1	9410-9504	●	●
27	BRACKET; AXLE CASE EXC. VARIABLE TORQUE SPRIT<7HA>	8-97113-948-0	01	1	9505-	●	●
27	BRACKET; AXLE CASE	8-94382-042-0	01	1	9112-9504	●	●
27	BRACKET; AXLE CASE EXC. VARIABLE TORQUE SPRIT<7HA>	8-94382-042-0	01	1	9505-	●	●
27	BRACKET; AXLE CASE VARIABLE TORQUE SPRIT<7HA>	8-97131-941-0	01	1	9505-		●
27	BRACKET; AXLE CASE VARIABLE TORQUE SPRIT<7HA>	8-97114-277-0	01	1	9505-		●
28	BOLT; BRKT TO AXLE CASE M12X25	0-20801-225-0	08	1	9112-9501	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9502-	●	●
30	NUT; FRT AXLE MTG M14	9-99110-514-0	02	1	9112-	●	●
32	SPACER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	9112-9303	●	●
33	WASHER; LK,BRKT TO AXLE CASE ID=12.2	9-09150-512-0	08	1	9112-9408	●	●
33	WASHER; LK,BRKT TO AXLE CASE ID=12.2	9-09150-612-0	08	1	9409-9501	●	●
34	BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9112-	●	●
34	BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (B) ID=15 OD=36	9-09164-714-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9304-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9112-	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9112-9504	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9505-	●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	9505-	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9709	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9710-	●	●
40	CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC) L=140	5-09707-031-0	01	1	9112-9206	●	●
40	CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC) L=170	5-09707-054-0	01	1	9207-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) L=1000 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9307	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9308-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-281-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) L=1400 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9212	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) L=1400	8-97084-538-0	01	1	9301-9307	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9308-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
44	CLIP; AIR BREATHER HOSE ID=11 WHITE	5-09707-005-1	01	1	9112-9306	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9307-9504	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	01	1	9710-	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-97173-219-0	01	1	9710-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (F)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC) (D)	8-94161-321-1	01	1	9112-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
47	WASHER; CLIP 6VD1 DOHC ENG(RLV) (A) ID=8.4 OD=18	9-09160-608-0	01	1	9112-	●	●
47	WASHER; CLIP 6VD1 DOHC ENG(RLV) (B) ID=8.4 OD=26	9-09164-808-0	01	1	9112-	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	01	1	9112-9504	●	●
48	PLUG; DRAIN,AXLE CASE MANUAL LOCKING HUB(ED2) M20X10.5	9-09662-005-0	01	1	9505-	●	●
48	PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY(7EX) M20X10.5	9-09662-005-0	02	1	9505-	●	●
49	GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9112-	●	●
135	NUT; BREATHER 6VD1 DOHC ENG(RLV) M8 FLANGE	0-91150-108-0	02	1	9112-	●	●
136	STUD; BREATHER 6VD1 DOHC ENG(RLV) M8X12,M8X30 L=50	8-97032-290-0	01	1	9112-	●	●

142 141 23 140 142 142 99 143 45 145 147 19 149 99 163 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (F)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC) (D)	8-94161-321-1	01	1	9112-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (B) L=250	5-09707-030-0	02	1	9505-9505	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (B) L=200	8-94464-835-0	02	1	9506-	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (A) ID=8 & 4.8	8-94430-297-0	01	1	9505-9505	●	●
140	VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9505-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97101-861-2	01	1	9505-9510	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9511-	●	●
143	PIPE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX)	8-97131-126-0	01	1	9505-9508	●	●
143	PIPE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9509-	●	●
145	HOSE; VAC TANK SHIFT ON THE FLY(7EX) L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9505-	●	●
146	HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97131-141-0	01	1	9505-9608	●	●
146	HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97164-608-0	01	1	9609-	●	●
147	TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-2	01	1	9505-	●	●
149	CAP; RUBBER 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) ID=4	8-94217-809-0	01	1	9505-	●	●
163	VALVE; CHECK 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97024-129-2	01	1	9606-	●	●

45 38 45 135 141 135 130 45 47 136 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9709	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9710-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (F)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC) (D)	8-94161-321-1	01	1	9112-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
47	WASHER; CLIP 6VD1 DOHC ENG(RLV) (A) ID=8.4 OD=18	9-09160-608-0	01	1	9112-	●	●
47	WASHER; CLIP 6VD1 DOHC ENG(RLV) (B) ID=8.4 OD=26	9-09164-808-0	01	1	9112-	●	●
130	FILTER; OIL,FRT AXLE SHIFT ON THE FLY(7EX)	8-97101-779-0	01	1	9505-	●	●
135	NUT; BREATHER 6VD1 DOHC ENG(RLV) M8 FLANGE	0-91150-108-0	02	1	9112-	●	●
136	STUD; BREATHER 6VD1 DOHC ENG(RLV) M8X12,M8X30 L=50	8-97032-290-0	01	1	9112-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●

141 23 140 142 142 45 45 45 45 143 45 145 147 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (F)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC) (D)	8-94161-321-1	01	1	9112-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 DOHC ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (E) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
140	VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9505-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97101-861-2	01	1	9505-9510	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9511-	●	●
143	PIPE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX)	8-97131-126-0	01	1	9505-9508	●	●
143	PIPE; VACUUM 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9509-	●	●
145	HOSE; VAC TANK SHIFT ON THE FLY(7EX) L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9505-	●	●
147	TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-2	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
