4-11 — FRONT HUB AND DRUM OR ROTOR (#166916) — 24 parça

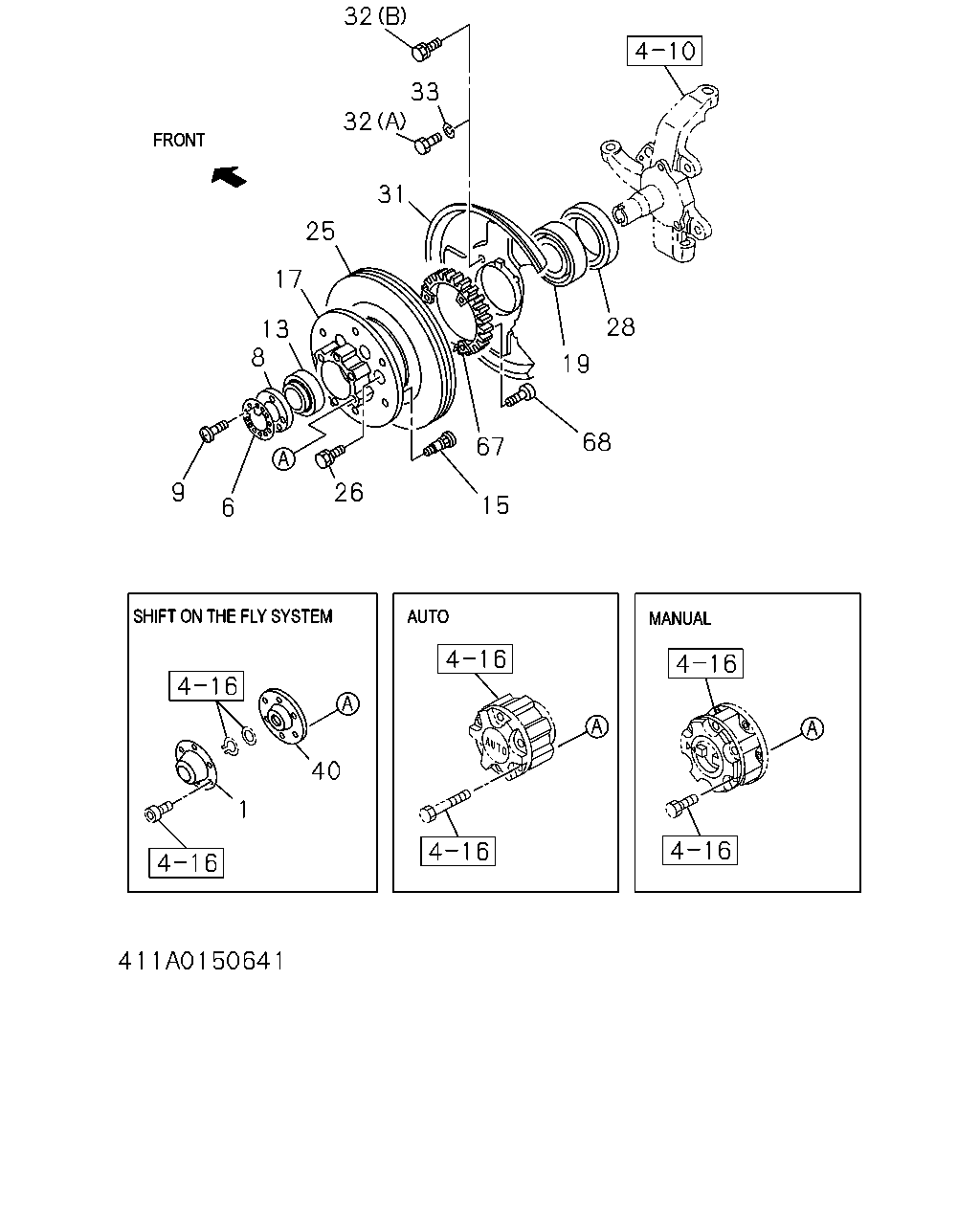

çizim 493851
32 33 32 31 25 17 13 8 9 6 26 15 67 68 19 28 1 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
SHIFT ON THE FLY(7EX) 		8-94173-314-1 02 1 9505- ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 9112- ● ●
8 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 9112- ● ●
9 SCREW; ADJ,NUT
M4X8 CK-HEAD 		9-93090-408-0 06 1 9112- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94227-041-0 02 1 9112- ● ●
13 BEARING; HUB OUTER,FRT AXLE
TIMKEN 		8-97118-306-0 02 1 9501- ● ●
15 PIN; WHEEL,FRT AXLE 8-94223-200-0 12 1 9112- ● ●
17 HUB; FRT AXLE 8-94381-084-2 02 1 9112- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		8-94258-819-0 02 1 9112- ● ●
19 BEARING; HUB INNER,FRT AXLE
TIMKEN 		8-97118-307-0 02 1 9501- ● ●
25 ROTOR; DISC BRK,FRT
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94375-416-4 02 1 9112- ● ●
25 ROTOR; DISC BRK,FRT
EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94375-533-3 02 1 9112-9307 ● ●
25 ROTOR; DISC BRK,FRT
EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94375-533-4 02 1 9308- ● ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 9112- ● ●
28 SEAL; OIL,FRT HUB 8-94407-711-0 02 1 9112- ● ●
31 COVER; DUST,FRT BRAKE 8-94375-418-0 01 1 9112- ● ●
31 COVER; DUST,FRT BRAKE 8-94375-417-0 01 1 9112- ● ●
32 BOLT; DUST COVER TO KNUCKLE
(A) M8X10 		9-02040-810-0 06 1 9112-9204 ● ●
32 BOLT; DUST COVER TO KNUCKLE
(A) M8X10 		0-20800-810-0 06 1 9205-9411 ● ●
32 BOLT; DUST COVER TO KNUCKLE
(B) M8X10 W/LK WASHER 		8-97025-916-0 06 1 9412- ● ●
33 WASHER; LK,DRUM COVER
ID=8.2 		9-09150-508-0 06 1 9112-9411 ● ●
40 FLANGE; FRT WHEEL HUB
SHIFT ON THE FLY(7EX) 		8-94173-313-0 02 1 9505- ● ●
67 ROTOR; SENSOR
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97018-425-1 02 1 9112- ● ●
68 BOLT; SENSOR ROTOR
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8X16 		9-05820-816-0 06 1 9112- ● ●
