◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#166915) — 68 parça

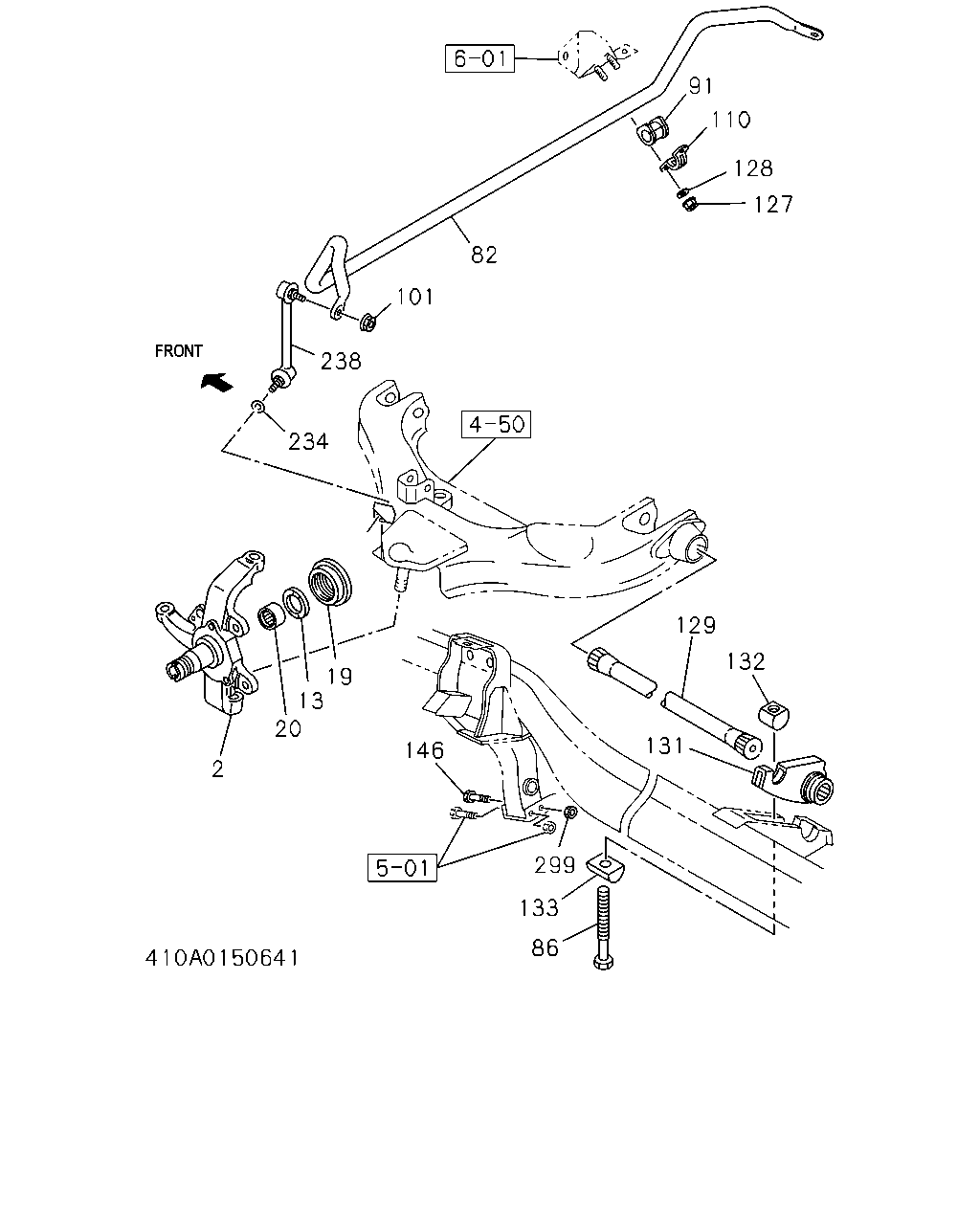

çizim 494348
91 110 128 127 82 101 238 234 19 13 20 2 146 129 132 131 299 133 86
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94374-414-0 01 1 9112-9604 ● ●
2 KNUCKLE; FRT AXLE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97104-465-0 01 1 9605- ● ●
2 KNUCKLE; FRT AXLE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94374-413-0 01 1 9112-9604 ● ●
2 KNUCKLE; FRT AXLE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97104-464-0 01 1 9605- ● ●
2 KNUCKLE; FRT AXLE
EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94374-642-0 01 1 9112-9604 ● ●
2 KNUCKLE; FRT AXLE
EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97104-467-0 01 1 9605- ● ●
2 KNUCKLE; FRT AXLE
EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-94374-641-0 01 1 9112-9604 ● ●
2 KNUCKLE; FRT AXLE
EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97104-466-0 01 1 9605- ● ●
13 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 9112- ● ●
19 SEAL; OIL,KNUCKLE 8-94407-725-1 02 1 9112-9501 ● ●
19 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 9502- ● ●
20 BEARING; KNUCKLE 8-94407-708-0 02 1 9112- ● ●
82 BAR; STAB,FRT SUSP
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97024-485-1 01 1 9112-9504 ●
82 BAR; STAB,FRT SUSP
GRADE IRMSHER (RBQ) 		8-97024-485-1 01 1 9112-9504 ●
82 BAR; STAB,FRT SUSP 8-97070-318-0 01 1 9505- ●
82 BAR; STAB,FRT SUSP
GRADE XS(RBB),GRADE IRMSHER (RBQ) 		8-97070-318-0 01 1 9505- ●
82 BAR; STAB,FRT SUSP
GRADE BASIC OR LS(RBA) 		8-94374-434-1 01 1 9112-9504 ● ●
82 BAR; STAB,FRT SUSP
GRADE BASIC OR LS(RBA) 		8-94374-434-1 01 1 9505- ●
82 BAR; STAB,FRT SUSP
GRADE LOTUS/LOTUS SE(RBL) 		8-97039-328-1 01 1 9112- ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 9112- ● ●
91 BUSHING; RUBBER,STAB BAR
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97039-518-0 02 1 9112-9504 ●
91 BUSHING; RUBBER,STAB BAR
GRADE IRMSHER (RBQ) 		8-97039-518-0 02 1 9112-9504 ●
91 BUSHING; RUBBER,STAB BAR 8-97070-359-0 02 1 9505- ●
91 BUSHING; RUBBER,STAB BAR
GRADE XS(RBB),GRADE IRMSHER (RBQ) 		8-97070-359-0 02 1 9505- ●
91 BUSHING; RUBBER,STAB BAR
GRADE BASIC OR LS(RBA) 		8-97036-342-0 02 1 9112-9504 ● ●
91 BUSHING; RUBBER,STAB BAR
GRADE BASIC OR LS(RBA) 		8-97036-342-0 02 1 9505- ●
91 BUSHING; RUBBER,STAB BAR
GRADE LOTUS/LOTUS SE(RBL) 		8-97024-698-0 02 1 9112- ●
101 NUT; STAB BAR 8-97035-383-0 04 1 9112- ● ●
110 CLAMP; STAB TO ROD
ID=36 		8-97032-869-0 02 1 9112- ● ●
127 NUT; CLAMP
M8 		9-09110-508-0 04 1 9112- ● ●
128 WASHER; LK,CLAMP
ID=8.2 		9-09150-808-0 04 1 9112- ● ●
129 BAR; TORSION,FRT SUSP
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97039-312-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
GRADE XS(RBB) 		8-97039-312-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97039-311-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
GRADE XS(RBB) 		8-97039-311-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
GRADE BASIC OR LS(RBA) 		8-94374-437-0 01 1 9112-9504 ● ●
129 BAR; TORSION,FRT SUSP
GRADE BASIC OR LS(RBA) 		8-94374-439-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
GRADE BASIC OR LS(RBA) 		8-94374-436-0 01 1 9112-9504 ● ●
129 BAR; TORSION,FRT SUSP
GRADE BASIC OR LS(RBA) 		8-94374-438-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
4JG2 ENG(RJC) GRADE LOTUS/LOTUS SE(RBL) 		8-97047-734-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
4JG2 ENG(RJC) GRADE LOTUS/LOTUS SE(RBL) 		8-97047-734-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
GRADE XS(RBB),GRADE IRMSHER (RBQ) 		8-97047-734-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
4JG2 ENG(RJC) GRADE LOTUS/LOTUS SE(RBL) 		8-97047-733-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
4JG2 ENG(RJC) GRADE LOTUS/LOTUS SE(RBL) 		8-97047-733-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
GRADE XS(RBB),GRADE IRMSHER (RBQ) 		8-97047-733-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL) 		8-97043-868-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
GRADE IRMSHER (RBQ) 		8-97043-868-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97043-868-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL) 		8-97043-868-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL) 		8-97043-867-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
GRADE IRMSHER (RBQ) 		8-97043-867-0 01 1 9112-9504 ●
129 BAR; TORSION,FRT SUSP
GRADE RS(RBF),GRADE IRMSHER (RBQ) 		8-97043-867-0 01 1 9505- ●
129 BAR; TORSION,FRT SUSP
6VD1 DOHC ENG(RLV) GRADE LOTUS/LOTUS SE(RBL) 		8-97043-867-0 01 1 9505- ●
131 ARM; HEIGHT CONT 8-94368-633-1 02 1 9112-9307 ● ●
131 ARM; HEIGHT CONT 8-97093-571-1 02 1 9308- ● ●
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 9112- ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 9112- ● ●
146 BOLT; SUPPORT
M10X83 FLANGE 		8-97805-841-0 02 1 9112- ● ●
234 WASHER; STAB 8-97049-475-0 02 1 9112- ● ●
238 ROD LINK ASM; STABILIZER,FRT 8-97018-228-2 01 1 9112- ● ●
238 ROD LINK ASM; STABILIZER,FRT 8-97018-227-2 01 1 9112- ● ●
299 NUT; SUPPORT BAR
M10 FLANGE 		8-94383-595-0 02 1 9112- ● ●
çizim 494349
138 142 142 138
BalonParca AdiParca NoAdetTipApplied Date A B
138 PROTECTOR; FUEL TANK 8-97049-704-2 01 1 9112-9409 ● ●
138 PROTECTOR; FUEL TANK 8-97049-703-4 01 1 9112-9409 ● ●
142 BOLT; FUEL TANK PROTECTOR
(A) M6X16 		0-51200-616-0 01 1 9112-9204 ● ●
142 BOLT; FUEL TANK PROTECTOR
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9409 ● ●
142 BOLT; FUEL TANK PROTECTOR
(B) M8X16 		0-51200-816-0 03 1 9112-9204 ● ●
142 BOLT; FUEL TANK PROTECTOR
(B) M8X16 W/LK&PL WASHER 		0-51240-816-0 03 1 9205-9409 ● ●
