Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#166914) — 224 parça

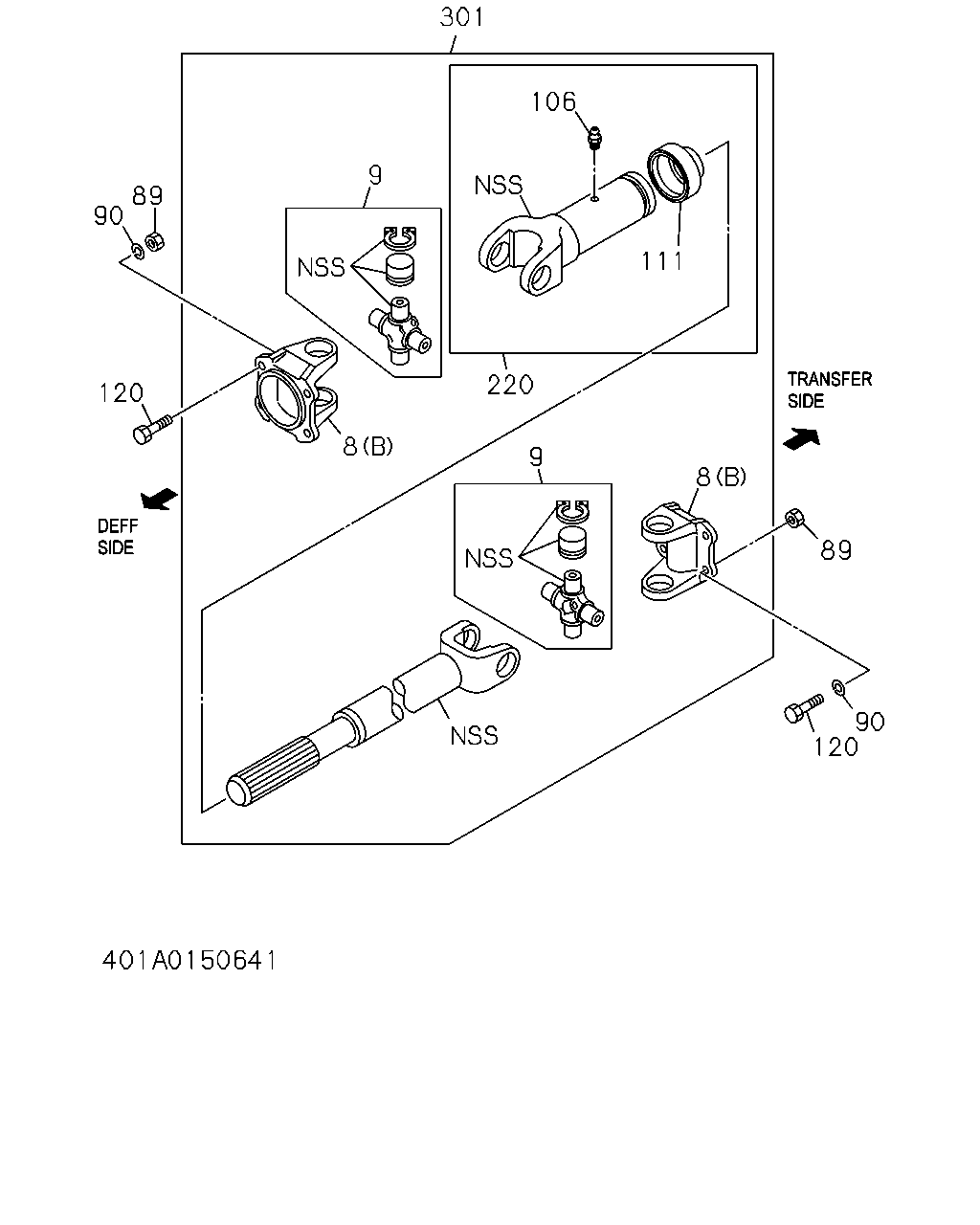

301 106 111 8 9 89 90 120 220 8 9 89 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (C) FRONT	8-97020-310-0	01	1	9505-	●
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-94381-615-1	02	1	9112-9305	●	●
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-97087-078-0	02	1	9306-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) FRONT	8-97020-310-0	02	1	9112-9504	●	●
8	YOKE; FLANGE,PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> (B) FRONT	8-97020-310-0	02	1	9505-	●	●
9	JOURNAL ASM; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97071-812-1	01	1	9505-9702	●
9	JOURNAL ASM; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97167-317-0	01	1	9703-	●
9	JOURNAL ASM; PROP SHAFT FRONT	8-97071-811-0	02	1	9112-9409	●	●
9	JOURNAL ASM; PROP SHAFT FRONT	8-97080-897-0	02	1	9410-9504	●	●
9	JOURNAL ASM; PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97080-897-1	02	1	9505-9705	●	●
9	JOURNAL ASM; PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97029-526-1	02	1	9706-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97071-812-1	02	1	9112-9705	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97180-697-0	02	1	9706-	●	●
89	NUT; YOKE TO RR AXLE FRONT&REAR M10	8-94159-009-0	12	1	9112-9504	●	●
89	NUT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10	8-94159-009-1	08	1	9505-	●	●
89	NUT; YOKE TO RR AXLE FRONT&REAR M10	8-94159-009-1	04	1	9505-	●	●
89	NUT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10	8-94159-009-1	04	1	9505-	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	12	1	9112-9504	●	●
90	WASHER; LK,YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT ID=10.2	9-09150-610-0	08	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT FRONT M6 STRAIGHT	9-09031-006-0	01	1	9112-9504	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M6 STRAIGHT	9-09031-006-0	01	1	9505-	●	●
111	RING; SLEEVE FRONT	8-97020-597-1	01	1	9112-9504	●	●
111	RING; SLEEVE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97020-597-1	01	1	9505-	●	●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	12	1	9112-9504	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10X27	8-94146-552-2	08	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	08	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	04	1	9711-	●	●
220	YOKE; SPLINED	8-97020-307-0	01	1	9112-9305	●	●
220	YOKE; SPLINED L=177	8-97049-301-1	01	1	9306-9504	●	●
220	YOKE; SPLINED EXC. VARIABLE TORQUE SPRIT<7HA> L=177	8-97049-301-1	01	1	9505-	●	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA>	8-97110-729-0	01	1	9505-9702	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA> L=681	8-97178-935-0	01	1	9703-	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) L=606	8-94376-302-5	01	1	9112-9504	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> L=606	8-94376-302-5	01	1	9505-9705	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> L=606	8-97180-426-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=396	8-94376-304-4	01	1	9112-9705	●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=396	8-97180-425-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA> L=592	8-97110-728-0	01	1	9505-		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) L=536	8-94376-301-4	01	1	9112-9504		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> L=536	8-94376-301-4	01	1	9505-9705		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> L=631	8-97180-423-0	01	1	9706-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN)	8-94376-303-4	01	1	9112-9705		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=404	8-97180-424-0	01	1	9706-		●

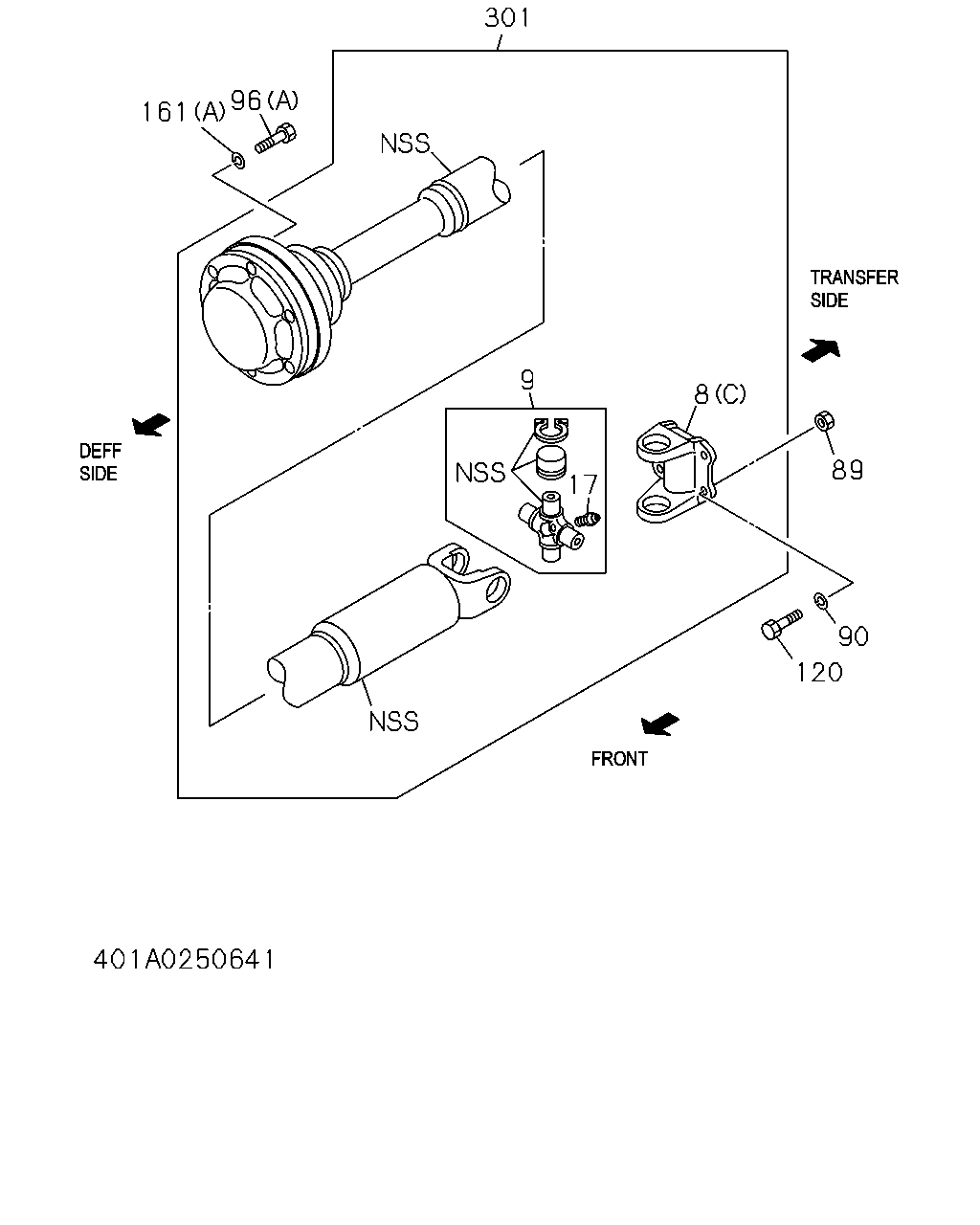

301 96 161 9 17 8 89 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (C) FRONT	8-97020-310-0	01	1	9505-	●
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-94381-615-1	02	1	9112-9305	●	●
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-97087-078-0	02	1	9306-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) FRONT	8-97020-310-0	02	1	9112-9504	●	●
8	YOKE; FLANGE,PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> (B) FRONT	8-97020-310-0	02	1	9505-	●	●
9	JOURNAL ASM; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97071-812-1	01	1	9505-9702	●
9	JOURNAL ASM; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97167-317-0	01	1	9703-	●
9	JOURNAL ASM; PROP SHAFT FRONT	8-97071-811-0	02	1	9112-9409	●	●
9	JOURNAL ASM; PROP SHAFT FRONT	8-97080-897-0	02	1	9410-9504	●	●
9	JOURNAL ASM; PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97080-897-1	02	1	9505-9705	●	●
9	JOURNAL ASM; PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97029-526-1	02	1	9706-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97071-812-1	02	1	9112-9705	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97180-697-0	02	1	9706-	●	●
17	NIPPLE; GREASE,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M6 STRAIGHT	9-09031-006-0	03	1	9505-	●
17	NIPPLE; GREASE,PROP SHAFT REAR	8-94310-818-0	02	1	9112-9403	●	●
17	NIPPLE; GREASE,PROP SHAFT SHORT(UB***C) REAR	8-94310-818-0	02	1	9404-9501	●	●
17	NIPPLE; GREASE,PROP SHAFT LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) REAR	8-94310-818-0	02	1	9404-9501	●	●
17	NIPPLE; GREASE,PROP SHAFT LONG(UB***F) M/T MUA 5 SPEED(RMN) REAR M6 STRAIGHT	9-09031-006-0	02	1	9404-9501	●	●
17	NIPPLE; GREASE,PROP SHAFT REAR M6 STRAIGHT	9-09031-006-0	02	1	9502-9504	●	●
17	NIPPLE; GREASE,PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> REAR M6 STRAIGHT	9-09031-006-0	02	1	9505-	●
17	NIPPLE; GREASE,PROP SHAFT REAR M6 STRAIGHT	9-09031-006-0	02	1	9505-		●
89	NUT; YOKE TO RR AXLE FRONT&REAR M10	8-94159-009-0	12	1	9112-9504	●	●
89	NUT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10	8-94159-009-1	08	1	9505-	●	●
89	NUT; YOKE TO RR AXLE FRONT&REAR M10	8-94159-009-1	04	1	9505-	●	●
89	NUT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10	8-94159-009-1	04	1	9505-	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	12	1	9112-9504	●	●
90	WASHER; LK,YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT ID=10.2	9-09150-610-0	08	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
96	BOLT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (A) FRONT	8-97110-727-0	06	1	9505-	●	●
96	BOLT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (B) FRONT M10X27	8-94146-552-2	06	1	9505-9710		●
96	BOLT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (B) FRONT M10X29	8-97168-458-1	06	1	9711-		●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	12	1	9112-9504	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10X27	8-94146-552-2	08	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	08	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	04	1	9711-	●	●
161	WASHER; LK,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (A) FRONT	8-97110-850-0	03	1	9505-	●	●
161	WASHER; LK,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (B) FRONT ID=10.2	9-09150-610-0	06	1	9505-		●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA>	8-97110-729-0	01	1	9505-9702	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA> L=681	8-97178-935-0	01	1	9703-	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) L=606	8-94376-302-5	01	1	9112-9504	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> L=606	8-94376-302-5	01	1	9505-9705	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> L=606	8-97180-426-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=396	8-94376-304-4	01	1	9112-9705	●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=396	8-97180-425-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA> L=592	8-97110-728-0	01	1	9505-		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) L=536	8-94376-301-4	01	1	9112-9504		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> L=536	8-94376-301-4	01	1	9505-9705		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> L=631	8-97180-423-0	01	1	9706-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN)	8-94376-303-4	01	1	9112-9705		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=404	8-97180-424-0	01	1	9706-		●

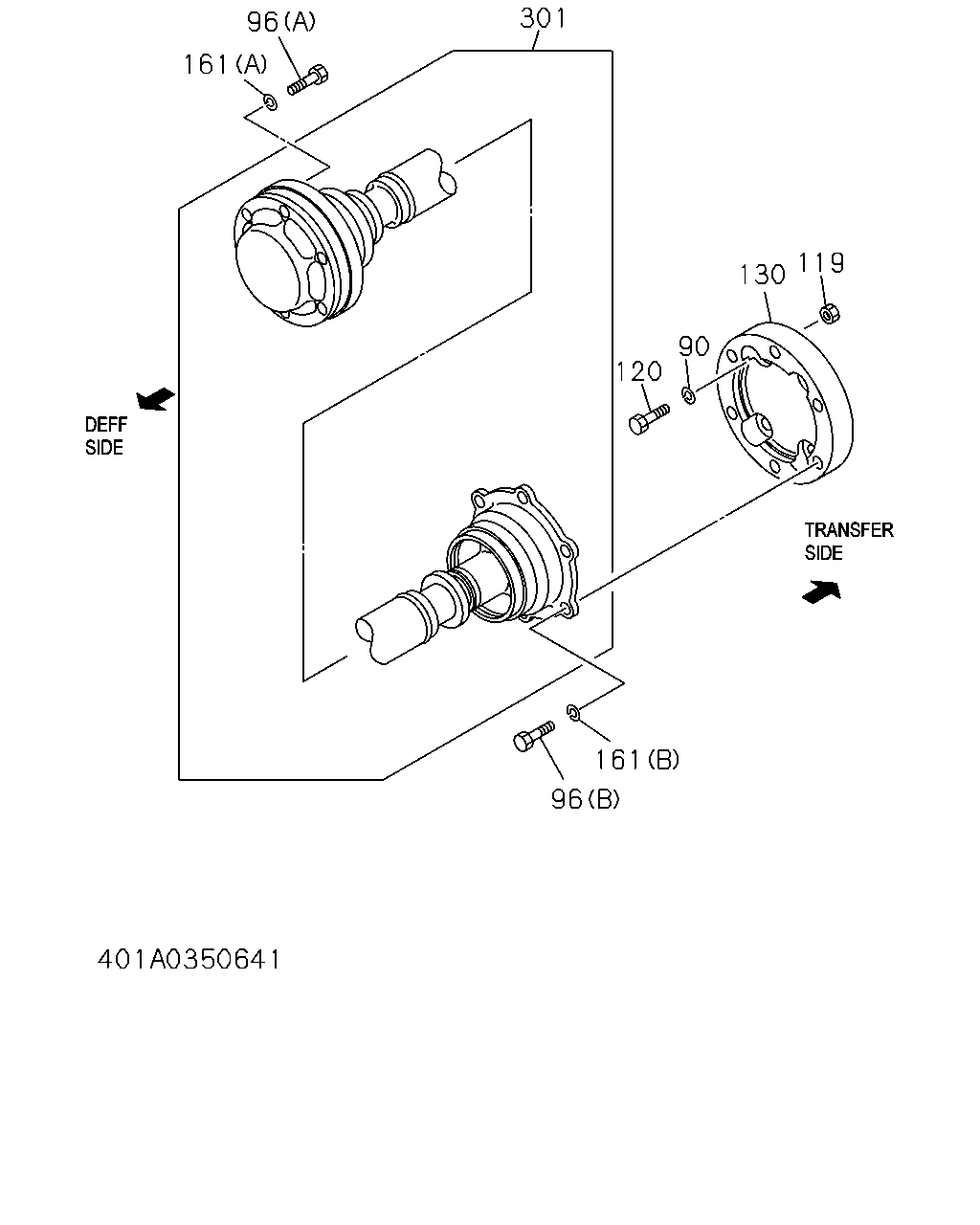

96 161 301 120 90 130 119 161 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	12	1	9112-9504	●	●
90	WASHER; LK,YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT ID=10.2	9-09150-610-0	08	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
96	BOLT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (A) FRONT	8-97110-727-0	06	1	9505-	●	●
96	BOLT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (B) FRONT M10X27	8-94146-552-2	06	1	9505-9710		●
96	BOLT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (B) FRONT M10X29	8-97168-458-1	06	1	9711-		●
119	NUT; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT M10	8-94159-009-1	04	1	9505-		●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	12	1	9112-9504	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10X27	8-94146-552-2	08	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	08	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	04	1	9711-	●	●
130	ADAPTER; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97115-029-0	01	1	9505-		●
161	WASHER; LK,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (A) FRONT	8-97110-850-0	03	1	9505-	●	●
161	WASHER; LK,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (B) FRONT ID=10.2	9-09150-610-0	06	1	9505-		●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA>	8-97110-729-0	01	1	9505-9702	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA> L=681	8-97178-935-0	01	1	9703-	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) L=606	8-94376-302-5	01	1	9112-9504	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> L=606	8-94376-302-5	01	1	9505-9705	●
301	SHAFT ASM; PROP,FRT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> L=606	8-97180-426-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=396	8-94376-304-4	01	1	9112-9705	●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=396	8-97180-425-0	01	1	9706-	●
301	SHAFT ASM; PROP,FRT VARIABLE TORQUE SPRIT<7HA> L=592	8-97110-728-0	01	1	9505-		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) L=536	8-94376-301-4	01	1	9112-9504		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> L=536	8-94376-301-4	01	1	9505-9705		●
301	SHAFT ASM; PROP,FRT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> L=631	8-97180-423-0	01	1	9706-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN)	8-94376-303-4	01	1	9112-9705		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED(RMN) L=404	8-97180-424-0	01	1	9706-		●

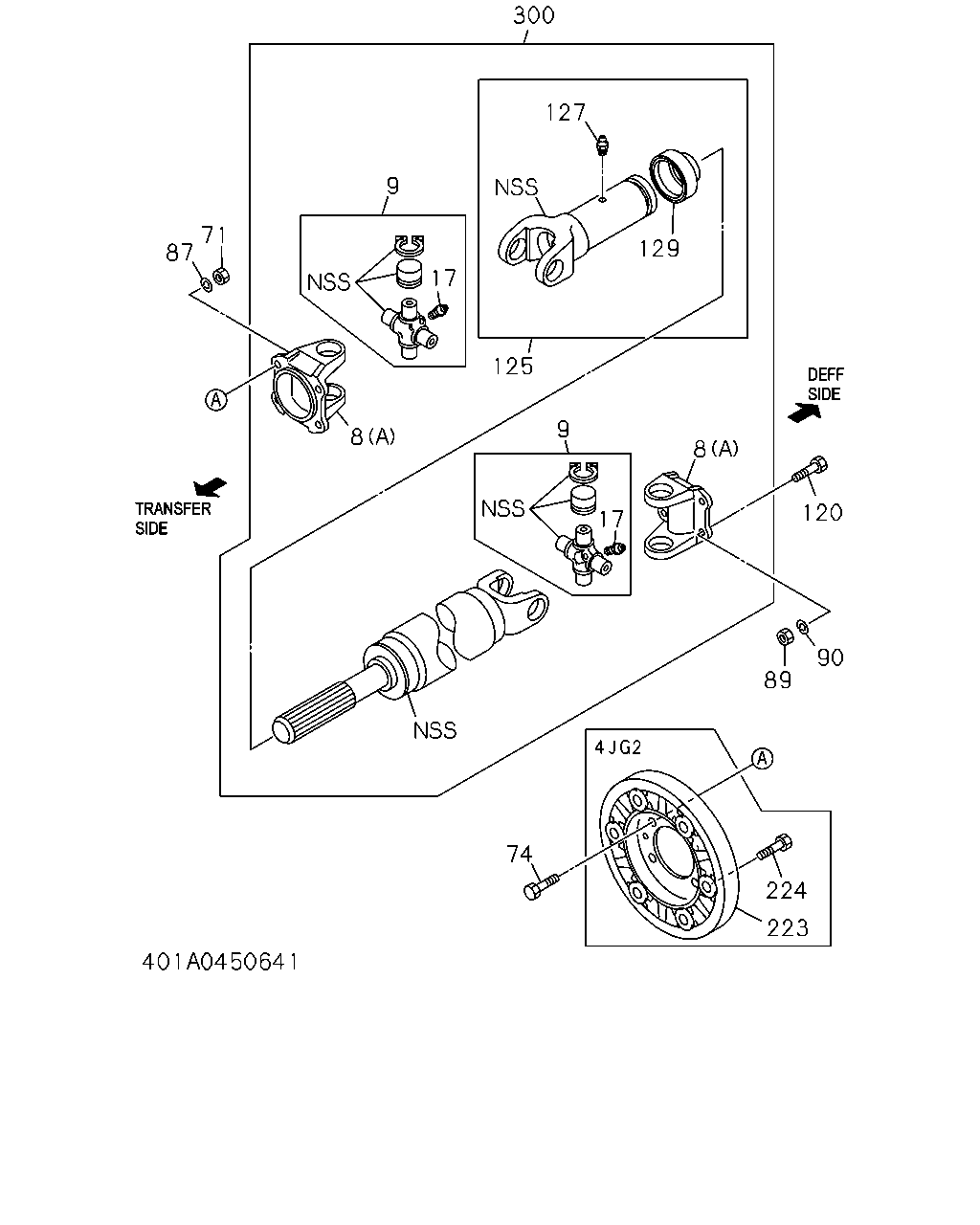

300 127 129 9 17 125 9 8 17 120 90 89 224 223 74 8 71 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> (C) FRONT	8-97020-310-0	01	1	9505-	●
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-94381-615-1	02	1	9112-9305	●	●
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-97087-078-0	02	1	9306-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) FRONT	8-97020-310-0	02	1	9112-9504	●	●
8	YOKE; FLANGE,PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> (B) FRONT	8-97020-310-0	02	1	9505-	●	●
9	JOURNAL ASM; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97071-812-1	01	1	9505-9702	●
9	JOURNAL ASM; PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT	8-97167-317-0	01	1	9703-	●
9	JOURNAL ASM; PROP SHAFT FRONT	8-97071-811-0	02	1	9112-9409	●	●
9	JOURNAL ASM; PROP SHAFT FRONT	8-97080-897-0	02	1	9410-9504	●	●
9	JOURNAL ASM; PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97080-897-1	02	1	9505-9705	●	●
9	JOURNAL ASM; PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> FRONT	8-97029-526-1	02	1	9706-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97071-812-1	02	1	9112-9705	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-97180-697-0	02	1	9706-	●	●
17	NIPPLE; GREASE,PROP SHAFT VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M6 STRAIGHT	9-09031-006-0	03	1	9505-	●
17	NIPPLE; GREASE,PROP SHAFT REAR	8-94310-818-0	02	1	9112-9403	●	●
17	NIPPLE; GREASE,PROP SHAFT SHORT(UB***C) REAR	8-94310-818-0	02	1	9404-9501	●	●
17	NIPPLE; GREASE,PROP SHAFT LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) REAR	8-94310-818-0	02	1	9404-9501	●	●
17	NIPPLE; GREASE,PROP SHAFT LONG(UB***F) M/T MUA 5 SPEED(RMN) REAR M6 STRAIGHT	9-09031-006-0	02	1	9404-9501	●	●
17	NIPPLE; GREASE,PROP SHAFT REAR M6 STRAIGHT	9-09031-006-0	02	1	9502-9504	●	●
17	NIPPLE; GREASE,PROP SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> REAR M6 STRAIGHT	9-09031-006-0	02	1	9505-	●
17	NIPPLE; GREASE,PROP SHAFT REAR M6 STRAIGHT	9-09031-006-0	02	1	9505-		●
71	NUT; YOKE REAR M10	8-94159-009-1	04	1	9112-	●	●
74	BOLT; YOKE,TRANS A/T AISIN(RMD) REAR M10X27	8-94146-552-2	04	1	9112-9710	●
74	BOLT; YOKE,TRANS REAR M10X27	8-94146-552-2	04	1	9112-9710		●
74	BOLT; YOKE,TRANS A/T AISIN(RMD) M10X29	8-97168-458-1	04	1	9711-	●
74	BOLT; YOKE,TRANS M10X29	8-97168-458-1	04	1	9711-		●
74	BOLT; YOKE,TRANS M/T MUA 5 SPEED(RMN) REAR M10X32	8-94146-551-2	04	1	9112-	●
87	WASHER; LK,1ST PROP TO 2ND PROP REAR ID=10.2	9-09150-610-0	04	1	9112-	●	●
89	NUT; YOKE TO RR AXLE FRONT&REAR M10	8-94159-009-0	12	1	9112-9504	●	●
89	NUT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10	8-94159-009-1	08	1	9505-	●	●
89	NUT; YOKE TO RR AXLE FRONT&REAR M10	8-94159-009-1	04	1	9505-	●	●
89	NUT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10	8-94159-009-1	04	1	9505-	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	12	1	9112-9504	●	●
90	WASHER; LK,YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT ID=10.2	9-09150-610-0	08	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
90	WASHER; LK,YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR ID=10.2	9-09150-610-0	04	1	9505-	●	●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	12	1	9112-9504	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> FRONT M10X27	8-94146-552-2	08	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE EXC. VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	08	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> FRONT&REAR M10X27	8-94146-552-2	04	1	9505-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-	●	●
120	BOLT; YOKE TO RR AXLE VARIABLE TORQUE SPRIT<7HA> M10X29	8-97168-458-1	04	1	9711-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT REAR	8-97020-307-0	01	1	9112-9305	●	●
125	YOKE ASM; SPLINED,PROP SHAFT REAR L=177	8-97049-301-1	01	1	9306-	●	●
127	NIPPLE; GREASE,SPLINED YOKE REAR M6 STRAIGHT	9-09031-006-0	01	1	9112-	●	●
129	COVER; SPLINED YOKE REAR	8-97020-597-1	01	1	9112-	●	●
223	RING; PROP SHAFT M/T MUA 5 SPEED(RMN) REAR	8-97066-320-0	01	1	9112-9201	●
223	RING; PROP SHAFT M/T MUA 5 SPEED(RMN) REAR	8-97073-945-1	01	1	9202-9206	●
223	RING; PROP SHAFT M/T MUA 5 SPEED(RMN) REAR	8-97083-601-1	01	1	9207-9610	●
223	RING; PROP SHAFT M/T MUA 5 SPEED(RMN) REAR	8-97169-906-0	01	1	9611-	●
224	BOLT; RING M/T MUA 5 SPEED(RMN) REAR M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●
224	BOLT; RING M/T MUA 5 SPEED(RMN) REAR M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-	●
300	SHAFT ASM; PROP,RR VARIABLE TORQUE SPRIT<7HA>	8-97104-209-0	01	1	9505-9705	●
300	SHAFT ASM; PROP,RR VARIABLE TORQUE SPRIT<7HA>	8-97180-976-0	01	1	9706-	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T AISIN(RMD)	8-94376-300-2	01	1	9112-9306	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T AISIN(RMD)	8-97087-072-2	01	1	9307-9307	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T AISIN(RMD)	8-97093-351-1	01	1	9308-9705	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T AISIN(RMD)	8-97180-973-0	01	1	9706-	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97066-321-1	01	1	9112-9306	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97087-074-1	01	1	9307-9307	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97093-352-1	01	1	9308-9705	●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97180-974-0	01	1	9706-	●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T AISIN(RMD)	8-94376-296-2	01	1	9112-9306	●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T AISIN(RMD)	8-97087-068-1	01	1	9307-9307	●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T AISIN(RMD)	8-97093-347-1	01	1	9308-9504	●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97093-347-1	01	1	9505-9705	●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97180-969-0	01	1	9706-	●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97066-324-1	01	1	9112-9307	●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97087-075-2	01	1	9308-9404	●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97113-424-0	01	1	9405-9705	●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97180-980-0	01	1	9706-	●
300	SHAFT ASM; PROP,RR VARIABLE TORQUE SPRIT<7HA>	8-97104-207-0	01	1	9505-9705		●
300	SHAFT ASM; PROP,RR VARIABLE TORQUE SPRIT<7HA>	8-97180-975-0	01	1	9706-		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T THM(RMQ)	8-94376-298-2	01	1	9112-9306		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T THM(RMQ)	8-97087-070-2	01	1	9307-9307		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T THM(RMQ)	8-97093-349-1	01	1	9308-9705		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) A/T THM(RMQ)	8-97180-971-0	01	1	9706-		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-94376-297-2	01	1	9112-9306		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97087-069-2	01	1	9307-9307		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97093-348-1	01	1	9308-9705		●
300	SHAFT ASM; PROP,RR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-97180-970-0	01	1	9706-		●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T THM(RMQ)	8-94376-295-2	01	1	9112-9306		●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T THM(RMQ)	8-97087-067-1	01	1	9307-9307		●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T THM(RMQ)	8-97093-346-1	01	1	9308-9504		●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97093-346-1	01	1	9505-9705		●
300	SHAFT ASM; PROP,RR LONG(UB***F) A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97180-968-0	01	1	9706-		●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-94376-293-2	01	1	9112-9306		●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97087-066-2	01	1	9308-9404		●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97113-422-0	01	1	9405-9705		●
300	SHAFT ASM; PROP,RR LONG(UB***F) M/T MUA 5 SPEED(RMN)	8-97180-978-0	01	1	9706-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
