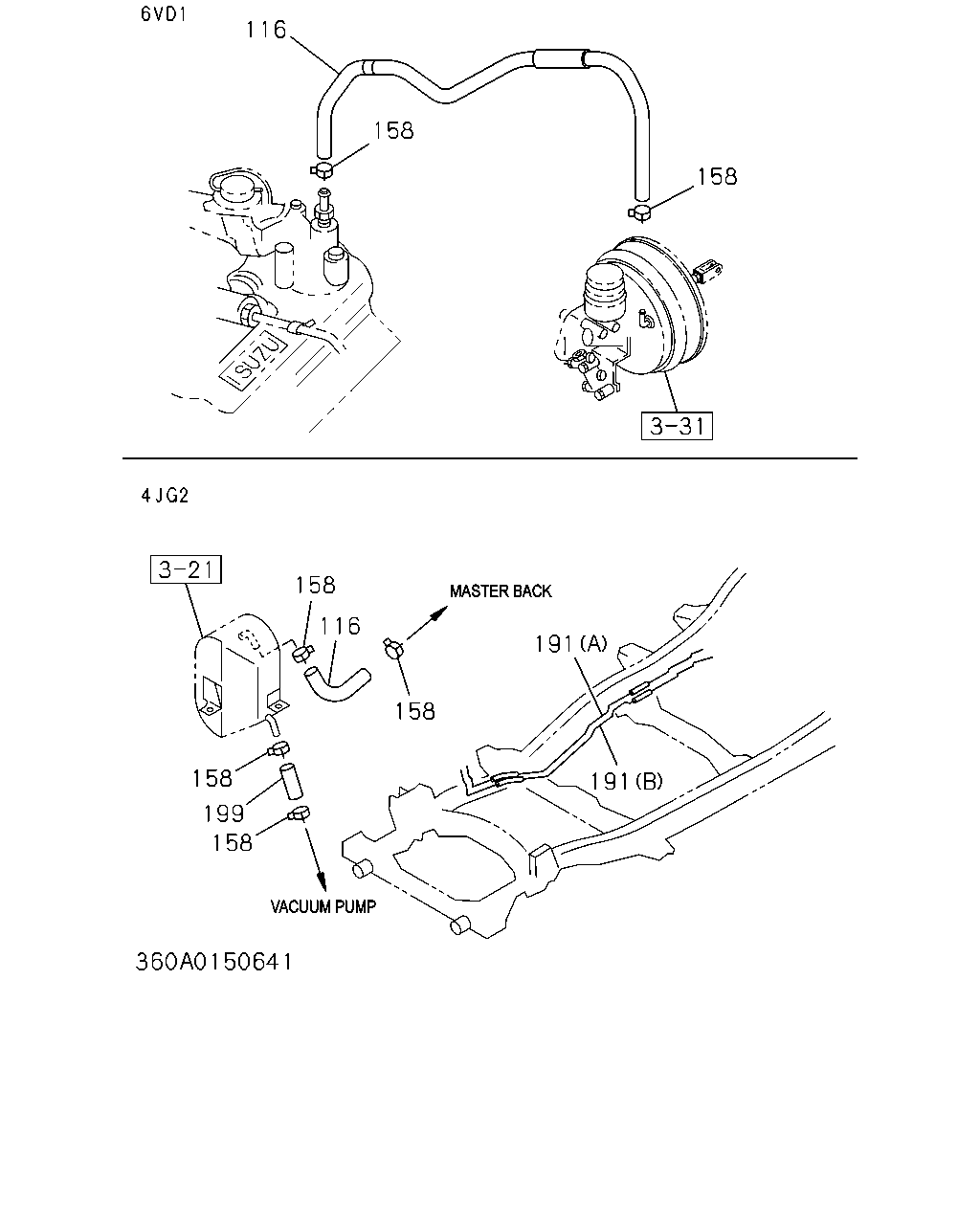

3-60 — BRAKE PIPING; VACUUM (#166913) — 16 parça

116 158 158 158 116 158 191 191 158 199 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	HOSE; VAC,M/VAC 4JG2 ENG(RJC) L=180 SERVICED BY L=1000	0-08358-100-0	01	1	9112-9307	●	●
116	HOSE; VAC,M/VAC 4JG2 ENG(RJC) L=180 SERVICED BY L=3000	0-08358-300-0	01	1	9308-9501	●	●
116	HOSE; VAC,M/VAC 4JG2 ENG(RJC) SERVICED BY L=3000	0-08158-300-0	01	1	9502-9607	●	●
116	HOSE; VAC,M/VAC 4JG2 ENG(RJC)	8-97175-856-1	01	1	9608-	●	●
116	HOSE; VAC,M/VAC 4JG2 ENG(RJC) L=260 SERVICED BY L=3000	0-08358-300-0	01	1	9112-9304	●	●
116	HOSE; VAC,M/VAC 6VD1 DOHC ENG(RLV)	8-97018-372-0	01	1	9112-	●	●
158	CLIP; HOSE 4JG2 ENG(RJC) ID=16	8-94238-568-0	04	1	9112-9704	●	●
158	CLIP; HOSE 4JG2 ENG(RJC) ID=16	8-97173-222-0	04	1	9705-	●	●
158	CLIP; HOSE 6VD1 DOHC ENG(RLV) ID=16	8-94238-568-0	02	1	9112-9704	●	●
158	CLIP; HOSE 6VD1 DOHC ENG(RLV) ID=16	8-97173-222-0	02	1	9705-	●	●
191	PIPE; VAC 4JG2 ENG(RJC) (A)	8-97043-602-1	01	1	9112-9504	●	●
191	PIPE; VAC 4JG2 ENG(RJC) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97109-533-2	01	1	9505-9510	●	●
191	PIPE; VAC 4JG2 ENG(RJC) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97133-271-1	01	1	9511-	●	●
191	PIPE; VAC 4JG2 ENG(RJC) (B)	8-97043-603-1	01	1	9112-9503	●	●
199	HOSE; VAC,VAC TANK TO VAC PUMP 4JG2 ENG(RJC) L=230 SERVICED BY L=3000	0-08358-300-0	01	1	9305-9605	●	●
199	HOSE; VAC,VAC TANK TO VAC PUMP 4JG2 ENG(RJC) L=230 SERVICED BY L=1000	0-08358-100-0	01	1	9606-	●	●
