Sayfa 3-58 - Isuzu EPC

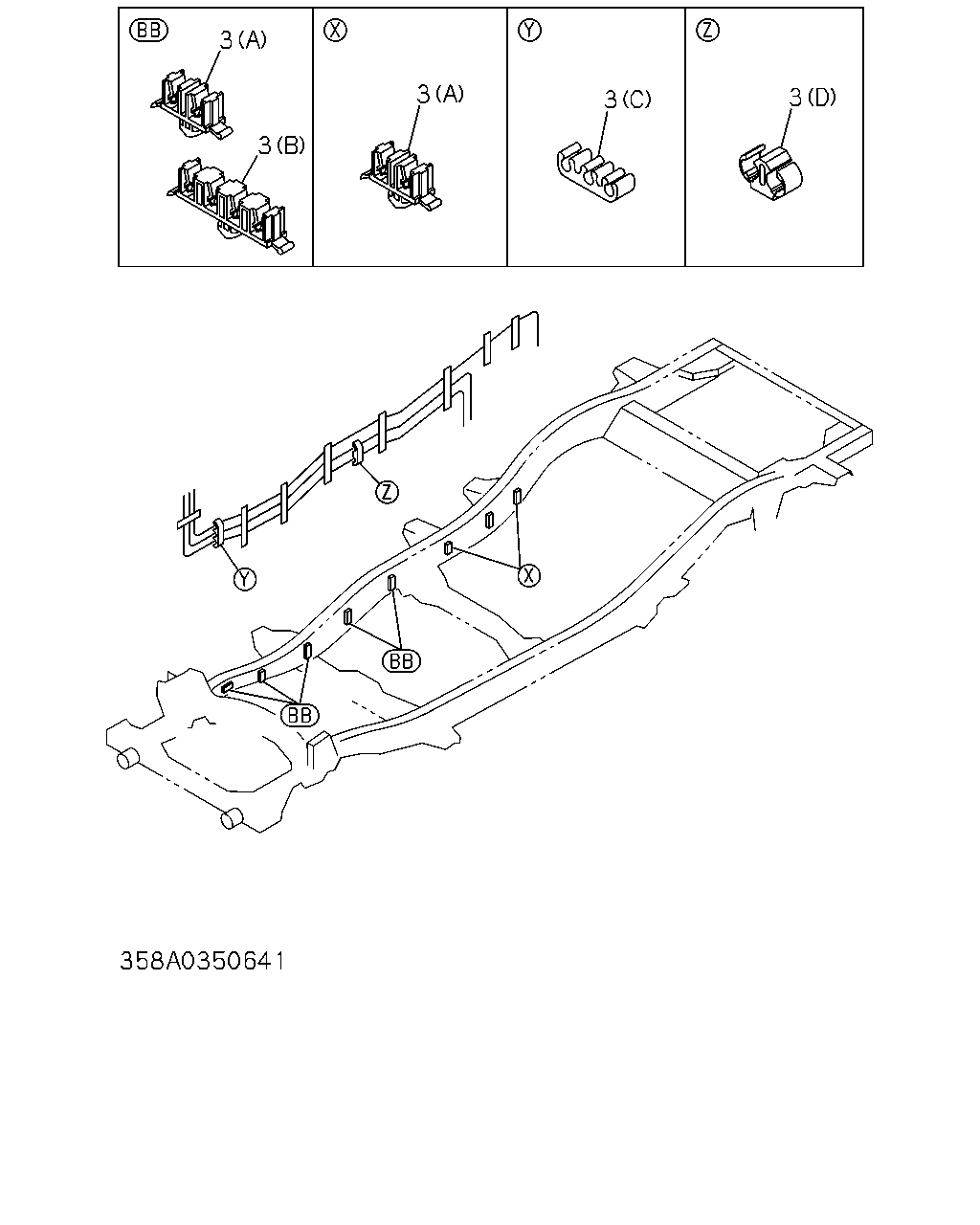

3 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; BRK PIPE (A)	8-94326-752-0	01	1	9112-	●
3	CLIP; BRK PIPE 6VD1 DOHC ENG(RLV) (A)	8-94326-752-0	01	1	9112-		●
3	CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.76X3	8-94122-333-0	01	1	9112-9504	●	●
3	CLIP; BRK PIPE 4JG2 ENG(RJC) (D) ID=6.35 & 6.35	8-94474-113-0	01	1	9112-9503	●	●
3	CLIP; BRK PIPE 4JG2 ENG(RJC) (B)	8-97043-724-0	05	1	9112-9504	●	●
3	CLIP; BRK PIPE 4JG2 ENG(RJC) (A)	8-94326-752-0	05	1	9505-	●	●
3	CLIP; BRK PIPE 4JG2 ENG(RJC) (A)	8-94326-752-0	02	1	9112-		●

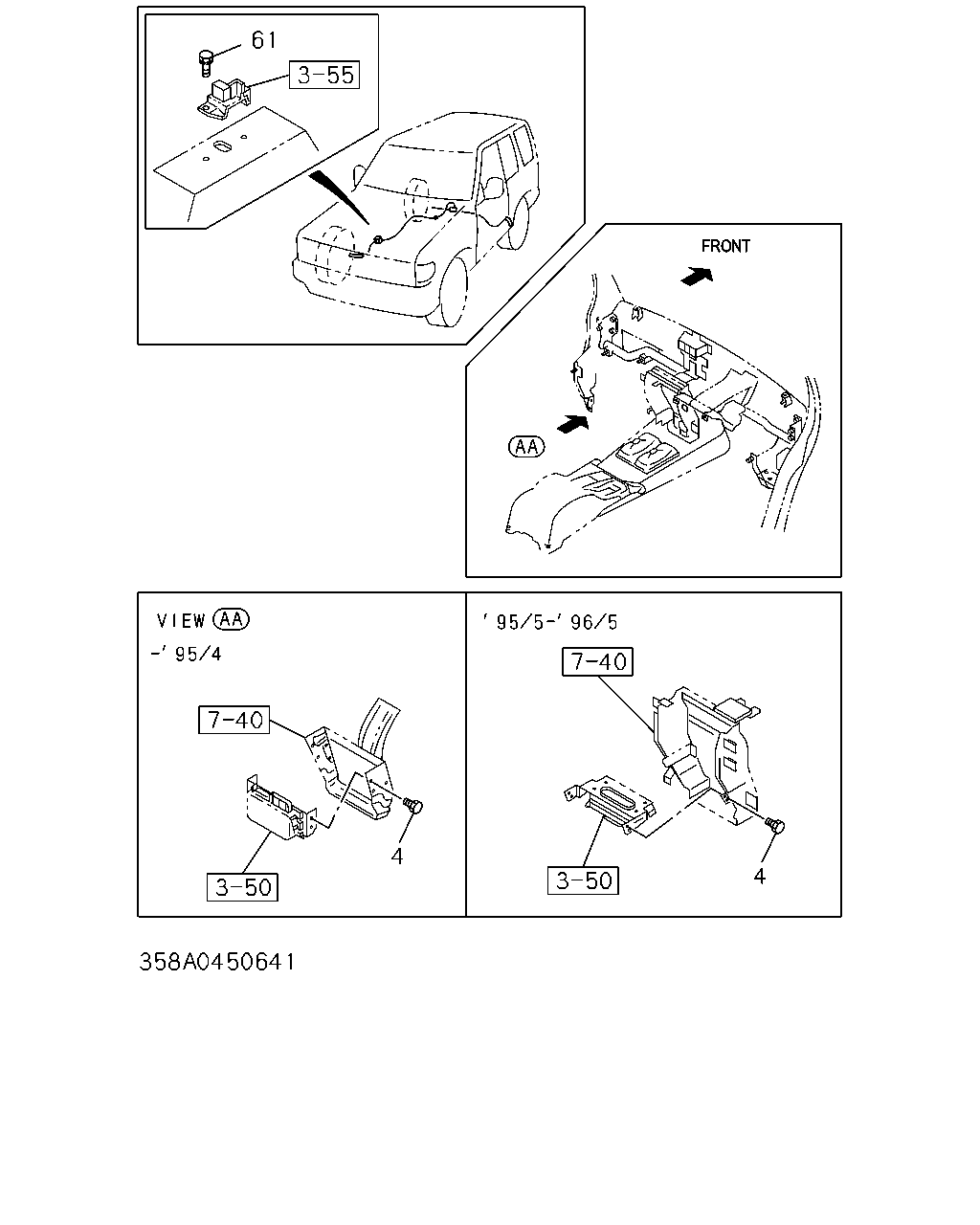

61 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6X14 W/LK&PL WASHER	8-97086-822-0	04	1	9505-9605	●	●
61	BOLT; BRK PIPE M6X16 W/LK WASHER	9-01900-616-0	02	1	9112-9204	●	●
61	BOLT; BRK PIPE M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-	●	●

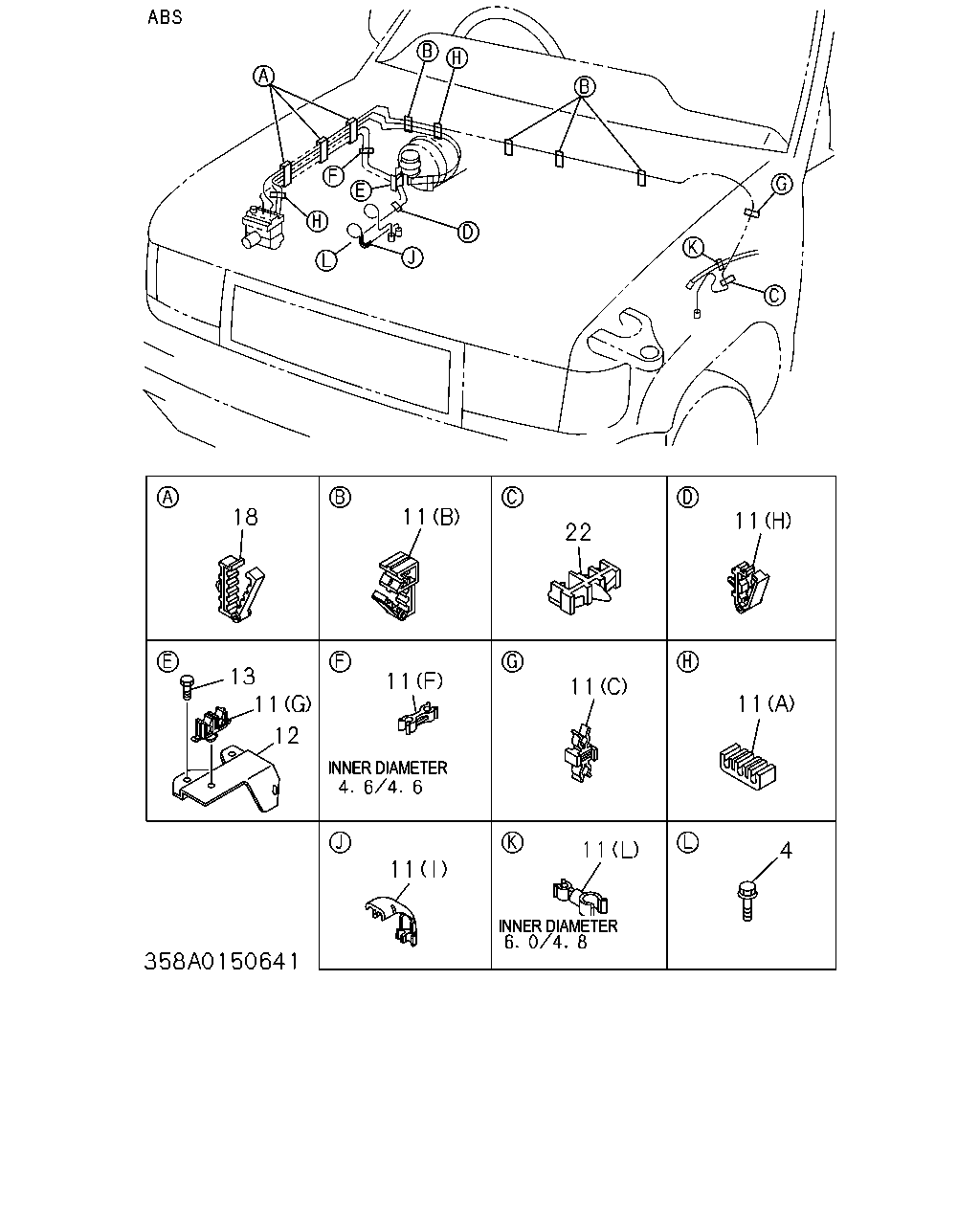

11 11 4 11 11 22 11 11 11 12 11 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6X14 W/LK&PL WASHER	8-97086-822-0	04	1	9505-9605	●	●
11	CLIP; OIL PIPE (F) ID=4.6X2	8-94241-454-0	01	1	9112-	●	●
11	CLIP; OIL PIPE (G)	8-94435-553-0	01	1	9112-	●	●
11	CLIP; OIL PIPE (H)	8-97035-570-3	01	1	9112-	●	●
11	CLIP; OIL PIPE (I)	8-97069-554-1	01	1	9112-	●	●
11	CLIP; OIL PIPE EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (J)	8-94107-743-0	01	1	9112-	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	02	1	9112-9208	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9112-9208	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (A) ID=4.76X3	8-94122-333-0	01	1	9112-9208	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	02	1	9209-9402	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9403-9510	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) (A) ID=4.76X3	8-94122-333-0	01	1	9403-9510	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9511-	●	●
11	CLIP; OIL PIPE EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9511-	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97037-992-2	04	1	9112-9311	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97037-992-2	04	1	9312-9504	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) HONDA BRAND PACKAGE<7EP> (B)	8-97037-992-2	04	1	9312-9504		●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) (B)	8-97037-992-3	04	1	9505-	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (D)	8-94338-104-0	01	1	9112-9407	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (E) H=9.5	8-94375-291-0	04	1	9112-9504	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9209-9402	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (A) ID=4.76X3	8-94122-333-0	01	1	9209-9402	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9112-9402	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9403-9504	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) HONDA BRAND PACKAGE<7EP> (C) ID=6 & 4.8	8-94313-325-0	01	1	9403-9504		●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9505-9510	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9511-	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (C) ID=6 & 4.8	8-94313-325-0	01	1	9511-	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (L) ID=4.8 & 10	8-94152-110-0	01	1	9112-9201	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97037-992-3	05	1	9112-	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (E) H=9.5	8-94375-291-0	05	1	9112-	●	●
12	BRACKET; OIL PIPE	8-97038-830-3	01	1	9112-	●	●
13	BOLT; BRKT,OIL PIPE M6X12 W/LK WASHER	9-01900-612-0	02	1	9112-9204	●	●
13	BOLT; BRKT,OIL PIPE M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-9310	●	●
13	BOLT; BRKT,OIL PIPE 4JG2 ENG(RJC) M6X12 W/LK WASHER	0-50040-612-0	02	1	9311-	●	●
13	BOLT; BRKT,OIL PIPE 6VD1 DOHC ENG(RLV) M6X12 W/LK WASHER	0-50040-612-0	01	1	9311-	●	●
18	CLIP; BRK PIPE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97062-177-1	03	1	9112-	●	●
22	CLIP; PIPE TO FRAME	8-94442-883-1	01	1	9112-	●	●

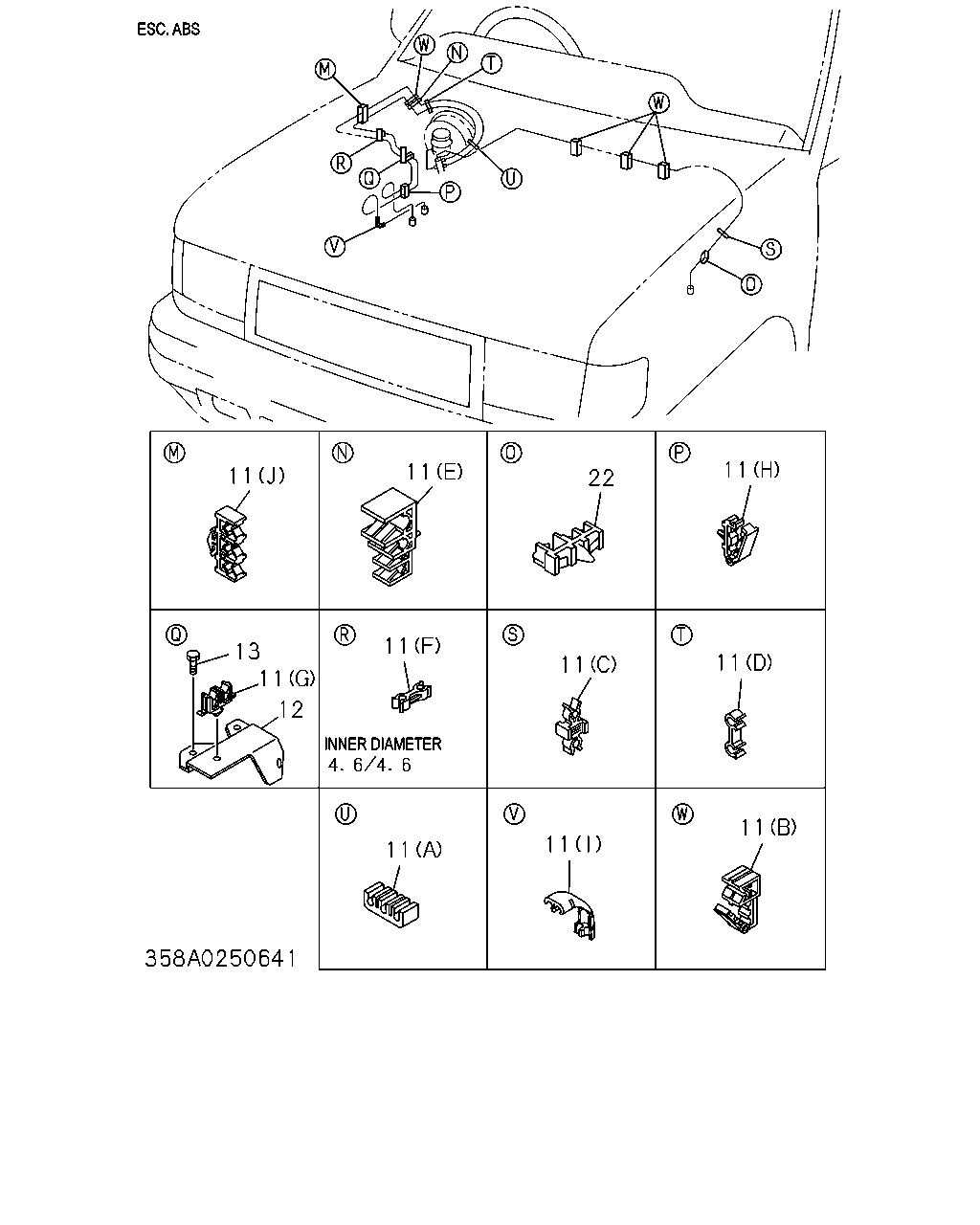

11 11 22 11 11 11 11 13 11 12 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; OIL PIPE (F) ID=4.6X2	8-94241-454-0	01	1	9112-	●	●
11	CLIP; OIL PIPE (G)	8-94435-553-0	01	1	9112-	●	●
11	CLIP; OIL PIPE (H)	8-97035-570-3	01	1	9112-	●	●
11	CLIP; OIL PIPE (I)	8-97069-554-1	01	1	9112-	●	●
11	CLIP; OIL PIPE EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (J)	8-94107-743-0	01	1	9112-	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	02	1	9112-9208	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9112-9208	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (A) ID=4.76X3	8-94122-333-0	01	1	9112-9208	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	02	1	9209-9402	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9403-9510	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) (A) ID=4.76X3	8-94122-333-0	01	1	9403-9510	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9511-	●	●
11	CLIP; OIL PIPE EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9511-	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97037-992-2	04	1	9112-9311	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97037-992-2	04	1	9312-9504	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) HONDA BRAND PACKAGE<7EP> (B)	8-97037-992-2	04	1	9312-9504		●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) (B)	8-97037-992-3	04	1	9505-	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (D)	8-94338-104-0	01	1	9112-9407	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (E) H=9.5	8-94375-291-0	04	1	9112-9504	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) ID=4.76X3	8-94122-333-0	01	1	9209-9402	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (A) ID=4.76X3	8-94122-333-0	01	1	9209-9402	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9112-9402	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9403-9504	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) HONDA BRAND PACKAGE<7EP> (C) ID=6 & 4.8	8-94313-325-0	01	1	9403-9504		●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9505-9510	●	●
11	CLIP; OIL PIPE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) ID=6 & 4.8	8-94313-325-0	01	1	9511-	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) (C) ID=6 & 4.8	8-94313-325-0	01	1	9511-	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (L) ID=4.8 & 10	8-94152-110-0	01	1	9112-9201	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97037-992-3	05	1	9112-	●	●
11	CLIP; OIL PIPE 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (E) H=9.5	8-94375-291-0	05	1	9112-	●	●
12	BRACKET; OIL PIPE	8-97038-830-3	01	1	9112-	●	●
13	BOLT; BRKT,OIL PIPE M6X12 W/LK WASHER	9-01900-612-0	02	1	9112-9204	●	●
13	BOLT; BRKT,OIL PIPE M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-9310	●	●
13	BOLT; BRKT,OIL PIPE 4JG2 ENG(RJC) M6X12 W/LK WASHER	0-50040-612-0	02	1	9311-	●	●
13	BOLT; BRKT,OIL PIPE 6VD1 DOHC ENG(RLV) M6X12 W/LK WASHER	0-50040-612-0	01	1	9311-	●	●
22	CLIP; PIPE TO FRAME	8-94442-883-1	01	1	9112-	●	●
