3-52 — BRAKE PIPING; OIL,FRONT (#166910) — 37 parça

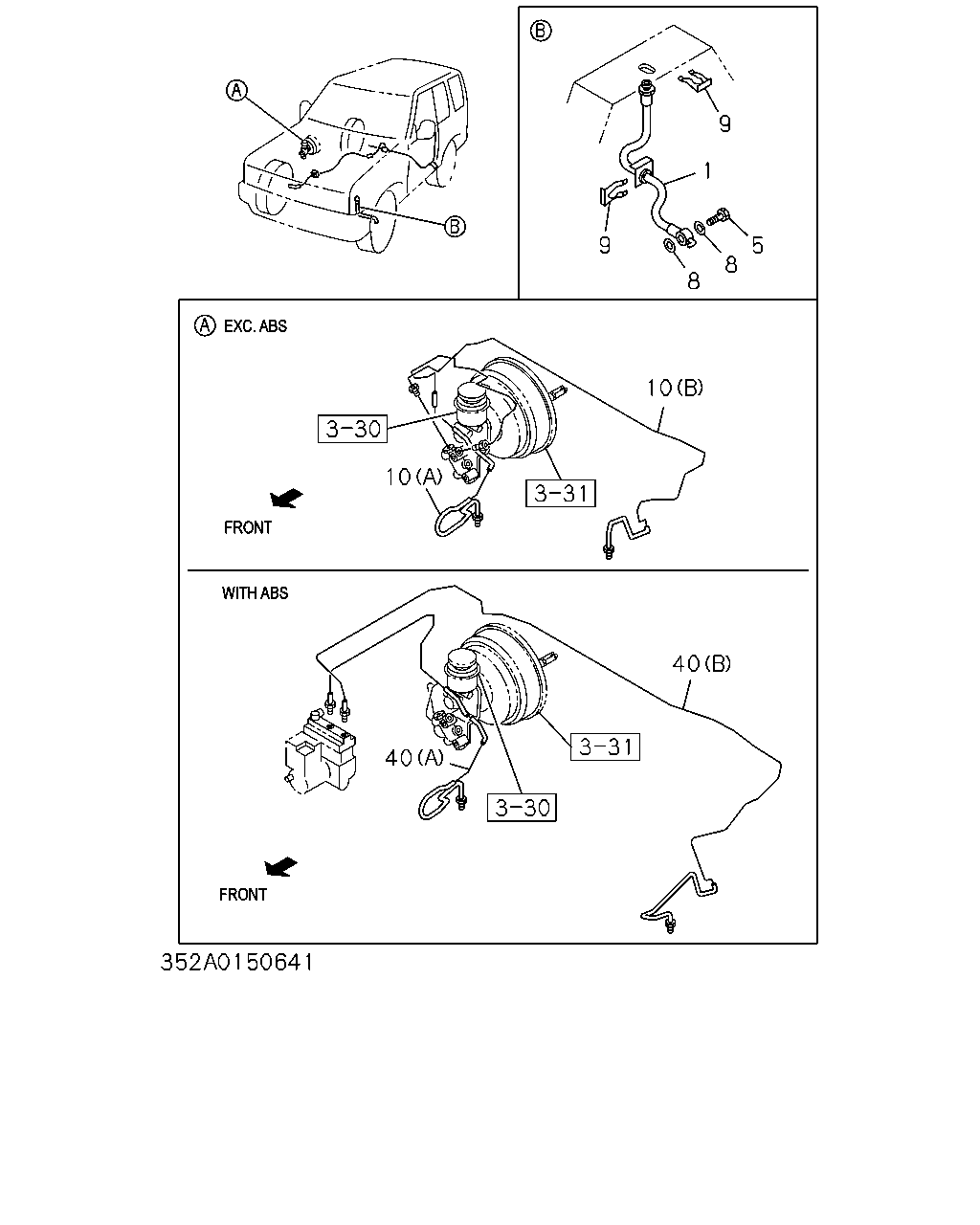

çizim 493473
9 1 9 5 8 8 10 10 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK 8-94385-433-1 02 1 9112-9504 ● ●
1 HOSE; FLEX,FRT BRK
EXC. WIDE TREAD SUSPENSION<7FC> 		8-94385-433-1 02 1 9505- ● ●
1 HOSE; FLEX,FRT BRK
WIDE TREAD SUSPENSION<7FC> 		8-97102-757-0 02 1 9505- ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 04 1 9112- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 08 1 9112- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 07 1 9112- ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97038-466-5 01 1 9112- ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97038-464-4 01 1 9112-9605 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97145-363-2 01 1 9606-9707 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97181-560-2 01 1 9708- ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97038-463-3 01 1 9112-9403 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97110-343-0 01 1 9404-9510 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97108-868-0 01 1 9511-9605 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97160-845-0 01 1 9606-9606 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97160-845-2 01 1 9606-9709 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97184-326-2 01 1 9710- ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97108-869-0 01 1 9511-9605 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97145-364-2 01 1 9606-9707 ● ●
10 PIPE; OIL,VLV TO FRT FLEX HOSE
6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97181-842-0 01 1 9708- ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-94374-823-5 01 1 9112-9504 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97114-461-0 01 1 9505-9605 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97145-357-1 01 1 9606-9707 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) 		8-97181-839-0 01 1 9708- ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97038-459-1 01 1 9112-9208 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97038-459-2 01 1 9209-9605 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97110-182-2 01 1 9606- ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-94374-829-3 01 1 9112-9403 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97108-867-0 01 1 9404-9605 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97160-844-0 01 1 9606-9606 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97110-179-3 01 1 9606-9709 ● ●
40 PIPE; BRK,HYDRAULIC UNIT TO FRT BRK
6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) 		8-97184-445-0 01 1 9710- ● ●

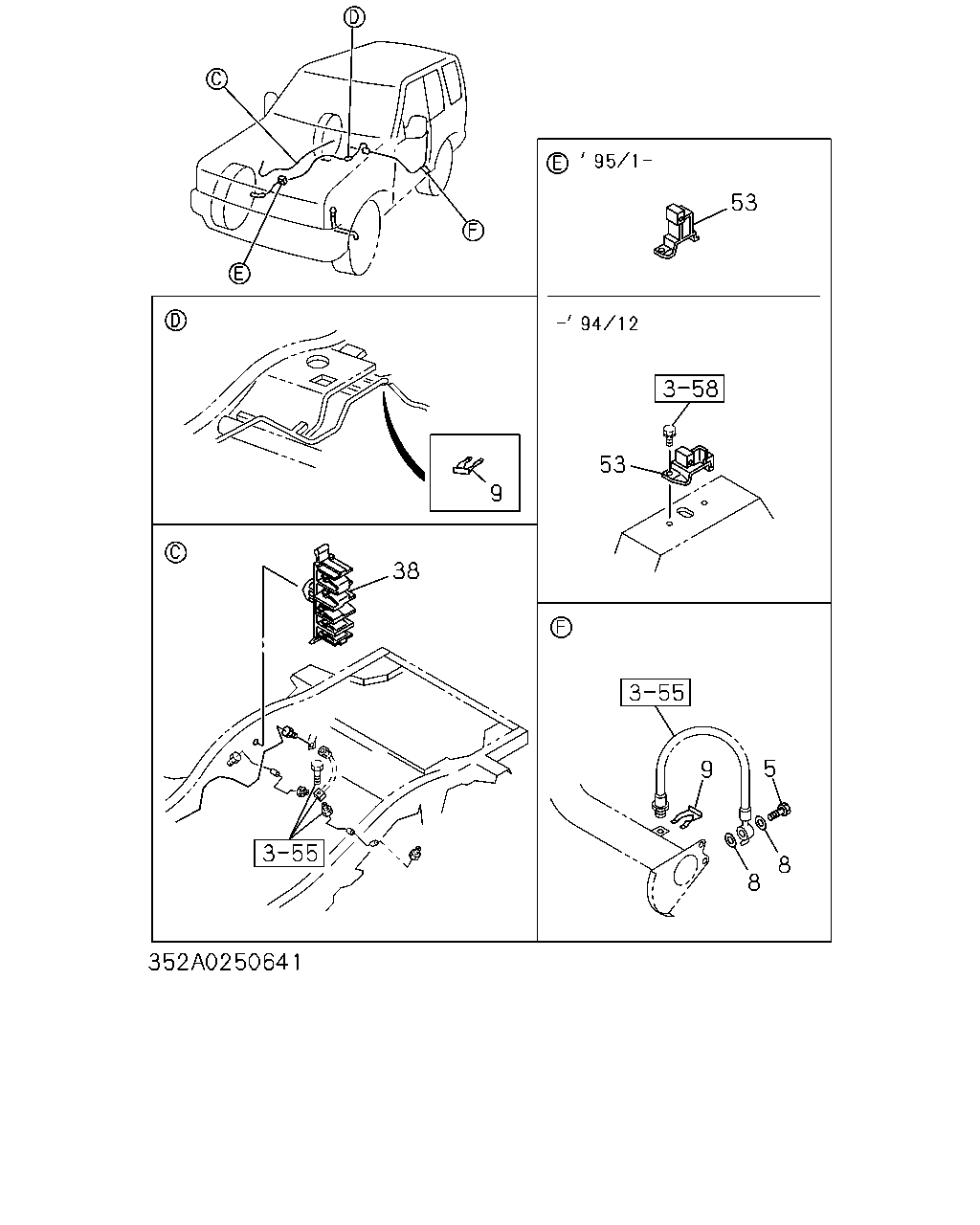

çizim 494023
53 53 9 5 8 8 38 9
BalonParca AdiParca NoAdetTipApplied Date A B
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 04 1 9112- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 08 1 9112- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 07 1 9112- ● ●
38 CLIP
4JG2 ENG(RJC) L=8.9 		8-94435-551-1 01 1 9511- ●
53 CONNECTOR; OIL PIPE 8-94385-273-1 01 1 9112-9412 ● ●
53 CONNECTOR; OIL PIPE 8-97115-928-0 01 1 9501- ● ●
