Sayfa 3-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶

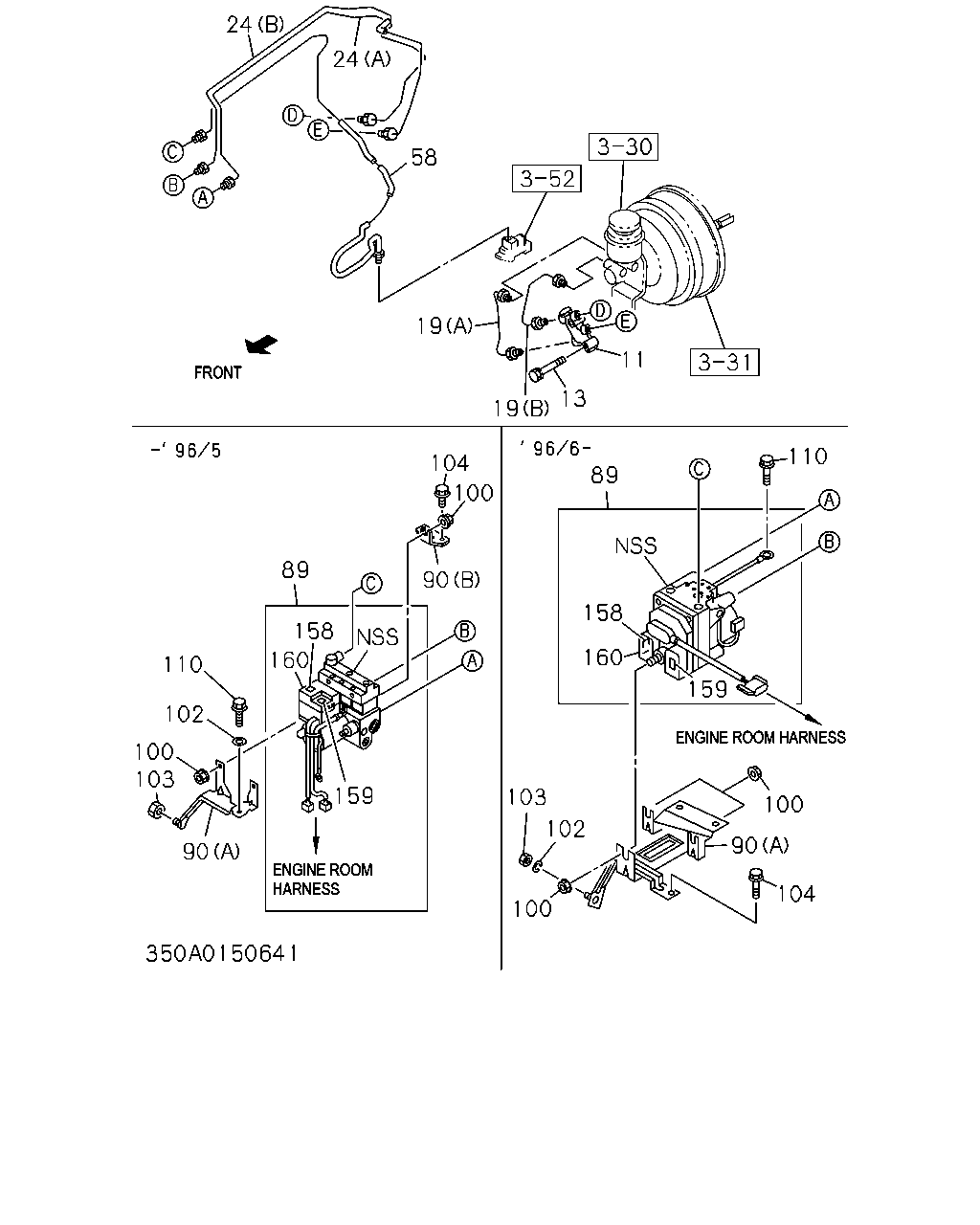

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#166909) — 135 parça

147 107 147 95 147 97 147 96 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

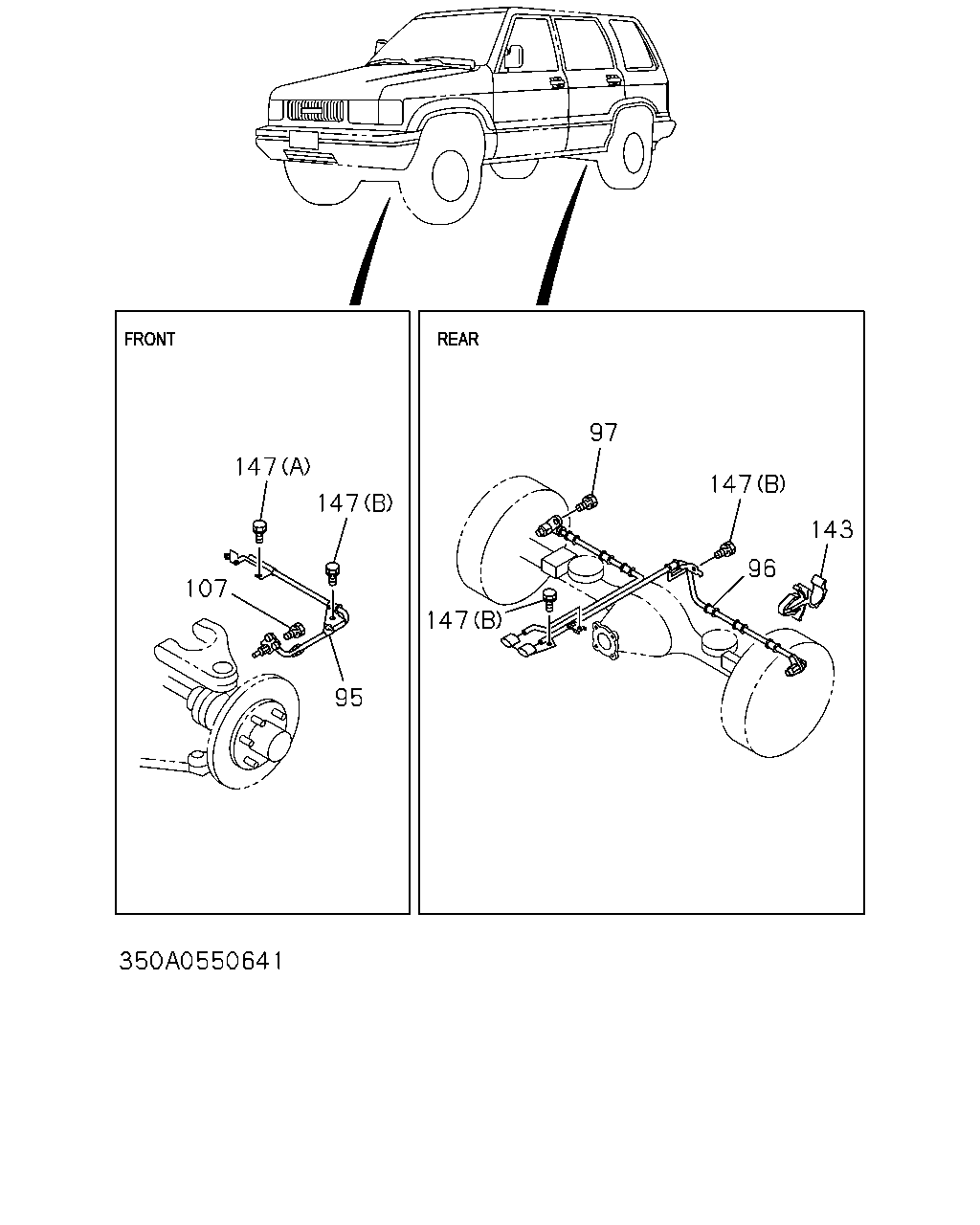

95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94374-858-4	01	1	9112-9504	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-858-5	01	1	9505-9509	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97128-740-0	01	1	9510-9605	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97115-781-1	01	1	9606-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94374-857-4	01	1	9112-9504	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-857-5	01	1	9505-9509	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97128-739-0	01	1	9510-9605	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97115-780-1	01	1	9606-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) WIDE TREAD SUSPENSION<7FC>	8-97103-108-2	01	1	9505-9605	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) WIDE TREAD SUSPENSION<7FC>	8-97132-308-0	01	1	9606-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) WIDE TREAD SUSPENSION<7FC>	8-97103-107-2	01	1	9505-9605	●	●
95	SENSOR; SPD,FRT WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) WIDE TREAD SUSPENSION<7FC>	8-97132-307-0	01	1	9606-	●	●
96	SENSOR; SPD,RR WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94374-860-5	01	1	9112-9504	●	●
96	SENSOR; SPD,RR WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-94374-860-6	01	1	9505-9508	●	●
96	SENSOR; SPD,RR WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. WIDE TREAD SUSPENSION<7FC>	8-97110-577-1	01	1	9509-	●	●
96	SENSOR; SPD,RR WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) WIDE TREAD SUSPENSION<7FC>	8-97103-109-2	01	1	9505-9508	●	●
96	SENSOR; SPD,RR WHEEL ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) WIDE TREAD SUSPENSION<7FC>	8-97110-076-1	01	1	9509-	●	●
97	BOLT; SPD SENSOR TO AXLE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-	●	●
107	BOLT; WHEEL SPD SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6X14 HEX SOCKET	9-05820-614-0	02	1	9112-	●	●
143	CLIP; SPEED SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97069-960-0	02	1	9410-	●	●
147	BOLT; SPEED SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M8X20 FLANGE	0-28480-820-0	05	1	9112-	●	●
147	BOLT; SPEED SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9112-	●	●

24 24 58 19 19 13 11 110 89 158 160 159 104 90 100 89 158 160 110 102 100 103 90 159 103 102 100 100 90 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94376-321-0	01	1	9112-	●	●
11	VALVE; BRK CONT EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94137-648-3	01	1	9112-	●	●
13	BOLT; VLV TO BRKT M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	BOLT; VLV TO BRKT M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-	●	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-94374-817-1	01	1	9112-9510	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) (A)	8-94374-817-3	01	1	9511-	●	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-94374-818-1	01	1	9112-9510	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) (B)	8-94374-818-3	01	1	9511-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 DOHC ENG(RLV) (A)	8-97109-040-1	01	1	9511-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 DOHC ENG(RLV) (B)	8-97109-041-1	01	1	9511-	●	●
24	PIPE; BRK,PROPORTIONING VLV ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-94374-827-2	01	1	9112-9510	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-94374-827-2	01	1	9511-9605	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-97111-478-1	01	1	9606-	●	●
24	PIPE; BRK,PROPORTIONING VLV ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-94374-828-2	01	1	9112-9403	●	●
24	PIPE; BRK,PROPORTIONING VLV ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97112-526-0	01	1	9404-9510	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97112-526-0	01	1	9511-9605	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97111-483-1	01	1	9606-	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) (A)	8-97108-865-0	01	1	9511-9511	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-97108-865-0	01	1	9511-9605	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-97110-177-1	01	1	9606-	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) HONDA BRAND PACKAGE<7EP> (B)	8-97108-866-0	01	1	9401-9403		●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) HONDA BRAND PACKAGE<7EP> (B)	8-97112-528-0	01	1	9404-9510		●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97112-528-0	01	1	9511-9605	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-97110-178-1	01	1	9606-	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94374-824-6	01	1	9112-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97114-460-0	01	1	9505-9605	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97145-358-1	01	1	9606-9707	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97181-840-0	01	1	9708-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94374-855-6	01	1	9112-9605	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97110-058-2	01	1	9606-	●	●
90	BRACKET; HYDRAULIC UNIT,ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-94374-856-1	01	1	9112-9605	●	●
90	BRACKET; HYDRAULIC UNIT,ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A)	8-97110-059-0	01	1	9606-	●	●
90	BRACKET; HYDRAULIC UNIT,ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B)	8-94377-749-0	01	1	9112-9605	●	●
100	NUT; HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8 FLANGE	0-91150-108-0	03	1	9112-	●	●
102	WASHER; PL,HYDRAULIC UNIT BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) ID=8.4 OD=22	9-09160-708-0	01	1	9112-	●	●
103	NUT; HYDRAULIC UNIT BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8 FLANGE	0-91150-108-0	01	1	9112-	●	●
104	BOLT; BRKT TO BODY ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8X14 FLANGE	0-28080-814-0	02	1	9112-9302	●	●
104	BOLT; BRKT TO BODY ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8X16 FLANGE	0-28480-816-0	02	1	9303-	●	●
110	BOLT; HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8X22	8-94122-771-0	01	1	9112-9307	●	●
110	BOLT; HYDRAULIC UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9308-	●	●
158	RELAY; MOTOR,ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-839-0	01	1	9112-9605	●	●
158	RELAY; MOTOR,ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97133-915-0	01	1	9606-	●	●
159	RELAY; VALVE,ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-840-0	01	1	9112-	●	●
160	COVER; RELAY BOX ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-845-0	01	1	9112-9605	●	●
160	COVER; RELAY BOX ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97133-917-0	02	1	9606-	●	●

19 19 13 11 55 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94376-321-0	01	1	9112-	●	●
11	VALVE; BRK CONT EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94137-648-3	01	1	9112-	●	●
13	BOLT; VLV TO BRKT M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	BOLT; VLV TO BRKT M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-	●	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-94374-817-1	01	1	9112-9510	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) (A)	8-94374-817-3	01	1	9511-	●	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-94374-818-1	01	1	9112-9510	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) (B)	8-94374-818-3	01	1	9511-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 DOHC ENG(RLV) (A)	8-97109-040-1	01	1	9511-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 DOHC ENG(RLV) (B)	8-97109-041-1	01	1	9511-	●	●
55	PIPE; BRK,VLV TO UNION EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97038-465-5	01	1	9112-9312	●	●
55	PIPE; BRK,VLV TO UNION EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),HONDA BRANDPACKAGE<7EP>	8-97038-465-5	01	1	9401-9403	●	●
55	PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) HONDA BRAND PACKAGE<7EP> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97038-465-5	01	1	9401-9403		●
55	PIPE; BRK,VLV TO UNION EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),HONDA BRANDPACKAGE<7EP>	8-97112-527-0	01	1	9404-9510	●	●
55	PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) HONDA BRAND PACKAGE<7EP> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97112-527-0	01	1	9404-9510		●
55	PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97112-527-0	01	1	9511-9605	●	●
55	PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97145-360-1	01	1	9606-9707	●	●
55	PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97181-558-2	01	1	9708-	●	●
55	PIPE; BRK,VLV TO UNION 6VD1 DOHC ENG(RLV) HONDA BRAND PACKAGE<7EP> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97108-870-0	01	1	9401-9403		●
55	PIPE; BRK,VLV TO UNION 6VD1 DOHC ENG(RLV) HONDA BRAND PACKAGE<7EP> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97112-529-0	01	1	9404-9510		●
55	PIPE; BRK,VLV TO UNION 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97112-529-0	01	1	9511-9605	●	●
55	PIPE; BRK,VLV TO UNION 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97145-361-1	01	1	9606-9707	●	●
55	PIPE; BRK,VLV TO UNION 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97181-843-0	01	1	9708-	●	●
132	TAPE; SEALING EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) OD=16	8-94111-207-1	02	1	9203-	●	●

129 108 128 99 146 99 128 151 108 129 93 105 105 105 93 94 94 93 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

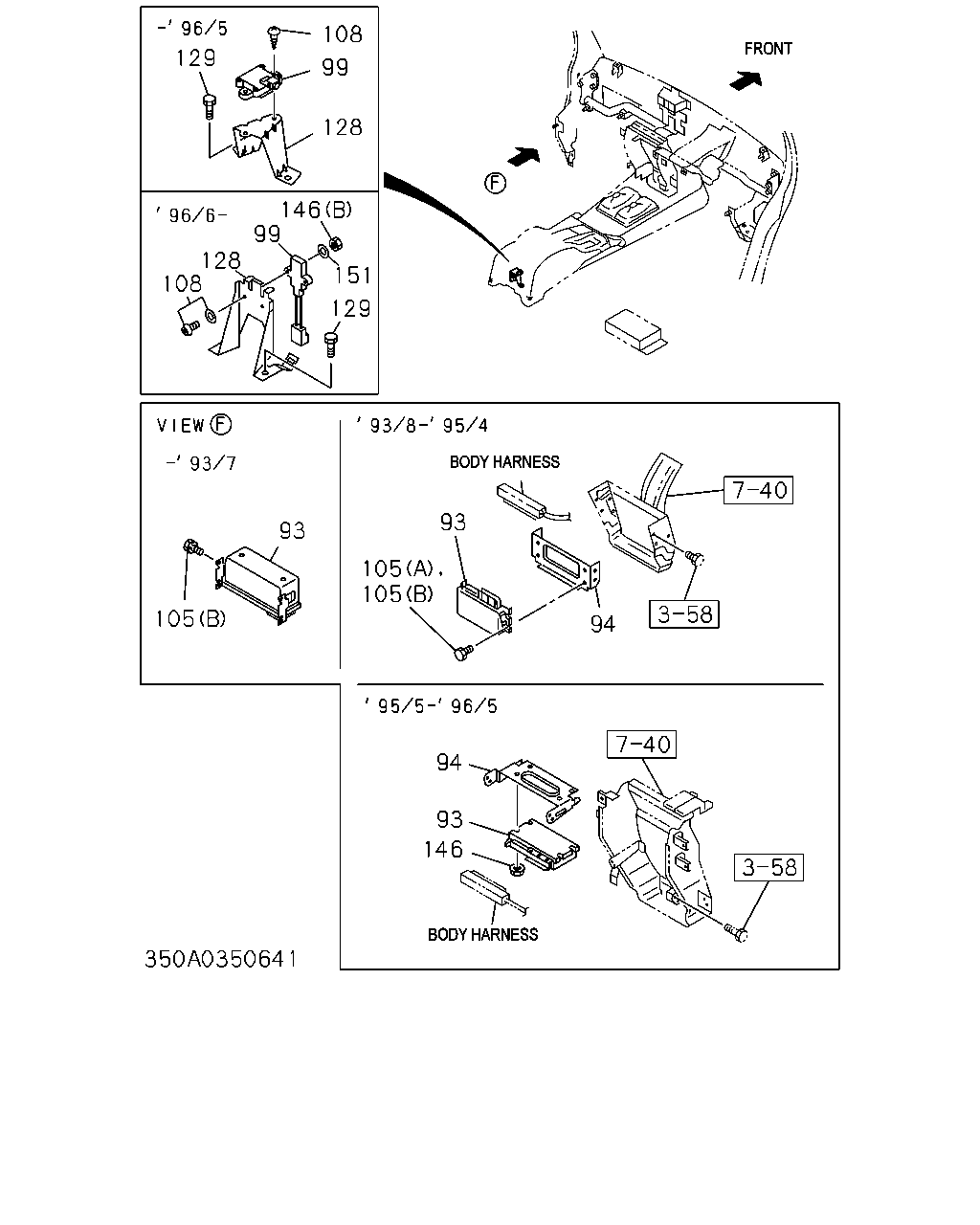

93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97066-414-0	01	1	9112-9307	●	●
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97085-391-0	01	1	9308-9410	●	●
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97114-360-0	01	1	9411-9605	●	●
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-976-2	01	1	9606-	●	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97085-392-1	01	1	9308-9504	●	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97102-615-0	01	1	9505-9605	●	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-979-2	01	1	9606-	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-978-1	01	1	9606-		●
99	SENSOR; DECELERATION ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94467-772-1	01	1	9112-9605	●	●
99	SENSOR; DECELERATION ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97133-553-1	01	1	9606-	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14	8-94153-946-0	03	1	9112-9112	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X16	8-97069-289-0	03	1	9201-9504	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9308-9504	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (C) M6X20 W/WASHER	8-94112-987-1	03	1	9606-		●
108	SCREW; DECELERATION SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	9-03090-620-0	02	1	9112-9605	●	●
108	SCREW; DECELERATION SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97120-371-0	02	1	9606-	●	●
128	BRACKET; DECELERATION SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94377-750-1	01	1	9112-9112	●	●
128	BRACKET; DECELERATION SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97073-016-0	01	1	9201-9304	●	●
128	BRACKET; DECELERATION SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97087-094-1	01	1	9305-9605	●	●
128	BRACKET; DECELERATION SENSOR ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97110-060-1	01	1	9606-	●	●
129	BOLT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6X14 FLANGE	0-28080-614-0	02	1	9112-9708	●	●
129	BOLT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6X12 FLANGE	0-28080-612-0	02	1	9709-	●	●
146	NUT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M5 FLANGE	5-09440-003-0	04	1	9505-9605	●	●
146	NUT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) M6 FLANGE	0-91150-206-0	02	1	9606-	●
146	NUT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M4	9-99110-404-0	02	1	9606-	●	●
151	WASHER; PL,BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) ID=4.3	9-09160-504-0	02	1	9606-	●	●

153 105 94 93 137 153 151 94 93 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97066-414-0	01	1	9112-9307	●	●
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97085-391-0	01	1	9308-9410	●	●
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97114-360-0	01	1	9411-9605	●	●
93	CONTROL UNIT; ABS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-976-2	01	1	9606-	●	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97085-392-1	01	1	9308-9504	●	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97102-615-0	01	1	9505-9605	●	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-979-2	01	1	9606-	●
94	BRACKET; ABS CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97131-978-1	01	1	9606-		●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14	8-94153-946-0	03	1	9112-9112	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X16	8-97069-289-0	03	1	9201-9504	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9308-9504	●	●
105	BOLT; CONT UNIT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (C) M6X20 W/WASHER	8-94112-987-1	03	1	9606-		●
137	SCREW; COVER ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94164-662-0	01	1	9606-	●
146	NUT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M5 FLANGE	5-09440-003-0	04	1	9505-9605	●	●
146	NUT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (A) M6 FLANGE	0-91150-206-0	02	1	9606-	●
146	NUT; BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M4	9-99110-404-0	02	1	9606-	●	●
151	WASHER; PL,BRKT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) ID=4.3	9-09160-504-0	02	1	9606-	●	●
153	SCREW; BRKT FIX ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
