Sayfa 3-11 - Isuzu EPC

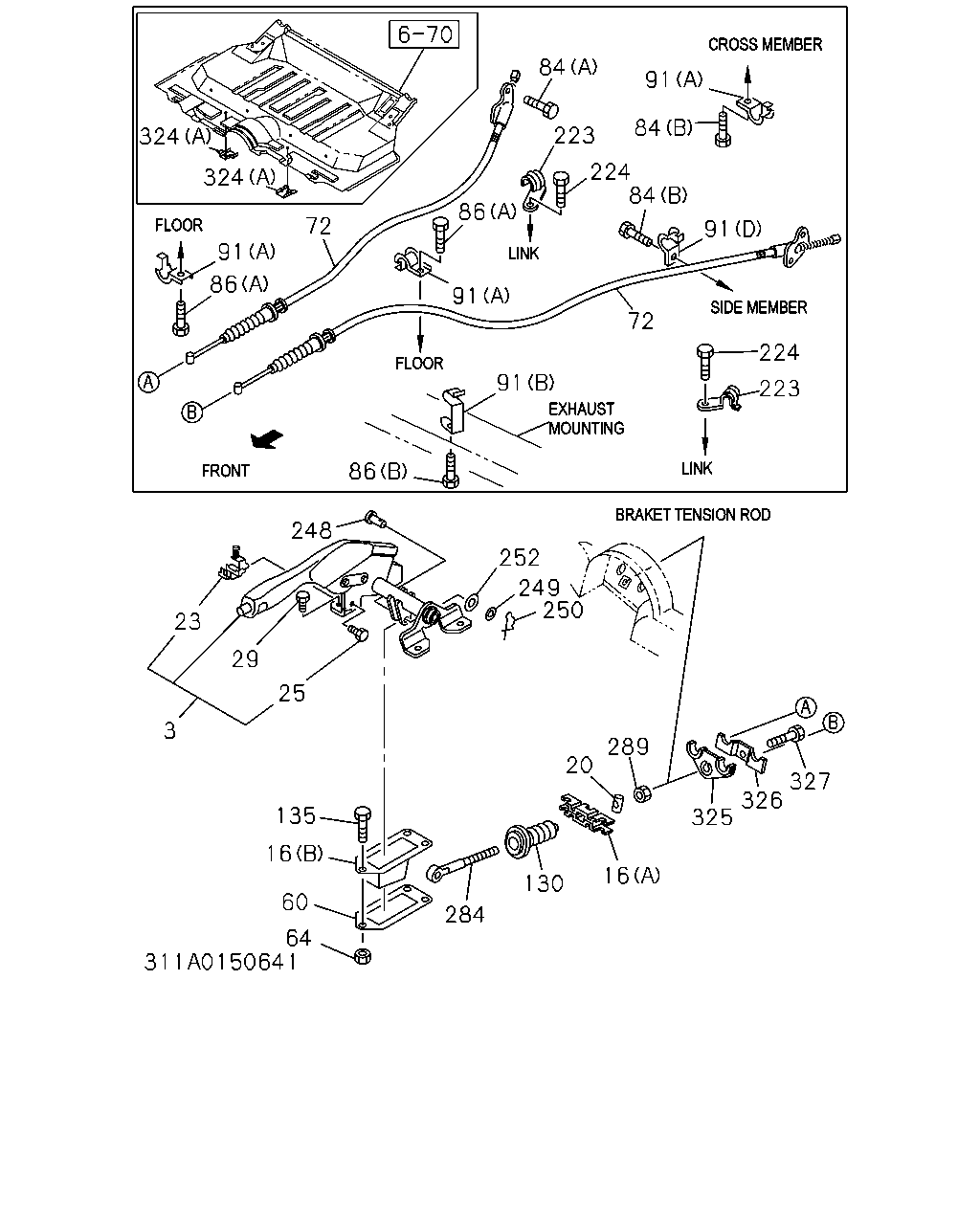

3-11 — PARKING BRAKE CONTROL (#166905) — 190 parça

324 324 72 91 86 86 91 91 86 223 84 224 84 84 91 91 72 224 223 327 326 325 289 20 16 130 284 135 16 60 64 250 249 252 248 29 25 23 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	LEVER; PARKING BRK INTERIOR COLOR BROWN(130) DARK BROWN	8-97007-710-2	01	1	9112-9307	●	●	●
3	LEVER; PARKING BRK CONVENIENT PACKAGE<6QZ> LEATHERED	8-97094-938-0	01	1	9308-9411	●	●	●
3	LEVER; PARKING BRK CONVENIENT PACKAGE<6QZ> LEATHERED	8-97118-396-0	01	1	9412-9605	●	●	●
3	LEVER; PARKING BRK CONVENIENT PACKAGE<6QZ>	8-97132-590-1	01	1	9606-	●	●	●
3	LEVER; PARKING BRK INTERIOR COLOR GRAY(153) DARK GRAY	8-97007-711-2	01	1	9112-9307	●	●	●
3	LEVER; PARKING BRK EXC. CONVENIENT PACKAGE<6QZ>	8-97100-838-0	01	1	9308-9411	●	●	●
3	LEVER; PARKING BRK EXC. CONVENIENT PACKAGE<6QZ>	8-97118-395-0	01	1	9412-9605	●	●	●
3	LEVER; PARKING BRK EXC. CONVENIENT PACKAGE<6QZ>	8-97132-586-1	01	1	9606-	●	●	●
16	BRACKET; PARKING BRK (A) EQUALIZER	8-97046-791-1	01	1	9112-9605	●	●	●
16	BRACKET; PARKING BRK (A) EQUALIZER	8-97142-956-2	01	1	9606-	●	●	●
16	BRACKET; PARKING BRK (B) CASE	8-97046-793-2	01	1	9112-	●	●	●
20	PIN; PARKING BRK	8-97046-790-1	01	1	9112-9605	●	●	●
23	SWITCH; PARKING BRK	8-97083-258-0	01	1	9112-9605	●	●	●
23	SWITCH; PARKING BRK	8-97031-820-0	01	1	9606-	●	●	●
25	SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9112-	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9112-9204	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9412	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE	0-28680-820-0	04	1	9501-	●	●	●
60	GASKET; PARKING BRK	8-97046-789-1	01	1	9112-	●	●	●
64	NUT; PARKING BRK M6	9-09110-406-0	01	1	9112-9605	●	●	●
64	NUT; PARKING BRK M8	9-09110-408-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C)	8-97018-156-6	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-156-6	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-240-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C)	8-97018-155-5	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-155-5	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-263-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97102-722-0	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97133-242-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97102-721-0	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97133-241-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F)	8-97018-154-5	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-154-5	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-237-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F)	8-97018-153-3	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-153-3	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-236-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) WIDE TREAD SUSPENSION<7FC>	8-97131-204-0	01	1	9505-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) WIDE TREAD SUSPENSION<7FC>	8-97131-203-0	01	1	9505-	●	●	●
84	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9112-9204	●	●	●
84	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-	●	●	●
84	BOLT; CABLE (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9206-	●	●	●
84	BOLT; CABLE LONG(UB***F) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9112-9205	●	●	●
84	BOLT; CABLE SHORT(UB***C) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9112-9205	●	●	●
84	BOLT; CABLE SHORT(UB***C) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9206-	●	●	●
86	BOLT SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV> (A) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●	●
86	BOLT SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV> (A) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-9504	●	●	●
86	BOLT SHORT(UB***C) (A) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9505-	●	●	●
86	BOLT LONG(UB***F) (A) M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●	●
86	BOLT LONG(UB***F) (A) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-	●	●	●
86	BOLT LONG(UB***F) RR COIL & LINK SUSPENSION<6SV> (A) M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9112-9204	●	●	●
86	BOLT LONG(UB***F) RR COIL & LINK SUSPENSION<6SV> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9412	●	●	●
86	BOLT LONG(UB***F) (B) M8X20 FLANGE	0-28680-820-0	01	1	9501-	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (A) ID=14	9-09916-883-0	05	1	9112-9307	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (A) ID=14	9-09916-883-0	01	1	9308-9504	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) WIDE TREAD SUSPENSION<7FC> (A) ID=14	9-09916-883-0	01	1	9505-9605	●	●	●
91	CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	02	1	9606-	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (A) ID=14	9-09916-883-0	02	1	9112-9605	●	●	●
91	CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	01	1	9606-	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV> (C)	8-97035-577-1	01	1	9112-9504	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (C)	8-97035-577-1	01	1	9505-9605	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (C)	8-97133-304-0	01	1	9606-	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (A) ID=18	8-94147-060-0	01	1	9112-9504	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC> (A) ID=18	8-94147-060-0	01	1	9505-9605	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (D)	8-97021-566-0	01	1	9112-	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (B)	8-97021-739-0	01	1	9112-9604	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (B)	8-97146-506-0	01	1	9605-	●	●	●
130	COVER; DUST,PARK BRK LEVER	8-97046-804-1	01	1	9112-9605	●	●	●
130	COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9606-	●	●	●
135	BOLT; PARKING BRK BRKT M6X20 W/LK&PL WASHER	9-01960-620-0	03	1	9112-9204	●	●	●
135	BOLT; PARKING BRK BRKT M6X20 W/LK&PL WASHER	0-50140-620-0	03	1	9205-9312	●	●	●
135	BOLT; PARKING BRK BRKT M6X16 W/PL WASHER	8-94204-636-0	03	1	9401-	●	●	●
223	CLIP; PARKING BRK CABLE	8-94387-628-1	01	1	9112-	●	●	●
223	CLIP; PARKING BRK CABLE	8-94387-627-1	01	1	9112-	●	●	●
224	BOLT; CABLE CLIP M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9112-	●	●	●
248	PIN; JOINT,LEVER	8-94139-964-0	01	1	9112-9605	●	●	●
249	WASHER; PL,LEVER ID=8.4	9-09160-508-0	01	1	9112-9605	●	●	●
250	PIN; SPLIT,LEVER L=27.7	8-94157-841-0	01	1	9112-9605	●	●	●
252	WASHER; LK,LEVER ID=8.5 T=0.3	5-09509-001-0	01	1	9112-9605	●	●	●
284	ROD; HAND BRK	8-97046-792-1	01	1	9112-9605	●	●	●
284	ROD; HAND BRK	8-97142-955-1	01	1	9606-	●	●	●
289	NUT; PARKING BRK M6	9-09110-406-0	01	1	9112-9302	●	●	●
289	NUT; PARKING BRK M6 FLANGE	0-91150-106-0	01	1	9303-9605	●	●	●
289	NUT; PARKING BRK M8 FLANGE	0-91150-108-0	01	1	9606-	●	●	●
324	BRACKET LONG(UB***F) (A)	8-97801-525-0	02	1	9112-9406	●	●	●
324	BRACKET LONG(UB***F) (A)	8-97801-525-0	01	1	9407-9504	●	●	●
324	BRACKET SHORT(UB***C) (A)	8-97801-525-0	01	1	9505-	●	●	●
324	BRACKET LONG(UB***F) (B)	8-97803-500-0	01	1	9112-9504	●	●	●
324	BRACKET SHORT(UB***C) (B)	8-97803-500-0	01	1	9505-	●	●	●
324	BRACKET LONG(UB***F) (A)	8-97801-525-0	02	1	9407-	●	●	●
325	PROTECTOR; SPLASH	8-97035-387-0	01	1	9112-9407	●	●	●
326	RETAINER; PARK CABLE	8-97024-708-0	01	1	9112-	●	●	●
327	BOLT; RETAINER M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9112-9204	●	●	●
327	BOLT; RETAINER M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-9412	●	●	●
327	BOLT; RETAINER M8X25 FLANGE	0-28680-825-0	01	1	9501-	●	●	●

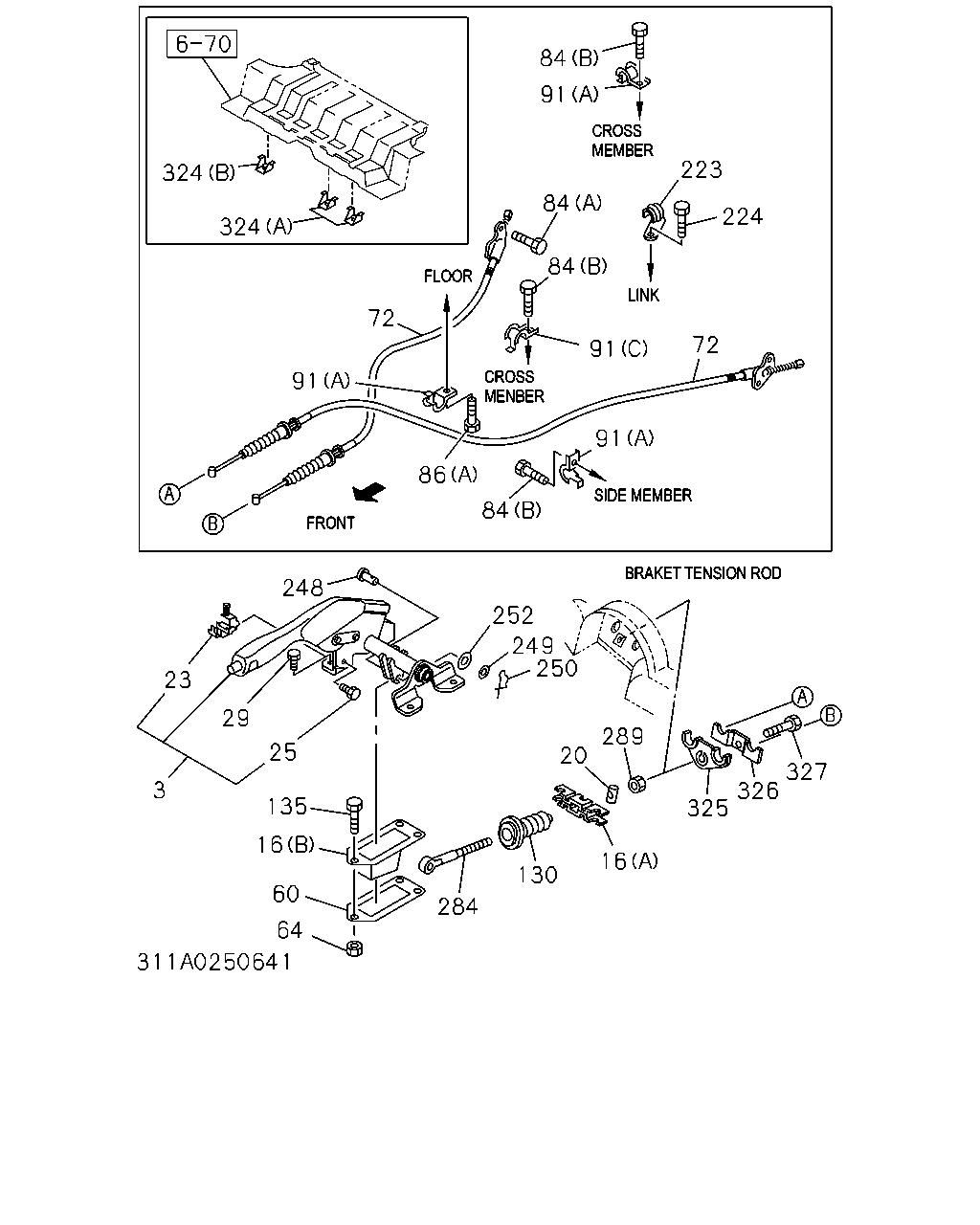

84 91 84 223 224 84 91 72 91 84 86 72 91 324 324 248 29 23 3 25 135 16 60 64 284 130 16 20 289 325 326 327 250 249 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	LEVER; PARKING BRK INTERIOR COLOR BROWN(130) DARK BROWN	8-97007-710-2	01	1	9112-9307	●	●	●
3	LEVER; PARKING BRK CONVENIENT PACKAGE<6QZ> LEATHERED	8-97094-938-0	01	1	9308-9411	●	●	●
3	LEVER; PARKING BRK CONVENIENT PACKAGE<6QZ> LEATHERED	8-97118-396-0	01	1	9412-9605	●	●	●
3	LEVER; PARKING BRK CONVENIENT PACKAGE<6QZ>	8-97132-590-1	01	1	9606-	●	●	●
3	LEVER; PARKING BRK INTERIOR COLOR GRAY(153) DARK GRAY	8-97007-711-2	01	1	9112-9307	●	●	●
3	LEVER; PARKING BRK EXC. CONVENIENT PACKAGE<6QZ>	8-97100-838-0	01	1	9308-9411	●	●	●
3	LEVER; PARKING BRK EXC. CONVENIENT PACKAGE<6QZ>	8-97118-395-0	01	1	9412-9605	●	●	●
3	LEVER; PARKING BRK EXC. CONVENIENT PACKAGE<6QZ>	8-97132-586-1	01	1	9606-	●	●	●
16	BRACKET; PARKING BRK (A) EQUALIZER	8-97046-791-1	01	1	9112-9605	●	●	●
16	BRACKET; PARKING BRK (A) EQUALIZER	8-97142-956-2	01	1	9606-	●	●	●
16	BRACKET; PARKING BRK (B) CASE	8-97046-793-2	01	1	9112-	●	●	●
20	PIN; PARKING BRK	8-97046-790-1	01	1	9112-9605	●	●	●
23	SWITCH; PARKING BRK	8-97083-258-0	01	1	9112-9605	●	●	●
23	SWITCH; PARKING BRK	8-97031-820-0	01	1	9606-	●	●	●
25	SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9112-	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9112-9204	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9412	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE	0-28680-820-0	04	1	9501-	●	●	●
60	GASKET; PARKING BRK	8-97046-789-1	01	1	9112-	●	●	●
64	NUT; PARKING BRK M6	9-09110-406-0	01	1	9112-9605	●	●	●
64	NUT; PARKING BRK M8	9-09110-408-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C)	8-97018-156-6	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-156-6	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-240-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C)	8-97018-155-5	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-155-5	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-263-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97102-722-0	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97133-242-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97102-721-0	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK SHORT(UB***C) WIDE TREAD SUSPENSION<7FC>	8-97133-241-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F)	8-97018-154-5	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-154-5	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-237-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F)	8-97018-153-3	01	1	9112-9504	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97018-153-3	01	1	9505-9605	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC>	8-97133-236-0	01	1	9606-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) WIDE TREAD SUSPENSION<7FC>	8-97131-204-0	01	1	9505-	●	●	●
72	CABLE; PARKING BRK LONG(UB***F) WIDE TREAD SUSPENSION<7FC>	8-97131-203-0	01	1	9505-	●	●	●
84	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9112-9204	●	●	●
84	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-	●	●	●
84	BOLT; CABLE (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9206-	●	●	●
84	BOLT; CABLE LONG(UB***F) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9112-9205	●	●	●
84	BOLT; CABLE SHORT(UB***C) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9112-9205	●	●	●
84	BOLT; CABLE SHORT(UB***C) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9206-	●	●	●
86	BOLT SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV> (A) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●	●
86	BOLT SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV> (A) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-9504	●	●	●
86	BOLT SHORT(UB***C) (A) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9505-	●	●	●
86	BOLT LONG(UB***F) (A) M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●	●
86	BOLT LONG(UB***F) (A) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-	●	●	●
86	BOLT LONG(UB***F) RR COIL & LINK SUSPENSION<6SV> (A) M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9112-9204	●	●	●
86	BOLT LONG(UB***F) RR COIL & LINK SUSPENSION<6SV> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9412	●	●	●
86	BOLT LONG(UB***F) (B) M8X20 FLANGE	0-28680-820-0	01	1	9501-	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (A) ID=14	9-09916-883-0	05	1	9112-9307	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (A) ID=14	9-09916-883-0	01	1	9308-9504	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) WIDE TREAD SUSPENSION<7FC> (A) ID=14	9-09916-883-0	01	1	9505-9605	●	●	●
91	CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	02	1	9606-	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (A) ID=14	9-09916-883-0	02	1	9112-9605	●	●	●
91	CLIP; PARKING BRK CABLE (A) ID=14	9-09916-883-0	01	1	9606-	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV> (C)	8-97035-577-1	01	1	9112-9504	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (C)	8-97035-577-1	01	1	9505-9605	●	●	●
91	CLIP; PARKING BRK CABLE SHORT(UB***C) (C)	8-97133-304-0	01	1	9606-	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (A) ID=18	8-94147-060-0	01	1	9112-9504	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC> (A) ID=18	8-94147-060-0	01	1	9505-9605	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (D)	8-97021-566-0	01	1	9112-	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (B)	8-97021-739-0	01	1	9112-9604	●	●	●
91	CLIP; PARKING BRK CABLE LONG(UB***F) (B)	8-97146-506-0	01	1	9605-	●	●	●
130	COVER; DUST,PARK BRK LEVER	8-97046-804-1	01	1	9112-9605	●	●	●
130	COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9606-	●	●	●
135	BOLT; PARKING BRK BRKT M6X20 W/LK&PL WASHER	9-01960-620-0	03	1	9112-9204	●	●	●
135	BOLT; PARKING BRK BRKT M6X20 W/LK&PL WASHER	0-50140-620-0	03	1	9205-9312	●	●	●
135	BOLT; PARKING BRK BRKT M6X16 W/PL WASHER	8-94204-636-0	03	1	9401-	●	●	●
223	CLIP; PARKING BRK CABLE	8-94387-628-1	01	1	9112-	●	●	●
223	CLIP; PARKING BRK CABLE	8-94387-627-1	01	1	9112-	●	●	●
224	BOLT; CABLE CLIP M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9112-	●	●	●
248	PIN; JOINT,LEVER	8-94139-964-0	01	1	9112-9605	●	●	●
249	WASHER; PL,LEVER ID=8.4	9-09160-508-0	01	1	9112-9605	●	●	●
250	PIN; SPLIT,LEVER L=27.7	8-94157-841-0	01	1	9112-9605	●	●	●
252	WASHER; LK,LEVER ID=8.5 T=0.3	5-09509-001-0	01	1	9112-9605	●	●	●
284	ROD; HAND BRK	8-97046-792-1	01	1	9112-9605	●	●	●
284	ROD; HAND BRK	8-97142-955-1	01	1	9606-	●	●	●
289	NUT; PARKING BRK M6	9-09110-406-0	01	1	9112-9302	●	●	●
289	NUT; PARKING BRK M6 FLANGE	0-91150-106-0	01	1	9303-9605	●	●	●
289	NUT; PARKING BRK M8 FLANGE	0-91150-108-0	01	1	9606-	●	●	●
324	BRACKET LONG(UB***F) (A)	8-97801-525-0	02	1	9112-9406	●	●	●
324	BRACKET LONG(UB***F) (A)	8-97801-525-0	01	1	9407-9504	●	●	●
324	BRACKET SHORT(UB***C) (A)	8-97801-525-0	01	1	9505-	●	●	●
324	BRACKET LONG(UB***F) (B)	8-97803-500-0	01	1	9112-9504	●	●	●
324	BRACKET SHORT(UB***C) (B)	8-97803-500-0	01	1	9505-	●	●	●
324	BRACKET LONG(UB***F) (A)	8-97801-525-0	02	1	9407-	●	●	●
325	PROTECTOR; SPLASH	8-97035-387-0	01	1	9112-9407	●	●	●
326	RETAINER; PARK CABLE	8-97024-708-0	01	1	9112-	●	●	●
327	BOLT; RETAINER M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9112-9204	●	●	●
327	BOLT; RETAINER M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-9412	●	●	●
327	BOLT; RETAINER M8X25 FLANGE	0-28680-825-0	01	1	9501-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
