◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#166904) — 35 parça

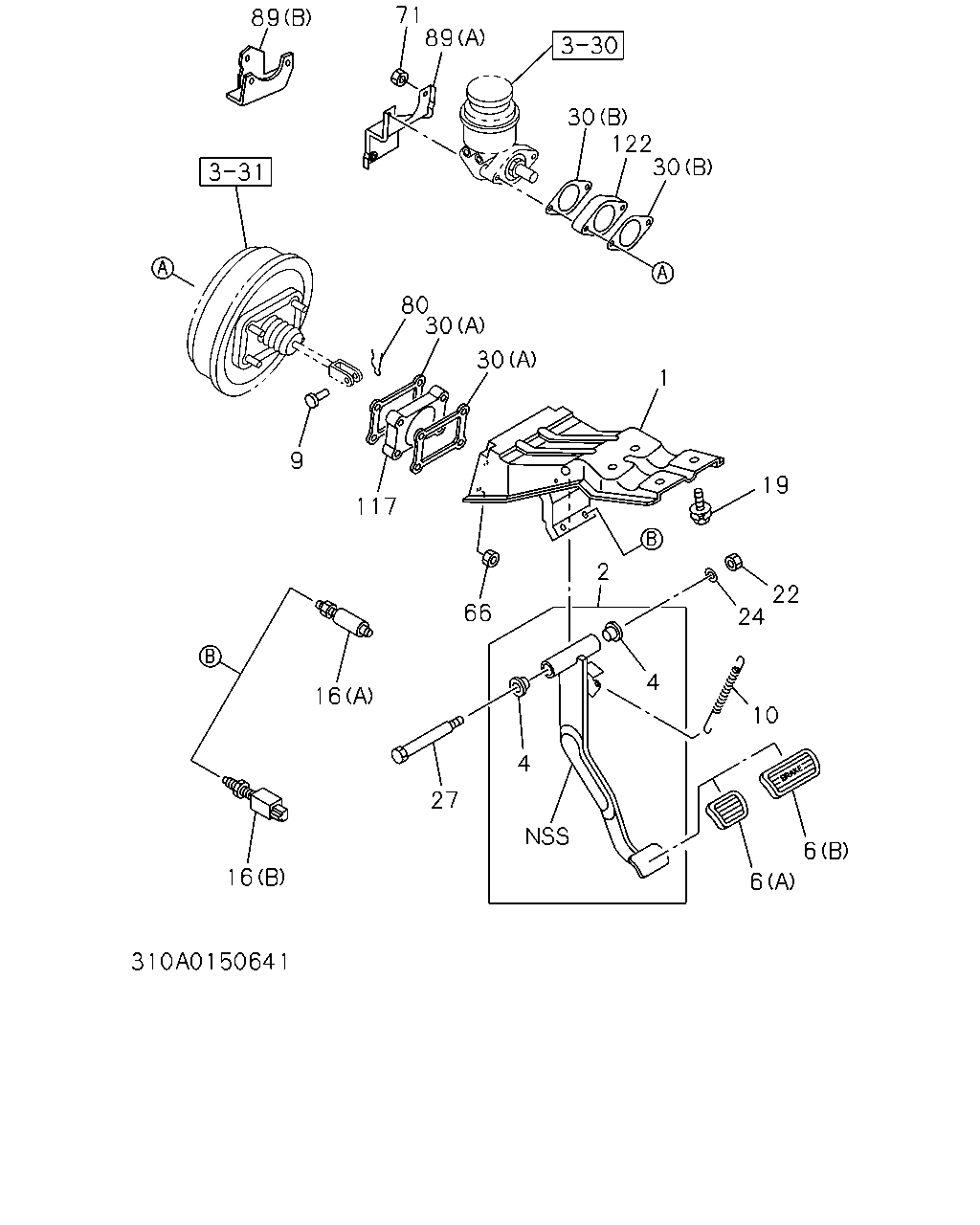

çizim 494176
71 89 89 9 117 30 30 80 30 30 122 1 19 22 24 4 2 66 4 27 16 16 10 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-94381-237-3 01 1 9112-9504 ● ●
1 BRACKET ASM; PEDAL 8-97093-777-2 01 1 9505-9510 ● ●
1 BRACKET ASM; PEDAL
EXC. AIR BAG DRIVER<AJ3> 		8-97093-777-2 01 1 9511-9605 ● ●
1 BRACKET ASM; PEDAL
AIR BAG DRIVER<AJ3> 		8-97131-754-0 01 1 9511-9605 ● ●
1 BRACKET ASM; PEDAL 8-97131-754-0 01 1 9606- ● ●
2 PEDAL; BRK
A/T AISIN(RMD),A/T THM(RMQ) 		8-94381-308-2 01 1 9112-9504 ● ●
2 PEDAL; BRK
A/T AISIN(RMD),A/T THM(RMQ) 		8-97093-780-1 01 1 9505- ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-94381-307-2 01 1 9112-9504 ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97093-779-1 01 1 9505- ● ●
4 BUSHING; BRK PEDAL 8-94244-439-0 02 1 9112- ● ●
6 COVER; BRK PEDAL
A/T AISIN(RMD),A/T THM(RMQ) (B) 		8-94249-897-0 01 1 9112- ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN) (A) 		8-94222-524-1 01 1 9112- ● ●
9 PIN; JAW JOINT 8-94250-182-0 01 1 9112- ● ●
10 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9112- ● ●
16 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> (A) 		8-94109-863-0 01 1 9112- ● ●
16 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> (B) 12V 12A 		8-94362-930-0 01 1 9112- ● ●
19 BOLT; BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 04 1 9112-9204 ● ●
19 BOLT; BRKT
M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9205-9701 ● ●
19 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 9702- ● ●
22 NUT; SHAFT
M10 		9-09110-410-0 01 1 9112- ● ●
24 WASHER; PL,SHAFT
ID=10.2 		9-09150-510-0 01 1 9112- ● ●
27 SHAFT; BRK PEDAL 8-94384-221-0 01 1 9112- ● ●
30 GASKET; M/VAC TO BODY
(A) 		8-94111-590-0 02 1 9112- ● ●
30 GASKET; M/VAC TO BODY
(B) 		8-97035-691-0 02 1 9112-9704 ● ●
30 GASKET; M/VAC TO BODY
(B) 		8-97178-015-0 02 1 9705- ● ●
66 NUT; SERVO TO BRKT
M8 FLANGE 		5-09440-005-0 04 1 9112- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9112- ● ●
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94111-137-0 01 1 9112-9301 ● ●
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9302- ● ●
89 BRACKET; M/CYL
(A) 		8-97035-505-0 01 1 9112-9510 ● ●
89 BRACKET; M/CYL
4JG2 ENG(RJC) (A) 		8-97035-505-1 01 1 9511- ● ●
89 BRACKET; M/CYL
6VD1 DOHC ENG(RLV) (B) 		8-97109-658-0 01 1 9511- ● ●
117 SPACER; M/VAC TO BODY 8-94440-231-0 01 1 9112- ● ●
122 SPACER; BRK M/CYL 8-97035-690-0 01 1 9112-9704 ● ●
122 SPACER; BRK M/CYL 8-97178-014-0 01 1 9705- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
