◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 3 - Brakes, Brake System ▶ 3-06 - REAR DISC BRAKE CALIPER ▶
3-06 — REAR DISC BRAKE CALIPER (#166902) — 19 parça

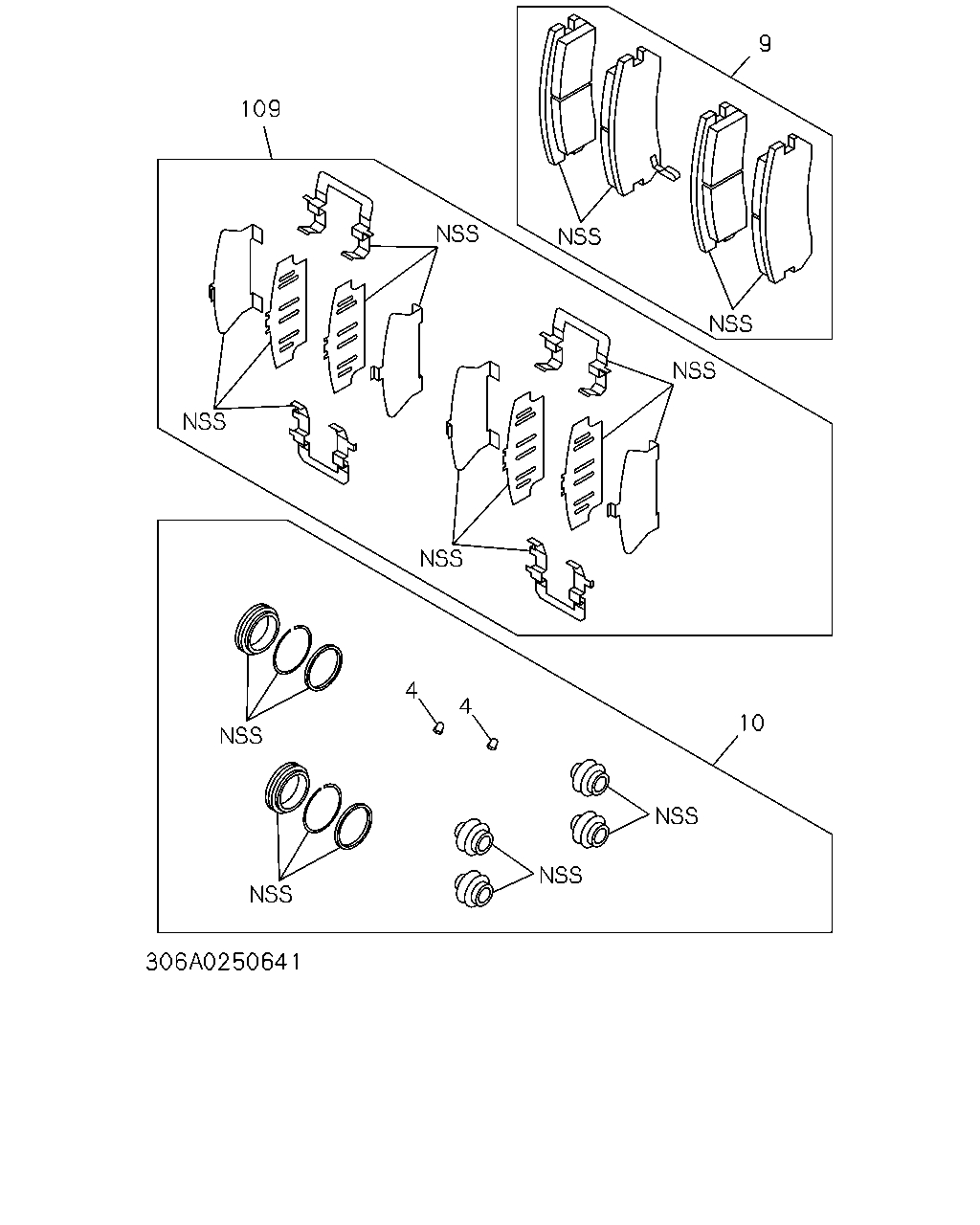

çizim 493555
9 109 10 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 CAP; BLEEDER SCREW,CALIPER,RR 1-47619-009-0 02 1 9112- ● ●
9 PAD KIT; CALIPER,RR 8-97206-870-0 01 1 9112- ● ●
10 REPAIR KIT; DISC BRK,RR 8-97035-265-0 01 1 9112-9602 ● ●
10 REPAIR KIT; DISC BRK,RR 8-97134-718-0 01 1 9603- ● ●
109 SHIM & CLIP KIT; DISC BRAKE,RR 8-97206-841-0 01 1 9112- ● ●

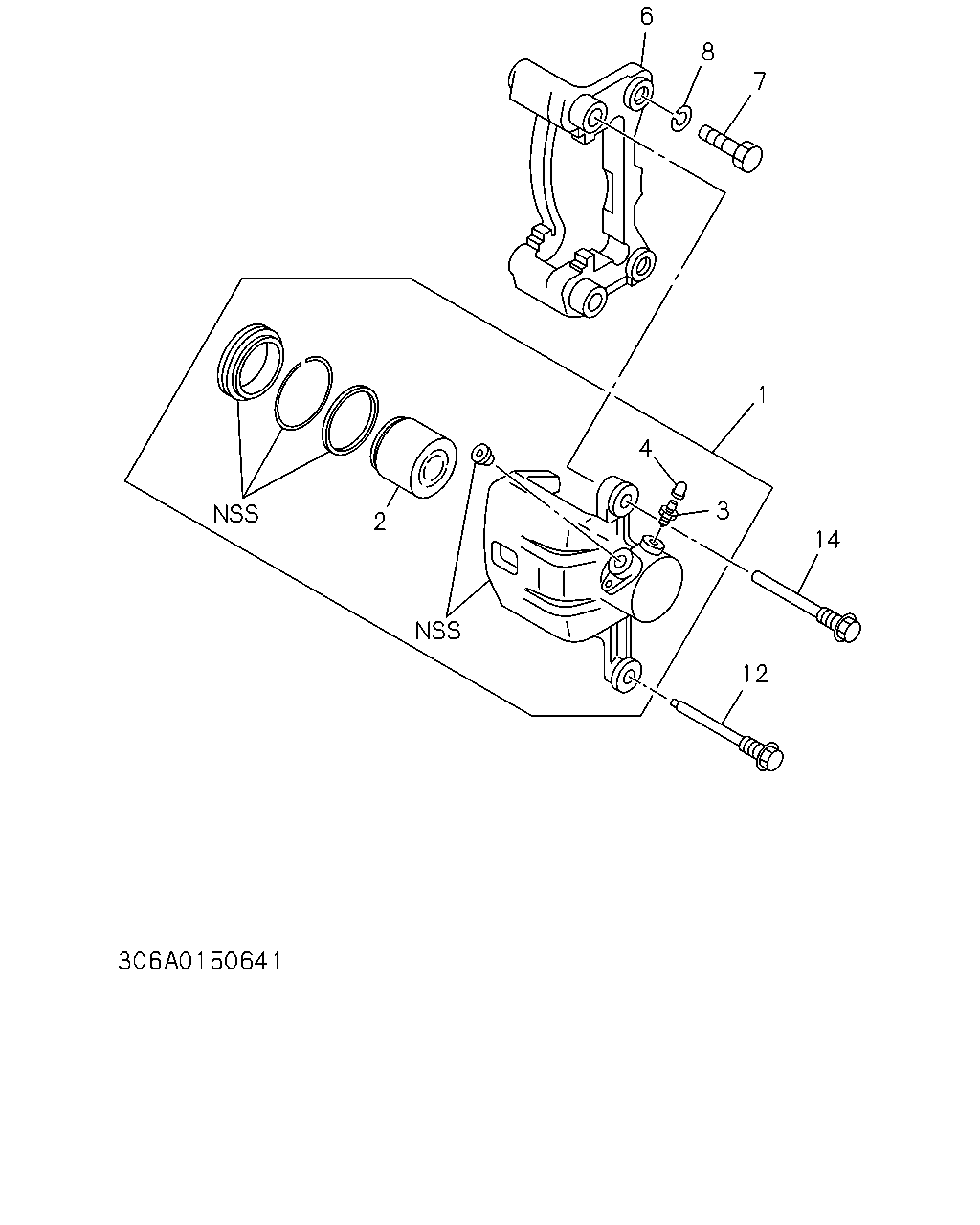

çizim 494113
7 8 6 14 1 3 4 12 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; RR DISC BRK 8-97035-259-0 01 1 9112-9602 ● ●
1 CALIPER; RR DISC BRK 8-97144-479-0 01 1 9603- ● ●
1 CALIPER; RR DISC BRK 8-97035-258-0 01 1 9112-9602 ● ●
1 CALIPER; RR DISC BRK 8-97144-478-0 01 1 9603- ● ●
2 PISTON; CALIPER,RR 8-97035-261-0 02 1 9112- ● ●
3 SCREW; BLEEDER,CALIPER,RR 8-97109-754-0 02 1 9112-9602 ● ●
3 SCREW; BLEEDER,CALIPER,RR 8-97113-867-0 02 1 9603- ● ●
4 CAP; BLEEDER SCREW,CALIPER,RR 1-47619-009-0 02 1 9112- ● ●
6 BRACKET; SUPPORT,RR DISC BRK 8-97035-260-0 02 1 9112- ● ●
7 BOLT; DISC BRK
M12X27 		8-94425-585-0 04 1 9112-9502 ● ●
7 BOLT; DISC BRK
M12X27 		8-97126-215-1 04 1 9503- ● ●
8 WASHER; LK,DISC BRK
ID=12.2 		9-09150-812-0 04 1 9112- ● ●
12 PIN; RET,CALIPER,RR DISC BRK 8-94362-821-0 02 1 9112- ● ●
14 PIN; GUIDE,CALIPER 8-94362-820-0 02 1 9112- ● ●
