◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-66 - MANUAL TRANSFER GEAR; OUTPUT ▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT (#166900) — 54 parça
çizim 493615
70 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94333-536-1 01 1 9112-9504 ● ●
8 FLANGE; OUTPUT
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94333-536-1 01 1 9112-9504 ● ●
8 FLANGE; OUTPUT
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94333-536-3 01 1 9505- ● ●
8 FLANGE; OUTPUT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94333-536-3 01 1 9505- ● ●
8 FLANGE; OUTPUT
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97066-504-3 01 1 9112- ● ●
8 FLANGE; OUTPUT
VARIABLE TORQUE SPRIT<7HA> (B) FRONT 		8-97129-245-0 01 1 9505- ●
8 FLANGE; OUTPUT
VARIABLE TORQUE SPRIT<7HA> (A) REAR 		8-97129-275-0 01 1 9505- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		9-09561-326-0 01 1 9112-9504 ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> 		9-09561-326-0 01 1 9505- ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M24 		8-94385-985-1 01 1 9112-9504 ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
EXC. VARIABLE TORQUE SPRIT<7HA> M24 		8-94385-985-1 01 1 9505- ● ●

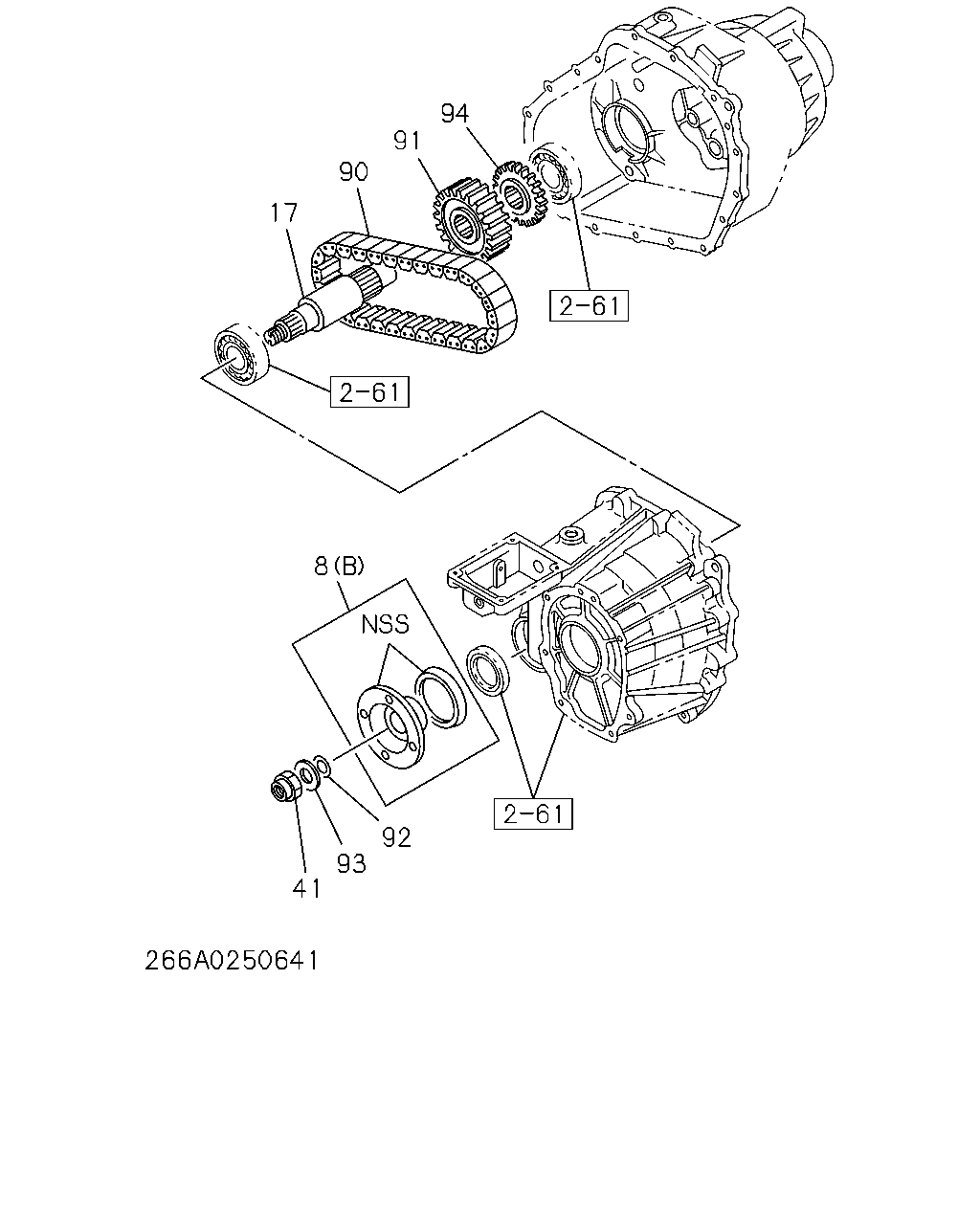

çizim 493767
17 90 91 94 8 92 93 41
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94333-536-1 01 1 9112-9504 ● ●
8 FLANGE; OUTPUT
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94333-536-1 01 1 9112-9504 ● ●
8 FLANGE; OUTPUT
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94333-536-3 01 1 9505- ● ●
8 FLANGE; OUTPUT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94333-536-3 01 1 9505- ● ●
8 FLANGE; OUTPUT
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97066-504-3 01 1 9112- ● ●
8 FLANGE; OUTPUT
VARIABLE TORQUE SPRIT<7HA> (B) FRONT 		8-97129-245-0 01 1 9505- ●
8 FLANGE; OUTPUT
VARIABLE TORQUE SPRIT<7HA> (A) REAR 		8-97129-275-0 01 1 9505- ●
17 SHAFT; OUTPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-242-0 01 1 9505- ●
41 NUT; FLANGE LK,OUTPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-252-0 02 1 9505- ●
90 CHAIN; DRIVE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-237-0 01 1 9505- ●
91 SPROCKET; LWR DRIVE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-240-0 01 1 9505- ●
92 SEAL; FLANGE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-247-0 02 1 9505- ●
93 WASHER; FLANGE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-250-0 02 1 9505- ●
94 WHEEL; TONE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-254-0 01 1 9505- ●

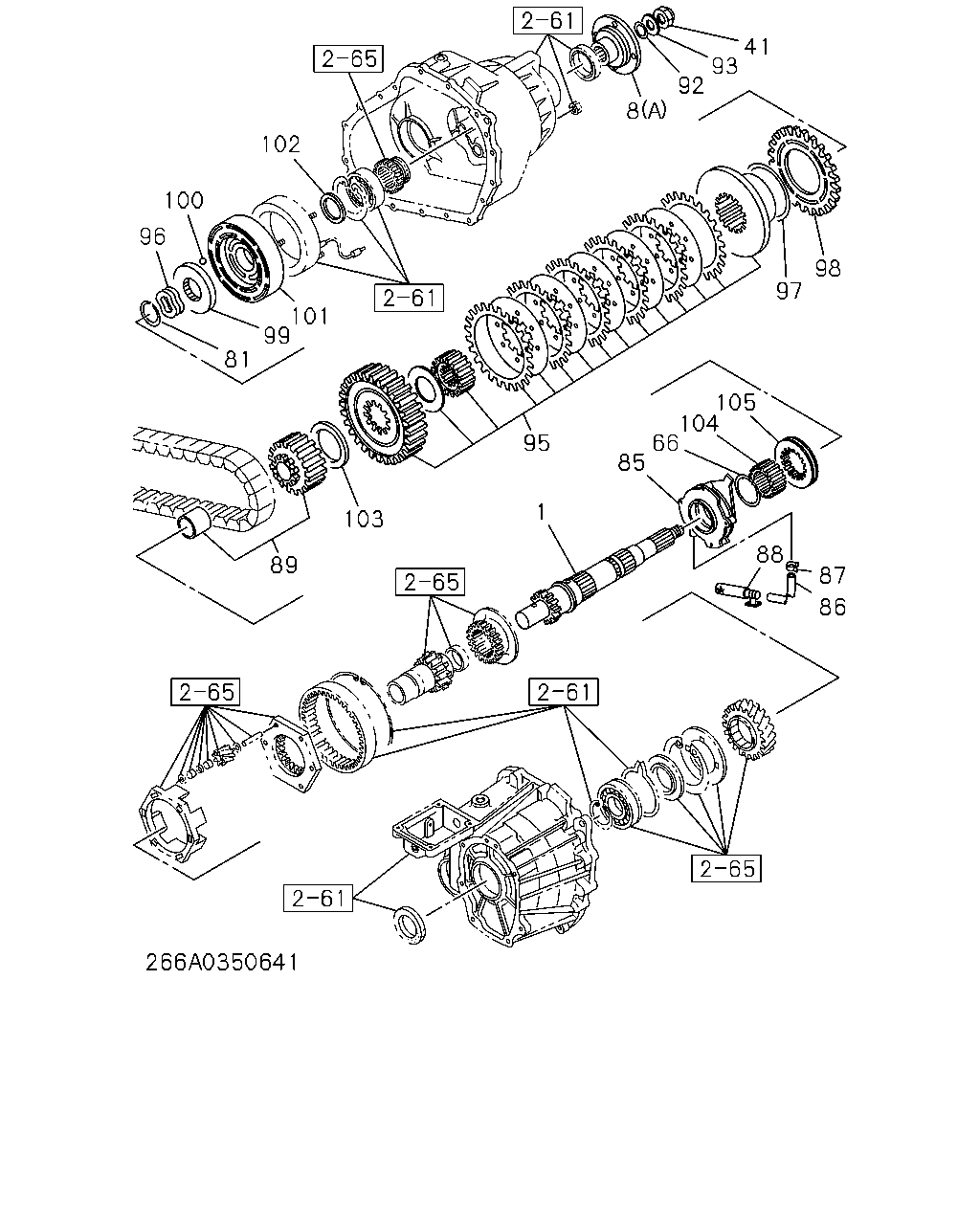

çizim 494019
102 100 96 81 99 101 103 89 1 95 85 66 104 105 88 87 86 8 92 93 41 97 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,OUTPUT,RR
VARIABLE TORQUE SPRIT<7HA> 		8-97129-178-0 01 1 9505- ●
8 FLANGE; OUTPUT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94333-536-1 01 1 9112-9504 ● ●
8 FLANGE; OUTPUT
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94333-536-1 01 1 9112-9504 ● ●
8 FLANGE; OUTPUT
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94333-536-3 01 1 9505- ● ●
8 FLANGE; OUTPUT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94333-536-3 01 1 9505- ● ●
8 FLANGE; OUTPUT
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97066-504-3 01 1 9112- ● ●
8 FLANGE; OUTPUT
VARIABLE TORQUE SPRIT<7HA> (B) FRONT 		8-97129-245-0 01 1 9505- ●
8 FLANGE; OUTPUT
VARIABLE TORQUE SPRIT<7HA> (A) REAR 		8-97129-275-0 01 1 9505- ●
41 NUT; FLANGE LK,OUTPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-252-0 02 1 9505- ●
66 WASHER; THRUST,DIST PIECE,TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-233-0 01 1 9505- ●
81 RING; SNAP
VARIABLE TORQUE SPRIT<7HA> 		8-97129-259-0 01 1 9505- ●
85 PUMP; OIL,TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-179-0 01 1 9505- ●
86 HOSE; OIL PUMP
VARIABLE TORQUE SPRIT<7HA> 		8-97129-220-0 01 1 9505- ●
87 CLAMP; HOSE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-230-0 01 1 9505- ●
88 FILTER; OIL PUMP
VARIABLE TORQUE SPRIT<7HA> 		8-97129-232-0 01 1 9505- ●
89 SPROCKET; DRIVE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-236-0 01 1 9505- ●
92 SEAL; FLANGE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-247-0 02 1 9505- ●
93 WASHER; FLANGE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-250-0 02 1 9505- ●
95 CLUTCH ASM; TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-257-0 01 1 9505- ●
96 SPRING; WAVE,CLUTCH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-258-0 01 1 9505- ●
97 WASHER; CLUTCH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-260-0 01 1 9505- ●
98 ARMATURE; CLUTCH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-261-0 01 1 9505- ●
99 CAM; APPLY
VARIABLE TORQUE SPRIT<7HA> 		8-97129-262-0 01 1 9505- ●
100 BALL; CAM
VARIABLE TORQUE SPRIT<7HA> 		8-97129-263-0 03 1 9505- ●
101 HOUSING; COIL,TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-264-0 01 1 9505- ●
102 WASHER; THRUST,CLUTCH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-265-0 01 1 9505- ●
103 SPACER; CLUTCH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-286-0 01 1 9505- ●
104 HUB; LOCKUP
VARIABLE TORQUE SPRIT<7HA> 		8-97129-287-0 01 1 9505- ●
105 SLEEVE; LOCKUP
VARIABLE TORQUE SPRIT<7HA> 		8-97129-288-0 01 1 9505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
