5-15 — CAB MOUNTING; CAB SIDE (#16690) — 39 parça

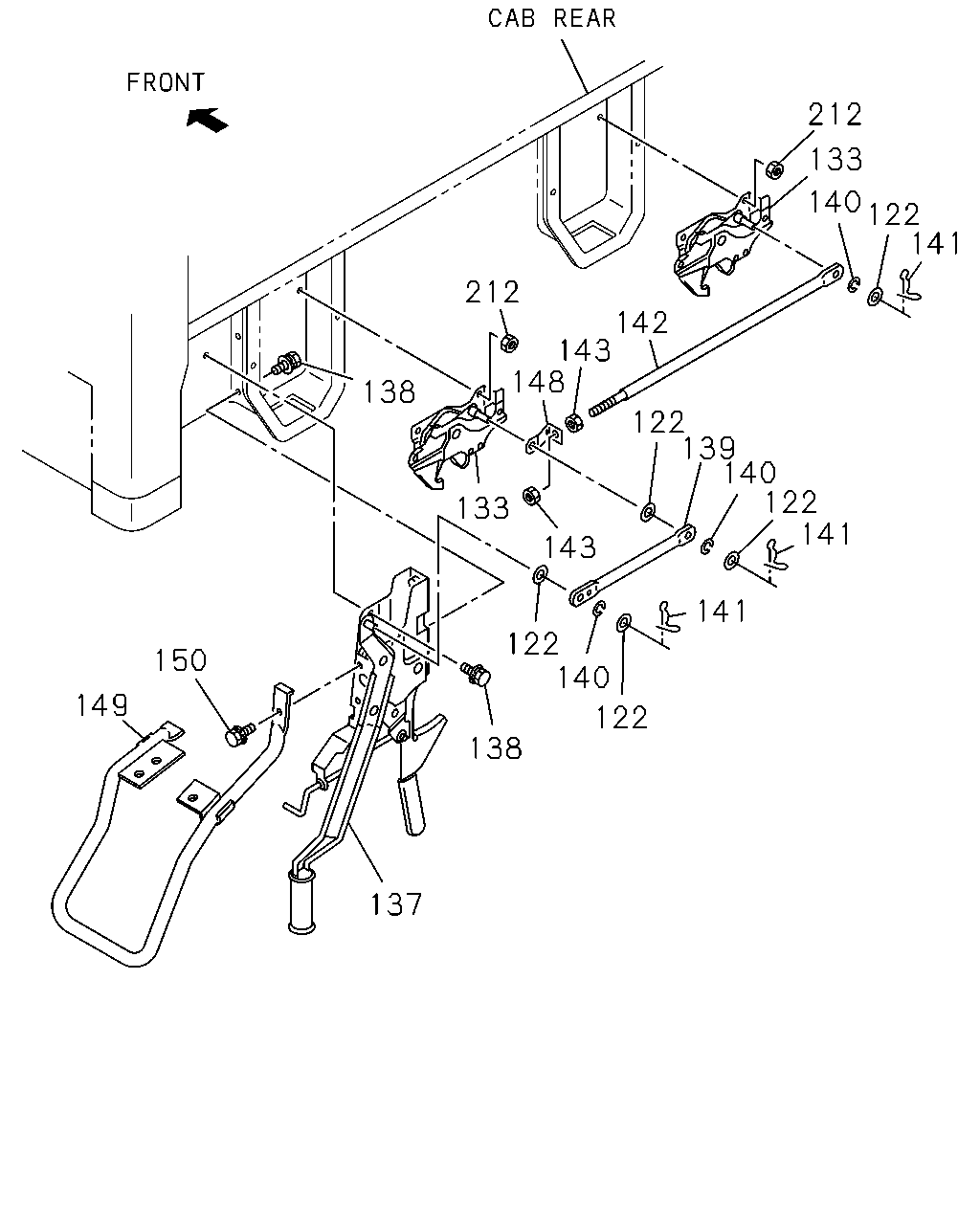

çizim 45350
212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C
122 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=12.5 OD=22 		8-94279-627-0 05 1 0009- ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-7 01 1 0009- ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-6 01 1 0009- ● ● ●
137 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97890-630-4 01 1 0009- ● ● ●
138 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0009- ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-1 01 1 0009-0302 ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97997-597-0 01 1 0303- ● ● ●
140 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 0009- ● ● ●
141 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 		1-09987-158-1 03 1 0009- ● ● ●
142 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-099-1 01 1 0009- ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> M10 		1-09984-142-0 02 1 0009- ● ● ●
148 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 0009- ● ● ●
149 HANDLE; TILT
MANUAL TILT CAB<RWZ> THA 		8-97912-575-0 01 1 0009- ● ● ●
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28680-825-0 03 1 0009- ● ● ●
212 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 0009- ● ● ●

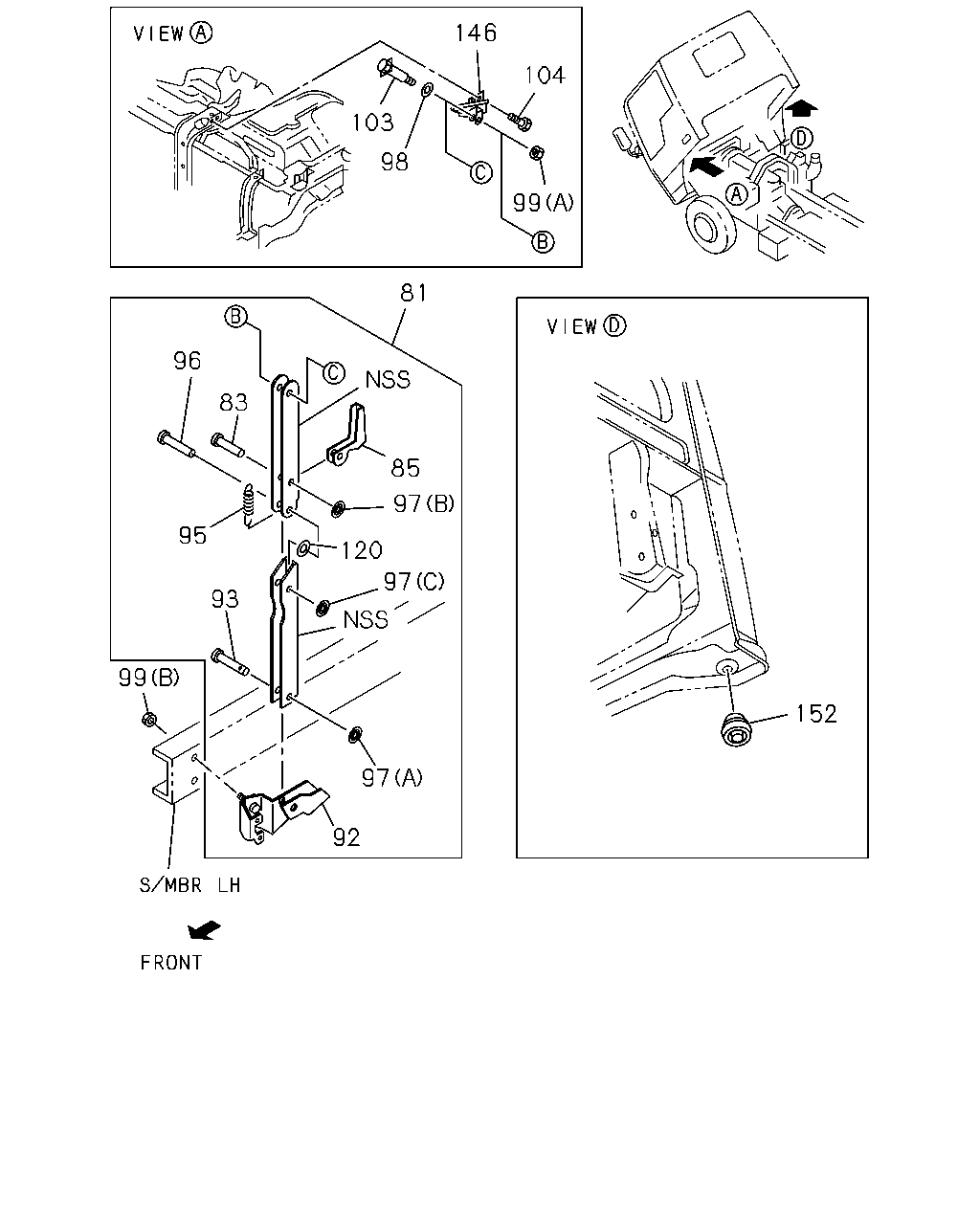

çizim 47340
146 104 103 98 99 81 96 83 85 97 95 120 97 93 99 152 97 92
BalonParca AdiParca NoAdetTipApplied Date A B C
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> 		8-97120-940-0 01 1 0009- ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 0009- ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 0009- ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> 		8-97096-654-0 01 1 0009- ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 0009- ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 0009- ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 0009- ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0009- ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0009- ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0009- ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 0009- ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (B) M10 FLANGE 		0-91150-110-0 02 1 0009- ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 0009- ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 0009- ● ● ●
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 0009- ● ● ●
120 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 0009- ● ● ●
146 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> THA 		8-97912-576-0 01 1 0009- ● ● ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=19 THA 		8-94279-055-0 02 1 0009-0210 ● ● ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK THA 		1-76798-019-0 02 1 0211- ● ● ●
çizim 48541
15 12 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97114-076-3 01 1 0009- ● ● ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 0009-0111 ● ● ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0112- ● ● ●
12 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97261-870-0 01 1 0009- ● ● ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 0009- ● ● ●
