◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#1669) — 40 parça

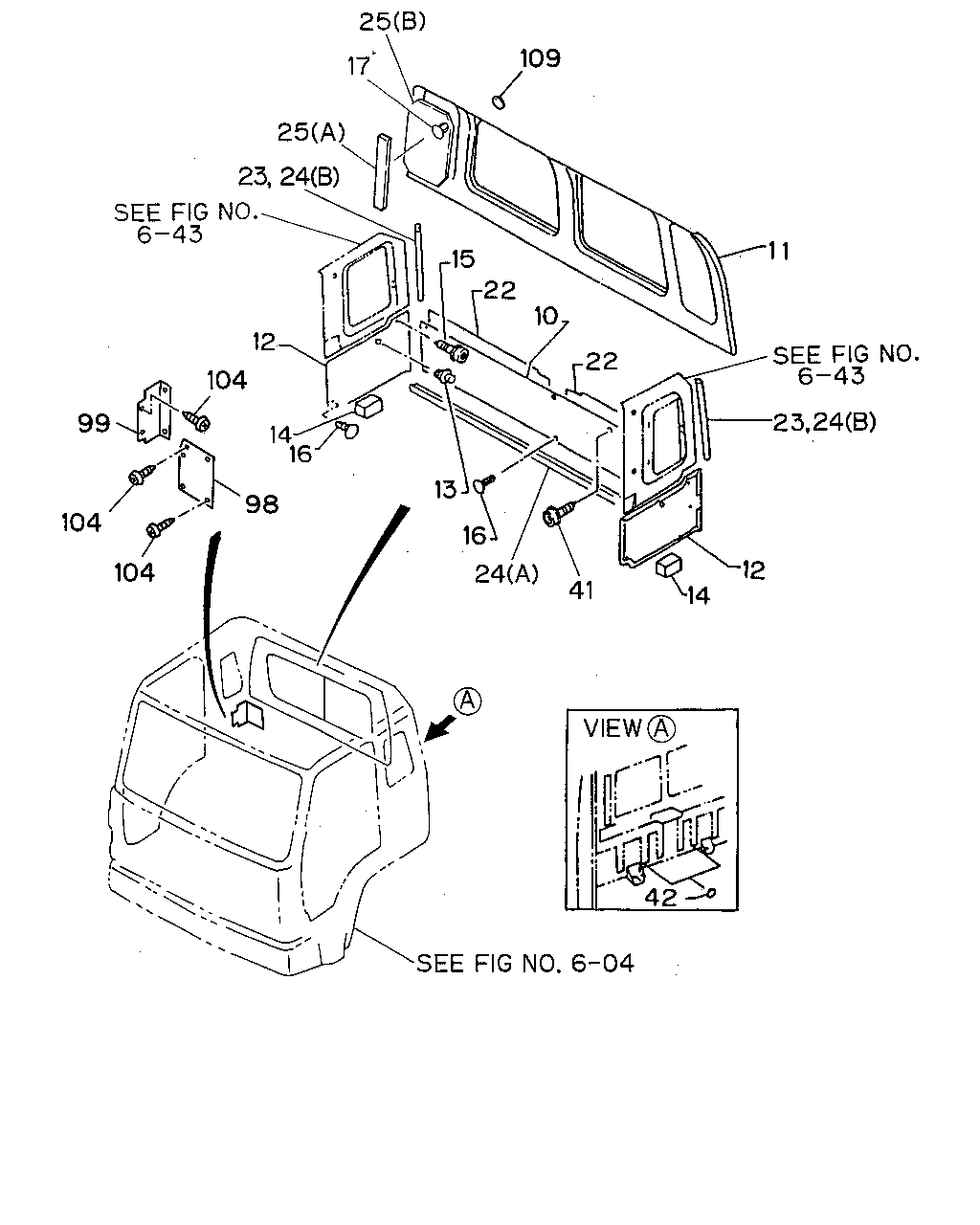

çizim 94095
25 17 109 11 23 24 22 10 22 15 25 23 24 12 104 99 104 104 98 14 16 13 16 24 41 14 12 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 TRIM; BED ROOM CENTER
DELUXE CAB<W14> 		1-73348-358-1 01 1 9207-9208 ● ● ● ●
10 TRIM; BED ROOM CENTER 1-73348-358-2 01 1 9209-9312 ● ● ● ●
10 TRIM; BED ROOM CENTER 1-73348-398-0 01 1 9401- ● ● ● ●
10 TRIM; BED ROOM CENTER
EXC. DELUXE CAB<W14> 		1-73348-453-0 01 1 9207-9208 ● ● ● ●
11 TRIM; ROOM,BACK INNER
INTERIOR FULL TRIM<WM3> GRAY 		1-73348-339-1 01 1 9207- ● ● ● ●
12 PAD; TRIM,BED ROOM SIDE
DELUXE CAB<W14> 		1-73348-293-2 01 1 9207-9208 ● ● ● ●
12 PAD; TRIM,BED ROOM SIDE 1-73348-293-3 01 1 9209- ● ● ● ●
12 PAD; TRIM,BED ROOM SIDE
DELUXE CAB<W14> 		1-73348-292-2 01 1 9207-9208 ● ● ● ●
12 PAD; TRIM,BED ROOM SIDE 1-73348-292-3 01 1 9209- ● ● ● ●
12 PAD; TRIM,BED ROOM SIDE
EXC. DELUXE CAB<W14> 		1-73348-455-0 01 1 9207-9208 ● ● ● ●
12 PAD; TRIM,BED ROOM SIDE
EXC. DELUXE CAB<W14> 		1-73348-454-0 01 1 9207-9208 ● ● ● ●
13 CLIP; BED ROOM TRIM
DELUXE CAB<W14> 		1-09987-119-1 02 1 9207-9211 ● ● ● ●
13 CLIP; BED ROOM TRIM 1-09987-119-1 02 1 9212- ● ● ● ●
13 CLIP; BED ROOM TRIM
DELUXE CAB<W14> 		1-09987-119-1 02 1 9212- ● ● ● ●
14 INSULATOR; FLOOR SIDE REAR 1-73377-160-0 02 1 9207- ● ● ● ●
15 HOOK; BED ROOM TRIM
DELUXE CAB<W14> M4X14 HOOK MALE 		1-09981-370-0 11 1 9207-9211 ● ● ● ●
15 HOOK; BED ROOM TRIM
M4X14 HOOK MALE 		1-09981-370-0 11 1 9212- ● ● ● ●
15 HOOK; BED ROOM TRIM
DELUXE CAB<W14> M4X14 HOOK MALE 		1-09981-370-0 11 1 9212- ● ● ● ●
16 CLIP; TRIM,BED ROOM
D6X23 BLACK 		1-09987-114-0 05 1 9207- ● ● ● ●
17 CLIP; ANCHOR,TRIM BACK INNER
INTERIOR FULL TRIM<WM3> 		1-09987-203-0 03 1 9207- ● ● ● ●
22 SHEET; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DELUXE CAB<W14> 		1-73348-284-1 01 1 9207- ●
22 SHEET; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) DELUXE CAB<W14> 		1-73348-283-1 01 1 9207- ●
22 SHEET; SILENCER,CAB FLOOR
DELUXE CAB<W14> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73348-204-2 01 1 9207- ●
22 SHEET; SILENCER,CAB FLOOR
DELUXE CAB<W14> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73348-203-1 01 1 9207- ●
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> GRAY 		1-73338-319-1 02 1 9207- ● ● ● ●
23 FINISHER; BACK INNER PANEL
EXC. INTERIOR FULL TRIM<WM3> WHITE 		1-73337-264-0 02 1 9207- ● ● ● ● ●
24 FINISHER; BED ROOM,LWR
EXC. DELUXE CAB<W14> (A) L=1914 		1-73348-225-0 01 1 9207-9211 ● ● ● ●
24 FINISHER; BED ROOM,LWR
EXC. DELUXE CAB<W14> (B) L=339 		1-73348-226-0 02 1 9207-9211 ● ● ● ●
25 SPACER; ROOM TRIM
INTERIOR FULL TRIM<WM3> (B) L=400 		1-73348-364-0 02 1 9207- ● ● ● ●
25 SPACER; ROOM TRIM
INTERIOR FULL TRIM<WM3> (A) L=450 		1-73348-386-0 02 1 9207- ● ● ● ●
41 SCREW; SILENCER MAT
EXC. DELUXE CAB<W14> M4X16 TAPPING 		1-09981-477-0 17 1 9207-9211 ● ● ● ●
42 SEAL; BACK OUTER PANEL
OD=36 WHITE 		1-76778-007-0 02 1 9207- ● ● ● ● ●
98 TRIM; BACK SIDE 1-73348-300-0 01 1 9207- ●
98 TRIM; BACK SIDE 1-73348-299-0 01 1 9207- ●
99 SUPPORT; BACK SIDE TRIM 1-73348-503-1 02 1 9207-9212 ●
99 SUPPORT; BACK SIDE TRIM 1-73348-503-1 01 1 9301-9404 ●
99 SUPPORT; BACK SIDE TRIM 1-73348-765-0 01 1 9301-9404 ●
104 SCREW; BACK TRIM
M6X16 W/LK&PL WASHER 		1-09981-141-0 10 1 9207- ●
104 SCREW; BACK TRIM
M6X13 		5-09981-074-0 04 1 9207- ●
109 SEAL; HOLE
WHITE 		1-76777-076-0 03 1 9207- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
