◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#166899) — 29 parça

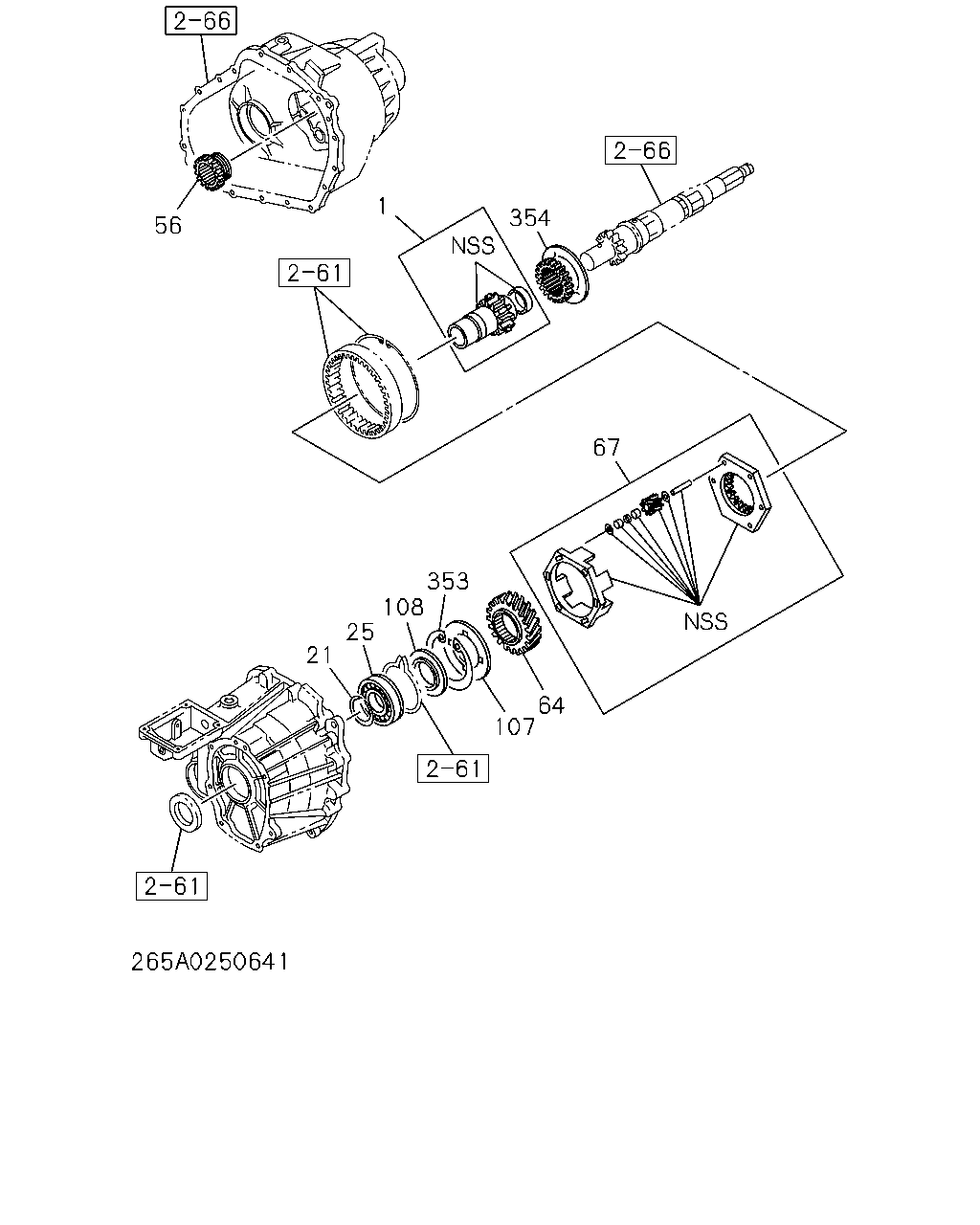

çizim 493513
56 354 1 67 353 108 25 21 107 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,INPUT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94381-284-2 01 1 9112-9504 ● ●
1 SHAFT; GEAR,INPUT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94381-284-2 01 1 9505- ● ●
1 SHAFT; GEAR,INPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-043-0 01 1 9505- ●
21 RING; SNAP,PILOT BRG
A/T AISIN(RMD),A/T THM(RMQ) 		8-94368-832-0 01 1 9112-9504 ● ●
21 RING; SNAP,PILOT BRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94368-832-0 01 1 9505- ● ●
21 RING; SNAP,PILOT BRG
VARIABLE TORQUE SPRIT<7HA> 		8-97129-047-0 01 1 9505- ●
25 BEARING; BALL,INPUT SHAFT
A/T AISIN(RMD),A/T THM(RMQ) NSK 		8-94422-052-0 01 1 9112-9504 ● ●
25 BEARING; BALL,INPUT SHAFT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> NSK 		8-94422-052-0 01 1 9505- ● ●
25 BEARING; BALL,INPUT SHAFT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT 		8-94422-053-0 01 1 9505- ● ●
25 BEARING; BALL,INPUT SHAFT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-001-0 01 1 9505- ●
56 GEAR; SPD DRIVE,TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-270-0 01 1 9505- ●
64 GEAR; SUN,TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-044-0 01 1 9505- ●
67 CARRIER; TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-048-0 01 1 9505- ●
107 PLATE; THRUST,SUN GEAR
VARIABLE TORQUE SPRIT<7HA> 		8-97129-045-0 01 1 9505- ●
108 HUB; INPUT SHAFT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-046-0 01 1 9505- ●
353 RING; SNAP,CARRIER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-049-0 01 1 9505- ●
354 HUB; REDUCTION
VARIABLE TORQUE SPRIT<7HA> 		8-97129-050-0 01 1 9505- ●
çizim 493798
21 25 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,INPUT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94381-284-2 01 1 9112-9504 ● ●
1 SHAFT; GEAR,INPUT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94381-284-2 01 1 9505- ● ●
1 SHAFT; GEAR,INPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-043-0 01 1 9505- ●
7 SPACER; INPUT SHAFT BRG
A/T AISIN(RMD),A/T THM(RMQ) 		8-94368-834-3 01 1 9112-9504 ● ●
7 SPACER; INPUT SHAFT BRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94368-834-3 01 1 9505- ● ●
21 RING; SNAP,PILOT BRG
A/T AISIN(RMD),A/T THM(RMQ) 		8-94368-832-0 01 1 9112-9504 ● ●
21 RING; SNAP,PILOT BRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94368-832-0 01 1 9505- ● ●
21 RING; SNAP,PILOT BRG
VARIABLE TORQUE SPRIT<7HA> 		8-97129-047-0 01 1 9505- ●
25 BEARING; BALL,INPUT SHAFT
A/T AISIN(RMD),A/T THM(RMQ) NSK 		8-94422-052-0 01 1 9112-9504 ● ●
25 BEARING; BALL,INPUT SHAFT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> NSK 		8-94422-052-0 01 1 9505- ● ●
25 BEARING; BALL,INPUT SHAFT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT 		8-94422-053-0 01 1 9505- ● ●
25 BEARING; BALL,INPUT SHAFT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-001-0 01 1 9505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
