Sayfa 2-62 - Isuzu EPC

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#166898) — 204 parça

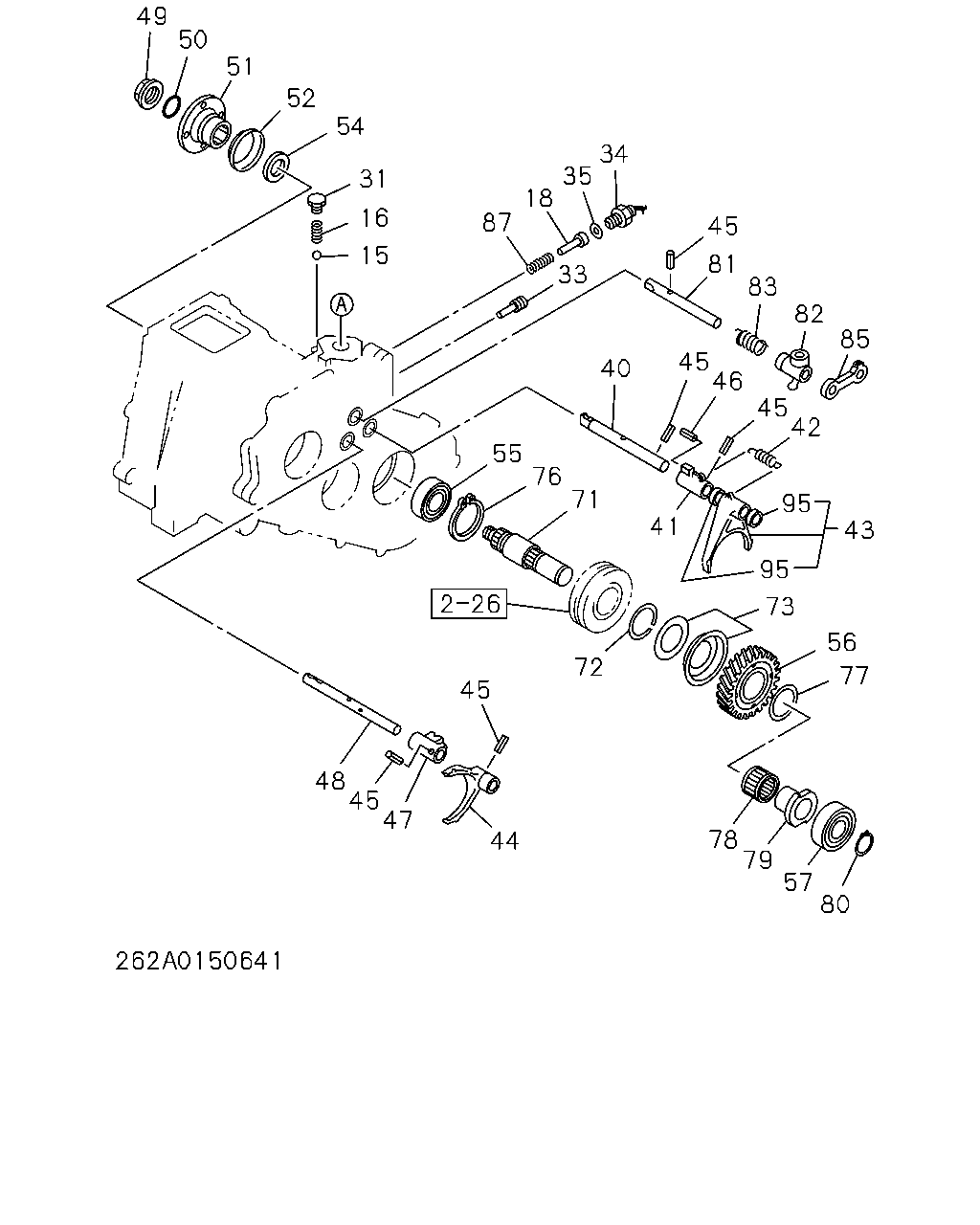

49 50 51 52 54 31 16 15 87 18 35 34 33 45 81 83 82 85 45 46 45 42 43 95 40 55 76 71 41 95 73 56 77 72 45 48 45 47 44 78 79 57 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	9112-9504	●	●
15	BALL; DETENT,SHIFT ROD,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94435-335-0	02	1	9505-	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER L=26.8	8-94320-193-0	02	1	9112-9208	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) L=26.8	8-94320-193-0	02	1	9209-9209	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER L=26.8	8-94320-193-0	02	1	9210-9504	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> L=26.8	8-94320-193-0	02	1	9505-9605	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> L=23.4	8-97145-374-0	02	1	9606-	●	●
18	PIN; INTER LOCK,SHIFT ROD,TRANSFER	8-94461-898-0	01	1	9112-9504	●	●
18	PIN; INTER LOCK,SHIFT ROD,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94461-898-0	01	1	9505-	●	●
31	PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	9112-9504	●	●
31	PLUG; DETENT BALL,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> M12X9	9-99202-312-0	02	1	9505-	●	●
33	SCREW; STOPPER,TRANSFER M8X18	8-94448-812-1	01	1	9112-9504	●	●
33	SCREW; STOPPER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> M8X18	8-94448-812-1	01	1	9505-	●	●
34	SWITCH; TRANSFER INDICATOR	5-82440-018-0	01	1	9112-9504	●	●
34	SWITCH; TRANSFER INDICATOR EXC. VARIABLE TORQUE SPRIT<7HA>	5-82440-018-0	01	1	9505-9511	●	●
34	SWITCH; TRANSFER INDICATOR EXC. VARIABLE TORQUE SPRIT<7HA>	8-97143-604-0	01	1	9512-9609	●	●
34	SWITCH; TRANSFER INDICATOR EXC. VARIABLE TORQUE SPRIT<7HA>	8-97138-632-0	01	1	9610-	●	●
35	GASKET; INDICATOR SWITCH,TRANSFER ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-9504	●	●
35	GASKET; INDICATOR SWITCH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER	8-94421-920-3	01	1	9112-9504	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-94421-920-3	01	1	9505-9505	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97070-675-1	01	1	9505-9505	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97070-675-1	01	1	9505-9505	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97070-675-1	01	1	9506-	●	●
41	BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97033-094-2	01	1	9112-9504	●	●
41	BLOCK; SHIFT,4X2-4X4,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-094-2	01	1	9505-	●	●
42	SPRING; GEAR LOCK RELEASE,TRANSFER L=30	8-94422-188-0	01	1	9112-9504	●	●
42	SPRING; GEAR LOCK RELEASE,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> L=30	8-94422-188-0	01	1	9505-	●	●
43	ARM; SHIFT,4X2-4X4,TRANSFER	8-94377-525-1	01	1	9112-9409	●	●
43	ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	9410-9504	●	●
43	ARM; SHIFT,4X2-4X4,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97100-915-2	01	1	9505-	●	●
44	ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	9112-9504	●	●
44	ARM; SHIFT,HIGH-LOW,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94421-922-3	01	1	9505-	●	●
45	PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	06	1	9112-9504	●	●
45	PIN; SPR,SHIFT ARM TO ROD EXC. VARIABLE TORQUE SPRIT<7HA> D=4.2 L=25	8-94171-541-0	06	1	9505-	●	●
46	PIN; SPR,SELECT LEVER	8-94448-816-1	01	1	9112-9504	●	●
46	PIN; SPR,SELECT LEVER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94448-816-1	01	1	9505-	●	●
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97033-090-1	01	1	9112-9504	●	●
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-090-1	01	1	9505-9605	●	●
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97141-883-1	01	1	9606-	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER	8-94421-919-3	01	1	9112-9504	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94421-919-3	01	1	9505-9605	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97141-882-1	01	1	9606-9708	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97182-406-0	01	1	9709-	●	●
49	NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	9112-9504	●	●
49	NUT; COUPLING DRIVER,FRT OUTPUT EXC. VARIABLE TORQUE SPRIT<7HA> M27 FLANGE	8-94422-073-0	01	1	9505-	●	●
50	GASKET; COUPLING DRIVER,FRT OUTPUT ID=29.7 OD=36.1	8-94483-035-0	01	1	9112-9504	●	●
50	GASKET; COUPLING DRIVER,FRT OUTPUT EXC. VARIABLE TORQUE SPRIT<7HA> ID=29.7 OD=36.1	8-94483-035-0	01	1	9505-	●	●
51	FLANGE ASM; COUPLING DRIVER,TRANSFER	8-94453-699-3	01	1	9112-9504	●	●
51	FLANGE ASM; COUPLING DRIVER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94453-699-5	01	1	9505-	●	●
52	COVER; DUST,TRANSFER FLANGE	8-94320-867-1	01	1	9112-9504	●	●
52	COVER; DUST,TRANSFER FLANGE EXC. VARIABLE TORQUE SPRIT<7HA>	8-94320-867-2	01	1	9505-	●	●
54	SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-0	01	1	9112-9504	●	●
54	SEAL; OIL,TRANSFER FLANGE EXC. VARIABLE TORQUE SPRIT<7HA> NOK	8-97046-703-2	01	1	9505-	●	●
54	SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	9302-9504	●	●
54	SEAL; OIL,TRANSFER FLANGE EXC. VARIABLE TORQUE SPRIT<7HA> TKK	8-97046-702-0	01	1	9505-	●	●
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE NSK	8-94422-172-0	01	1	9112-9504	●	●
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-172-0	01	1	9505-	●	●
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-173-1	01	1	9505-	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-94482-317-1	01	1	9112-9502	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=47	8-97120-120-0	01	1	9503-9504	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) Z=47	8-97120-120-0	01	1	9505-9505	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=47	8-97120-125-0	01	1	9505-9505	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=47	8-97120-125-0	01	1	9505-9605	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=49	8-97126-101-1	01	1	9606-	●	●
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE NSK	8-94422-052-0	01	1	9112-9504	●	●
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-052-0	01	1	9505-	●	●
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-053-0	01	1	9505-	●	●
71	SHAFT; TRANSFER OUTPUT	8-94421-900-5	01	1	9112-9504	●	●
71	SHAFT; TRANSFER OUTPUT EXC. VARIABLE TORQUE SPRIT<7HA>	8-94377-437-3	01	1	9505-	●	●
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9112-9301	●	●
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT	8-94482-501-0	01	1	9302-9308	●	●
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9309-	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED(RMN)	8-94320-569-0	01	1	9112-9301	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR	8-94320-569-0	01	1	9302-9308	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED(RMN)	8-94320-569-0	01	1	9309-9605	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED(RMN)	8-97126-125-1	01	1	9606-9606	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9607-	●	●
76	RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	9112-9504	●	●
76	RING; SNAP,BRG OUTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> OD=77.0	8-94422-092-0	01	1	9505-	●	●
77	SPRING; BELLEVILLE,ANTI LASH PLATE M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9112-9301	●	●
77	SPRING; BELLEVILLE,ANTI LASH PLATE	8-94482-499-0	01	1	9302-9308	●	●
77	SPRING; BELLEVILLE,ANTI LASH PLATE M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9309-	●	●
78	BEARING; FRT OUTPUT GEAR,TRANSFER NSK	8-94422-064-0	01	1	9112-9504	●	●
78	BEARING; FRT OUTPUT GEAR,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-064-0	01	1	9505-	●	●
78	BEARING; FRT OUTPUT GEAR,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-065-1	01	1	9505-	●	●
79	COLLAR; FRT OUTPUT GEAR,TRANSFER	8-97031-079-0	01	1	9112-9412	●	●
79	COLLAR; FRT OUTPUT GEAR,TRANSFER	8-94422-076-1	01	1	9501-9504	●	●
79	COLLAR; FRT OUTPUT GEAR,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94422-076-1	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.55 WHITE	8-94422-180-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.60 YELLOW	8-94422-181-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.65 BLUE	8-94422-182-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.70 PINK	8-94422-183-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.75 GREEN	8-94422-184-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.80 BROWN	8-94422-185-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.85 RED	8-94422-186-0	01	1	9505-	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	9112-9504	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.90 ORANGE	8-94422-187-0	01	1	9505-	●	●
81	ROD; TRANSFER SELECT	8-94370-499-0	01	1	9112-9205	●	●
81	ROD; TRANSFER SELECT A/T AISIN(RMD),A/T THM(RMQ)	8-94370-499-0	01	1	9206-9209	●	●
81	ROD; TRANSFER SELECT	8-94370-499-2	01	1	9210-9504	●	●
81	ROD; TRANSFER SELECT EXC. VARIABLE TORQUE SPRIT<7HA>	8-94370-499-2	01	1	9505-	●	●
82	BLOCK; TRANSFER	8-97033-092-1	01	1	9112-9504	●	●
82	BLOCK; TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-092-1	01	1	9505-	●	●
83	SPRING; SELECT	8-94462-235-0	01	1	9112-9504	●	●
83	SPRING; SELECT EXC. VARIABLE TORQUE SPRIT<7HA>	8-94462-235-0	01	1	9505-	●	●
85	BRIDGE; CONT ROD,TRANSFER	8-94422-440-0	01	1	9112-9504	●	●
85	BRIDGE; CONT ROD,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94422-440-0	01	1	9505-9508	●	●
85	BRIDGE; CONT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94422-440-0	01	1	9509-9509	●	●
85	BRIDGE; CONT ROD,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97128-522-0	01	1	9509-9509	●	●
85	BRIDGE; CONT ROD,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97128-522-0	01	1	9510-	●	●
87	SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	9112-9504	●	●
87	SPRING; INTER LOCK,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94461-897-0	01	1	9505-	●	●
95	BUSHING	8-97103-115-0	02	1	9410-9504	●	●
95	BUSHING EXC. VARIABLE TORQUE SPRIT<7HA>	8-97103-115-0	02	1	9505-	●	●

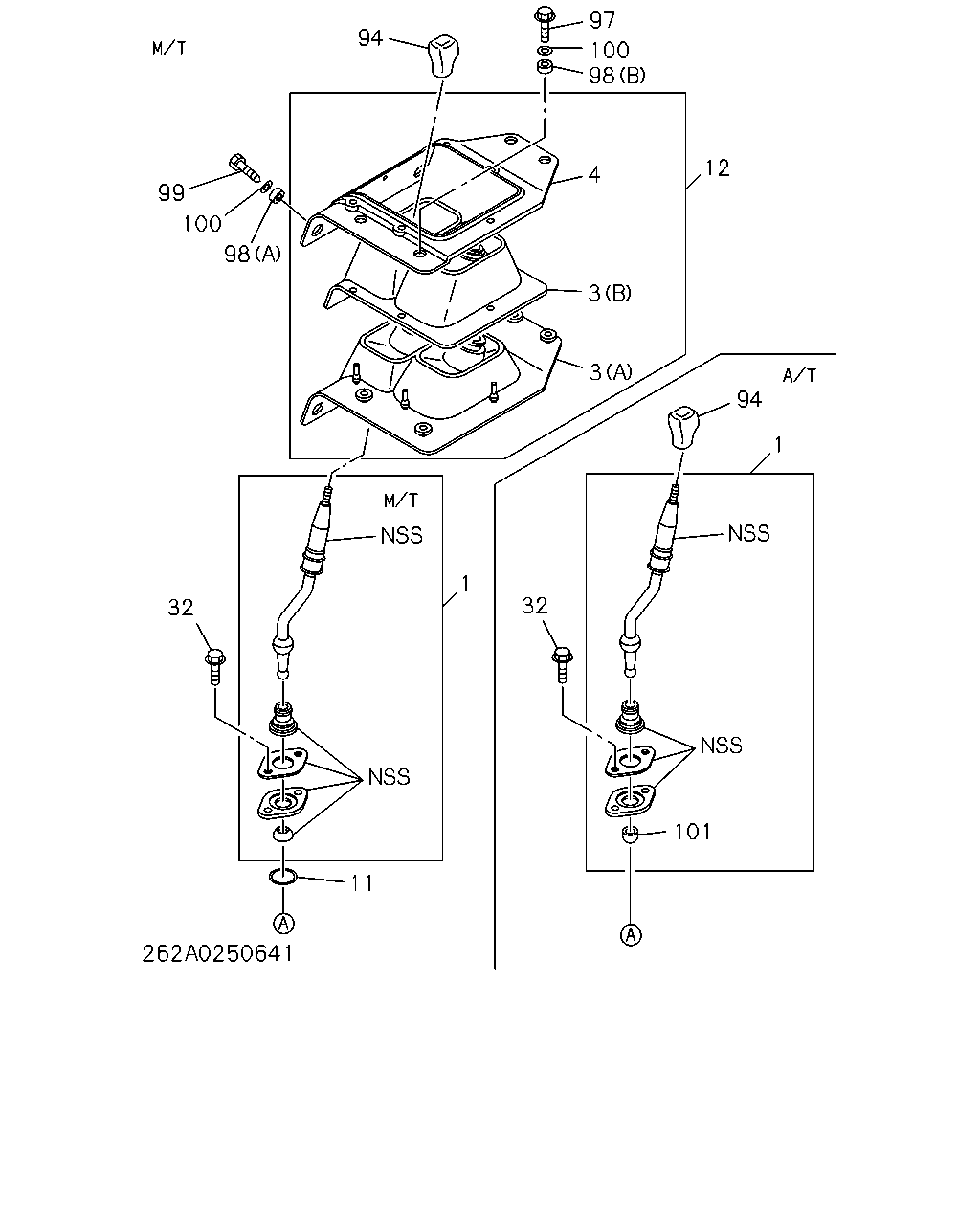

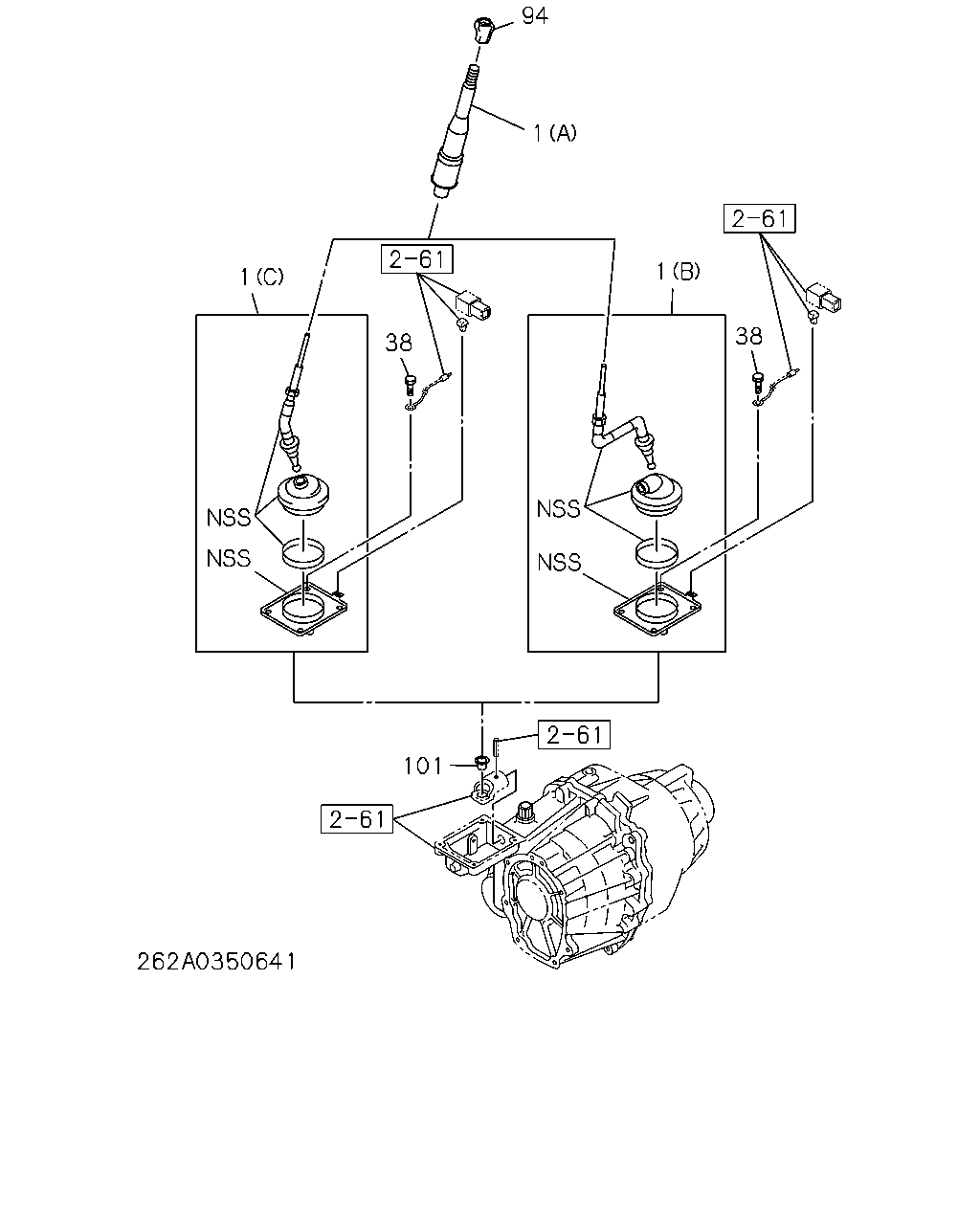

94 97 100 98 12 4 3 3 1 94 99 100 1 32 32 11 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; TRANSFER CONT A/T AISIN(RMD)	8-94375-558-3	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97090-613-0	01	1	9505-	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ)	8-94375-557-3	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> BROWN MARK	8-97090-612-0	01	1	9505-9605	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> BROWN MARK	8-97090-612-0	01	1	9605-	●	●
1	LEVER ASM; TRANSFER CONT M/T MUA 5 SPEED(RMN)	8-94375-556-4	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) PINK MARK	8-97090-611-1	01	1	9505-9707	●	●
1	LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97179-998-0	01	1	9708-	●	●
1	LEVER ASM; TRANSFER CONT 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) BLUE MARK	8-97090-610-1	01	1	9505-9707	●	●
1	LEVER ASM; TRANSFER CONT 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97179-996-0	01	1	9708-	●	●
1	LEVER ASM; TRANSFER CONT VARIABLE TORQUE SPRIT<7HA> (A)	8-97090-614-0	01	1	9505-		●
1	LEVER ASM; TRANSFER CONT A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA> (B)	8-97129-296-0	01	1	9505-		●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> (C)	8-97129-292-0	01	1	9505-		●
3	COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN) (A)	8-94381-105-2	01	1	9112-	●	●
3	COVER; DUST,CHANGE LEVER M/T MUA 5 SPEED(RMN) (B)	8-94381-106-1	01	1	9112-	●	●
4	RETAINER; CHANGE LEVER,TRANSFER M/T MUA 5 SPEED(RMN)	8-94381-046-1	01	1	9112-	●	●
11	GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) ID=35.2	9-09561-235-0	01	1	9112-	●	●
12	GROMMET; TRANSFER LEVER M/T MUA 5 SPEED(RMN)	8-94380-946-2	01	1	9112-	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE M8X16 FLANGE	0-28010-816-0	02	1	9112-9204	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE M8X16 FLANGE	0-28080-816-0	02	1	9205-9504	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE EXC. VARIABLE TORQUE SPRIT<7HA> M8X16 FLANGE	0-28080-816-0	02	1	9505-9711	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE EXC. VARIABLE TORQUE SPRIT<7HA> M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●
94	KNOB; TRANSFER LEVER VARIABLE TORQUE SPRIT<7HA> EXC. CONVENIENT PACKAGE<6QZ>	8-97133-235-0	01	1	9511-	●	●
94	KNOB; TRANSFER LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-142-1	01	1	9112-9307	●	●
94	KNOB; TRANSFER LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-144-1	01	1	9112-9307	●	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ> BLACK	8-94453-161-1	01	1	9308-9504	●	●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9505-9505	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA> BLACK	8-94453-161-1	01	1	9505-9505		●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9506-9511	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA>,LOTUS JB LIMITED MODEL(7NF) BLACK	8-94453-161-1	01	1	9506-9511		●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9511-9605	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) BLACK	8-94453-161-1	01	1	9511-9605		●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9606-	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA> BLACK	8-94453-161-1	01	1	9606-		●
94	KNOB; TRANSFER LEVER CONVENIENT PACKAGE<6QZ> BLACK	8-97096-174-0	01	1	9308-9504		●
94	KNOB; TRANSFER LEVER A/T AISIN(RMD),A/T THM(RMQ) CONVENIENT PACKAGE<6QZ> EXC. VARIABLE TORQUE SPRIT<7HA> BLACK	8-97096-174-0	01	1	9505-		●
94	KNOB; TRANSFER LEVER VARIABLE TORQUE SPRIT<7HA> BLACK	8-97110-334-0	01	1	9505-9510		●
94	KNOB; TRANSFER LEVER CONVENIENT PACKAGE<6QZ> VARIABLE TORQUE SPRIT<7HA> BLACK	8-97110-334-0	01	1	9511-		●
97	BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25	0-28410-825-0	04	1	9112-9204	●	●
97	BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25 FLANGE	0-28480-825-0	04	1	9205-9302	●	●
97	BOLT; GROMMET M/T MUA 5 SPEED(RMN) M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9303-	●	●
98	PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN) (A) OD=13 T=4.5	8-94230-464-1	02	1	9112-	●	●
98	PIECE; DIST,GROMMET M/T MUA 5 SPEED(RMN) (B) OD=15 T=6.8	8-94437-495-0	04	1	9112-	●	●
99	SCREW; GROMMET M/T MUA 5 SPEED(RMN)	8-94220-277-0	02	1	9112-	●	●
100	WASHER; GROMMET M/T MUA 5 SPEED(RMN) ID=8.4 OD=22	9-09164-708-0	06	1	9112-9302	●	●
100	WASHER; GROMMET M/T MUA 5 SPEED(RMN) ID=8.4 OD=22	9-09164-708-0	02	1	9303-	●	●
101	BUSHING; CHANGE LEVER A/T AISIN(RMD),A/T THM(RMQ)	8-94442-099-0	01	1	9112-9504	●	●
101	BUSHING; CHANGE LEVER A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94442-099-0	01	1	9505-	●	●
101	BUSHING; CHANGE LEVER VARIABLE TORQUE SPRIT<7HA>	8-97129-327-0	01	1	9505-		●

94 1 1 38 1 38 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; TRANSFER CONT A/T AISIN(RMD)	8-94375-558-3	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97090-613-0	01	1	9505-	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ)	8-94375-557-3	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> BROWN MARK	8-97090-612-0	01	1	9505-9605	●	●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> BROWN MARK	8-97090-612-0	01	1	9605-	●	●
1	LEVER ASM; TRANSFER CONT M/T MUA 5 SPEED(RMN)	8-94375-556-4	01	1	9112-9504	●	●
1	LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) PINK MARK	8-97090-611-1	01	1	9505-9707	●	●
1	LEVER ASM; TRANSFER CONT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97179-998-0	01	1	9708-	●	●
1	LEVER ASM; TRANSFER CONT 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) BLUE MARK	8-97090-610-1	01	1	9505-9707	●	●
1	LEVER ASM; TRANSFER CONT 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97179-996-0	01	1	9708-	●	●
1	LEVER ASM; TRANSFER CONT VARIABLE TORQUE SPRIT<7HA> (A)	8-97090-614-0	01	1	9505-		●
1	LEVER ASM; TRANSFER CONT A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA> (B)	8-97129-296-0	01	1	9505-		●
1	LEVER ASM; TRANSFER CONT A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> (C)	8-97129-292-0	01	1	9505-		●
38	BOLT; CHANGE LEVER TO CASE VARIABLE TORQUE SPRIT<7HA>	8-97129-290-0	04	1	9505-		●
94	KNOB; TRANSFER LEVER VARIABLE TORQUE SPRIT<7HA> EXC. CONVENIENT PACKAGE<6QZ>	8-97133-235-0	01	1	9511-	●	●
94	KNOB; TRANSFER LEVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-142-1	01	1	9112-9307	●	●
94	KNOB; TRANSFER LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-144-1	01	1	9112-9307	●	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ> BLACK	8-94453-161-1	01	1	9308-9504	●	●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9505-9505	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA> BLACK	8-94453-161-1	01	1	9505-9505		●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9506-9511	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA>,LOTUS JB LIMITED MODEL(7NF) BLACK	8-94453-161-1	01	1	9506-9511		●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9511-9605	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) BLACK	8-94453-161-1	01	1	9511-9605		●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	9606-	●
94	KNOB; TRANSFER LEVER EXC. CONVENIENT PACKAGE<6QZ>,VARIABLE TORQUE SPRIT<7HA> BLACK	8-94453-161-1	01	1	9606-		●
94	KNOB; TRANSFER LEVER CONVENIENT PACKAGE<6QZ> BLACK	8-97096-174-0	01	1	9308-9504		●
94	KNOB; TRANSFER LEVER A/T AISIN(RMD),A/T THM(RMQ) CONVENIENT PACKAGE<6QZ> EXC. VARIABLE TORQUE SPRIT<7HA> BLACK	8-97096-174-0	01	1	9505-		●
94	KNOB; TRANSFER LEVER VARIABLE TORQUE SPRIT<7HA> BLACK	8-97110-334-0	01	1	9505-9510		●
94	KNOB; TRANSFER LEVER CONVENIENT PACKAGE<6QZ> VARIABLE TORQUE SPRIT<7HA> BLACK	8-97110-334-0	01	1	9511-		●
101	BUSHING; CHANGE LEVER A/T AISIN(RMD),A/T THM(RMQ)	8-94442-099-0	01	1	9112-9504	●	●
101	BUSHING; CHANGE LEVER A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94442-099-0	01	1	9505-	●	●
101	BUSHING; CHANGE LEVER VARIABLE TORQUE SPRIT<7HA>	8-97129-327-0	01	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
