2-61 — TRANSFER CASE AND GEAR SHIFTER (#166897) — 112 parça

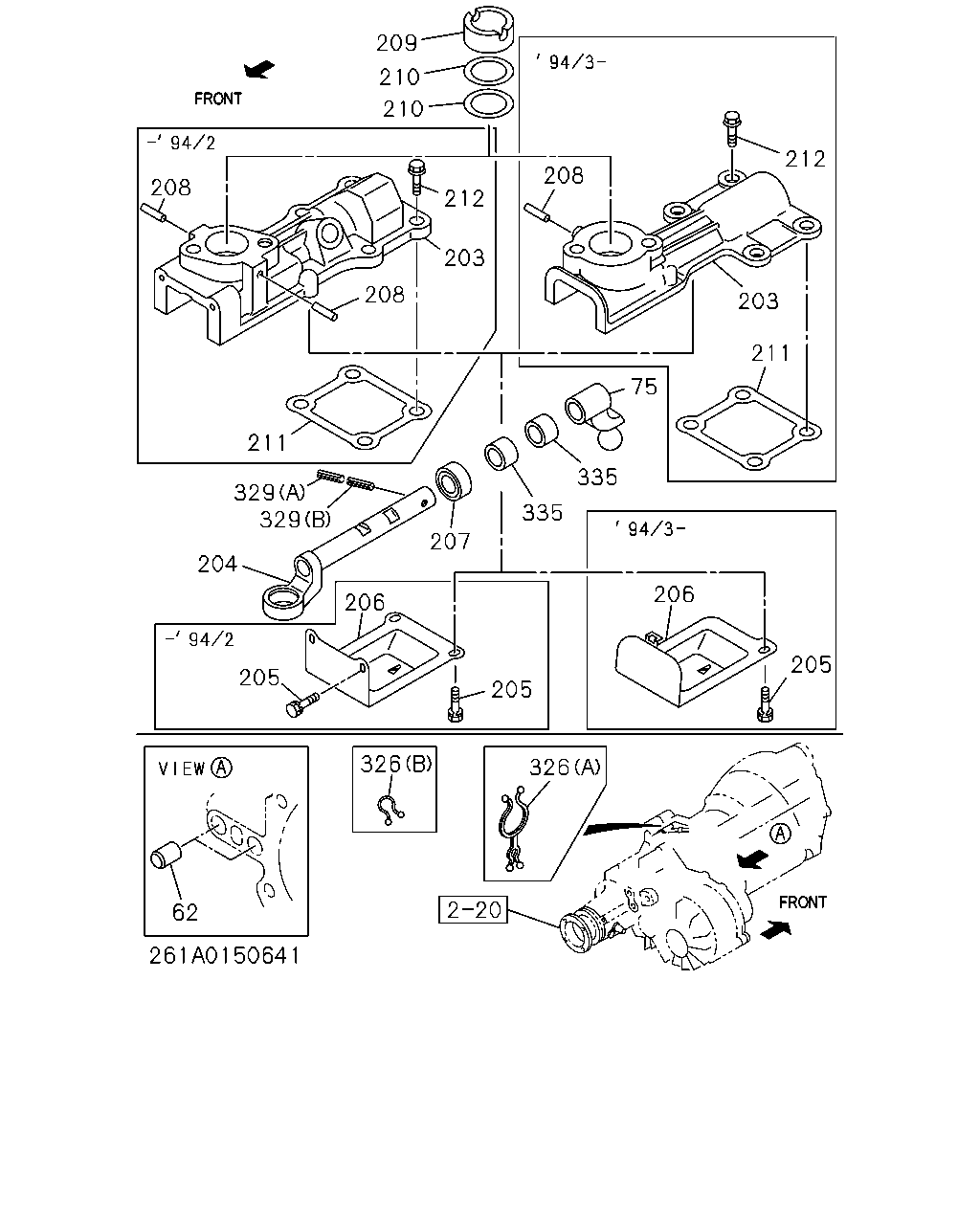

çizim 493913
209 210 210 212 203 208 208 208 211 329 329 204 207 335 335 75 203 211 212 205 206 205 326 326 205 206 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 CAP; SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) 		8-94321-479-1 02 1 9112-9504 ● ●
62 CAP; SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94321-479-1 02 1 9505- ● ●
75 LEVER ASM; L-H CONT,INTERNAL
A/T AISIN(RMD),A/T THM(RMQ) 		8-94367-929-2 01 1 9112-9504 ● ●
75 LEVER ASM; L-H CONT,INTERNAL
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94367-929-2 01 1 9505- ● ●
203 BOX; TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94367-926-1 01 1 9112-9402 ● ●
203 BOX; TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) 		8-97106-782-0 01 1 9403-9504 ● ●
203 BOX; TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-97106-782-2 01 1 9505- ● ●
204 ROD; SHIFT,TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94367-928-2 01 1 9112-9504 ● ●
204 ROD; SHIFT,TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94367-928-3 01 1 9505- ● ●
204 ROD; SHIFT,TRANSFER CONT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-282-0 01 1 9505- ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) M6X12 W/LK WASHER 		9-01900-612-0 04 1 9112-9204 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) M6X12 W/LK WASHER 		0-50040-612-0 04 1 9205-9402 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) M6X10 		9-03497-610-0 01 1 9403-9504 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> M6X10 		9-03497-610-0 01 1 9505-9509 ● ●
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> M6X8 		9-03490-608-0 01 1 9510- ● ●
206 COVER; DUST,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		8-94367-927-1 01 1 9112-9402 ● ●
206 COVER; DUST,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		8-97106-784-0 01 1 9403-9504 ● ●
206 COVER; DUST,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-97106-784-1 01 1 9505- ● ●
207 SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		8-94221-533-1 01 1 9112-9504 ● ●
207 SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94221-533-1 01 1 9505- ● ●
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		8-94204-186-0 02 1 9112-9402 ● ●
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		8-94204-186-0 01 1 9403-9504 ● ●
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94204-186-0 01 1 9505- ● ●
209 SEAT; BALL,CHANGE LEVER,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		5-33619-042-0 01 1 9112-9504 ● ●
209 SEAT; BALL,CHANGE LEVER,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		5-33619-042-0 01 1 9505- ● ●
210 SPRING; BALL SEAT,CHANGE LEVER,TRANSFE
A/T AISIN(RMD),A/T THM(RMQ) 		9-33619-632-0 02 1 9112-9504 ● ●
210 SPRING; BALL SEAT,CHANGE LEVER,TRANSFE
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		9-33619-632-0 02 1 9505- ● ●
211 GASKET; CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) 		8-94368-327-0 01 1 9112-9504 ● ●
211 GASKET; CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94368-327-0 01 1 9505- ● ●
212 BOLT; CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) M8X22 FLANGE 		0-28080-822-0 04 1 9112-9504 ● ●
212 BOLT; CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> M8X22 FLANGE 		0-28080-822-0 04 1 9505-9706 ● ●
212 BOLT; CONT BOX,TRANSFER
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> M8X25 FLANGE 		0-28680-825-0 04 1 9707- ● ●
326 CLIP; HARNESS
ID=44 		8-94420-658-0 01 1 9112-9209 ● ●
326 CLIP; HARNESS
A/T AISIN(RMD) GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) (A) ID=44 		8-94420-658-0 01 1 9210-9211 ● ●
326 CLIP; HARNESS
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) (A) ID=44 		8-94420-658-0 01 1 9210-9211 ● ●
326 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=44 		8-94420-658-0 01 1 9212- ● ●
326 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=11.5 		1-09709-083-0 01 1 9209-9504 ● ●
326 CLIP; HARNESS
A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> (B) ID=11.5 		1-09709-083-0 01 1 9505- ● ●
326 CLIP; HARNESS
VARIABLE TORQUE SPRIT<7HA> 		8-97129-207-0 01 1 9505- ●
329 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) (A) OD=5.4 		9-09678-510-0 01 1 9112-9504 ● ●
329 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> (A) OD=5.4 		9-09678-510-0 01 1 9505- ● ●
329 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) (B) OD=3.3 		9-09678-519-0 01 1 9112-9402 ● ●
329 PIN; SPRING,SHIFT ROD
VARIABLE TORQUE SPRIT<7HA> 		8-97129-329-0 01 1 9505- ●
335 BUSHING
A/T AISIN(RMD),A/T THM(RMQ) 		8-94388-205-1 02 1 9112-9504 ● ●
335 BUSHING
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94388-205-1 02 1 9505- ● ●

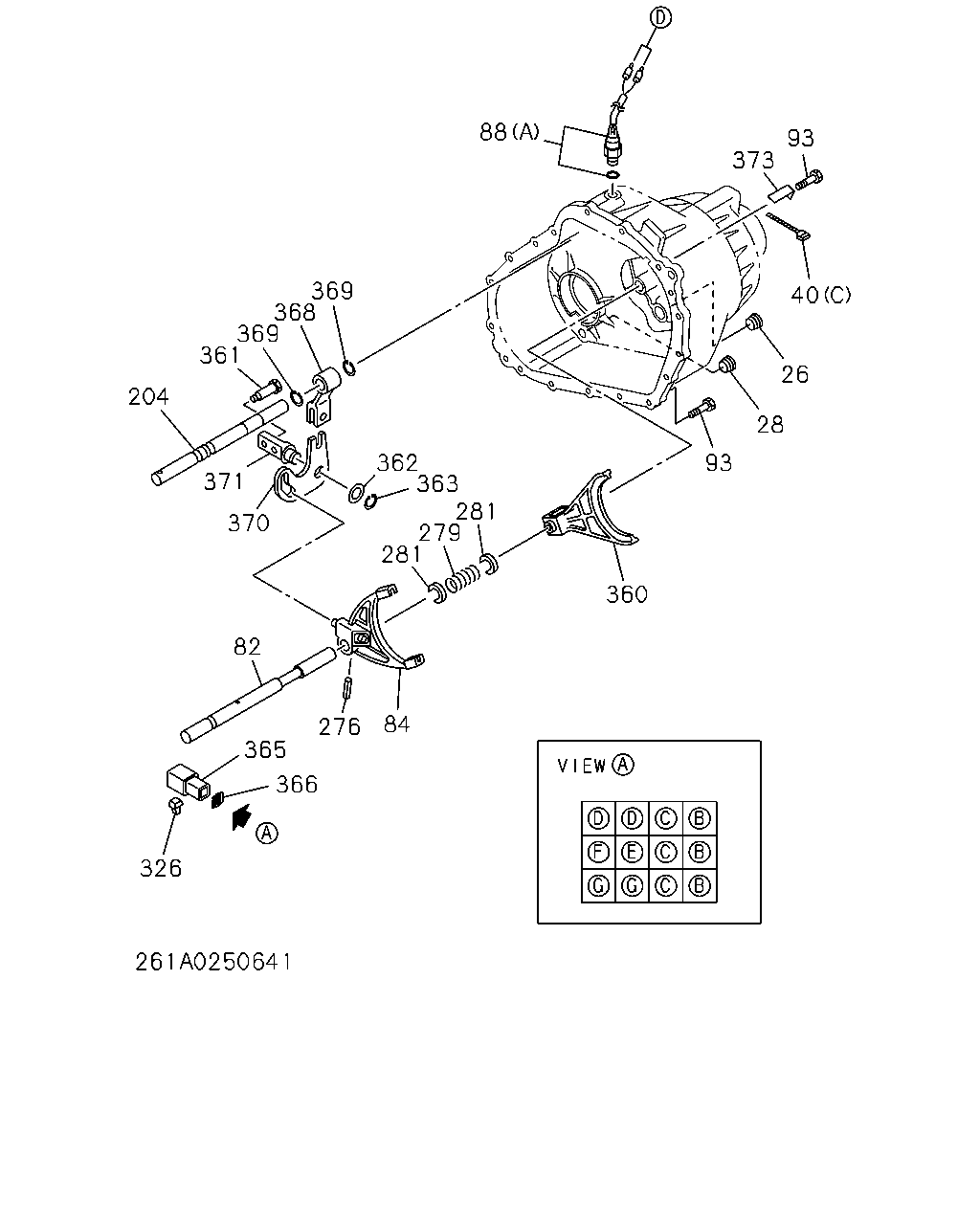

çizim 493950
369 368 369 361 204 370 371 362 363 281 279 281 276 365 366 84 82 326 360 93 28 26 40 373 93 88
BalonParca AdiParca NoAdetTipApplied Date A B
26 PLUG; FILLER,TRANSFER CASE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-280-0 01 1 9505- ●
28 PLUG; DRAIN,TRANSFER CASE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-280-0 01 1 9505- ●
40 CLIP; HARNESS
VARIABLE TORQUE SPRIT<7HA> (B) 		8-97129-219-0 01 1 9505- ●
40 CLIP; HARNESS
VARIABLE TORQUE SPRIT<7HA> (C) 		8-97131-242-0 01 1 9505- ●
40 CLIP; HARNESS
A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> (A) 		8-97129-218-0 01 1 9505- ●
82 ROD; SHIFT,LOW & HIGH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-054-0 01 1 9505- ●
84 FORK; SHIFT,LOW & HIGH
VARIABLE TORQUE SPRIT<7HA> 		8-97129-051-0 01 1 9505- ●
88 SWITCH; 4WD,TRANSFER
VARIABLE TORQUE SPRIT<7HA> (A) 		8-97129-330-0 01 1 9505- ●
88 SWITCH; 4WD,TRANSFER
VARIABLE TORQUE SPRIT<7HA> (B) 		8-97129-331-0 01 1 9505- ●
93 BOLT; TRANSFER CASE TO RR COVER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-274-0 16 1 9505- ●
204 ROD; SHIFT,TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) 		8-94367-928-2 01 1 9112-9504 ● ●
204 ROD; SHIFT,TRANSFER CONT
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94367-928-3 01 1 9505- ● ●
204 ROD; SHIFT,TRANSFER CONT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-282-0 01 1 9505- ●
276 PIN; SHIFT FORK
VARIABLE TORQUE SPRIT<7HA> 		8-97129-052-0 01 1 9505- ●
279 SPRING; SHIFT ROD
VARIABLE TORQUE SPRIT<7HA> 		8-97129-284-0 01 1 9505- ●
281 RETAINER; SPRING
VARIABLE TORQUE SPRIT<7HA> 		8-97129-285-0 02 1 9505- ●
326 CLIP; HARNESS
ID=44 		8-94420-658-0 01 1 9112-9209 ● ●
326 CLIP; HARNESS
A/T AISIN(RMD) GRADE BASIC OR LS(RBA),GRADE IRMSHER (RBQ) (A) ID=44 		8-94420-658-0 01 1 9210-9211 ● ●
326 CLIP; HARNESS
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) (A) ID=44 		8-94420-658-0 01 1 9210-9211 ● ●
326 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=44 		8-94420-658-0 01 1 9212- ● ●
326 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=11.5 		1-09709-083-0 01 1 9209-9504 ● ●
326 CLIP; HARNESS
A/T AISIN(RMD) EXC. VARIABLE TORQUE SPRIT<7HA> (B) ID=11.5 		1-09709-083-0 01 1 9505- ● ●
326 CLIP; HARNESS
VARIABLE TORQUE SPRIT<7HA> 		8-97129-207-0 01 1 9505- ●
360 FORK; SHIFT,LOCKUP
VARIABLE TORQUE SPRIT<7HA> 		8-97129-283-0 01 1 9505- ●
361 BOLT; CAM PIVOT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-289-0 02 1 9505- ●
362 WASHER; THRUST,CAM
VARIABLE TORQUE SPRIT<7HA> 		8-97129-332-0 01 1 9505- ●
363 RING; SNAP,CAM
VARIABLE TORQUE SPRIT<7HA> 		8-97129-333-0 01 1 9505- ●
365 CONNECTOR; HARNESS
VARIABLE TORQUE SPRIT<7HA> 		8-97129-211-0 01 1 9505- ●
366 HOLDER; LOCK
VARIABLE TORQUE SPRIT<7HA> 		8-97129-212-0 01 1 9505- ●
368 LEVER; REDUCTION
VARIABLE TORQUE SPRIT<7HA> 		8-97129-214-0 01 1 9505- ●
369 RING; SNAP,REDUCTION LEVER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-215-0 02 1 9505- ●
370 CAM; SHIFT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-216-0 01 1 9505- ●
371 BLOCK; CAM PIVOT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-217-0 01 1 9505- ●
373 BRACKET; HARNESS
VARIABLE TORQUE SPRIT<7HA> 		8-97131-240-0 01 1 9505- ●

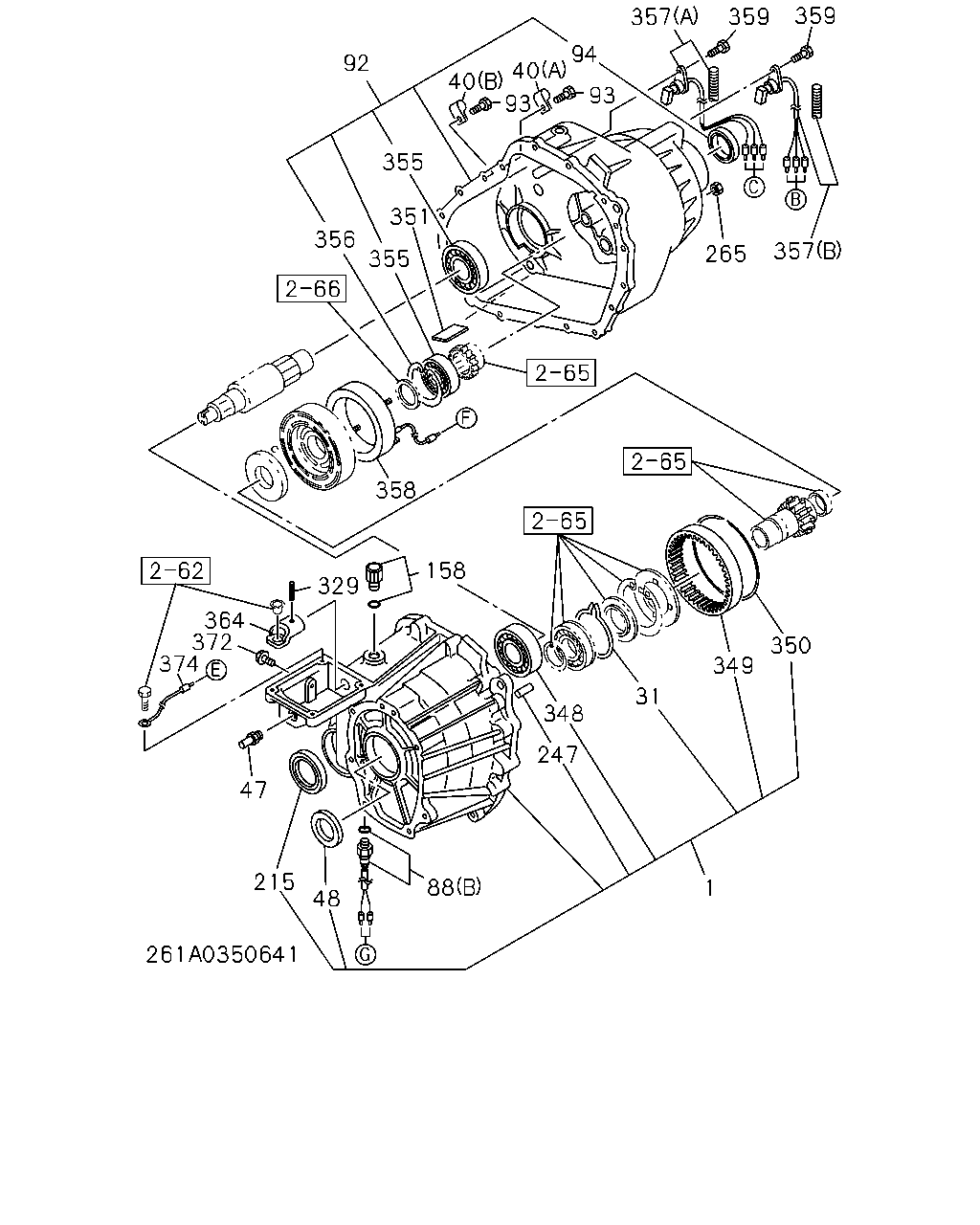

çizim 493983
92 355 351 355 356 40 40 94 93 93 357 359 359 357 265 349 350 31 348 247 1 88 158 358 329 364 372 374 47 215 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-000-0 01 1 9505- ●
31 RING; SNAP,INPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-002-0 01 1 9505- ●
40 CLIP; HARNESS
VARIABLE TORQUE SPRIT<7HA> (B) 		8-97129-219-0 01 1 9505- ●
40 CLIP; HARNESS
VARIABLE TORQUE SPRIT<7HA> (C) 		8-97131-242-0 01 1 9505- ●
40 CLIP; HARNESS
A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> (A) 		8-97129-218-0 01 1 9505- ●
47 BREATHER; TRANSFER CASE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-053-0 01 1 9505- ●
48 SEAL; OIL,INPUT SHAFT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-041-0 01 1 9505- ●
88 SWITCH; 4WD,TRANSFER
VARIABLE TORQUE SPRIT<7HA> (A) 		8-97129-330-0 01 1 9505- ●
88 SWITCH; 4WD,TRANSFER
VARIABLE TORQUE SPRIT<7HA> (B) 		8-97129-331-0 01 1 9505- ●
92 COVER; RR,TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-335-0 01 1 9505- ●
93 BOLT; TRANSFER CASE TO RR COVER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-274-0 16 1 9505- ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). VARIABLE TORQUE SPRIT<7HA> 		8-97129-040-0 01 1 9505- ●
158 PLUG; DETENT BALL
VARIABLE TORQUE SPRIT<7HA> 		8-97129-334-0 01 1 9505- ●
215 SEAL; OIL,TRANSFER CASE,FRT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-040-0 01 1 9505- ●
247 PIN; DOWEL,TRANSFER CASE COVER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-039-0 02 1 9505- ●
265 NUT; TRANSFER CASE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-272-0 03 1 9505- ●
329 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) (A) OD=5.4 		9-09678-510-0 01 1 9112-9504 ● ●
329 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> (A) OD=5.4 		9-09678-510-0 01 1 9505- ● ●
329 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD),A/T THM(RMQ) (B) OD=3.3 		9-09678-519-0 01 1 9112-9402 ● ●
329 PIN; SPRING,SHIFT ROD
VARIABLE TORQUE SPRIT<7HA> 		8-97129-329-0 01 1 9505- ●
348 BEARING; FRT OUTPUT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-037-0 01 1 9505- ●
349 GEAR; RING
VARIABLE TORQUE SPRIT<7HA> 		8-97129-038-0 01 1 9505- ●
350 RING; SNAP,RING GEAR
VARIABLE TORQUE SPRIT<7HA> 		8-97129-042-0 01 1 9505- ●
351 MAGNET; CASE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-228-0 01 1 9505- ●
355 BEARING; OUTPUT SHAFT
VARIABLE TORQUE SPRIT<7HA> 		8-97129-037-0 02 1 9505- ●
356 RING; SNAP,BEARING
VARIABLE TORQUE SPRIT<7HA> 		8-97129-268-0 01 1 9505- ●
357 SENSOR; SPEED
VARIABLE TORQUE SPRIT<7HA> (B) REAR 		8-97129-266-0 01 1 9505- ●
357 SENSOR; SPEED
VARIABLE TORQUE SPRIT<7HA> (A) FRONT 		8-97129-267-0 01 1 9505- ●
358 COIL; TRANSFER
VARIABLE TORQUE SPRIT<7HA> 		8-97129-271-0 01 1 9505- ●
359 BOLT; SENSOR
VARIABLE TORQUE SPRIT<7HA> 		8-97129-279-0 02 1 9505- ●
364 LEVER; GUIDE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-328-0 01 1 9505- ●
372 BOLT; SHIFT GUIDE
VARIABLE TORQUE SPRIT<7HA> 		8-97129-281-0 01 1 9505- ●
374 WIRE; POWER GND
VARIABLE TORQUE SPRIT<7HA> 		8-97129-916-0 01 1 9505- ●
