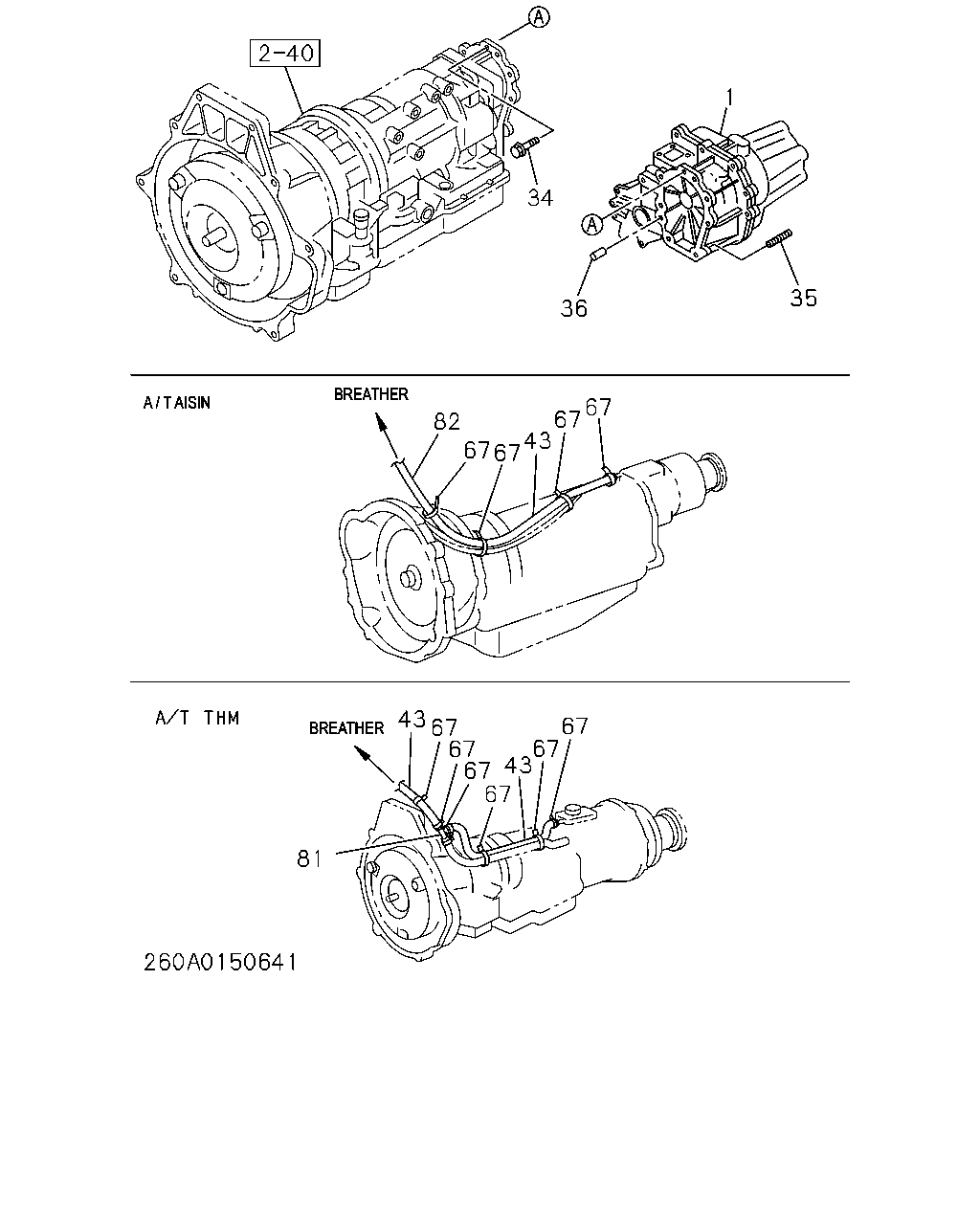

2-60 — TRANSFER (#166896) — 26 parça

34 36 1 35 67 82 67 43 67 67 43 67 67 67 67 43 67 67 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ)	8-97069-207-0	01	1	9112-9404	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ)	8-97041-215-0	01	1	9405-9409	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ)	8-97104-003-0	01	1	9410-9504	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97104-005-0	01	1	9505-9510	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97102-946-0	01	1	9511-9605	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97145-378-0	01	1	9606-	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ) MANUAL LOCKING HUB(ED2)	8-97104-004-0	01	1	9505-9510	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ) MANUAL LOCKING HUB(ED2)	8-97102-945-0	01	1	9511-9605	●	●
1	TRANSFER ASM A/T AISIN(RMD),A/T THM(RMQ) MANUAL LOCKING HUB(ED2)	8-97145-377-0	01	1	9606-	●	●
1	TRANSFER ASM A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA>	8-97089-931-1	01	1	9505-		●
1	TRANSFER ASM A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA>	8-97089-930-1	01	1	9505-		●
34	BOLT; TRANSFER A/T AISIN(RMD),A/T THM(RMQ) M10X30 FLANGE	0-28081-030-0	04	1	9112-9609	●	●
34	BOLT; TRANSFER A/T AISIN(RMD),A/T THM(RMQ) M10X35 FLANGE	0-28681-035-0	07	1	9610-9708	●	●
34	BOLT; TRANSFER A/T AISIN(RMD),A/T THM(RMQ) M10X35 FLANGE	0-28081-035-0	07	1	9709-	●	●
35	STUD; TRANSFER A/T AISIN(RMD),A/T THM(RMQ) M10X28,M10X15 L=50	5-09300-050-0	03	1	9112-9609	●	●
36	PIN; KNOCK,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) OD=10 L=20	9-08161-020-0	02	1	9112-9507	●	●
36	PIN; KNOCK,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) OD=10 L=20	8-97135-423-0	02	1	9508-	●	●
43	HOSE; RUBBER,BREATHER A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA> L=135 SERVICED BY L=3000	0-02857-300-0	01	1	9505-		●
43	HOSE; RUBBER,BREATHER A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> L=130 SERVICED BY L=3000	0-02857-300-0	01	1	9505-		●
43	HOSE; RUBBER,BREATHER A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> L=500 SERVICED BY L=3000	0-02857-300-0	01	1	9505-		●
67	CLIP; BAND A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA> L=140	5-09707-031-0	03	1	9505-		●
67	CLIP; BAND A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA> ID=12	8-94238-610-0	01	1	9505-		●
67	CLIP; BAND A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> L=140	5-09707-031-0	02	1	9505-		●
67	CLIP; BAND A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> ID=12	8-94238-610-0	04	1	9505-		●
81	PIPE; BREATHER A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> 3WAY	8-94211-900-1	01	1	9505-		●
82	BREATHER; AIR A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA> L=39	8-94440-556-0	01	1	9505-		●
